NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )NRE180

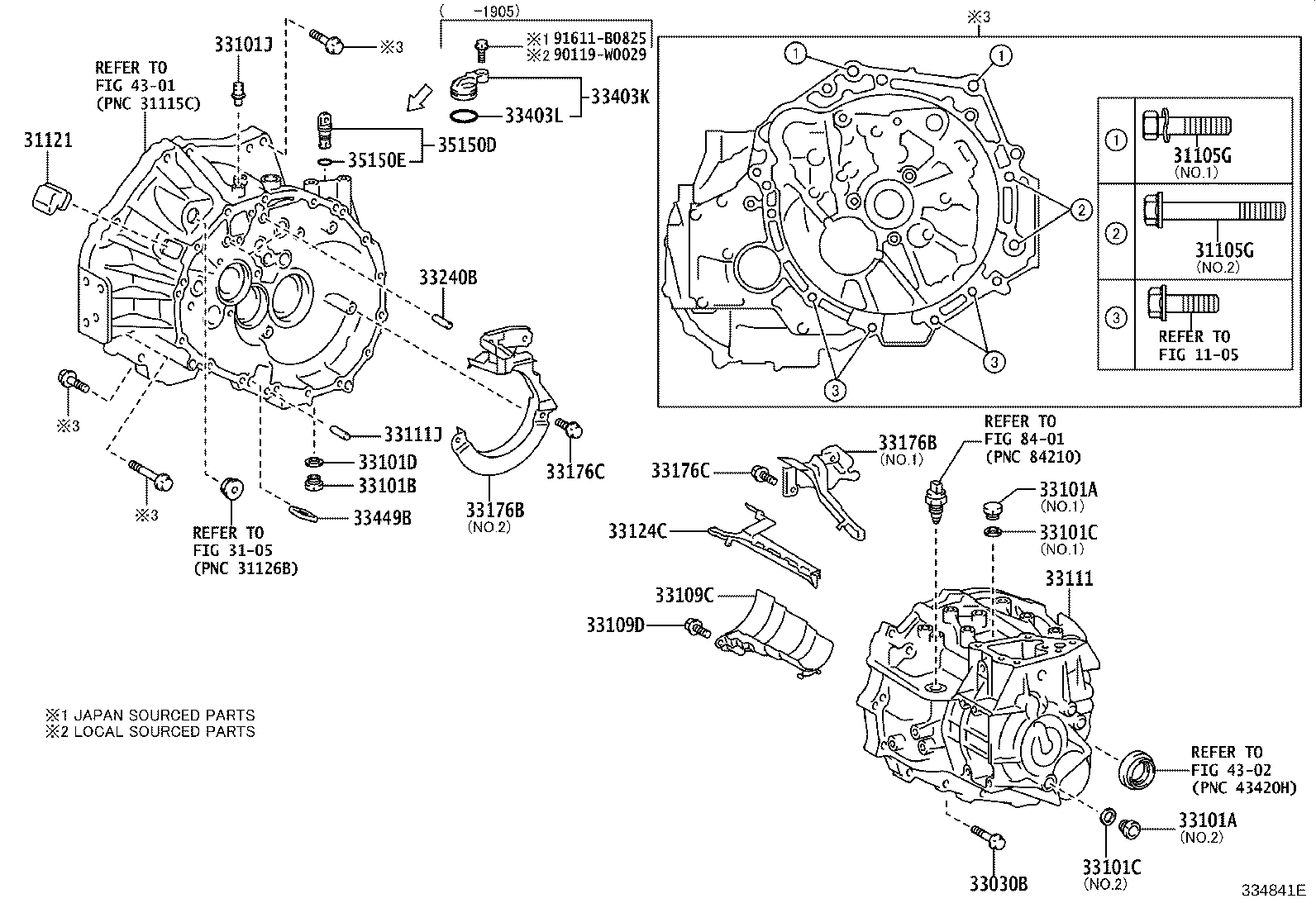

Click highlighted areas on diagram

EC61

diagram 1105 3105 31105G 31105G 31121 33030B 33101A 33101A 33101B 33101C 33101C 33101D 33101J 33109C 33109D 33111 33111J 33124C 33176B 33176B 33176C 33176C 33240B 33403K 33403L 33449B 35150D 35150E 4301 4302 8401 90119W0029 91611B0825
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-W0097

NRE180..SAP

*12-1.25PX45-30,(L),NO.1:SEE ILLUST

 2
91552-81280

NRE180..SAP

*12-1.25PX80-30,NO.2:REFER ILLUST.

 2
91619-61245

NRE180..SAP

*12-1.25PX45-30,(J),NO.1:SEE ILLUST

 2
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-W0097

NRE180..SAP

*12-1.25PX45-30,(L),NO.1:SEE ILLUST

 2
91552-81280

NRE180..SAP

*12-1.25PX80-30,NO.2:REFER ILLUST.

 2
91619-61245

NRE180..SAP

*12-1.25PX45-30,(J),NO.1:SEE ILLUST

 2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-05010

NDE180,NRE180,ZRE18#..6F..SAP

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
91551-10840

NDE180,NRE180,ZRE18#..6F

*8-1.25PX40-22

 16
90105-W0209

NDE180,NRE180,ZRE18#..6F..SAP

*8-1.25PX40-22,(L)

 16
91551-10840

NDE180,NRE180,ZRE18#..6F..SAP

*8-1.25PX40-22,(J)

 16
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

NDE180,NRE180,ZRE18#..6F..SAP

NO.2:REFER ILLUST.

 1
90341-14032

NDE180,NRE180,ZRE18#..6F..SAP

NO.1:REFER ILLUST.

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

NDE180,NRE180,ZRE18#..6F..SAP

NO.2:REFER ILLUST.

 1
90341-14032

NDE180,NRE180,ZRE18#..6F..SAP

NO.1:REFER ILLUST.

 1
33101B - PLUG(FOR MANUAL TRANSMISSION DRAIN)
90341-18023

NDE180,NRE180,ZRE18#..6F..SAP

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
12157-10010

NDE180,NRE180,ZRE18#..6F..SAP

NO.2:REFER ILLUST.

 1
90430-14003

NDE180,NRE180,ZRE18#..6F..SAP

NO.1:REFER ILLUST.

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
12157-10010

NDE180,NRE180,ZRE18#..6F..SAP

NO.2:REFER ILLUST.

 1
90430-14003

NDE180,NRE180,ZRE18#..6F..SAP

NO.1:REFER ILLUST.

 1
33101D - GASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
12157-10010

NDE180,NRE180,ZRE18#..6F..SAP

 1
33101J - PLUG, BREATHER
90930-03133

NDE180,NRE180,ZRE18#..6F..SAP

 1
33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
33109-0D011

NDE180,NRE180,ZRE18#..6F..SAP

 1
33109-0D010

NDE180,NRE180,ZRE18#..6F

 1
33109D - BOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)
90105-W0035

NDE180,NRE180,ZRE18#..6F..SAP

(L)

 4
91551-80816

NDE180,NRE180,ZRE18#..6F..SAP

(J)

 4
33111 - CASE, MANUAL TRANSMISSION
33111-02050

NDE180,NRE180,ZRE18#..6F..SAP

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

NDE180,NRE180,ZRE18#..6F..SAP

L=23,OD=8

 3
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-0D050

NDE180,NRE180,ZRE18#..6F..SAP

 1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-0D030

NDE180,NRE180,ZRE18#..6F..SAP

NO.2:REFER ILLUST.

 1
33176-0D020

NDE180,NRE180,ZRE18#..6F..SAP

NO.1:REFER ILLUST.

 1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-0D030

NDE180,NRE180,ZRE18#..6F..SAP

NO.2:REFER ILLUST.

 1
33176-0D020

NDE180,NRE180,ZRE18#..6F..SAP

NO.1:REFER ILLUST.

 1
33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR)
91551-80816

NDE180,NRE180,ZRE18#..6F..SAP

(J)

 2
90105-W0035

NDE180,NRE180,ZRE18#..6F..SAP

(L)

 2
33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR)
91551-80816

NDE180,NRE180,ZRE18#..6F..SAP

(J)

 2
90105-W0035

NDE180,NRE180,ZRE18#..6F..SAP

(L)

 2
33240B - PIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)
90250-08054

NDE180,NRE180,ZRE18#..6F..SAP

 2
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

NDE180,NRE180,ZRE18#..6F..SAP

 1
33403L - RING, O
96711-24030

NDE180,NRE180,ZRE18#..6F..SAP

 1
33449B - MAGNET, TRANSMISSION
33449-20010

NDE180,NRE180,ZRE18#..6F..SAP

 1
