NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

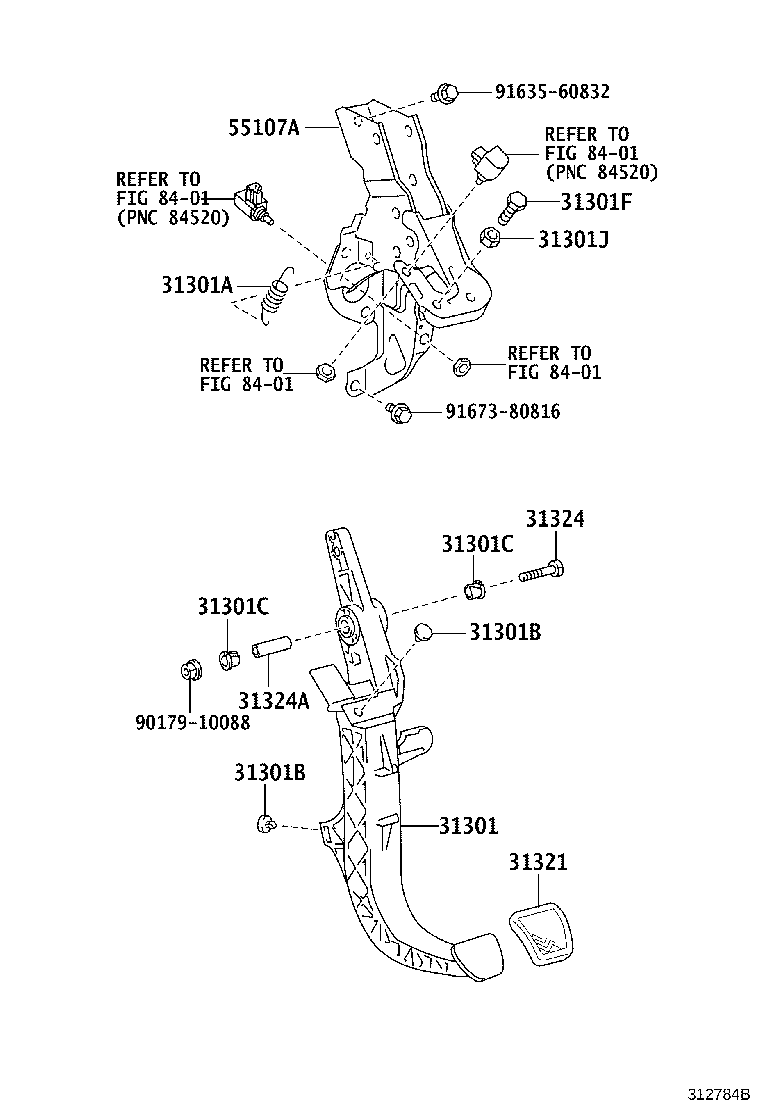

ILLUST NO. 1 OF 2(1401- )NRE180..SAP

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31301J 31321 31324 31324A 55107A 8401 8401 8401 8401 9017910088 9163560832 9167380816
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31311-12371

NDE180,NRE180,ZRE18#..6F..SA

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14047

NRE180..SAP

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NDE180,NRE180,ZRE18#..6F..SAP

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NDE180,NRE180,ZRE18#..6F..SAP

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NDE180,NRE180,ZRE18#..6F..SAP

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NDE180,NRE180,ZRE18#..6F..SAP

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

NDE180,NRE180,ZRE18#..6F..SA

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-61000

NDE180,NRE180,ZRE18#..6F..SA

 1
31321 - PAD, CLUTCH PEDAL
31321-42010

NDE180,NRE180,ZRE18#..6F..SAP

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

NDE180,NRE180,ZRE18#..6F..SA

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

NDE180,NRE180,ZRE18#..6F..SA

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12271

NRE180..SAP

 1
Common parts
90179-10088
91635-60832
91673-80816
Linked diagrams
8401

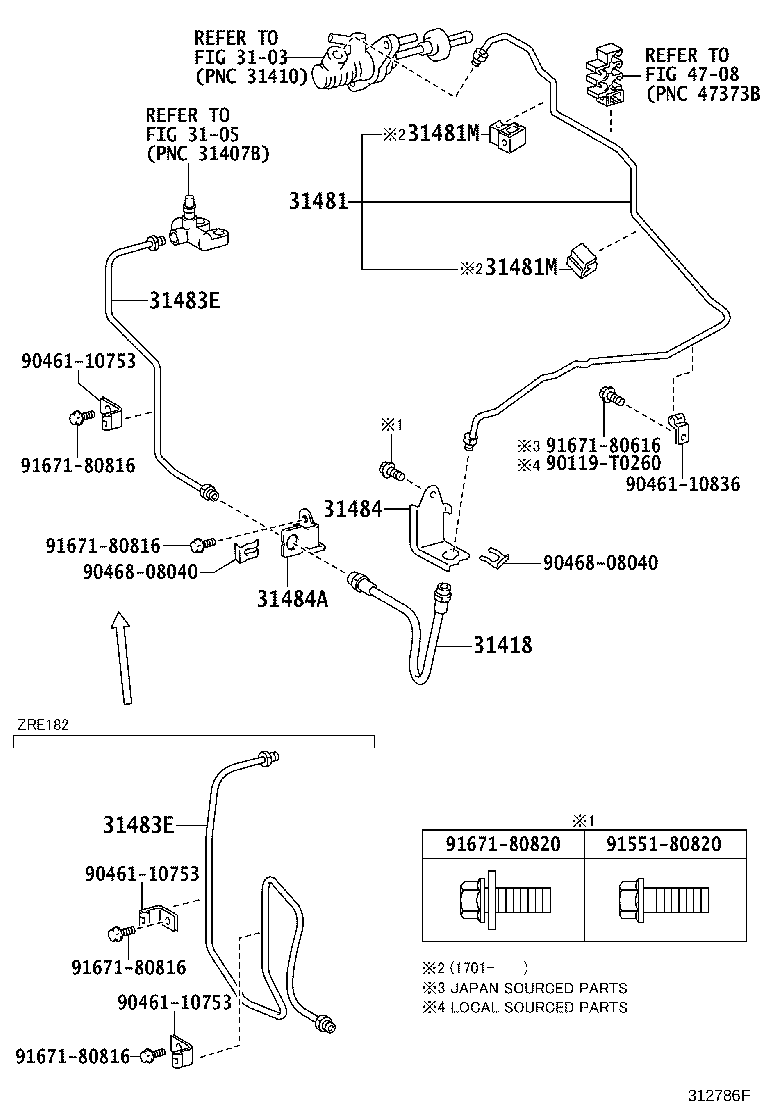

ILLUST NO. 2 OF 2(1401- )NRE180,ZRE18#..6F..SA

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31481M 31481M 31483E 31483E 31484 31484A 4708 90119T0260 9046110753 9046110753 9046110753 9046110836 9046808040 9046808040 9155180820 9167180616 9167180816 9167180816 9167180816 9167180816 9167180820
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-W2019

NRE180,ZRE18#..6F..SAP

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-02260

NRE180,ZRE18#..6F..SA

 1
31483E - TUBE, BLEEDER CLUTCH RELEASE
31483-02270

NRE180,ZRE181..6F..SAP

 1
31483E - TUBE, BLEEDER CLUTCH RELEASE
31483-02270

NRE180,ZRE181..6F..SAP

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-02090

NDE180,NRE180,ZRE18#..6F..SAP

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-05030

NRE180,ZRE18#..6F..SAP

 1
Common parts
90119-T0260
90461-10753
90461-10836
90468-08040
91551-80820
91671-80616
91671-80816
91671-80820
Linked diagrams
3103
3105
4708
