NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )1NRFE..SAP

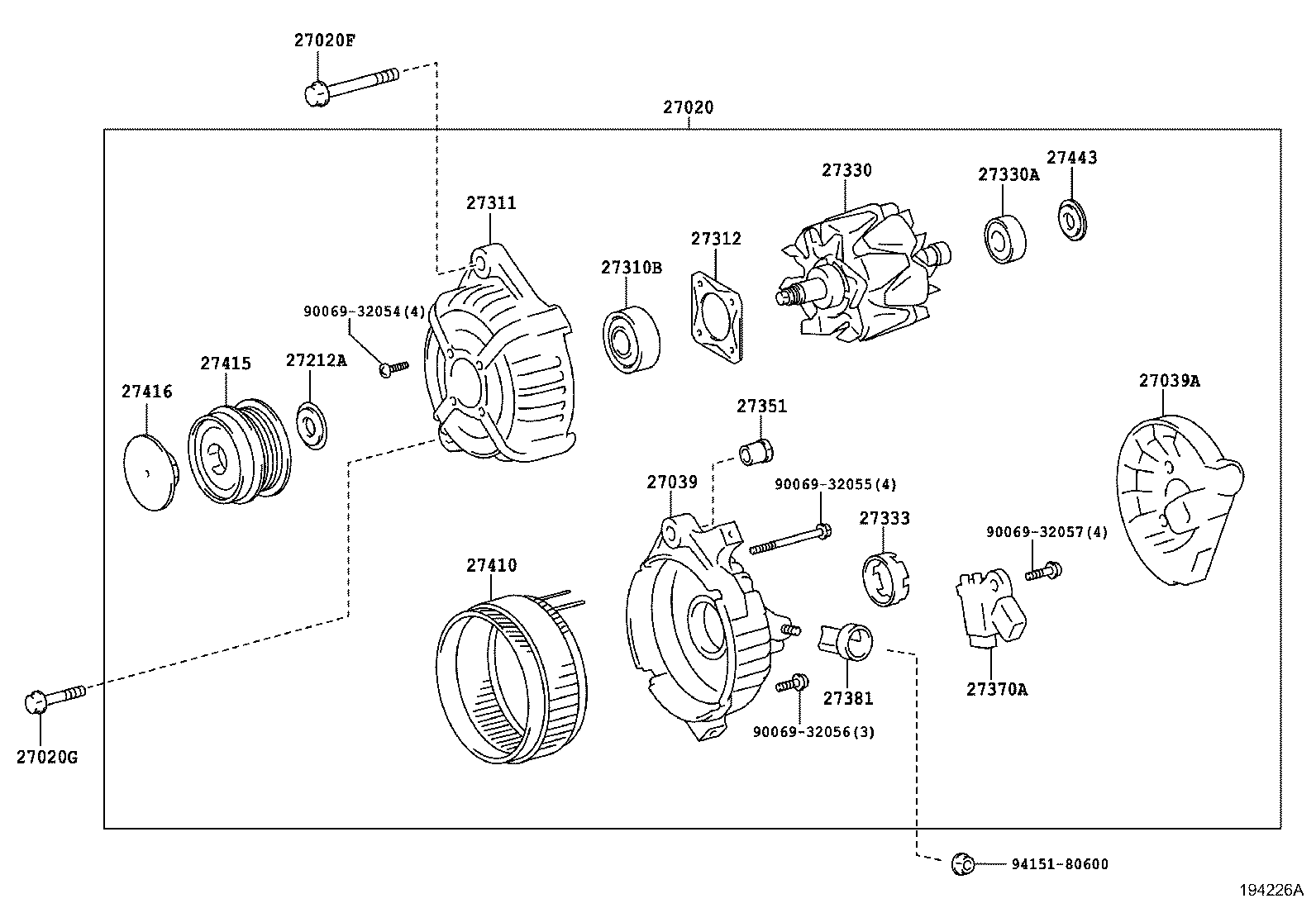

Click highlighted areas on diagram

12V 90A

diagram 27020 27020F 27020G 27039 27039A 27212A 27310B 27311 27312 27330 27330A 27333 27351 27370A 27381 27410 27415 27416 27443 9006932054 9006932055 9006932056 9006932057 9415180600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0Y170

1NRFE..NRE180..SAP

12V 90A

 1
27020F - BOLT, NO.1(FOR ALTERNATOR)
90105-W0113

1NRFE..NRE180..SAP

 1
27020G - BOLT, NO.2(FOR ALTERNATOR)
91671-00845

1N#..NDE180,NRE180..SAP

(J)

 1
90119-W0238

1N#..NDE180,NRE180..SAP

(L)

 1
27039 - COVER, ALTERNATOR REAR END
27039-0Y160

1NRFE..NRE180..SAP

 1
27039A - COVER, ALTERNATOR REAR END, NO.2
27041-0Y160

1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP

 1
27212A - RING, SPACE
90069-55035

1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90069-40005

1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP

 1
27311 - FRAME, ALTERNATOR DRIVE END
27311-0Y160

1NRFE..NRE180..SAP

 1
27312 - PLATE, RETAINER
27312-0Y160

1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0Y160

1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..SAP

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90069-40006

1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP

 1
27333 - COLLAR, SPACE(FOR ALTERNATOR ROTOR)
27333-0Y160

1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
90069-41002

1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27700-0Y060

1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP

 1
27381 - SUPPORT, TERMINAL, ALTERNATOR
27381-0Y160

1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP

 1
27410 - STATOR ASSY, ALTERNATOR
27410-0Y160

1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..SAP

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0Y081

1NRFE..NRE180..SAP

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..SAP

 1
27443 - COVER, ALTERNATOR BEARING
27443-0Y160

1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP

 1
Common parts
90069-32054
90069-32055
90069-32056
90069-32057
94151-80600
