Toyota Corolla NRE180 RADIATOR & WATER OUTLET

Manufacturers Home
Toyota
GR
COROLLA
NRE180R-GEFNKN (2014)
1603 - RADIATOR & WATER OUTLET

NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017

Engine 1NRFE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1401- )1NRFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
16261 - HOSE, WATER BY-PASS
16261-47010	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16261-47010	1NRFE..NRE180..SAP	06/2016 - 12/2999	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-41501	1NRFE..NRE180..SAP	01/2014 - 01/2017	4
96136-41501	1NRFE..NRE180..SAP	06/2016 - 12/2999	4
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-41501	1NRFE..NRE180..SAP	01/2014 - 01/2017	4
96136-41501	1NRFE..NRE180..SAP	06/2016 - 12/2999	4
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-41501	1NRFE..NRE180..SAP	01/2014 - 01/2017	4
96136-41501	1NRFE..NRE180..SAP	06/2016 - 12/2999	4
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-41501	1NRFE..NRE180..SAP	01/2014 - 01/2017	4
96136-41501	1NRFE..NRE180..SAP	06/2016 - 12/2999	4
16261G - HOSE, WATER BY-PASS, NO.1
16261-47020	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16261-47020	1NRFE..NRE180..SAP	06/2016 - 12/2999	1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-42901	1NRFE..NRE180..SAP	06/2016 - 12/2999	2
96136-42901	1NRFE..NRE180..SAP	01/2014 - 01/2017	2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-42901	1NRFE..NRE180..SAP	06/2016 - 12/2999	2
96136-42901	1NRFE..NRE180..SAP	01/2014 - 01/2017	2
16261L - HOSE, WATER BY-PASS
16261-47030	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16261-47030	1NRFE..NRE180..SAP	06/2016 - 12/2999	1
16268 - PIPE, WATER BY-PASS, NO.1
16268-47031	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16268-47031	1NRFE..NRE180	06/2016 - 12/2999	1
16321 - INLET, WATER
16321-47011	1NRFE..NRE180..SAP	06/2016 - 12/2999	1
16321-47011	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-47010	1NRFE..NRE180	01/2014 - 09/2015	1
16326-47020	1NRFE..NRE180..SAP	06/2016 - 12/2999	1
16326-47020	1NRFE..NRE180..SAP	10/2015 - 01/2017	1
16331A - THERMOSTAT
90916-03147	1NRFE..NRE180..SAP *WAX 82-95	01/2014 - 01/2017	1
90916-03147	1NRFE..NRE180..SAP *WAX 82-95	06/2016 - 12/2999	1
Common parts
90469-14003
91551-80625
91671-80820
Linked diagrams
2501
8716

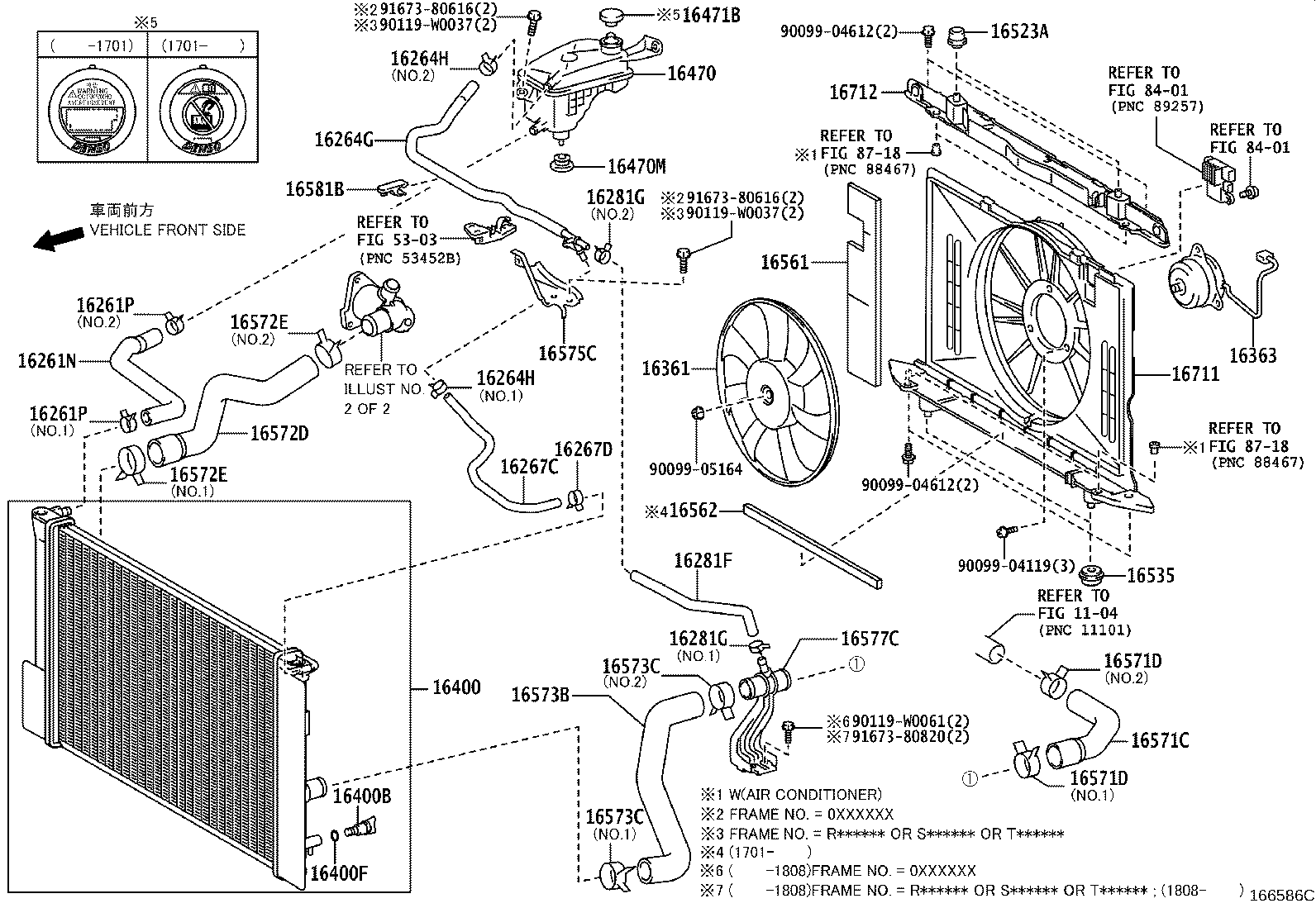

ILLUST NO. 1 OF 2(1401- )1NRFE..SAP

Click highlighted areas on diagram

Part #	Description	Period	Qty
16261N - HOSE, WATER BY-PASS, NO.2
16261-0Y040	1NRFE..NRE180..SAP	06/2016 - 12/2999	1
16261-0Y040	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16261P - CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-42201	1NRFE..NRE180..SAP NO.1:REFER ILLUST.	01/2014 - 01/2017	1
96136-42501	1NRFE..NRE180..SAP (J),NO.2:SEE ILLUST	01/2014 - 01/2017	1
90466-W0007	1NRFE..NRE180..SAP (L),NO.2:SEE ILLUST	01/2014 - 01/2017	1
90466-W0007	1NRFE..NRE180..SAP (L),NO.2:SEE ILLUST	06/2016 - 12/2999	1
96136-42201	1NRFE..NRE180..SAP NO.1:REFER ILLUST.	06/2016 - 12/2999	1
96136-42501	1NRFE..NRE180..SAP (J),NO.2:SEE ILLUST	06/2016 - 12/2999	1
16261P - CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-42201	1NRFE..NRE180..SAP NO.1:REFER ILLUST.	01/2014 - 01/2017	1
96136-42501	1NRFE..NRE180..SAP (J),NO.2:SEE ILLUST	01/2014 - 01/2017	1
90466-W0007	1NRFE..NRE180..SAP (L),NO.2:SEE ILLUST	01/2014 - 01/2017	1
90466-W0007	1NRFE..NRE180..SAP (L),NO.2:SEE ILLUST	06/2016 - 12/2999	1
96136-42201	1NRFE..NRE180..SAP NO.1:REFER ILLUST.	06/2016 - 12/2999	1
96136-42501	1NRFE..NRE180..SAP (J),NO.2:SEE ILLUST	06/2016 - 12/2999	1
16264G - HOSE, WATER BY-PASS, NO.3
16264-0Y030	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16264-0Y030	1NRFE..NRE180..SAP	06/2016 - 12/2999	1
16264H - CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-42101	1NRFE..NRE180..SAP NO.2:REFER ILLUST.	01/2014 - 01/2017	1
90467-15022	1NRFE..NRE180..SAP NO.1:REFER ILLUST.	06/2016 - 12/2999	1
90467-15022	1NRFE..NRE180..SAP NO.1:REFER ILLUST.	01/2014 - 01/2017	1
96136-42101	1NRFE..NRE180..SAP NO.2:REFER ILLUST.	06/2016 - 12/2999	1
16264H - CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-42101	1NRFE..NRE180..SAP NO.2:REFER ILLUST.	01/2014 - 01/2017	1
90467-15022	1NRFE..NRE180..SAP NO.1:REFER ILLUST.	06/2016 - 12/2999	1
90467-15022	1NRFE..NRE180..SAP NO.1:REFER ILLUST.	01/2014 - 01/2017	1
96136-42101	1NRFE..NRE180..SAP NO.2:REFER ILLUST.	06/2016 - 12/2999	1
16267C - HOSE, WATER BY-PASS, NO.4
16267-0D020	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16267-0D020	1NRFE..NRE180..SAP	06/2016 - 12/2999	1
16267D - CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-15022	1N#..NDE180,NRE180..SAP	06/2013 - 01/2017	1
90467-15022	1N#..NDE180,NRE180..SAP	06/2016 - 12/2999	1
16281F - HOSE, WATER BY-PASS, NO.5
16281-0T050	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16281-0T050	1NRFE..NRE180..SAP	06/2016 - 12/2999	1
16281G - CLIP(FOR WATER BY-PASS HOSE NO.5)
90467-17013	1NRFE..NRE180..SAP NO.1:REFER ILLUST.	01/2014 - 01/2017	1
96136-41901	1N#..NDE180,NRE180..SAP NO.2:REFER ILLUST.	06/2016 - 12/2999	1
90467-17013	1NRFE..NRE180..SAP NO.1:REFER ILLUST.	06/2016 - 12/2999	1
96136-41901	1N#..NDE180,NRE180..SAP NO.2:REFER ILLUST.	06/2013 - 01/2017	1
16281G - CLIP(FOR WATER BY-PASS HOSE NO.5)
90467-17013	1NRFE..NRE180..SAP NO.1:REFER ILLUST.	01/2014 - 01/2017	1
96136-41901	1N#..NDE180,NRE180..SAP NO.2:REFER ILLUST.	06/2016 - 12/2999	1
90467-17013	1NRFE..NRE180..SAP NO.1:REFER ILLUST.	06/2016 - 12/2999	1
96136-41901	1N#..NDE180,NRE180..SAP NO.2:REFER ILLUST.	06/2013 - 01/2017	1
16361 - FAN
16361-0N040	1NRFE..NRE180..D..SAP AIR CONDITIONER-WITHOUT	01/2014 - 01/2017	1
16361-0N050	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16363 - MOTOR, COOLING FAN
16363-22100	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16363-0D130	1NRFE..NRE180..D..SAP AIR CONDITIONER-WITHOUT	01/2014 - 01/2017	1
16400 - RADIATOR ASSY
16400-0D410	1NRFE..NRE180..D..SAP AIR CONDITIONER-WITHOUT	01/2014 - 01/2017	1
16400-0D450	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16400B - PLUG, RADIATOR DRAIN COCK
16417-0D430	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16417-0Q040	1NRFE..NRE180..D..SAP AIR CONDITIONER-WITHOUT	01/2014 - 01/2017	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-0D430	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16492-21050	1NRFE..NRE180..D..SAP AIR CONDITIONER-WITHOUT	01/2014 - 01/2017	1
16470 - TANK ASSY, RADIATOR RESERVE
16480-0D030	1N#..NDE180,NRE180..SAP	06/2013 - 01/2017	1
16480-0D030	1N#..NDE180,NRE180..SAP	06/2016 - 12/2999	1
16470M - GROMMET
90480-18010	1N#..NDE180,NRE180..SAP (J)	11/2016 - 01/2017	1
90480-18010	1N#..NDE180,NRE180..SAP	06/2013 - 11/2016	1
90480-F0001	1N#..NDE180,NRE180..SAP (L)	11/2016 - 01/2017	1
16471B - CAP, RESERVE TANK
16475-37010	1N#..NDE180,NRE180	06/2013 - 10/2014	1
16475-37011	1NDTV..NDE180;1NRFE..NRE180..SAP	11/2014 - 01/2017	1
16523A - CUSHION, RADIATOR SUPPORT
16523-0Y030	1N#..NDE180,NRE180..SAP	06/2013 - 01/2017	2
16523-0Y030	1N#..NDE180,NRE180..SAP	06/2016 - 12/2999	2
16535 - SUPPORT, RADIATOR, LOWER
16535-0Y010	1NRFE..NRE180..SAP	01/2014 - 01/2017	2
16535-0Y010	1NRFE..NRE180..SAP	06/2016 - 12/2999	2
16561 - SEAL, RADIATOR TO SUPPORT, NO.1
16561-22030	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16561-22030	1NRFE..NRE180..SAP	06/2016 - 12/2999	1
16562 - SEAL, RADIATOR TO SUPPORT, NO.2
16561-0T240	1NRFE..NRE180..SAP	06/2016 - 12/2999	1
16571C - HOSE, RADIATOR, NO.1
16571-0Y070	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16571-0Y070	1NRFE..NRE180..SAP	06/2016 - 12/2999	1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-W0016	1NRFE..NRE180..SAP (L),NO.1:SEE ILLUST	01/2014 - 01/2017	1
96136-43901	1N#..NDE180,NRE180..SAP NO.2:REFER ILLUST.	06/2016 - 12/2999	1
96136-43901	1N#..NDE180,NRE180..SAP NO.2:REFER ILLUST.	06/2013 - 01/2017	1
96136-44301	1NRFE..NRE180..SAP (J),NO.1:SEE ILLUST	06/2016 - 12/2999	1
90466-W0016	1NRFE..NRE180..SAP (L),NO.1:SEE ILLUST	06/2016 - 12/2999	1
96136-44301	1NRFE..NRE180..SAP (J),NO.1:SEE ILLUST	01/2014 - 01/2017	1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-W0016	1NRFE..NRE180..SAP (L),NO.1:SEE ILLUST	01/2014 - 01/2017	1
96136-43901	1N#..NDE180,NRE180..SAP NO.2:REFER ILLUST.	06/2016 - 12/2999	1
96136-43901	1N#..NDE180,NRE180..SAP NO.2:REFER ILLUST.	06/2013 - 01/2017	1
96136-44301	1NRFE..NRE180..SAP (J),NO.1:SEE ILLUST	06/2016 - 12/2999	1
90466-W0016	1NRFE..NRE180..SAP (L),NO.1:SEE ILLUST	06/2016 - 12/2999	1
96136-44301	1NRFE..NRE180..SAP (J),NO.1:SEE ILLUST	01/2014 - 01/2017	1
16572D - HOSE, RADIATOR, NO.2
16572-0Y050	1NRFE..NRE180..SAP	06/2016 - 12/2999	1
16572-0Y050	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16572E - CLIP, RADIATOR HOSE, NO.2
90466-W0016	1N#..NDE180,NRE180..SAP (L),NO.1:SEE ILLUST	06/2013 - 01/2017	1
96136-44301	1N#..NDE180,NRE180..SAP (J),NO.1:SEE ILLUST	06/2013 - 01/2017	1
96136-44301	1N#..NDE180,NRE180..SAP (J),NO.1:SEE ILLUST	06/2016 - 12/2999	1
90466-W0016	1N#..NDE180,NRE180..SAP (L),NO.1:SEE ILLUST	06/2016 - 12/2999	1
96136-43901	1N#..NDE180,NRE180..SAP NO.2:REFER ILLUST.	06/2013 - 01/2017	1
96136-43901	1N#..NDE180,NRE180..SAP NO.2:REFER ILLUST.	06/2016 - 12/2999	1
16572E - CLIP, RADIATOR HOSE, NO.2
90466-W0016	1N#..NDE180,NRE180..SAP (L),NO.1:SEE ILLUST	06/2013 - 01/2017	1
96136-44301	1N#..NDE180,NRE180..SAP (J),NO.1:SEE ILLUST	06/2013 - 01/2017	1
96136-44301	1N#..NDE180,NRE180..SAP (J),NO.1:SEE ILLUST	06/2016 - 12/2999	1
90466-W0016	1N#..NDE180,NRE180..SAP (L),NO.1:SEE ILLUST	06/2016 - 12/2999	1
96136-43901	1N#..NDE180,NRE180..SAP NO.2:REFER ILLUST.	06/2013 - 01/2017	1
96136-43901	1N#..NDE180,NRE180..SAP NO.2:REFER ILLUST.	06/2016 - 12/2999	1
16573B - HOSE, RADIATOR, NO.3
16573-0T070	1NRFE..NRE180..SAP	06/2016 - 12/2999	1
16573-0T070	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
96136-44301	1N#..NDE180,NRE180..SAP (J),NO.1:SEE ILLUST	06/2013 - 01/2017	1
90466-35001	1NRFE..NRE180..SAP NO.2:REFER ILLUST.	01/2014 - 01/2017	1
90466-W0016	1N#..NDE180,NRE180..SAP (L),NO.1:SEE ILLUST	06/2016 - 12/2999	1
90466-W0016	1N#..NDE180,NRE180..SAP (L),NO.1:SEE ILLUST	06/2013 - 01/2017	1
96136-44301	1N#..NDE180,NRE180..SAP (J),NO.1:SEE ILLUST	06/2016 - 12/2999	1
90466-35001	1NRFE..NRE180..SAP NO.2:REFER ILLUST.	06/2016 - 12/2999	1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
96136-44301	1N#..NDE180,NRE180..SAP (J),NO.1:SEE ILLUST	06/2013 - 01/2017	1
90466-35001	1NRFE..NRE180..SAP NO.2:REFER ILLUST.	01/2014 - 01/2017	1
90466-W0016	1N#..NDE180,NRE180..SAP (L),NO.1:SEE ILLUST	06/2016 - 12/2999	1
90466-W0016	1N#..NDE180,NRE180..SAP (L),NO.1:SEE ILLUST	06/2013 - 01/2017	1
96136-44301	1N#..NDE180,NRE180..SAP (J),NO.1:SEE ILLUST	06/2016 - 12/2999	1
90466-35001	1NRFE..NRE180..SAP NO.2:REFER ILLUST.	06/2016 - 12/2999	1
16575C - BRACKET, WATER HOSE CLAMP, NO.1
16575-0Y010	1N#..NDE180,NRE180..SAP	06/2013 - 01/2017	1
16575-0Y010	1N#..NDE180,NRE180..SAP	06/2016 - 12/2999	1
16577C - PIPE, RADIATOR
16577-0T020	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16577-0T020	1NRFE..NRE180..SAP	06/2016 - 12/2999	1
16581B - CLAMP, HOSE(FOR RADIATOR HOSE)
16581-36020	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16581-36020	1NRFE..NRE180..SAP	06/2016 - 12/2999	1
16711 - SHROUD, FAN
16711-0D201	1NRFE..NRE180..D..SAP AIR CONDITIONER-WITHOUT	01/2014 - 01/2017	1
16711-0D220	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
16712 - SHROUD, FAN, NO.2
16712-0D020	1NRFE..NRE180..D..SAP AIR CONDITIONER-WITHOUT	01/2014 - 01/2017	1
16712-0D040	1NRFE..NRE180..SAP	01/2014 - 01/2017	1
Common parts
90099-04119
90099-04612
90099-05164
90119-W0037
90119-W0061
91673-80616
91673-80820
Linked diagrams
1104
5303
8401
8718

NRE180R-GEFNKN (2014)

ILLUST NO. 2 OF 2(1401- )1NRFE

ILLUST NO. 1 OF 2(1401- )1NRFE..SAP

Part Price Details
