NRE180R-GEFNKN (2014)
Toyota Corolla
(1401- )1NRFE

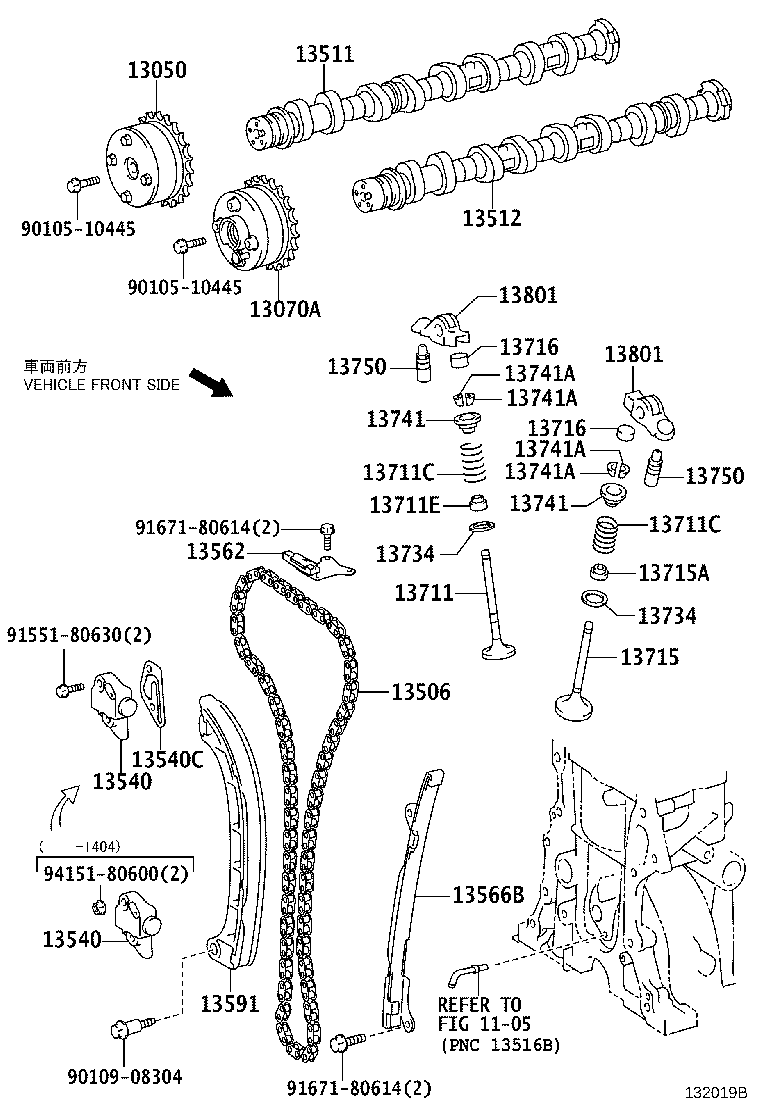

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-47011 |
1NRFE..NRE180..SAP |
1 | ||
| 13050-47011 |
1NRFE..NRE180..SAP |
1 | ||
| 13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST | ||||
| 13070-47010 |
1NRFE..NRE180..SAP |
1 | ||
| 13070-47010 |
1NRFE..NRE180..SAP |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-47030 |
1NRFE..NRE180..SAP |
1 | ||
| 13506-47030 |
1NRFE..NRE180..SAP |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-47020 |
1NRFE..NRE180..SAP |
1 | ||
| 13501-47020 |
1NRFE..NRE180..SAP |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-47010 |
1NRFE..NRE180..SAP |
1 | ||
| 13502-47010 |
1NRFE..NRE180..SAP |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-47011 |
1NRFE..NRE180..SAP |
1 | ||
| 13540-47011 |
1NRFE..NRE180..SAP |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-47011 |
1NRFE..NRE180..SAP |
1 | ||
| 13540-47011 |
1NRFE..NRE180..SAP |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-47010 |
1NRFE..NRE180..SAP |
1 | ||
| 13552-47010 |
1NRFE..NRE180..SAP |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-47020 |
1NRFE..NRE180..SAP |
1 | ||
| 13562-47020 |
1NRFE..NRE180..SAP |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-47030 |
1NRFE..NRE180..SAP |
1 | ||
| 13566-47030 |
1NRFE..NRE180..SAP |
1 | ||
| 13591 - ARM, TIMING CHAIN TENSION | ||||
| 13591-47030 |
1NRFE..NRE180..SAP |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-47010 |
1NRFE..NRE180..SAP |
8 | ||
| 13711-47010 |
1NRFE..NRE180..SAP |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-29062 |
1NRFE..NRE180 |
16 | ||
| 90501-29066 |
1NRFE..NRE180..SAP |
16 | ||
| 90501-29066 |
1NRFE..NRE180..SAP |
16 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-29062 |
1NRFE..NRE180 |
16 | ||
| 90501-29066 |
1NRFE..NRE180..SAP |
16 | ||
| 90501-29066 |
1NRFE..NRE180..SAP |
16 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02101 |
1NRFE..NRE180..SAP |
8 | ||
| 90913-02101 |
1NRFE..NRE180..SAP |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-47010 |
1NRFE..NRE180..SAP |
8 | ||
| 13715-47010 |
1NRFE..NRE180..SAP |
8 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02112 |
1NRFE..NRE180..SAP |
8 | ||
| 90913-02112 |
1NRFE..NRE180..SAP |
8 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
1NRFE..NRE180..SAP |
16 | ||
| 13716-75020 |
1NRFE..NRE180..SAP |
16 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
1NRFE..NRE180..SAP |
16 | ||
| 13716-75020 |
1NRFE..NRE180..SAP |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
1NRFE..NRE180..SAP |
16 | ||
| 13734-62020 |
1NRFE..NRE180..SAP |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
1NRFE..NRE180..SAP |
16 | ||
| 13734-62020 |
1NRFE..NRE180..SAP |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-36010 |
1NRFE..NRE180..SAP |
16 | ||
| 13741-36010 |
1NRFE..NRE180..SAP |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-36010 |
1NRFE..NRE180..SAP |
16 | ||
| 13741-36010 |
1NRFE..NRE180..SAP |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1NRFE..NRE180..SAP |
32 | ||
| 90913-03028 |
1NRFE..NRE180..SAP |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1NRFE..NRE180..SAP |
32 | ||
| 90913-03028 |
1NRFE..NRE180..SAP |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1NRFE..NRE180..SAP |
32 | ||
| 90913-03028 |
1NRFE..NRE180..SAP |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1NRFE..NRE180..SAP |
32 | ||
| 90913-03028 |
1NRFE..NRE180..SAP |
32 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-21010 |
1NRFE..NRE180..SAP |
16 | ||
| 13750-21010 |
1NRFE..NRE180..SAP |
16 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-21010 |
1NRFE..NRE180..SAP |
16 | ||
| 13750-21010 |
1NRFE..NRE180..SAP |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
1NRFE..NRE180..SAP |
16 | ||
| 13801-36020 |
1NRFE..NRE180..SAP |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-36020 |
1NRFE..NRE180..SAP |
16 | ||
| 13801-36020 |
1NRFE..NRE180..SAP |
16 | ||
| Common parts | ||||
| 90105-10445 | ||||
| 90109-08304 | ||||
| 91551-80630 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
