NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )1NRFE

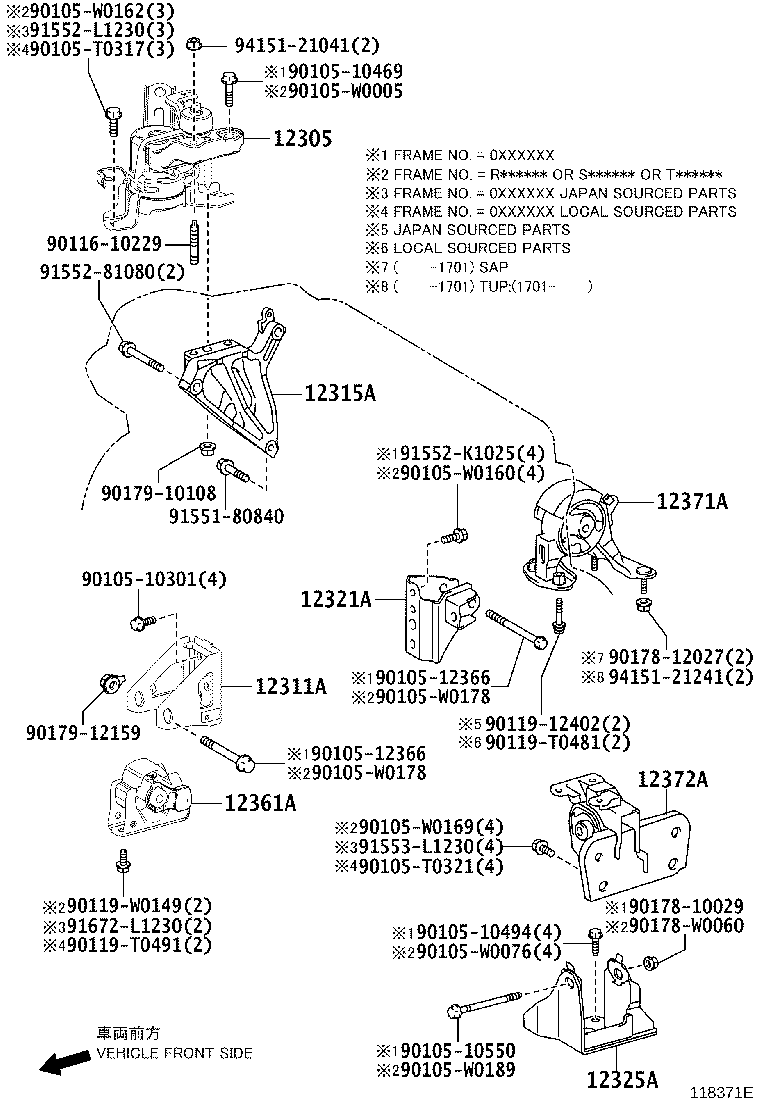

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12325A 12361A 12371A 12372A 9010510301 9010510469 9010510494 9010510550 9010512366 9010512366 90105T0317 90105T0321 90105W0005 90105W0076 90105W0160 90105W0162 90105W0169 90105W0178 90105W0178 90105W0189 9011610229 9011912402 90119T0481 90119T0491 90119W0149 9017810029 9017812027 90178W0060 9017910108 9017912159 9155180840 9155281080 91552K1025 91552L1230 91553L1230 91672L1230 9415121041 9415121241
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0Y070

1NRFE..NRE180..SAP

 1
12305-0Y070

1NRFE..NRE180..SAP

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0T390

1NRFE..NRE180..SAP

FRAME NO.=0XXXXXX

 1
12311-0T340

1NRFE..NRE180..SAP

*154

 1
12311-0T390

1NRFE..NRE180..SAP

FRAME NO.=0XXXXXX

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-47040

1NRFE..NRE180..SAP

 1
12315-47040

1NRFE..NRE180..SAP

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-0Y010

1N#..NDE180,NRE180..SAP

*154

 1
12321-0Y020

1N#..NDE180,NRE180..SAP

FRAME NO.=0XXXXXX

 1
12321-0Y020

1N#..NDE180,NRE180..SAP

FRAME NO.=0XXXXXX

 1
12321-0Y010

1NRFE..NRE180..SAP

*154

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0Y080

1NRFE..NRE180..SAP

*154

 1
12325-0Y090

1NRFE..NRE180..SAP

FRAME NO.=0XXXXXX

 1
12325-0Y080

1NRFE..NRE180..SAP

*154

 1
12325-0Y090

1NRFE..NRE180..SAP

FRAME NO.=0XXXXXX

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0T170

1N#..NDE180,NRE180

 1
12361-0T171

1N#..NDE180,NRE180..SAP

 1
12361-0T171

1N#..NDE180,NRE180..SAP

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0Y010

1NRFE..NRE180..SAP

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0Y070

1NRFE..NRE180..SAP

 1
12372-0Y070

1NRFE..NRE180..SAP

 1
Common parts
90105-10301
90105-10469
90105-10494
90105-10550
90105-12366
90105-T0317
90105-T0321
90105-W0005
90105-W0076
90105-W0160
90105-W0162
90105-W0169
90105-W0178
90105-W0189
90116-10229
90119-12402
90119-T0481
90119-T0491
90119-W0149
90178-10029
90178-12027
90178-W0060
90179-10108
90179-12159
91551-80840
91552-81080
91552-K1025
91552-L1230
91553-L1230
91672-L1230
94151-21041
94151-21241
