NDE180R-GEFDYN (2017)

Toyota Corolla

Production Jan 2017 - Dec 2019
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1701- )SA

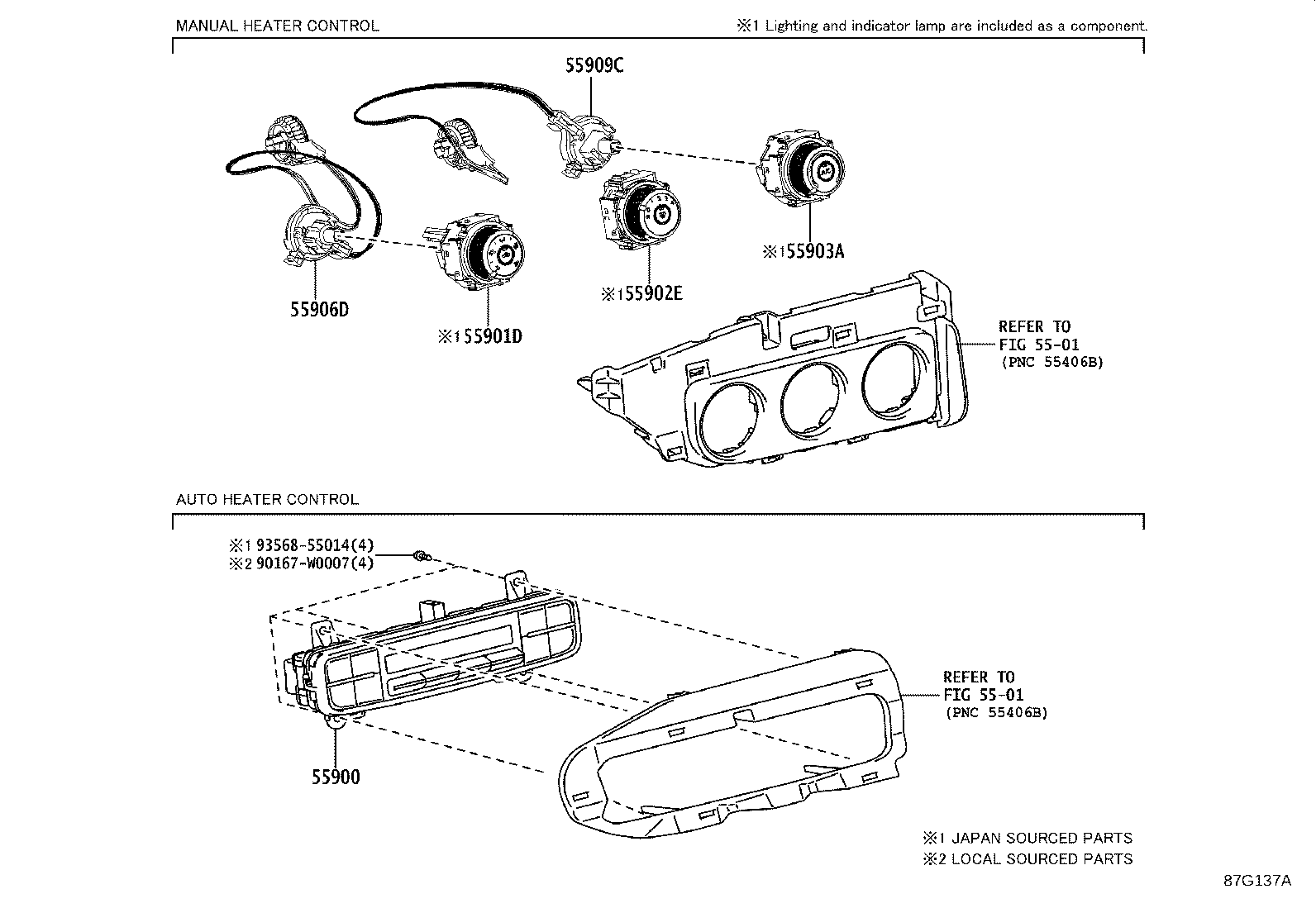

Click highlighted areas on diagram

HEATER CONTROL PANEL

diagram 5501 5501 55900 55901D 55902E 55903A 55906D 55909C 90167W0007 9356855014
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-02C40

NDE180,NRE180,ZRE18#..N..SA

AIR CONDITIONER-AUTO AIR CONDITIONER

 1
55900-02A20

NDE180,NRE180,ZRE18#..N..SA

OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & WITH(HEATER)&AIR CONDITIONER-AUTOAIR CONDITIONER

 1
55901D - CONTROL SUB-ASSY, HEATER, NO.1
55901-12320

NDE180,NRE180,ZRE18#..SAP

 1
55901-12320

NDE180,NRE180,ZRE18#..N..SAP

AIR CONDITIONER-AUTO AIR CONDITIONER

 1
55902E - CONTROL SUB-ASSY, HEATER, NO.2
55902-12340

NDE180,NRE180,ZRE18#..N..SAP

AIR CONDITIONER-AUTO AIR CONDITIONER

 1
55902-12340

NDE180,NRE180,ZRE18#..SAP

 1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-12320

NDE180..SAP

 1
55903-12320

NDE180..N..SAP

AIR CONDITIONER-AUTO AIR CONDITIONER

 1
55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2
55906-0K010

NDE180,NRE180,ZRE18#..N..SAP

AIR CONDITIONER-AUTO AIR CONDITIONER

 1
55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0K010

NDE180,NRE180,ZRE18#..N..SAP

AIR CONDITIONER-AUTO AIR CONDITIONER

 1
Common parts
90167-W0007
93568-55014
Linked diagrams
5501
