NDE180L-DEFNY (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )ZRE182..G,N..SAP ; (1701- )ZRE182..CVT..D..GEN..SAP ; (1701- )NDE1

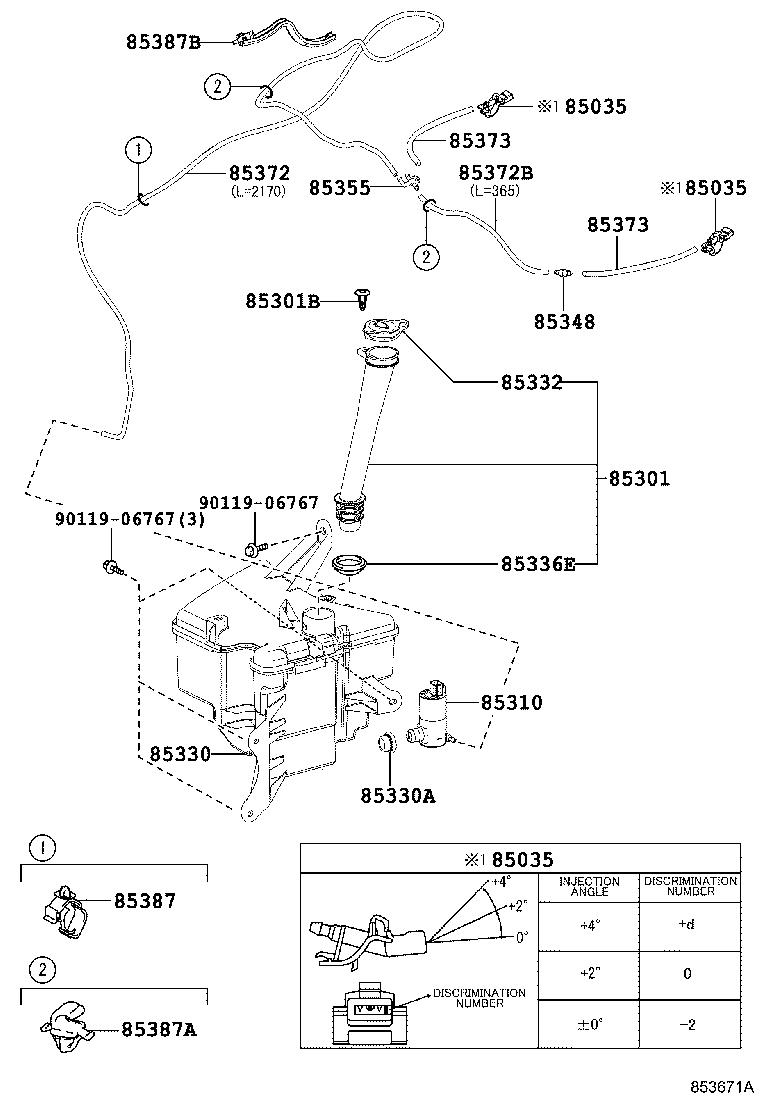

Click highlighted areas on diagram

W(LED HEADLAMP)

diagram 85035 85035 85035 85301 85301B 85310 85330 85330A 85332 85336E 85348 85355 85372 85372B 85373 85373 85387 85387A 85387B 9011906767 9011906767
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12430

NDE180,ZRE18#..TUP

ANGLE +4

 2
85381-12420

NDE180,ZRE18#..TUP

ANGLE +2

 2
85381-12400

NDE180,ZRE18#..TUP

ANGLE 0

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12430

NDE180,ZRE18#..TUP

ANGLE +4

 2
85381-12420

NDE180,ZRE18#..TUP

ANGLE +2

 2
85381-12400

NDE180,ZRE18#..TUP

ANGLE 0

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12430

NDE180,ZRE18#..TUP

ANGLE +4

 2
85381-12420

NDE180,ZRE18#..TUP

ANGLE +2

 2
85381-12400

NDE180,ZRE18#..TUP

ANGLE 0

 2
85301 - INLET SUB-ASSY, WASHER
85301-02100

NDE180..TUP

SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH

 1
85301-02100

NDE180..TUP;ZRE18#..N..TUP;ZRE18#..D..GCC

HEADLAMP CLEANER-WITH

 1
85301-02020

NDE180,ZRE18#..TUP

 1
85301B - CLIP, WASHER
90467-07076C7

NDE180,ZRE18#..TUP

BLACK

 1
90467-07076C0

NDE180,NRE180,ZRE18#

BLACK

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-02030

NDE180,ZRE18#..TUP

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-02550

NDE180..TUP

SUB COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH

 1
85355-02230

NDE180..TUP;ZRE18#..N..TUP;ZRE18#..D..GCC

HEADLAMP CLEANER-WITH

 1
85315-02540

NDE180,ZRE18#..TUP

 1
85315-02590

NDE180..TUP

SUB COLD AREA SPEC

 1
85315-02550

NDE180,ZRE18#..TUP

WASHER FLUID LEVEL WARNING SENSOR-WITH

 1
85355-02250

NDE180..TUP;ZRE18#..N..TUP;ZRE18#..D..GCC

HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH

 1
85355-02250

NDE180..TUP

SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH

 1
85355-02230

NDE180..TUP

SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90069-20005

NDE180,ZRE18#..TUP

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-0D010

NDE180,ZRE18#..TUP

 1
85356-02230

NDE180..TUP

SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH

 1
85356-02230

NDE180..TUP;ZRE18#..N..TUP;ZRE18#..D..GCC

HEADLAMP CLEANER-WITH

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
90069-38005

NDE180,ZRE18#..TUP

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-05050

NDE180,ZRE18#..TUP

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85376-02240

NDE180,ZRE18#..TUP

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90069-16010

NDE180,ZRE18#..TUP

*318:REFER ILLUST.

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90069-16009

NDE180,ZRE18#..TUP

*318:REFER ILLUST.

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-62080

NDE180,ZRE18#..TUP

L=170

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-62080

NDE180,ZRE18#..TUP

L=170

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-1E350

NDE180,ZRE18#..TUP

 1
85387A - CLAMP, WASHER, NO.2
85371-12040

NDE180,ZRE18#..TUP

 2
85387B - CLAMP, WASHER, NO.3
85387-02450

NDE180,ZRE18#..TUP

 1
Common parts
90119-06767
