NDE180L-DEFNY (2013)

Toyota Corolla

Production Jun 2013 - May 2016
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )NDE180..TUP

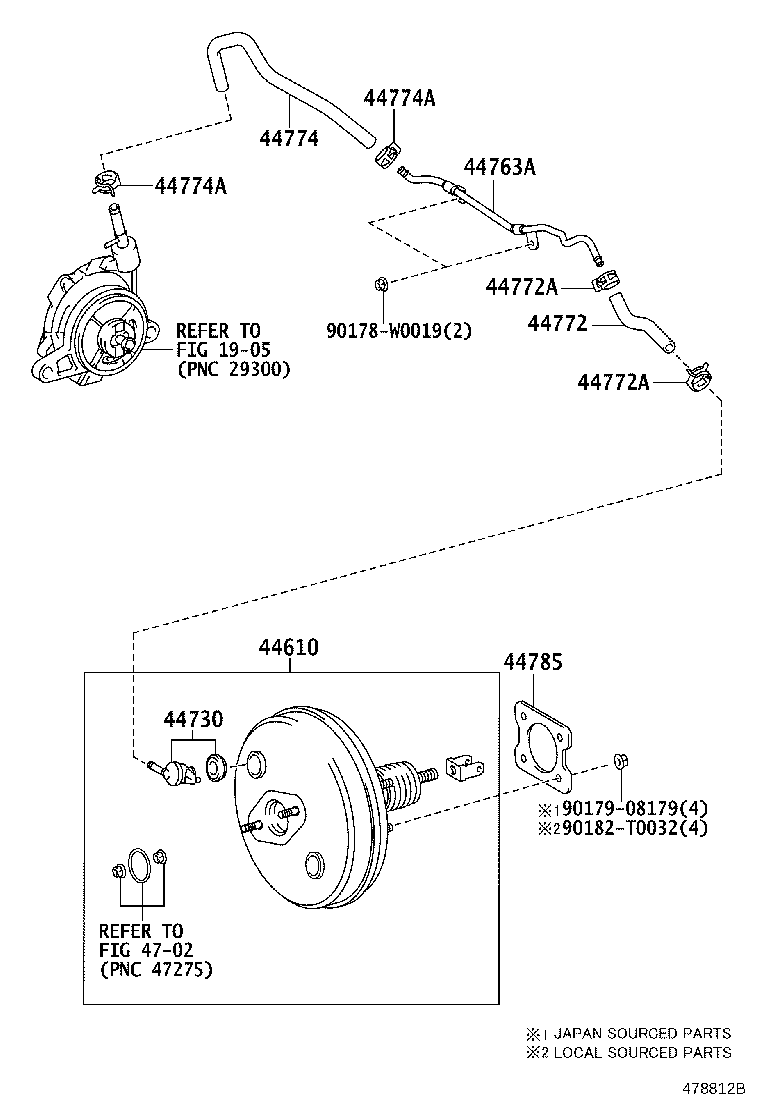

Click highlighted areas on diagram

diagram 1905 44610 44730 44763A 44772 44772A 44772A 44774 44774A 44774A 44785 4702 90178W0019 9017908179 90182T0032
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09A50

NDE180..TUP

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-09020

NDE180..TUP

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12400

NDE180..TUP

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12580

NDE180..TUP

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

NDE180..TUP

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

NDE180..TUP

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12751

NDE180..TUP

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NDE180..TUP

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NDE180..TUP

 2
44785 - GASKET, BRAKE BOOSTER
44785-12040

NDE180..TUP

(J)

 1
44785-05020

NDE180..TUP

(L)

 1
Common parts
90178-W0019
90179-08179
90182-T0032
Linked diagrams
1905
4702
