MZEA11L-GEXNBC (2021)

Toyota Corolla

Production Jan 2021 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2101- )MZEA11

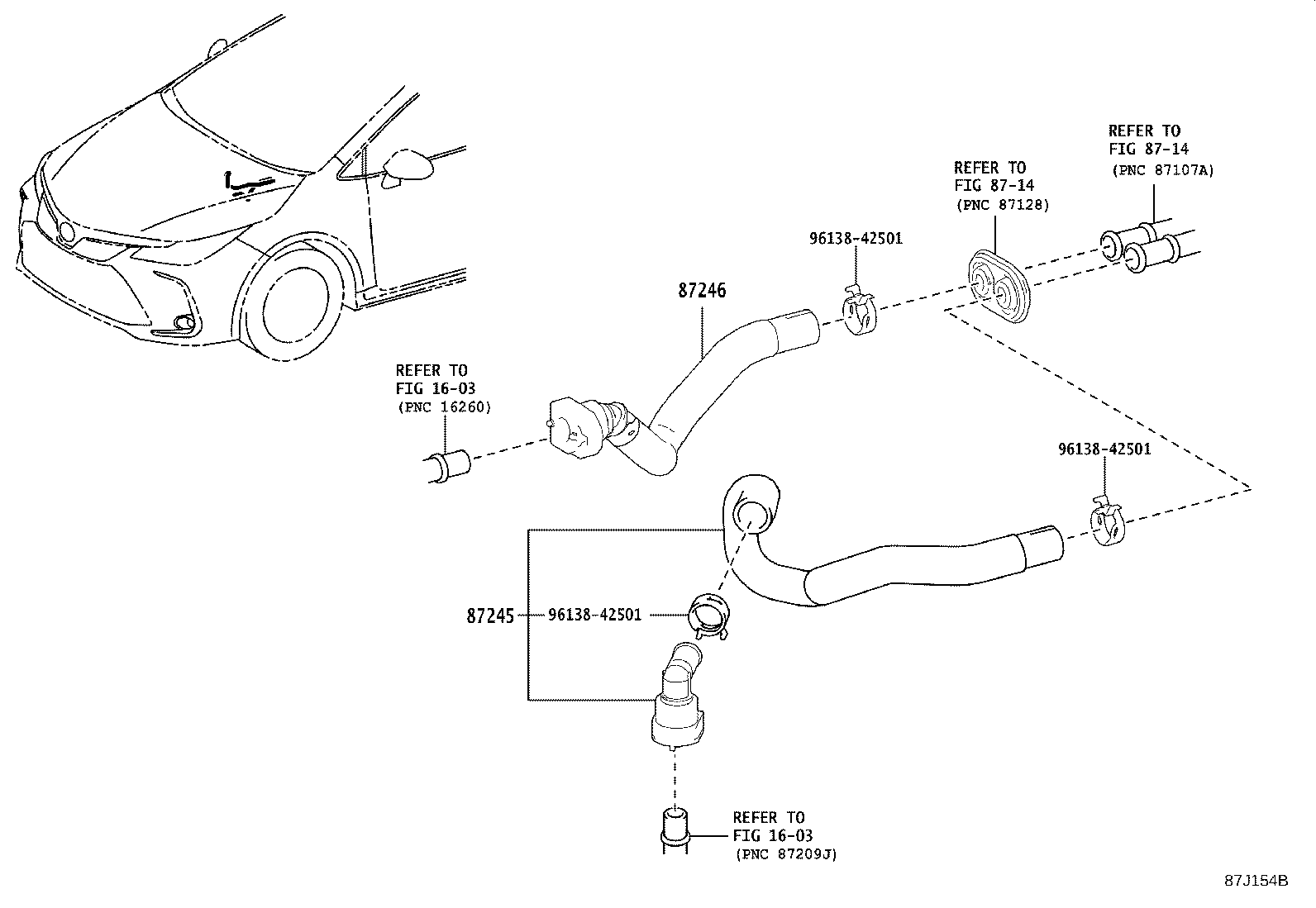

Click highlighted areas on diagram

diagram 1603 1603 8714 8714 87245 87246 9613842501 9613842501 9613842501
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87209-02250

MZEA11

 1
87246 - HOSE, HEATER WATER, OUTLET
87209-02620

MZEA11

 1
Common parts
96138-42501
Linked diagrams
1603
8714
