Toyota Corolla MZEA11 TORQUE CONVERTER, FRONT OIL PUMP(CVT)

Manufacturers Home
Toyota
GR
COROLLA
MZEA11L-GEXNBC (2021)
3402 - TORQUE CONVERTER, FRONT OIL PUMP(CVT)

MZEA11L-GEXNBC (2021)

Toyota Corolla

Production Jan 2021 - Sep 9999

Engine M15AFKS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

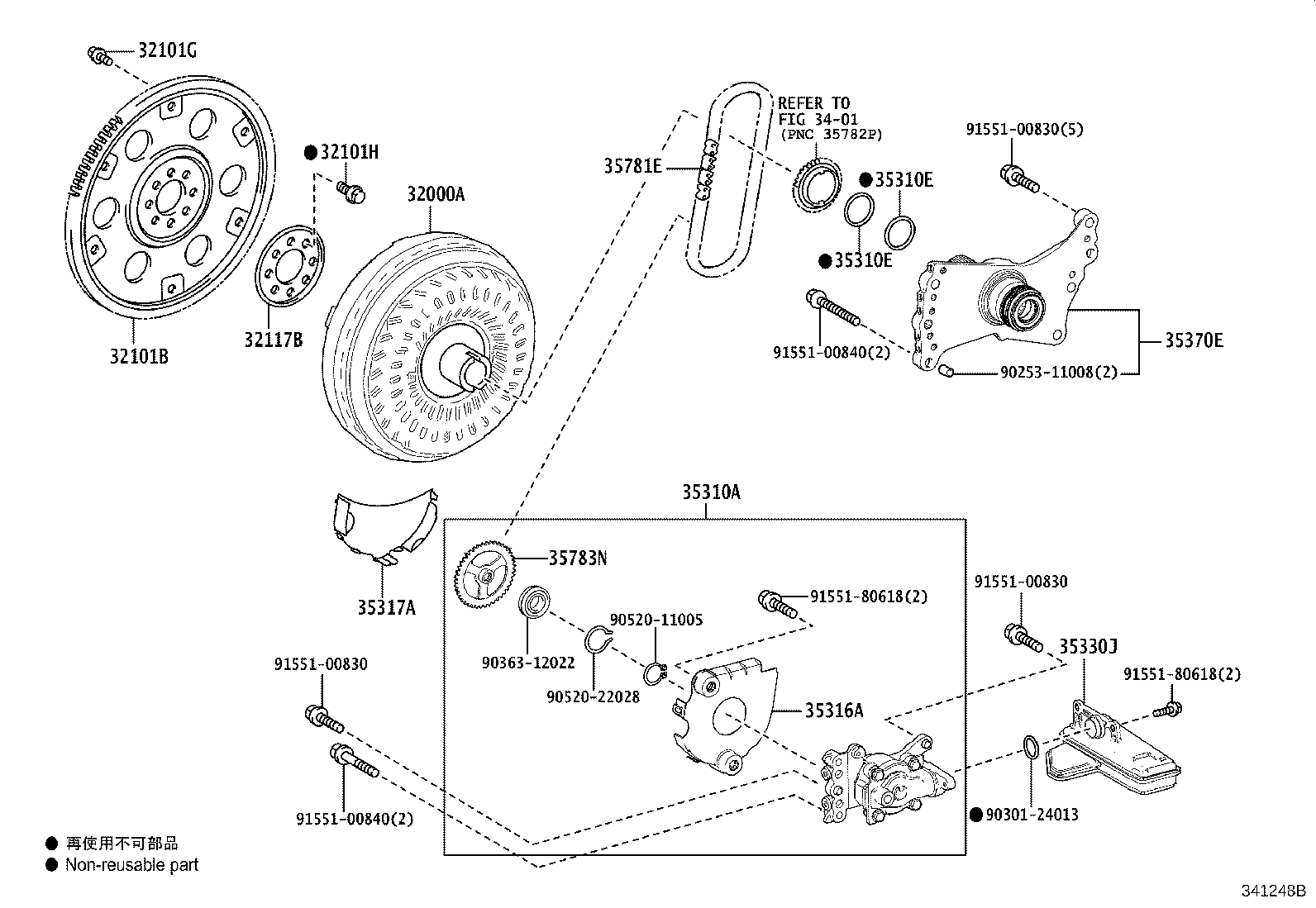

(2101- )MZEA11..CVT

Click highlighted areas on diagram

K320(TOYOTA:REFER 34-01)

Part #	Description	Period	Qty
32000A - CONVERTER ASSY, TORQUE
32000-12540	MZEA11..CVT TOYOTA:REFER 34-01	04/2021 - 12/2999	1
32000-K0010	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 12/2999	1
32101B - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-52100	MZEA11..CVT (J)	01/2021 - 12/2999	1
32101-02070	MZEA11..CVT (L)	01/2021 - 12/2999	1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-08113	MZEA11..CVT;NRE210..ENTRY,MID *8-1.25PX12-8.4,BLACK	08/2019 - 12/2999	1
90119-08498	MZEA11..CVT;NRE210..ENTRY,MID *8-1.25PX12-8,SILVER WHITE	08/2019 - 12/2999	5
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-12404	MZEA11..CVT	01/2021 - 12/2999	8
32117B - SPACER, DRIVE PLATE, REAR
32117-0R010	MZEA11..CVT (L)	01/2021 - 12/2999	1
32117-33010	MZEA11..CVT (J)	01/2021 - 12/2999	1
35310A - PUMP ASSY, FRONT OIL
35300-12020	MZEA11..CVT AISIN AW:REFER 34-01,TOYOTA:REFER 34-01	04/2021 - 12/2999	1
35300-52050	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 04/2021	1
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
35617-K0010	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 04/2021	2
35617-12080	MZEA11..CVT AISIN AW:REFER 34-01,TOYOTA:REFER 34-01	04/2021 - 12/2999	2
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
35617-K0010	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 04/2021	2
35617-12080	MZEA11..CVT AISIN AW:REFER 34-01,TOYOTA:REFER 34-01	04/2021 - 12/2999	2
35316A - PLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1
35316-12010	MZEA11..CVT TOYOTA:REFER 34-01	04/2021 - 12/2999	1
35316-12020	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 12/2999	1
35317A - PLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2
35317-12020	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 12/2999	1
35317-12010	MZEA11..CVT TOYOTA:REFER 34-01	04/2021 - 12/2999	1
35330J - STRAINER ASSY, OIL
35330-K0020	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 04/2021	1
35330-12070	MZEA11..CVT AISIN AW:REFER 34-01,TOYOTA:REFER 34-01	04/2021 - 12/2999	1
35370E - SHAFT ASSY, STATOR (CVT)
35370-K0010	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 12/2999	1
35370-12140	MZEA11..CVT TOYOTA:REFER 34-01	04/2021 - 12/2999	1
35781E - CHAIN, TRANSMISSION DRIVE
35781-12010	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 12/2999	1
35781-12010	MZEA11..CVT TOYOTA:REFER 34-01	04/2021 - 12/2999	1
35783N - SPROCKET, DRIVEN
35783-12060	MZEA11..CVT TOYOTA:REFER 34-01	04/2021 - 12/2999	1
35783-12060	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 12/2999	1
Common parts
90301-24013
90363-12022
90520-11005
90520-22028
91551-00830
91551-00840
91551-80618
Linked diagrams
3401

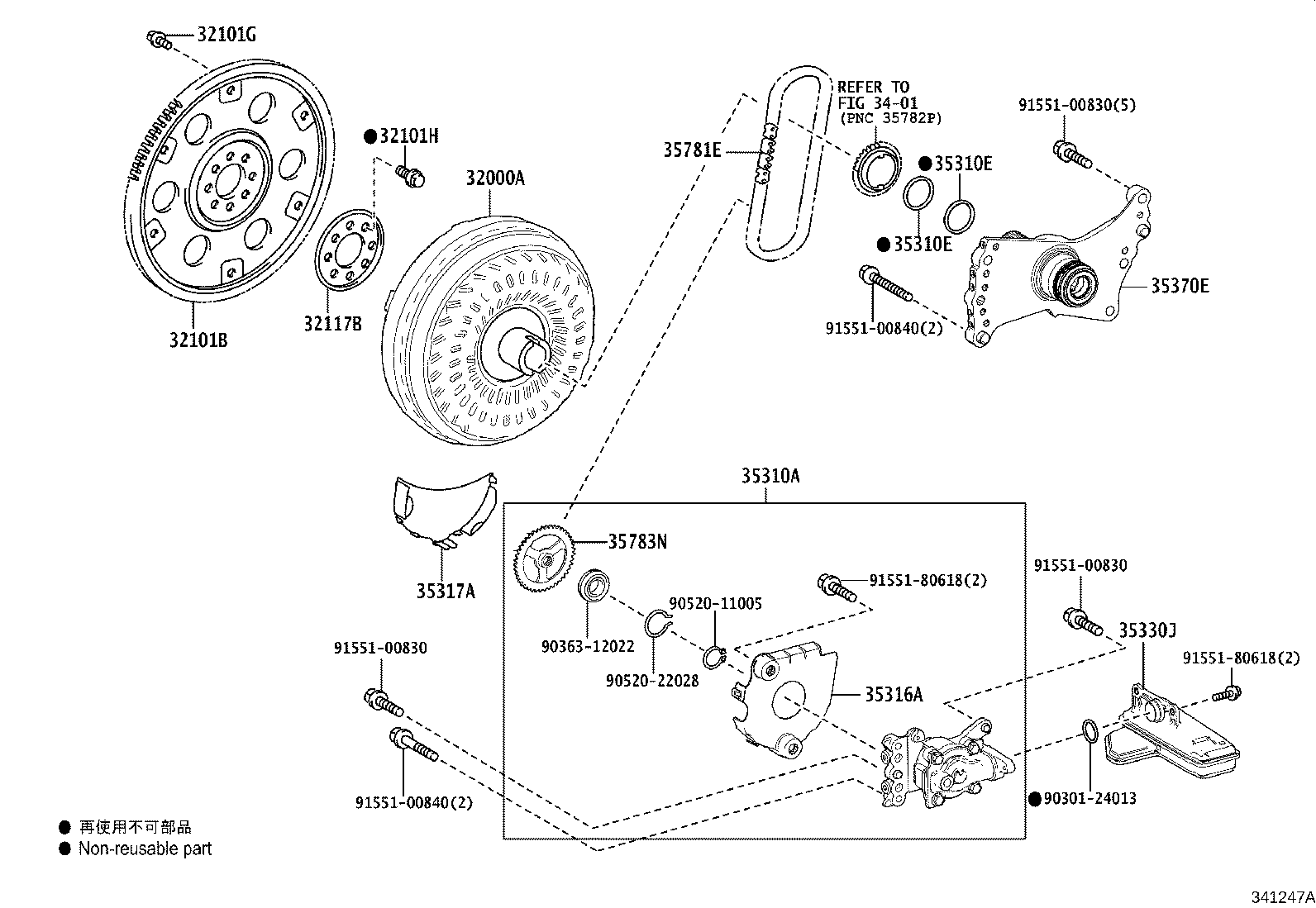

(2101- )MZEA11..CVT

Click highlighted areas on diagram

K320(AISIN AW:REFER 34-01)

Part #	Description	Period	Qty
32000A - CONVERTER ASSY, TORQUE
32000-12540	MZEA11..CVT TOYOTA:REFER 34-01	04/2021 - 12/2999	1
32000-K0010	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 12/2999	1
32101B - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-52100	MZEA11..CVT (J)	01/2021 - 12/2999	1
32101-02070	MZEA11..CVT (L)	01/2021 - 12/2999	1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-08113	MZEA11..CVT;NRE210..ENTRY,MID *8-1.25PX12-8.4,BLACK	08/2019 - 12/2999	1
90119-08498	MZEA11..CVT;NRE210..ENTRY,MID *8-1.25PX12-8,SILVER WHITE	08/2019 - 12/2999	5
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-12404	MZEA11..CVT	01/2021 - 12/2999	8
32117B - SPACER, DRIVE PLATE, REAR
32117-0R010	MZEA11..CVT (L)	01/2021 - 12/2999	1
32117-33010	MZEA11..CVT (J)	01/2021 - 12/2999	1
35310A - PUMP ASSY, FRONT OIL
35300-12020	MZEA11..CVT AISIN AW:REFER 34-01,TOYOTA:REFER 34-01	04/2021 - 12/2999	1
35300-52050	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 04/2021	1
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
35617-K0010	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 04/2021	2
35617-12080	MZEA11..CVT AISIN AW:REFER 34-01,TOYOTA:REFER 34-01	04/2021 - 12/2999	2
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
35617-K0010	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 04/2021	2
35617-12080	MZEA11..CVT AISIN AW:REFER 34-01,TOYOTA:REFER 34-01	04/2021 - 12/2999	2
35316A - PLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1
35316-12010	MZEA11..CVT TOYOTA:REFER 34-01	04/2021 - 12/2999	1
35316-12020	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 12/2999	1
35317A - PLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2
35317-12020	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 12/2999	1
35317-12010	MZEA11..CVT TOYOTA:REFER 34-01	04/2021 - 12/2999	1
35330J - STRAINER ASSY, OIL
35330-K0020	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 04/2021	1
35330-12070	MZEA11..CVT AISIN AW:REFER 34-01,TOYOTA:REFER 34-01	04/2021 - 12/2999	1
35370E - SHAFT ASSY, STATOR (CVT)
35370-K0010	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 12/2999	1
35370-12140	MZEA11..CVT TOYOTA:REFER 34-01	04/2021 - 12/2999	1
35781E - CHAIN, TRANSMISSION DRIVE
35781-12010	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 12/2999	1
35781-12010	MZEA11..CVT TOYOTA:REFER 34-01	04/2021 - 12/2999	1
35783N - SPROCKET, DRIVEN
35783-12060	MZEA11..CVT TOYOTA:REFER 34-01	04/2021 - 12/2999	1
35783-12060	MZEA11..CVT AISIN AW:REFER 34-01	01/2021 - 12/2999	1
Common parts
90253-11008
90301-24013
90363-12022
90520-11005
90520-22028
91551-00830
91551-00840
91551-80618
Linked diagrams
3401
