MZEA11L-GEXGBC (2021)
Toyota Corolla

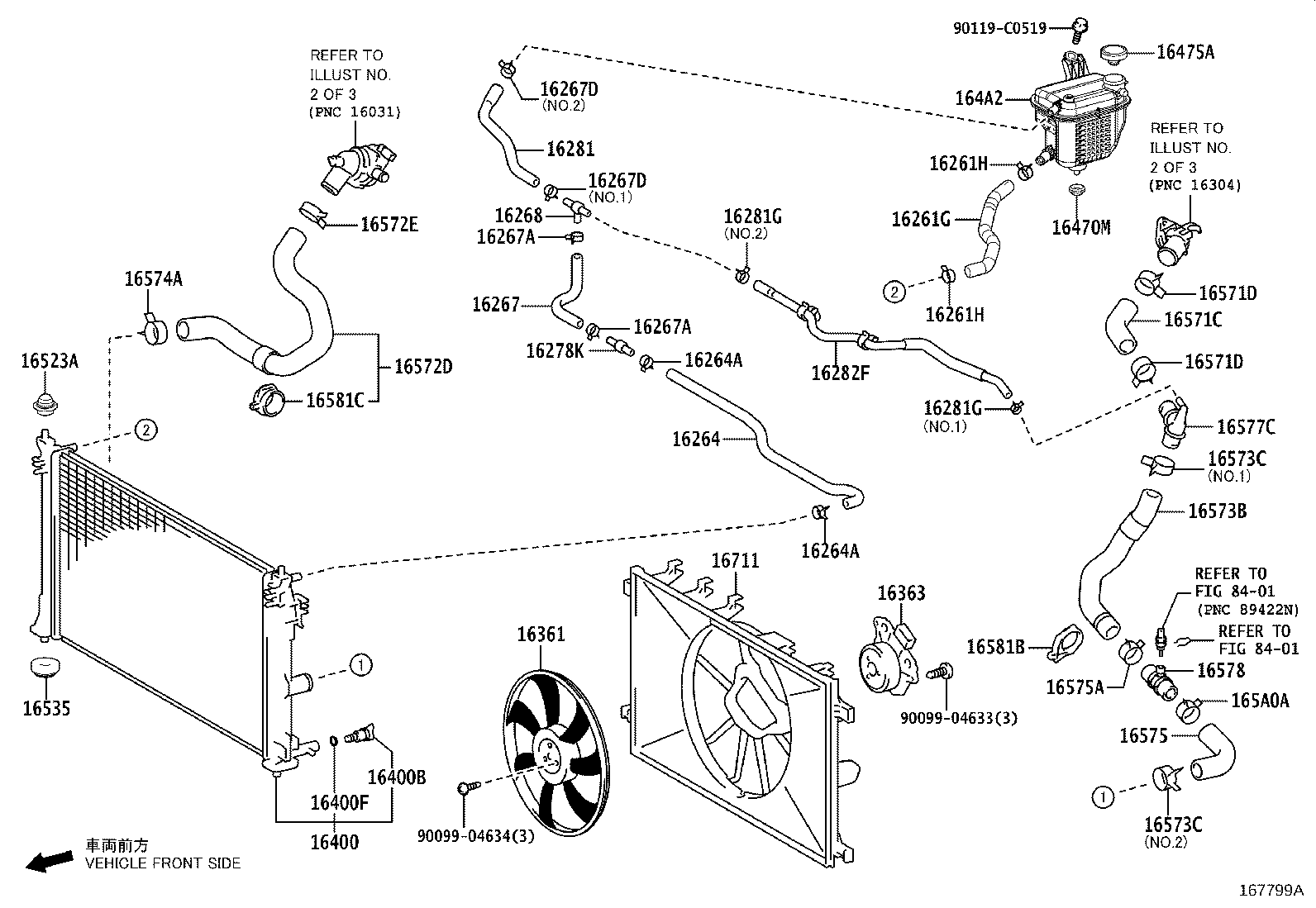

ILLUST NO. 1 OF 3(2101- )M15AFKS..CVT
RADIATOR SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-F2040 |
M15AFKS..MZEA11 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-C0014 |
M15AFKS..MZEA11 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-C0014 |
M15AFKS..MZEA11 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-F3020 |
M15AFKS..MZEA11 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0039 |
M15AFKS..MZEA11 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0039 |
M15AFKS..MZEA11 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-F3020 |
M15AFKS..MZEA11 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-C0039 |
M15AFKS..MZEA11 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-C0039 |
M15AFKS..MZEA11 |
2 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-C0013 |
M15AFKS..MZEA11 NO.2:REFER ILLUST. |
1 | ||
| 90466-C0039 |
M15AFKS..MZEA11 NO.1:REFER ILLUST. |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-C0013 |
M15AFKS..MZEA11 NO.2:REFER ILLUST. |
1 | ||
| 90466-C0039 |
M15AFKS..MZEA11 NO.1:REFER ILLUST. |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-F2030 |
M15AFKS..MZEA11 |
1 | ||
| 16278K - PIPE, WATER BY-PASS, NO.2 | ||||
| 16268-F2040 |
M15AFKS..MZEA11 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-F3040 |
M15AFKS..MZEA11 *618 |
1 | ||
| 16281-15010 |
M15AFKS..MZEA11 *616 |
1 | ||
| 16281-F3020 |
M15AFKS..MZEA11 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-C0039 |
M15AFKS..MZEA11 NO.2:REFER ILLUST. |
1 | ||
| 96138-41701 |
M15AFKS..MZEA11 NO.1:REFER ILLUST. |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-C0039 |
M15AFKS..MZEA11 NO.2:REFER ILLUST. |
1 | ||
| 96138-41701 |
M15AFKS..MZEA11 NO.1:REFER ILLUST. |
1 | ||
| 16282F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-F3030 |
M15AFKS..MZEA11 |
1 | ||
| 16361 - FAN | ||||
| 16361-F2050 |
M15AFKS..MZEA11 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-47060 |
M15AFKS..MZEA11 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-F2030 |
M15AFKS..MZEA11 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0H290 |
M15AFKS..MZEA11 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-0P460 |
M15AFKS..MZEA11 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-C0007 |
M15AFKS..MZEA11 (L) |
1 | ||
| 90480-18010 |
M15AFKS..MZEA11 (J) |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-0T081 |
M15AFKS..MZEA11 (L) |
1 | ||
| 16475-28140 |
M15AFKS..MZEA11 (J) |
1 | ||
| 164A2 - TANK, RESERVE SEALED W/O CAP | ||||
| 164A2-F2010 |
M15AFKS..MZEA11 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-F2010 |
M15AFKS..MZEA11 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40021 |
M15AFKS..MZEA11 (J) |
2 | ||
| 90480-T0007 |
M15AFKS..MZEA11 (L) |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-F3020 |
M15AFKS..MZEA11 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-C0008 |
M15AFKS..MZEA11 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-C0008 |
M15AFKS..MZEA11 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-F3020 |
M15AFKS..MZEA11 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-C0008 |
M15AFKS..MZEA11..CVT |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-F3050 |
M15AFKS..MZEA11..CVT |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-C0009 |
M15AFKS..MZEA11 NO.2:REFER ILLUST. |
1 | ||
| 90466-C0008 |
M15AFKS..MZEA11 NO.1:REFER ILLUST. |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-C0009 |
M15AFKS..MZEA11 NO.2:REFER ILLUST. |
1 | ||
| 90466-C0008 |
M15AFKS..MZEA11 NO.1:REFER ILLUST. |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-C0009 |
M15AFKS..MZEA11..CVT |
1 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-F3200 |
M15AFKS..MZEA11..CVT |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90466-C0009 |
M15AFKS..MZEA11..CVT |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-F3020 |
M15AFKS..MZEA11 |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16577-F2060 |
M15AFKS..MZEA11..CVT |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-25010 |
M15AFKS..MZEA11..CVT |
1 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-31040 |
M15AFKS..MZEA11..CVT |
1 | ||
| 165A0A - CLIP, HOSE | ||||
| 90466-C0009 |
M15AFKS..MZEA11..CVT |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-F2031 |
M15AFKS..MZEA11 |
1 | ||
| Common parts | ||||
| 90099-04633 | ||||
| 90099-04634 | ||||
| 90119-C0519 | ||||
| Linked diagrams | ||||
| 8401 | ||||

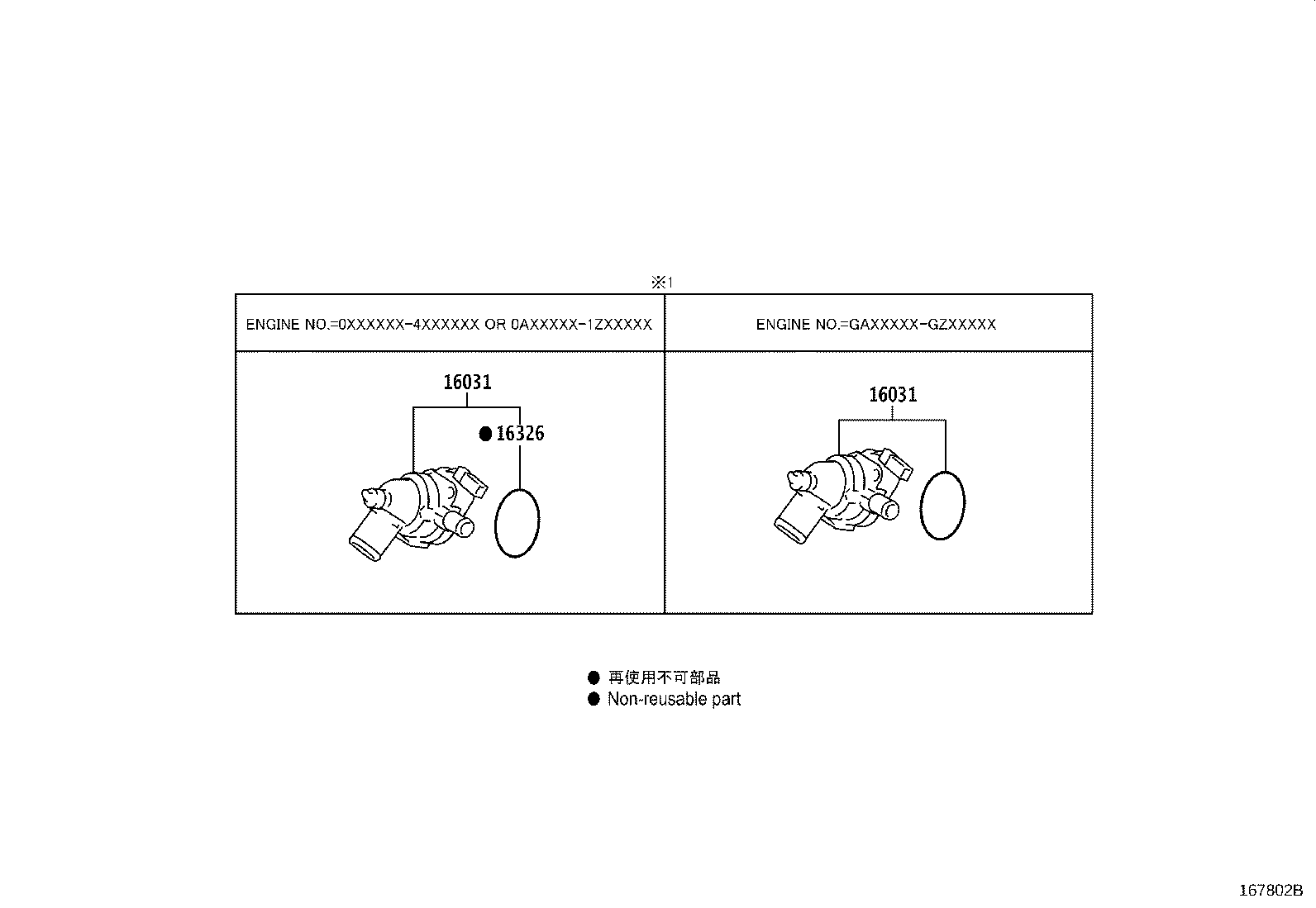

ILLUST NO. 3 OF 3(2101- )M15AFKS
ENGINE SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-F3020 |
M15AFKS..MZEA11 *618 |
1 | ||
| 16031-15010 |
M15AFKS..MZEA11 *616 |
1 | ||
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-F3020 |
M15AFKS..MZEA11 *618 |
1 | ||
| 16031-15010 |
M15AFKS..MZEA11 *616 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-15010 |
M15AFKS..MZEA11 *616 |
1 | ||

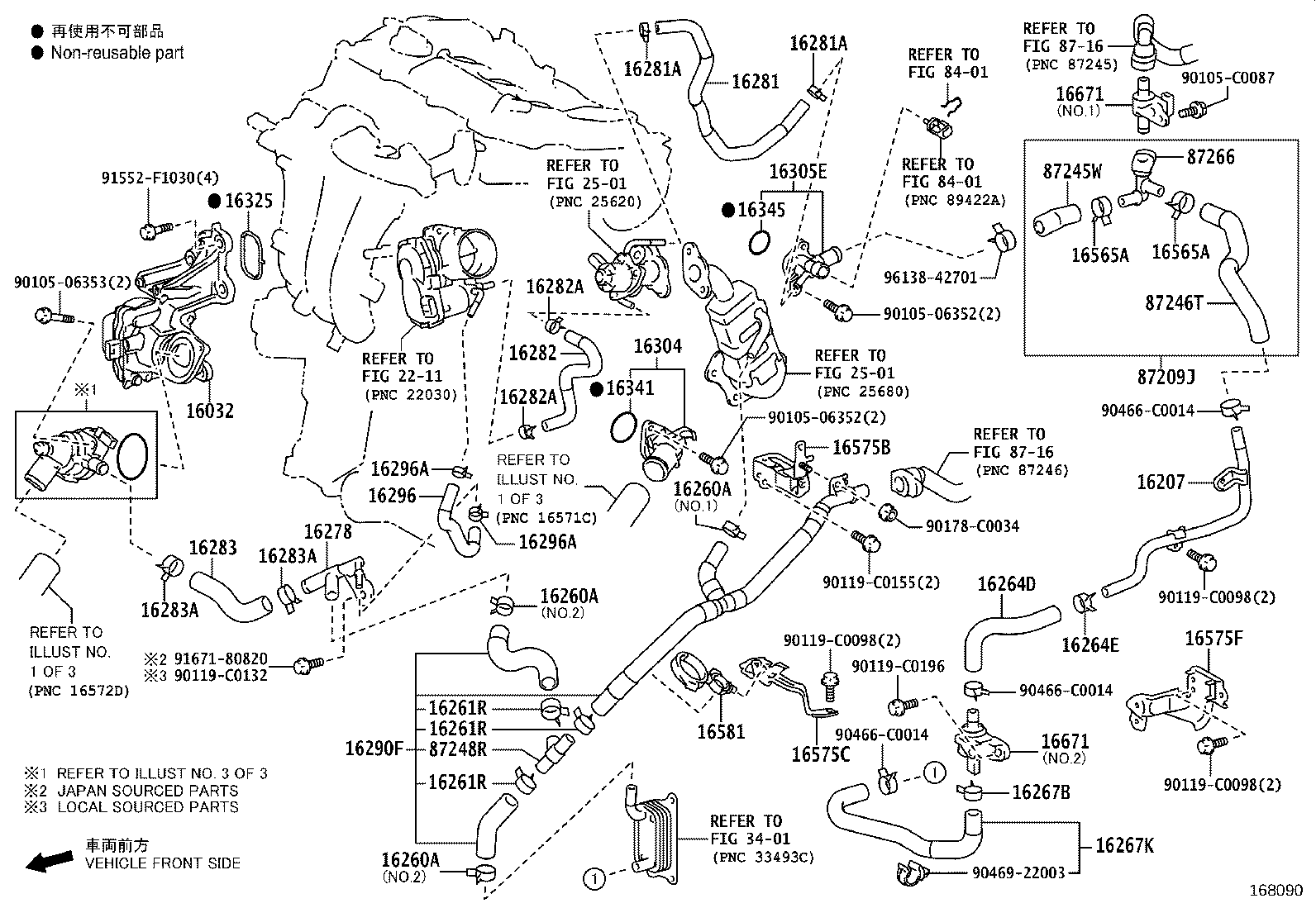

ILLUST NO. 2 OF 3(2101- )M15AFKS..CVT
ENGINE SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16032 - HOUSING SUB-ASSY, WATER INLET W/WATER PUMP | ||||
| 16032-15190 |
M15AFKS..MZEA11 *616 |
1 | ||
| 16032-F3030 |
M15AFKS..MZEA11 *618 |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-F3020 |
M15AFKS..MZEA11..CVT |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 90466-C0014 |
M15AFKS..MZEA11..CVT NO.2:REFER ILLUST. |
2 | ||
| 90466-C0013 |
M15AFKS..MZEA11 NO.1:REFER ILLUST. |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 90466-C0014 |
M15AFKS..MZEA11..CVT NO.2:REFER ILLUST. |
2 | ||
| 90466-C0013 |
M15AFKS..MZEA11 NO.1:REFER ILLUST. |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 90466-C0014 |
M15AFKS..MZEA11..CVT NO.2:REFER ILLUST. |
2 | ||
| 90466-C0013 |
M15AFKS..MZEA11 NO.1:REFER ILLUST. |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96138-42501 |
M15AFKS..MZEA11..CVT |
3 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96138-42501 |
M15AFKS..MZEA11..CVT |
3 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96138-42501 |
M15AFKS..MZEA11..CVT |
3 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-F3050 |
M15AFKS..MZEA11..CVT |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0014 |
M15AFKS..MZEA11..CVT |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-C0014 |
M15AFKS..MZEA11..CVT |
1 | ||
| 16267K - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-F3060 |
M15AFKS..MZEA11..CVT |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-F3020 |
M15AFKS..MZEA11 *618 |
1 | ||
| 16278-15080 |
M15AFKS..MZEA11 *616 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-F3040 |
M15AFKS..MZEA11 *618 |
1 | ||
| 16281-15010 |
M15AFKS..MZEA11 *616 |
1 | ||
| 16281-F3020 |
M15AFKS..MZEA11 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96138-41501 |
M15AFKS..MZEA11 *618,*616 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96138-41501 |
M15AFKS..MZEA11 *618,*616 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-15010 |
M15AFKS..MZEA11 *616 |
1 | ||
| 16282-F3070 |
M15AFKS..MZEA11 *618 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96138-41501 |
M15AFKS..MZEA11 *618,*616 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96138-41501 |
M15AFKS..MZEA11 *618,*616 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-F3060 |
M15AFKS..MZEA11 *618 |
1 | ||
| 16283-15010 |
M15AFKS..MZEA11 *616 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96138-42501 |
M15AFKS..MZEA11 *618,*616 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96138-42501 |
M15AFKS..MZEA11 *618,*616 |
2 | ||
| 16290F - HOSE ASSY, WATER BY-PASS, NO.3 | ||||
| 16290-F3010 |
M15AFKS..MZEA11..CVT |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-F3070 |
M15AFKS..MZEA11 *618 |
1 | ||
| 16296-15010 |
M15AFKS..MZEA11 *616 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96138-41501 |
M15AFKS..MZEA11 *618,*616 |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96138-41501 |
M15AFKS..MZEA11 *618,*616 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-F3020 |
M15AFKS..MZEA11 *618 |
1 | ||
| 16304-15010 |
M15AFKS..MZEA11 *616 |
1 | ||
| 16305E - OUTLET SUB-ASSY, WATER BY-PASS | ||||
| 16305-F3030 |
M15AFKS..MZEA11 *618 |
1 | ||
| 16305-15010 |
M15AFKS..MZEA11 *616 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-F3020 |
M15AFKS..MZEA11 *618 |
1 | ||
| 16325-15030 |
M15AFKS..MZEA11 *616 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-15020 |
M15AFKS..MZEA11 *616 |
1 | ||
| 16341-F3020 |
M15AFKS..MZEA11 *618 |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-15010 |
M15AFKS..MZEA11 *616 |
1 | ||
| 16345-F3020 |
M15AFKS..MZEA11 *618 |
1 | ||
| 16565A - CLIP | ||||
| 96138-42501 |
M15AFKS..MZEA11..CVT |
2 | ||
| 16565A - CLIP | ||||
| 96138-42501 |
M15AFKS..MZEA11..CVT |
2 | ||
| 16575B - BRACKET, WATER HOSE CLAMP, NO.2 | ||||
| 16575-F3110 |
M15AFKS..MZEA11 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-F3130 |
M15AFKS..MZEA11..CVT |
1 | ||
| 16575F - BRACKET, WATER HOSE CLAMP, NO.3 | ||||
| 16575-F3210 |
M15AFKS..MZEA11..CVT |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-F3020 |
M15AFKS..MZEA11 |
1 | ||
| 16671 - VALVE, WATER | ||||
| 16671-24010 |
M15AFKS..MZEA11..CVT NO.1:REFER ILLUST. |
1 | ||
| 16671-24020 |
M15AFKS..MZEA11..CVT NO.2:REFER ILLUST. |
1 | ||
| 16671 - VALVE, WATER | ||||
| 16671-24010 |
M15AFKS..MZEA11..CVT NO.1:REFER ILLUST. |
1 | ||
| 16671-24020 |
M15AFKS..MZEA11..CVT NO.2:REFER ILLUST. |
1 | ||
| 87209J - HOSE SUB-ASSY, WATER | ||||
| 87209-02560 |
MZEA11..CVT |
1 | ||
| 87245W - HOSE, WATER | ||||
| 87245-02T80 |
MZEA11..CVT |
1 | ||
| 87246T - HOSE, WATER, NO.2 | ||||
| 87246-02010 |
MZEA11..CVT |
1 | ||
| 87248R - PIPE, WATER | ||||
| 87248-0E240 |
MZEA11..CVT |
1 | ||
| 87266 - CONNECTOR, WATER HOSE, NO.2 | ||||
| 87266-02030 |
MZEA11..CVT |
1 | ||
| Common parts | ||||
| 90105-06352 | ||||
| 90105-06353 | ||||
| 90105-C0087 | ||||
| 90119-C0098 | ||||
| 90119-C0132 | ||||
| 90119-C0155 | ||||
| 90119-C0196 | ||||
| 90178-C0034 | ||||
| 90466-C0014 | ||||
| 90469-22003 | ||||
| 91552-F1030 | ||||
| 91671-80820 | ||||
| 96138-42701 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 2501 | ||||
| 3401 | ||||
| 8401 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
