MZEA11L-GEXEBC (2021)

Toyota Corolla

Production Jan 2021 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2101- )MZEA11

Click highlighted areas on diagram

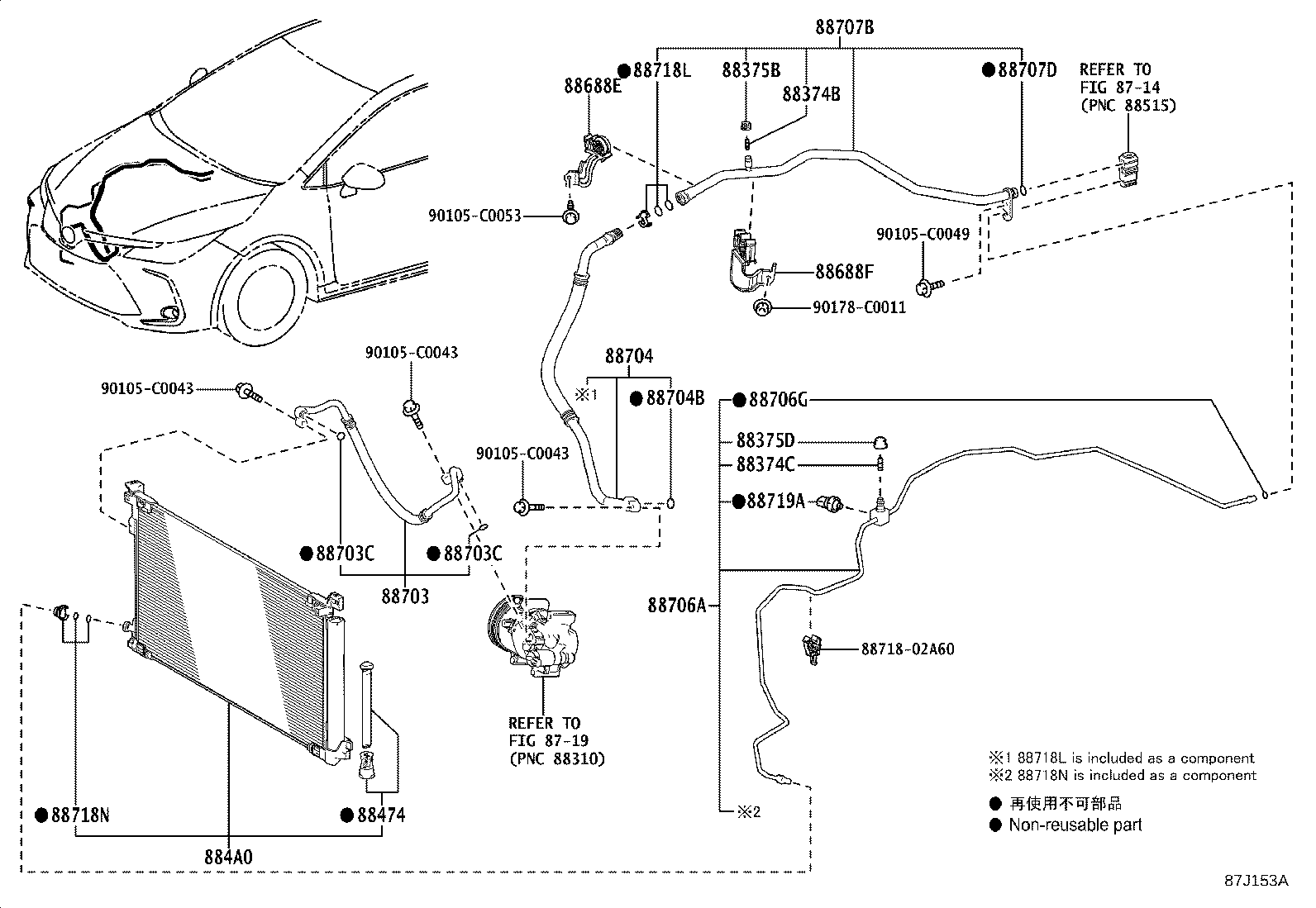

diagram 8714 8719 88374B 88374C 88375B 88375D 88474 884A0 88688E 88688F 88703 88703C 88703C 88704 88704B 88706A 88706G 88707B 88707D 8871802A60 88718L 88718N 88719A 90105C0043 90105C0043 90105C0043 90105C0049 90105C0053 90178C0011
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

MZEA11

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

MZEA11

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

MZEA11

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

MZEA11

 1
88474 - DRYER, COOLER
88474-12020

MZEA11

 1
884A0 - CONDENSER ASSY, COOLER
884A0-02280

MZEA11

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-F4101

MZEA11

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-F4110

MZEA11

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-02E50

MZEA11

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

MZEA11

ID=10.8,OD=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

MZEA11

ID=10.8,OD=15.6

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-02E70

MZEA11

 1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

MZEA11

ID=13.4,OD=18.2

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88710-02C10

MZEA11

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

MZEA11

ID=6.7,OD=10.3

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-F4060

MZEA11

 1
88707D - RING, O(FOR SUCTION TUBE)
90099-14121

MZEA11

ID=13.4,OD=18.2

 1
88718L - CLAMP, PIPING
88718-52280

MZEA11

 1
88718N - CLAMP, PIPING
88718-1E150

MZEA11

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010

MZEA11

 1
Common parts
88718-02A60
90105-C0043
90105-C0049
90105-C0053
90178-C0011
