MZEA11L-GEXEBC (2021)
Toyota Corolla

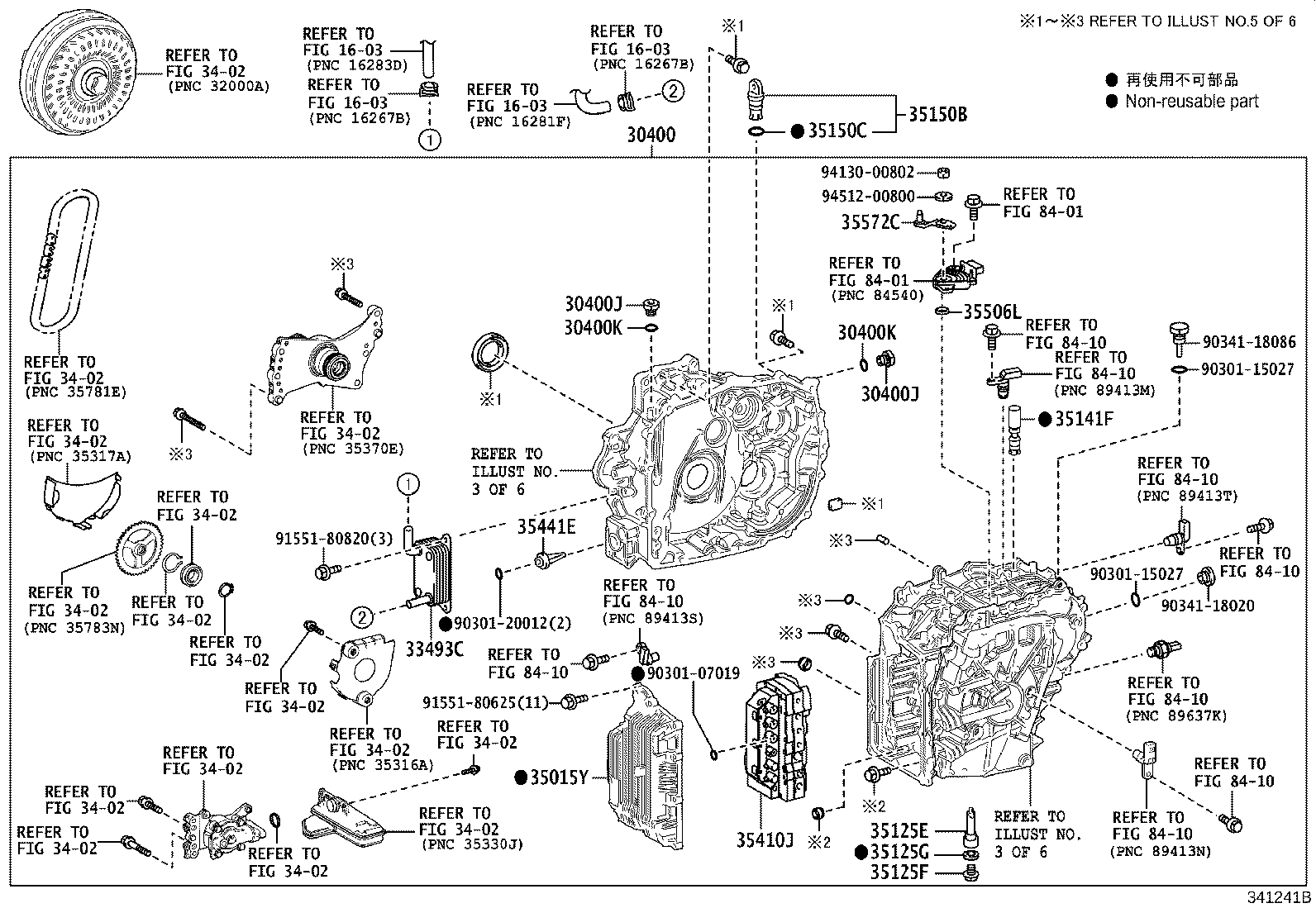

ILLUST NO. 2 OF 6(2101- )MZEA11..CVT
K320
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE | ||||
| 30400-12320 |
MZEA11..CVT K320,AISIN AW:REF.ILLUST |
1 | ||
| 30400-12151 |
MZEA11..CVT K320,TOYOTA:REF.ILLUST |
1 | ||
| 30400J - PLUG, TRANSAXLE HOLE | ||||
| 90341-08001 |
MZEA11..CVT AISIN AW:REF.ILLUST |
2 | ||
| 90341-08001 |
MZEA11..CVT TOYOTA:REF.ILLUST |
2 | ||
| 30400J - PLUG, TRANSAXLE HOLE | ||||
| 90341-08001 |
MZEA11..CVT AISIN AW:REF.ILLUST |
2 | ||
| 90341-08001 |
MZEA11..CVT TOYOTA:REF.ILLUST |
2 | ||
| 30400K - GASKET, TRANSAXLE HOLE PLUG | ||||
| 90301-06196 |
MZEA11..CVT AISIN AW:REF.ILLUST |
2 | ||
| 90301-06196 |
MZEA11..CVT TOYOTA:REF.ILLUST |
2 | ||
| 30400K - GASKET, TRANSAXLE HOLE PLUG | ||||
| 90301-06196 |
MZEA11..CVT AISIN AW:REF.ILLUST |
2 | ||
| 90301-06196 |
MZEA11..CVT TOYOTA:REF.ILLUST |
2 | ||
| 33493C - COOLER, TRANSMISSION OIL | ||||
| 33493-12100 |
MZEA11..CVT |
1 | ||
| 35015Y - COVER SUB-ASSY, TRANSAXLE SIDE | ||||
| 35015-12010 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 35015-12020 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35125E - TUBE, OVERFLOW(CVT) | ||||
| 35125-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35125-12490 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
1 | ||
| 35125F - PLUG, OVERFLOW(CVT) | ||||
| 90341-18016 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 90341-18016 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35125G - GASKET, OVERFLOW PLUG(CVT) | ||||
| 90430-18008 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 90430-18008 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03233 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 90930-03233 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 35150B - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-48010 |
MZEA11..CVT |
1 | ||
| 35150C - RING, O (FOR TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
MZEA11..CVT |
1 | ||
| 35410J - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-52290 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35410-12A40 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 35441E - STRAINER, SOLENOID OIL | ||||
| 35441-12130 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
1 | ||
| 35441-52040 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35506L - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 90311-12002 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35572C - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-12190 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 35572-12190 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| Common parts | ||||
| 90301-07019 | ||||
| 90301-15027 | ||||
| 90301-20012 | ||||
| 90341-18020 | ||||
| 90341-18086 | ||||
| 91551-80625 | ||||
| 91551-80820 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 3402 | ||||
| 8401 | ||||
| 8410 | ||||

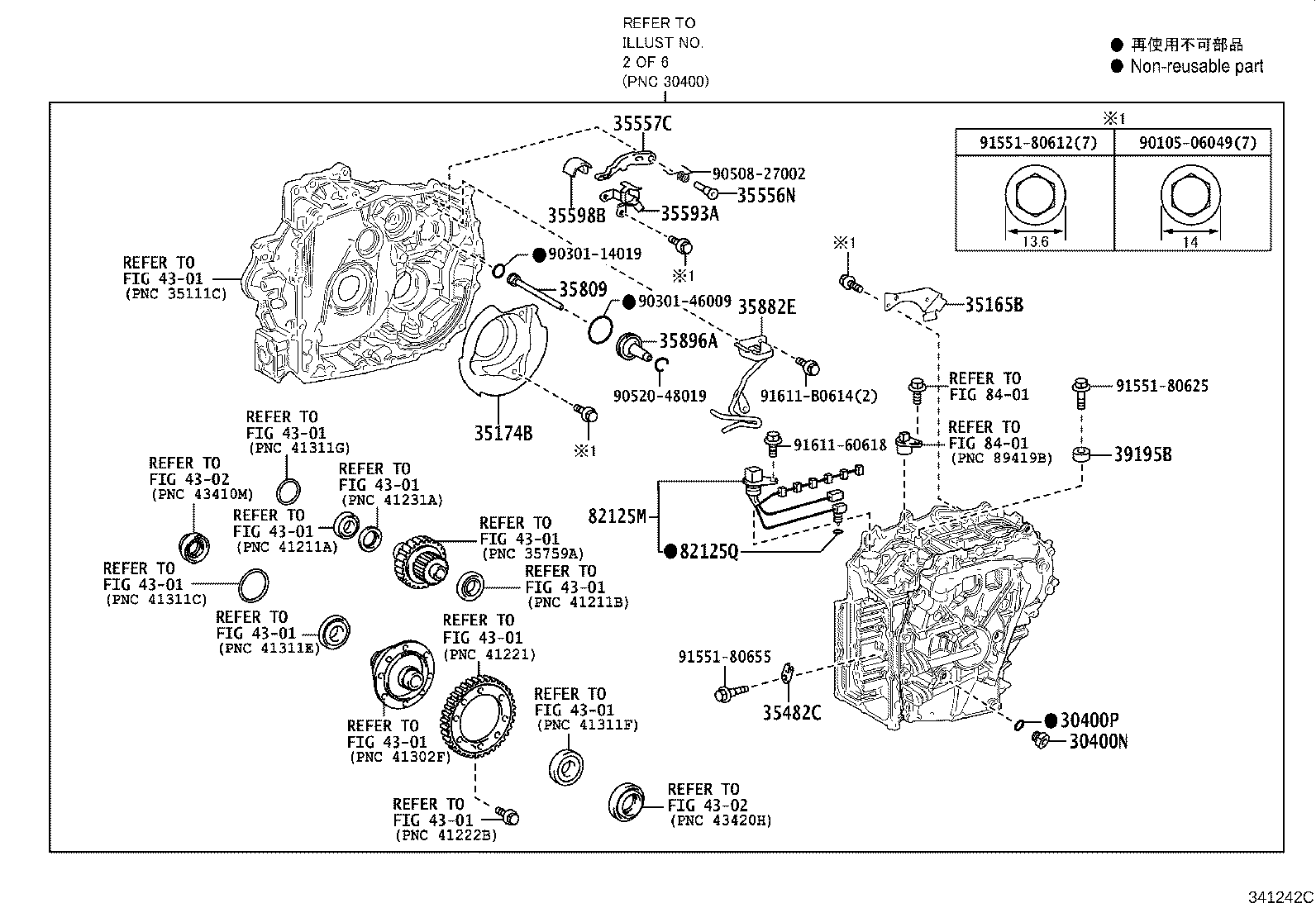

ILLUST NO. 3 OF 6(2101- )MZEA11..CVT
K320
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400N - PLUG, REFILL(CVT) | ||||
| 90341-18077 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 30400P - GASKET, REFILL PLUG(CVT) | ||||
| 90430-18008 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35165B - PLATE, TRANSMISSION CASE, NO.1 | ||||
| 35165-K0020 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35165-52080 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35165-12100 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
1 | ||
| 35174B - PLATE, OIL RESERVOIR LOCK | ||||
| 35174-K0020 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35174-12070 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 35482C - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-73010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35482-73010 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 35556N - SHAFT, PARKING LOCK PAWL | ||||
| 35556-12040 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 35556-12050 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35557C - PAWL, PARKING LOCK | ||||
| 35557-K0020 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35557-12080 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
1 | ||
| 35593A - SLEEVE, CAM GUIDE | ||||
| 35593-12050 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35593-12060 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 35598B - SLEEVE, PARKING LOCK | ||||
| 35598-12060 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
1 | ||
| 35598-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35809 - TUBE SUB-ASSY, C-2 CLUTCH PRESSURE APPLY | ||||
| 35809-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35809-12030 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
1 | ||
| 35882E - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35882-12080 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
1 | ||
| 35896A - TUBE, SECONDARY SHAFT LUBE APPLY | ||||
| 35896-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35896-12030 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
1 | ||
| 39195B - DAMPER, TRANSAXLE MASS | ||||
| 39195-12010 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 39195-52010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 82125M - WIRE, TRANSMISSION | ||||
| 82125-12670 |
MZEA11..CVT |
1 | ||
| 82125Q - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-06004 |
MZEA11..CVT |
1 | ||
| Common parts | ||||
| 90105-06049 | ||||
| 90301-14019 | ||||
| 90301-46009 | ||||
| 90508-27002 | ||||
| 90520-48019 | ||||
| 91551-80612 | ||||
| 91551-80625 | ||||
| 91551-80655 | ||||
| 91611-60618 | ||||
| 91611-B0614 | ||||
| Linked diagrams | ||||
| 4301 | ||||
| 4302 | ||||
| 8401 | ||||

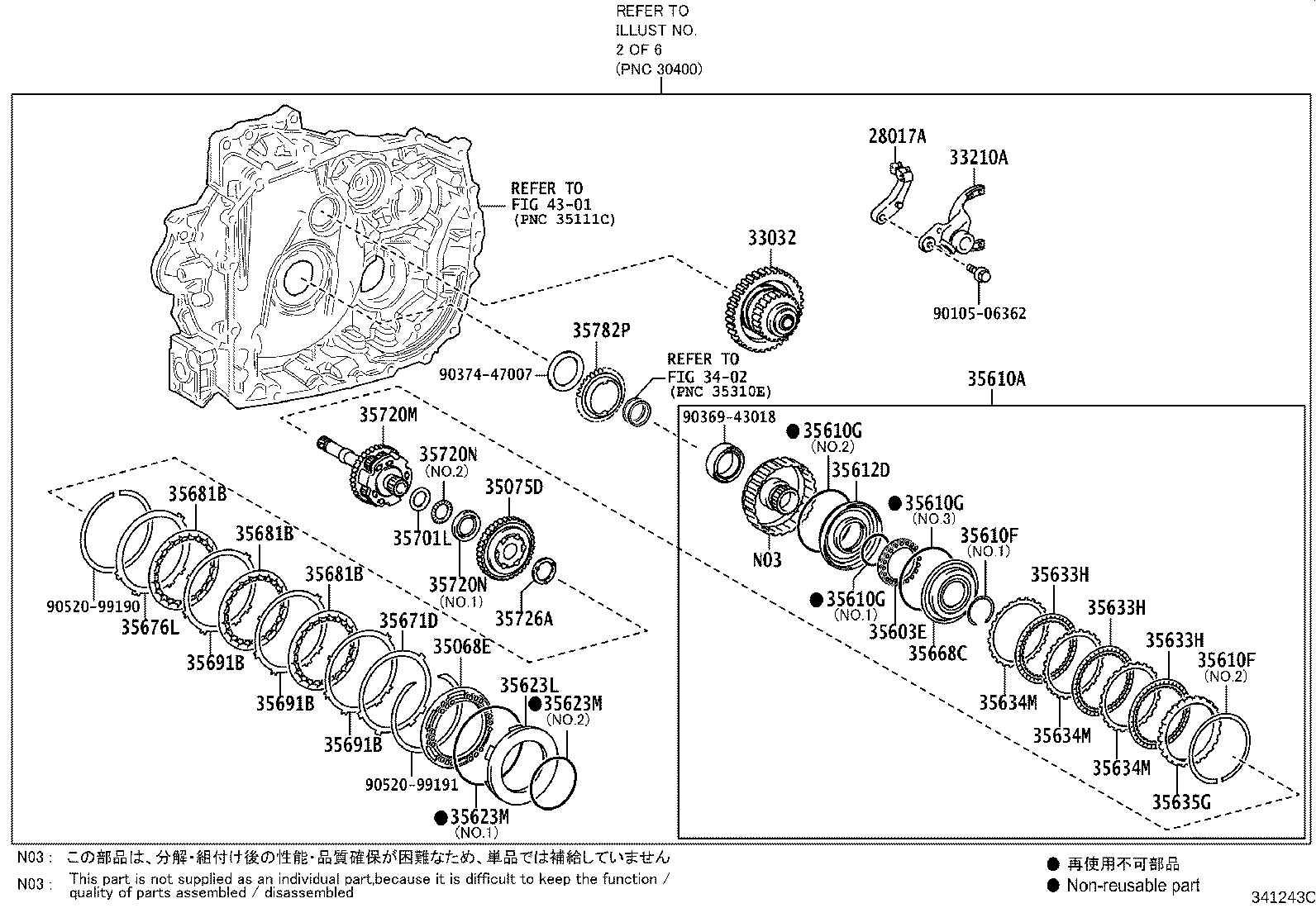

ILLUST NO. 4 OF 6(2101- )MZEA11..CVT
K320
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28017A - STAY(FOR GEAR SHIFT FORK) | ||||
| 28017-K2010 |
M15AFKS..MZEA11..CVT |
1 | ||
| 33032 - GEAR SUB-ASSY, 1ST | ||||
| 33032-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 33032-12170 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 33210A - FORK ASSY, GEAR SHIFT, NO.1 | ||||
| 33210-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 33210-12010 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
1 | ||
| 35068E - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35068-12060 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
1 | ||
| 35075D - GEAR SUB-ASSY, FRONT PLANETARY RING | ||||
| 35075-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35075-12070 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 35603E - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35603-12070 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
1 | ||
| 35610A - CLUTCH ASSY, FORWARD MULTIPLE DISC | ||||
| 35610-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35610-12310 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 35610F - RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90520-99192 |
MZEA11..CVT NO.2AISIN:REF.ILLUST |
1 | ||
| 90520-99192 |
MZEA11..CVT NO.2,TOYOTA:REF.ILL. |
1 | ||
| 90520-44041 |
MZEA11..CVT NO.1AISIN:REF.ILLUST |
1 | ||
| 90520-44041 |
MZEA11..CVT NO.1,TOYOTA:REF.ILL. |
1 | ||
| 35610F - RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90520-99192 |
MZEA11..CVT NO.2AISIN:REF.ILLUST |
1 | ||
| 90520-99192 |
MZEA11..CVT NO.2,TOYOTA:REF.ILL. |
1 | ||
| 90520-44041 |
MZEA11..CVT NO.1AISIN:REF.ILLUST |
1 | ||
| 90520-44041 |
MZEA11..CVT NO.1,TOYOTA:REF.ILL. |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90301-48007 |
MZEA11..CVT NO.1AISIN:REF.ILLUST |
1 | ||
| 90302-89002 |
MZEA11..CVT NO.2AISIN:REF.ILLUST |
1 | ||
| 90302-89002 |
MZEA11..CVT NO.2,TOYOTA:REF.ILL. |
1 | ||
| 90302-92001 |
MZEA11..CVT NO.3AISIN:REF.ILLUST |
1 | ||
| 90302-92001 |
MZEA11..CVT NO.3,TOYOTA:REF.ILL. |
1 | ||
| 90301-48007 |
MZEA11..CVT NO.1,TOYOTA:REF.ILL. |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90301-48007 |
MZEA11..CVT NO.1AISIN:REF.ILLUST |
1 | ||
| 90302-89002 |
MZEA11..CVT NO.2AISIN:REF.ILLUST |
1 | ||
| 90302-89002 |
MZEA11..CVT NO.2,TOYOTA:REF.ILL. |
1 | ||
| 90302-92001 |
MZEA11..CVT NO.3AISIN:REF.ILLUST |
1 | ||
| 90302-92001 |
MZEA11..CVT NO.3,TOYOTA:REF.ILL. |
1 | ||
| 90301-48007 |
MZEA11..CVT NO.1,TOYOTA:REF.ILL. |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90301-48007 |
MZEA11..CVT NO.1AISIN:REF.ILLUST |
1 | ||
| 90302-89002 |
MZEA11..CVT NO.2AISIN:REF.ILLUST |
1 | ||
| 90302-89002 |
MZEA11..CVT NO.2,TOYOTA:REF.ILL. |
1 | ||
| 90302-92001 |
MZEA11..CVT NO.3AISIN:REF.ILLUST |
1 | ||
| 90302-92001 |
MZEA11..CVT NO.3,TOYOTA:REF.ILL. |
1 | ||
| 90301-48007 |
MZEA11..CVT NO.1,TOYOTA:REF.ILL. |
1 | ||
| 35612D - PISTON, FORWARD CLUTCH | ||||
| 35612-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35612-12110 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
1 | ||
| 35623L - PISTON, REVERSE BRAKE | ||||
| 35623-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35623-12120 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
1 | ||
| 35623M - RING, O (FOR REVERSE BRAKE PISTON) | ||||
| 90301-99208 |
MZEA11..CVT NO.1AISIN:REF.ILLUST |
1 | ||
| 90301-93002 |
MZEA11..CVT NO.2AISIN:REF.ILLUST |
1 | ||
| 90301-93002 |
MZEA11..CVT NO.2,TOYOTA:REF.ILL. |
1 | ||
| 90301-99208 |
MZEA11..CVT NO.1,TOYOTA:REF.ILL. |
1 | ||
| 35623M - RING, O (FOR REVERSE BRAKE PISTON) | ||||
| 90301-99208 |
MZEA11..CVT NO.1AISIN:REF.ILLUST |
1 | ||
| 90301-93002 |
MZEA11..CVT NO.2AISIN:REF.ILLUST |
1 | ||
| 90301-93002 |
MZEA11..CVT NO.2,TOYOTA:REF.ILL. |
1 | ||
| 90301-99208 |
MZEA11..CVT NO.1,TOYOTA:REF.ILL. |
1 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12170 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
3 | ||
| 35633-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
3 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12170 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
3 | ||
| 35633-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
3 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12170 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
3 | ||
| 35633-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
3 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
3 | ||
| 35634-12120 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
3 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
3 | ||
| 35634-12120 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
3 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
3 | ||
| 35634-12120 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
3 | ||
| 35635G - FLANGE, FORWARD CLUTCH | ||||
| 35635-52270 |
MZEA11..CVT T=3.55,MARK 1 |
1 | ||
| 35635-52280 |
MZEA11..CVT T=3.60,MARK 2 |
1 | ||
| 35635-52310 |
MZEA11..CVT T=3.75,MARK 5 |
1 | ||
| 35635-52290 |
MZEA11..CVT T=3.65,MARK 3 |
1 | ||
| 35635-52370 |
MZEA11..CVT T=4.05,MARK B |
1 | ||
| 35635-52340 |
MZEA11..CVT T=3.90,MARK 8 |
1 | ||
| 35635-52320 |
MZEA11..CVT T=3.80,MARK 6 |
1 | ||
| 35635-52300 |
MZEA11..CVT T=3.70,MARK 4 |
1 | ||
| 35635-52330 |
MZEA11..CVT T=3.85,MARK 7 |
1 | ||
| 35635-52360 |
MZEA11..CVT T=4.00,MARK A |
1 | ||
| 35635-52380 |
MZEA11..CVT T=4.10,MARK C |
1 | ||
| 35635-12410 |
MZEA11..CVT T=3.5,MARK 0,TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
1 | ||
| 35635-52350 |
MZEA11..CVT T=3.95,MARK 9 |
1 | ||
| 35635-12490 |
MZEA11..CVT T=3.60,MARK 2,TOYOTA:REF.ILLUST |
1 | ||
| 35635-12510 |
MZEA11..CVT T=3.70,MARK 4,TOYOTA:REF.ILLUST |
1 | ||
| 35635-12520 |
MZEA11..CVT T=3.75,MARK 5,TOYOTA:REF.ILLUST |
1 | ||
| 35635-12500 |
MZEA11..CVT T=3.65,MARK 3,TOYOTA:REF.ILLUST |
1 | ||
| 35635-12560 |
MZEA11..CVT T=3.95,MARK 9,TOYOTA:REF.ILLUST |
1 | ||
| 35635-12480 |
MZEA11..CVT T=3.55,MARK 1,TOYOTA:REF.ILLUST |
1 | ||
| 35635-12580 |
MZEA11..CVT T=4.05,MARK B,TOYOTA:REF.ILLUST |
1 | ||
| 35635-12540 |
MZEA11..CVT T=3.85,MARK 7,TOYOTA:REF.ILLUST |
1 | ||
| 35635-12570 |
MZEA11..CVT T=4.00,MARK A,TOYOTA:REF.ILLUST |
1 | ||
| 35635-12550 |
MZEA11..CVT T=3.90,MARK 8,TOYOTA:REF.ILLUST |
1 | ||
| 35635-12530 |
MZEA11..CVT T=3.80,MARK 6,TOYOTA:REF.ILLUST |
1 | ||
| 35635-12590 |
MZEA11..CVT T=4.10,MARK C,TOYOTA:REF.ILLUST |
1 | ||
| 35635-K0010 |
MZEA11..CVT T=3.5,MARK 0,AISIN AW:REF.ILLUST |
1 | ||
| 35668C - BALANCER, CLUTCH, NO.1 | ||||
| 35668-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35668-12070 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
1 | ||
| 35671D - PLATE, BRAKE CUSHION | ||||
| 35671-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35671-12070 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
1 | ||
| 35676L - FLANGE, BRAKE | ||||
| 35676-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35676-12140 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
1 | ||
| 35681B - DISC, BRAKE, NO.1 | ||||
| 35681-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
3 | ||
| 35681-12080 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
3 | ||
| 35681B - DISC, BRAKE, NO.1 | ||||
| 35681-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
3 | ||
| 35681-12080 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
3 | ||
| 35681B - DISC, BRAKE, NO.1 | ||||
| 35681-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
3 | ||
| 35681-12080 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
3 | ||
| 35691B - PLATE, BRAKE, NO.1 | ||||
| 35691-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
3 | ||
| 35691-12070 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
3 | ||
| 35691B - PLATE, BRAKE, NO.1 | ||||
| 35691-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
3 | ||
| 35691-12070 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
3 | ||
| 35691B - PLATE, BRAKE, NO.1 | ||||
| 35691-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
3 | ||
| 35691-12070 |
MZEA11..CVT TOYOTA:REF.ILLUST,AISIN AW:REF.ILLUST |
3 | ||
| 35701L - RACE, THRUST BEARING (FOR INPUT SHAFT) | ||||
| 35789-12120 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35789-12110 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 35720M - GEAR ASSY, PLANETARY | ||||
| 35720-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35720-12080 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 35720N - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY GEAR) | ||||
| 90374-29012 |
MZEA11..CVT NO.1AISIN:REF.ILLUST |
1 | ||
| 90374-24008 |
MZEA11..CVT NO.2AISIN:REF.ILLUST |
1 | ||
| 90374-24008 |
MZEA11..CVT NO.2,TOYOTA:REF.ILL. |
1 | ||
| 90374-29012 |
MZEA11..CVT NO.1,TOYOTA:REF.ILL. |
1 | ||
| 35720N - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY GEAR) | ||||
| 90374-29012 |
MZEA11..CVT NO.1AISIN:REF.ILLUST |
1 | ||
| 90374-24008 |
MZEA11..CVT NO.2AISIN:REF.ILLUST |
1 | ||
| 90374-24008 |
MZEA11..CVT NO.2,TOYOTA:REF.ILL. |
1 | ||
| 90374-29012 |
MZEA11..CVT NO.1,TOYOTA:REF.ILL. |
1 | ||
| 35726A - WASHER, PLANETARY RING GEAR THRUST | ||||
| 35726-12020 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35726-12020 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 35782P - SPROCKET, DRIVE | ||||
| 35782-12070 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 35782-12070 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| Common parts | ||||
| 90105-06362 | ||||
| 90369-43018 | ||||
| 90374-47007 | ||||
| 90520-99190 | ||||
| 90520-99191 | ||||
| Linked diagrams | ||||
| 3402 | ||||
| 4301 | ||||

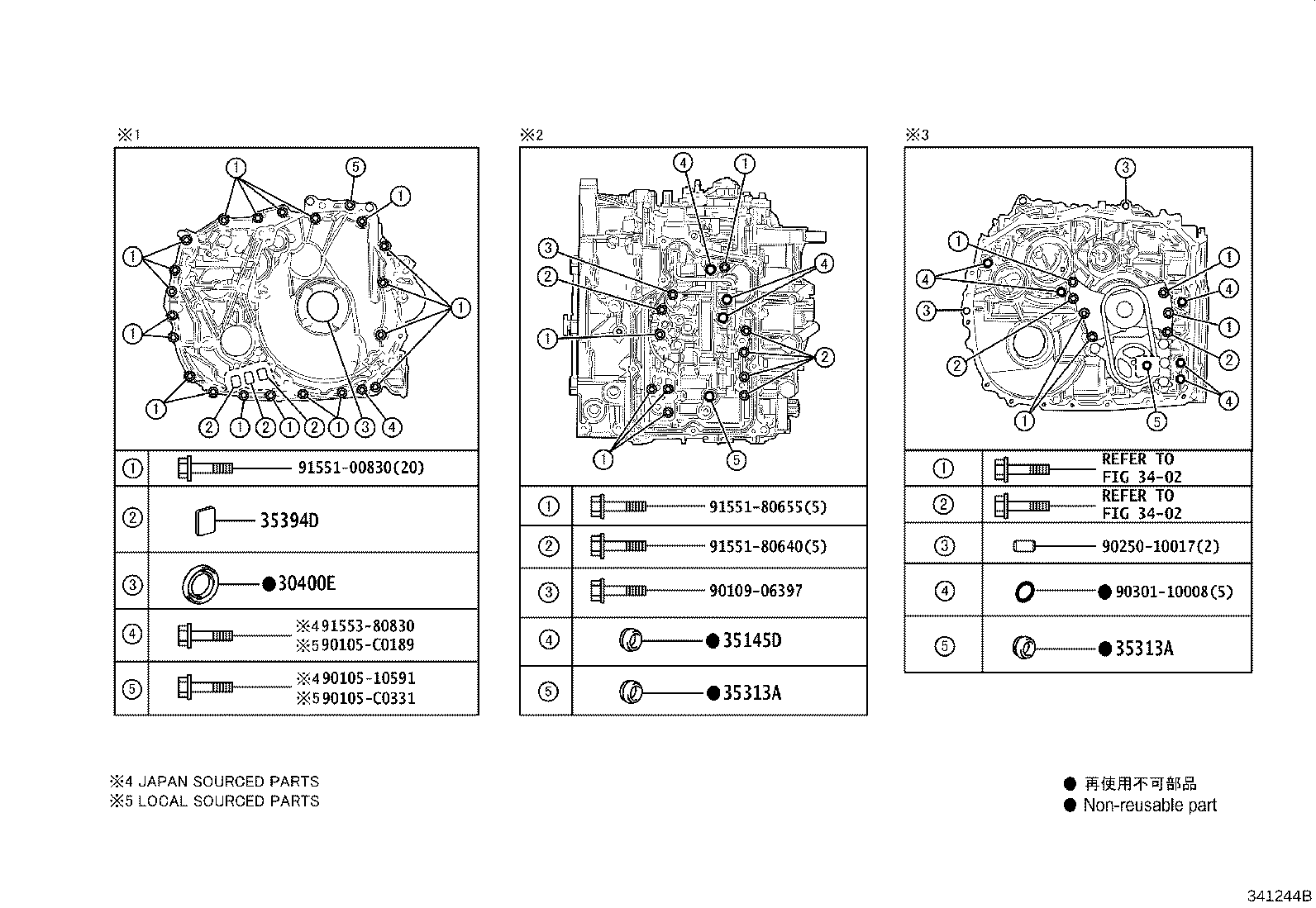

ILLUST NO. 5 OF 6(2101- )MZEA11..CVT
K320
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP) | ||||
| 90311-41019 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 90311-41019 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||
| 35145D - GASKET, TRANSAXLE CASE | ||||
| 35145-33010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
3 | ||
| 35145-33010 |
MZEA11..CVT TOYOTA:REF.ILLUST |
3 | ||
| 35313A - GASKET, FRONT OIL PUMP COVER | ||||
| 35313-48020 |
MZEA11..CVT TOYOTA:REF.ILLUST |
2 | ||
| 35313-48020 |
MZEA11..CVT AISIN AW:REF.ILLUST |
2 | ||
| 35313A - GASKET, FRONT OIL PUMP COVER | ||||
| 35313-48020 |
MZEA11..CVT TOYOTA:REF.ILLUST |
2 | ||
| 35313-48020 |
MZEA11..CVT AISIN AW:REF.ILLUST |
2 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-48010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
3 | ||
| 35394-48010 |
MZEA11..CVT TOYOTA:REF.ILLUST |
3 | ||
| Common parts | ||||
| 90105-10591 | ||||
| 90105-C0189 | ||||
| 90105-C0331 | ||||
| 90109-06397 | ||||
| 90250-10017 | ||||
| 90301-10008 | ||||
| 91551-00830 | ||||
| 91551-80640 | ||||
| 91551-80655 | ||||
| 91553-80830 | ||||
| Linked diagrams | ||||
| 3402 | ||||

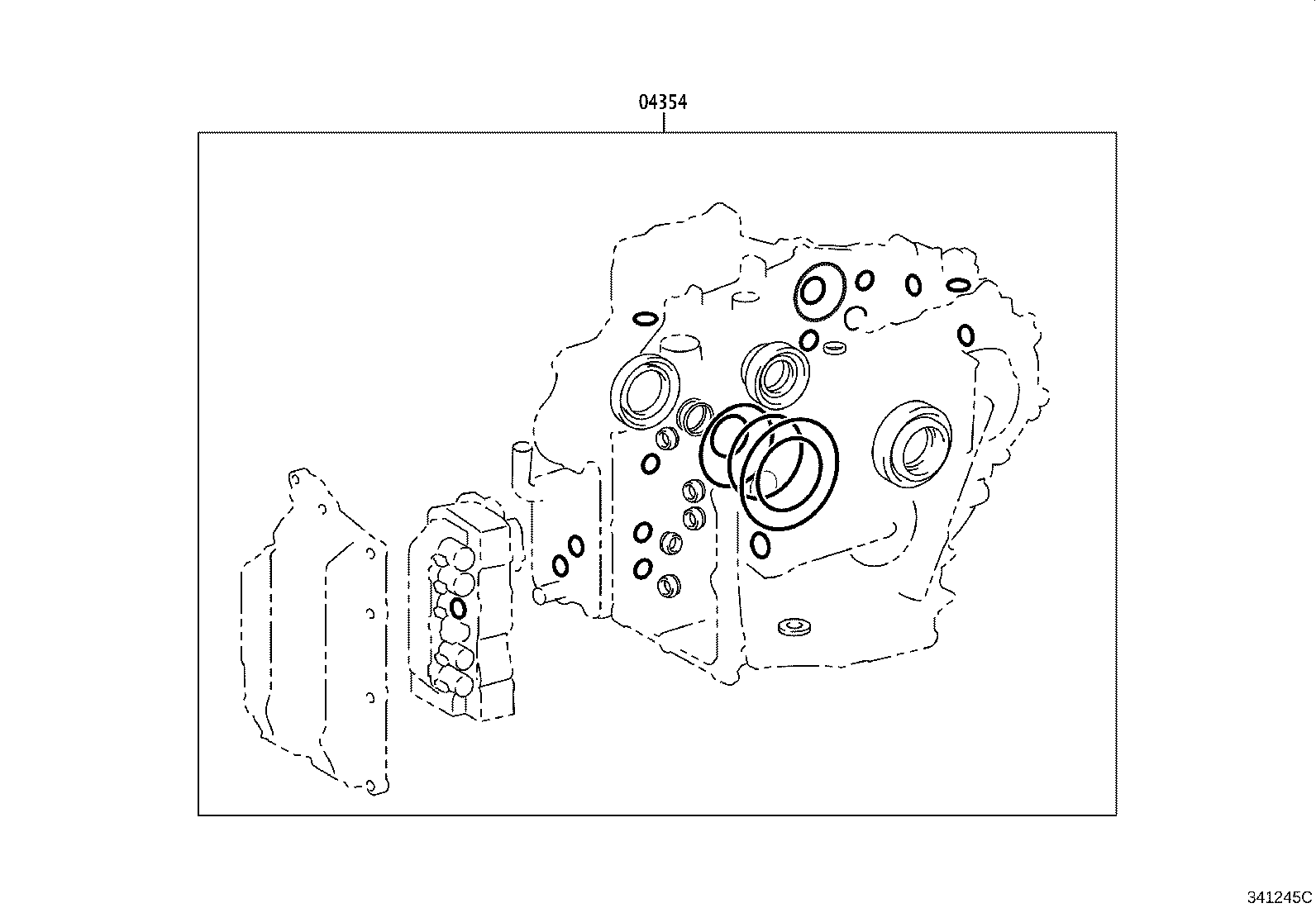

ILLUST NO. 6 OF 6(2101- )MZEA11..CVT
K320
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04354 - OVERHAUL KIT, TRANSAXLE(CVT) | ||||
| 04354-K0010 |
MZEA11..CVT AISIN AW:REF.ILLUST |
1 | ||
| 04354-K0010 |
MZEA11..CVT TOYOTA:REF.ILLUST |
1 | ||

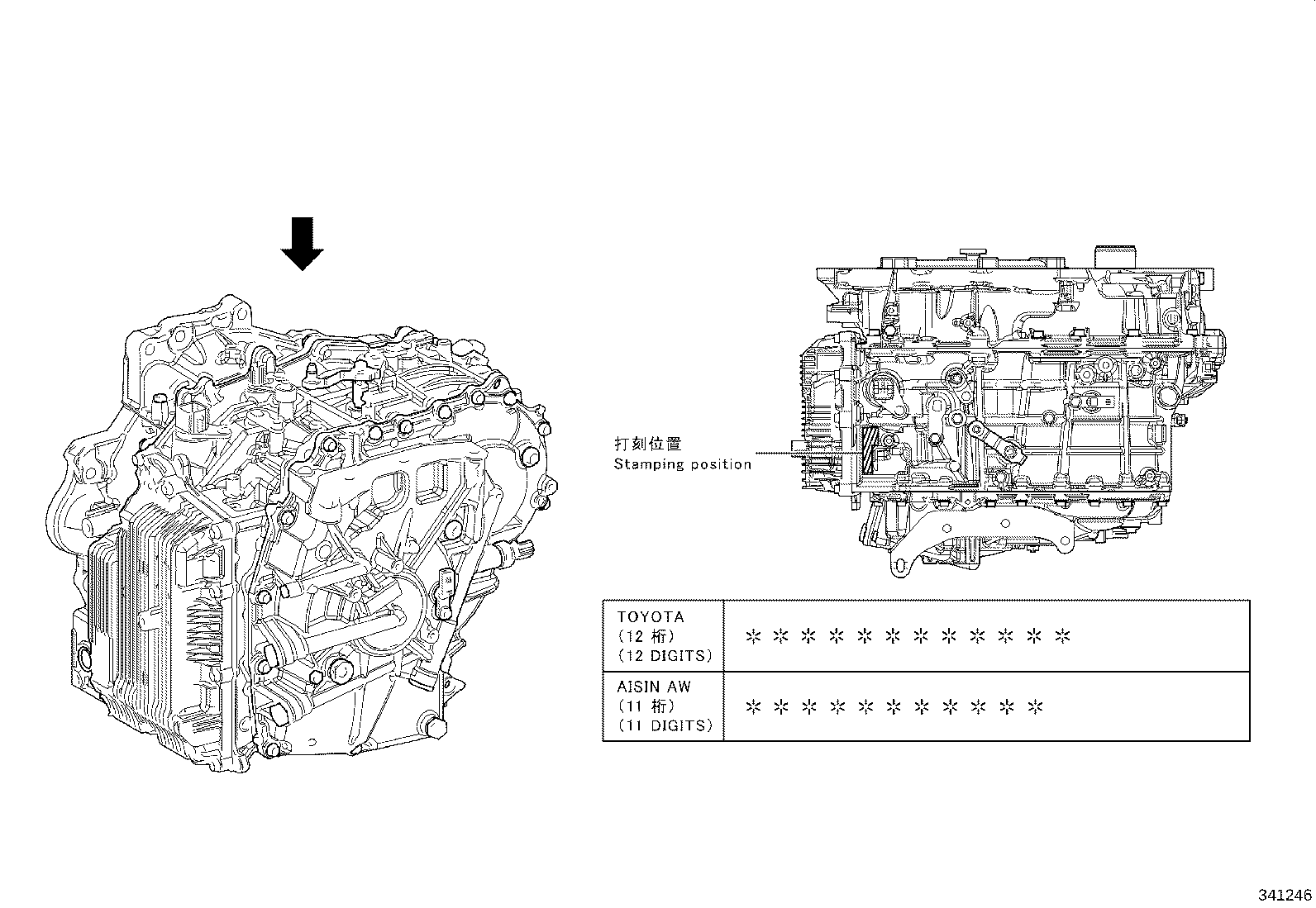

ILLUST NO. 1 OF 6(2101- )MZEA11..CVT
K320
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
