MZEA11L-GEXEBC (2021)
Toyota Corolla
Production
Jan 2021
-
Sep 9999
Engine
M15AFKS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2101- )M15AFKS

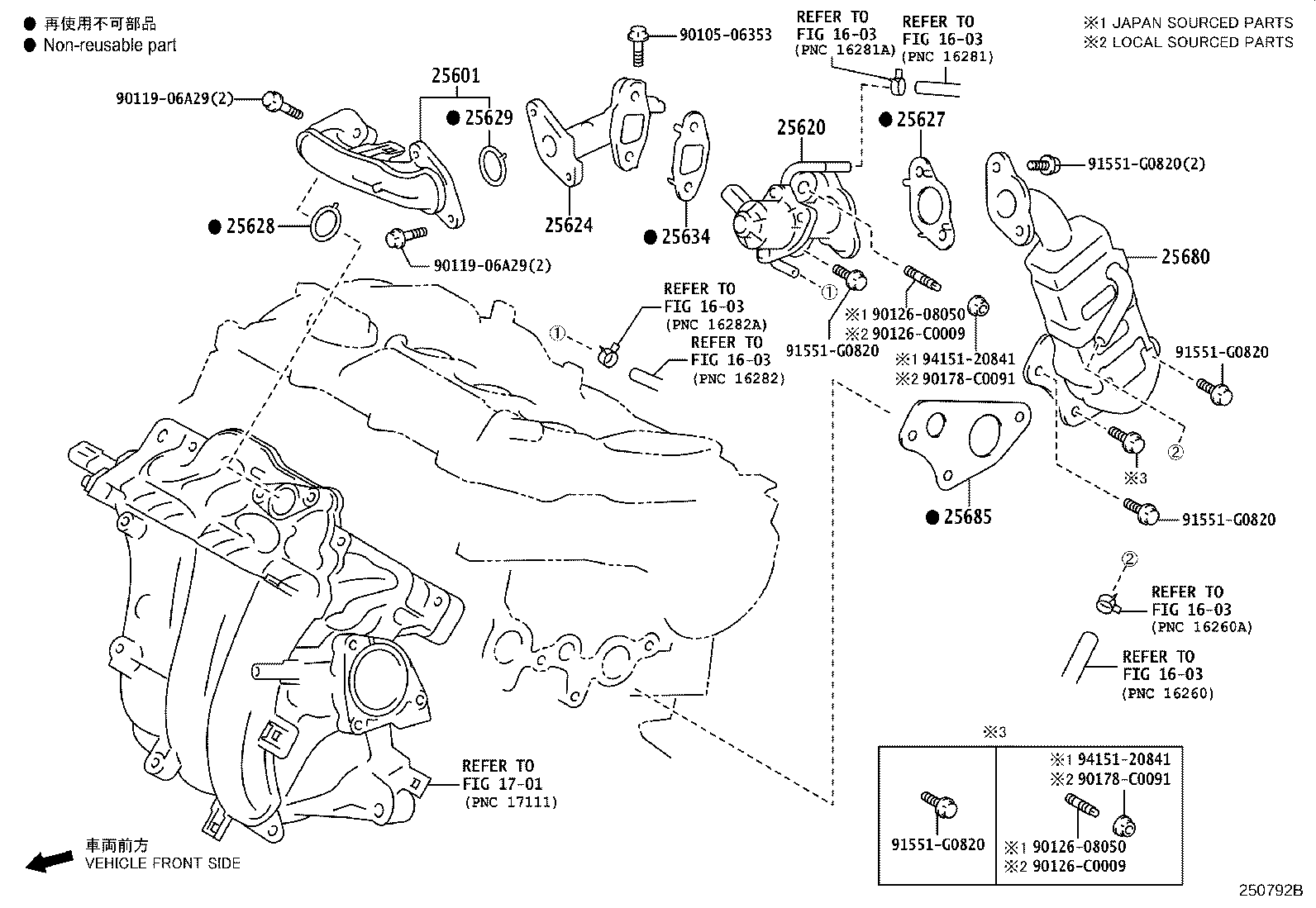

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-F3040 |
M15AFKS..MZEA11 *618 |
1 | ||
| 25601-15050 |
M15AFKS..MZEA11 *616 |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-F3020 |
M15AFKS..MZEA11 *618 |
1 | ||
| 25620-15360 |
M15AFKS..MZEA11 *616 |
1 | ||
| 25624 - ADAPTER, EGR VALVE | ||||
| 25624-F3020 |
M15AFKS..MZEA11 *618 |
1 | ||
| 25624-15010 |
M15AFKS..MZEA11 *616 |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-F3040 |
M15AFKS..MZEA11 *618 |
1 | ||
| 25627-15010 |
M15AFKS..MZEA11 *616 |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-25010 |
M15AFKS..MZEA11 *618,*616 |
1 | ||
| 25629 - GASKET, EGR VALVE ADAPTER | ||||
| 25628-25010 |
M15AFKS..MZEA11 *618,*616 |
1 | ||
| 25634 - GASKET, EGR PIPE | ||||
| 25634-15010 |
M15AFKS..MZEA11 *616 |
1 | ||
| 25634-F3040 |
M15AFKS..MZEA11 *618 |
1 | ||
| 25680 - COOLER ASSY, EGR | ||||
| 25680-15020 |
M15AFKS..MZEA11 *616 |
1 | ||
| 25680-F3020 |
M15AFKS..MZEA11 *618 |
1 | ||
| 25685 - GASKET, EGR COOLER, NO.1 | ||||
| 25685-15010 |
M15AFKS..MZEA11 *616 |
1 | ||
| 25685-F3020 |
M15AFKS..MZEA11 *618 |
1 | ||
| Common parts | ||||
| 90105-06353 | ||||
| 90119-06A29 | ||||
| 90126-08050 | ||||
| 90126-C0009 | ||||
| 90178-C0091 | ||||
| 91551-G0820 | ||||
| 94151-20841 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
