KE70RG-EYKRS (1979)

Toyota Corolla

Production Aug 1979 - Jul 1987
Engine 4K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)DV,WG ; (8108-8412)DV,WG..RHD ; (8108- )DV,WG..GEN,SAA ; (8412- )D

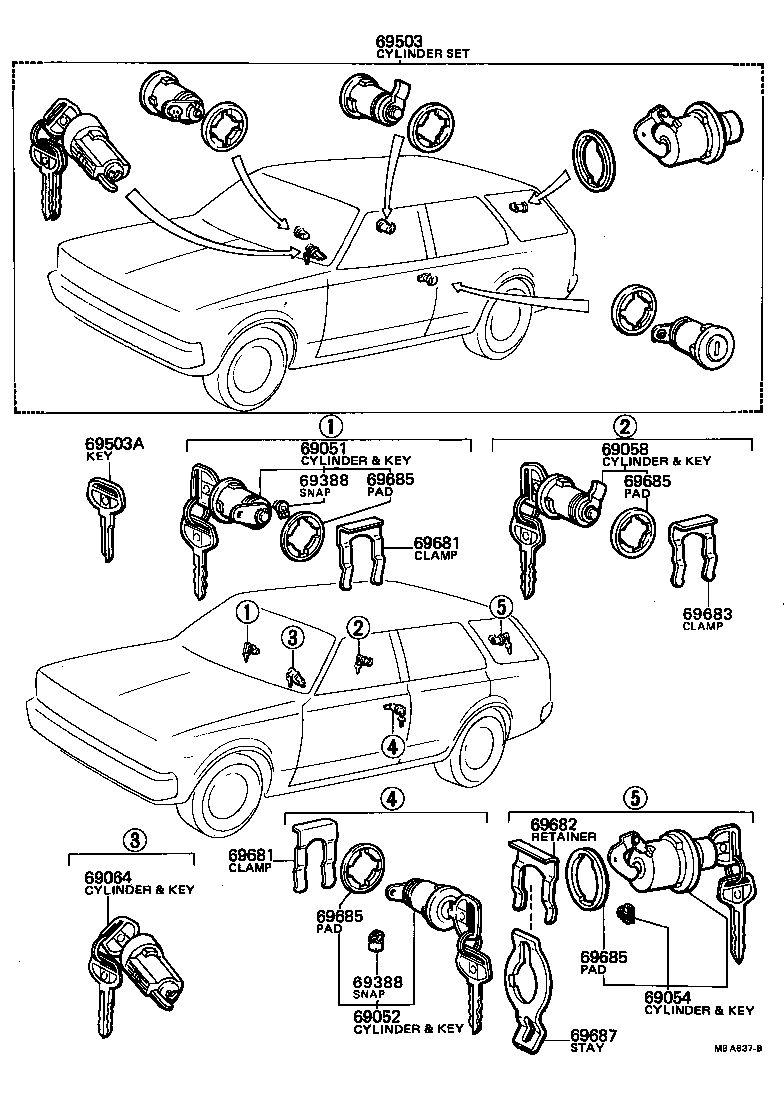

Click highlighted areas on diagram

diagram 69051 69052 69054 69058 69064 69388 69388 69503 69503A 69681 69681 69682 69683 69685 69685 69685 69685 69687
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-29285

KE70,TE71..DV,WG

 1
69051-29266

KE70,TE71..DV,WG

 1
69051-29286

KE70,TE71..DV,WG

 1
69051-29286

AE71,KE70,TE71..(DV,WG)..(ARL,GEN,SA,SAA)

 1
69051-29286

KE70,TE71..DV,WG

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-29285

KE70,TE71..DV,WG

 1
69052-29266

KE70,TE71..DV,WG

 1
69052-29286

AE71,KE70,TE71..(DV,WG)..(ARL,GEN,SA,SAA)

 1
69052-29286

KE70,TE71..DV,WG

 1
69052-29286

KE70,TE71..DV,WG

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-19265

KE70,TE71..DV,WG

 1
69055-19455

KE70..WG..RHD..EUG;KE70,TE71..(DV,WG)..(ARL,GEN,SA,SAA)

 1
69055-13061

KE70,TE71..(DV,WG)..(GEN,SA)

 1
69055-13061

AE71,KE70,TE71..(DV,WG)..(ARL,GEN,SA)

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-19075

KE70,TE71..DV,WG

 1
69058-19175

KE70,TE71..DV,WG

 1
69058-19175

AE71,KE70,TE71..(DV,WG)..(ARL,GEN,SA,SAA)

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-13020

KE70,TE71..DV,WG

 1
69057-13020

KE70..WG..RHD..EUG;KE70,TE71..(DV,WG)..(ARL,GEN,SA,SAA)

 1
69057-13022

AE71,KE70..GEN,SA

 1
69057-13021

KE70,TE71..(DV,WG)..(GEN,SA)

 1
69057-13021

AE71,KE70,TE71..(DV,WG)..(ARL,GEN,SA)

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69377-30020

KE70,TE7#

 2
69759-24090

KE70,TE7#

LH

 1
69759-24080

KE70,TE7#

RH

 1
69377-30020

TE72..4FC,5F;AE71,CE70,KE70,TE71

 2
69388 - SNAP, ROD(FOR DOOR LOCK)
69377-30020

KE70,TE7#

 2
69759-24090

KE70,TE7#

LH

 1
69759-24080

KE70,TE7#

RH

 1
69377-30020

TE72..4FC,5F;AE71,CE70,KE70,TE71

 2
69503 - CYLINDER SET, LOCK
69005-13091

KE70..WG..RHD..EUG;KE70,TE71..(DV,WG)..(ARL,GEN,SA,SAA)

 1
69005-13092

KE70,TE71..(DV,WG)..(GEN,SA)

 1
69005-13092

AE71,KE70,TE71..(DV,WG)..(ARL,GEN,SA)

 1
69005-13093

AE71,KE70..GEN,SA

 1
69005-13060

KE70,TE71..DV,WG

 1
69503A - KEY, BLANK
90999-00067

KE70,TE71..DV,WG

MASTER KEY

 1
90999-00067

AE71,KE70,TE71..(DV,WG)..(ARL,GEN,SA,SAA)

MASTER KEY

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

AE71,CE70,KE70,TE7#

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

AE71,CE70,KE70,TE7#

 2
69682 - RETAINER, LOCK CYLINDER
69551-13020

AE71,CE70,KE70,TE71..DV,WG

 1
69683 - CLAMP, FUEL LOCK CYLINDER
69681-20040

KE70,TE71..DV,WG

 1
69581-14010

AE71,CE70,KE70,TE71..DV,WG

 1
69685 - PAD, LOCK CYLINDER
69685-12010

KE70,TE71..DV,WG

W/DOOR,FUEL

 3
69513-12020

AE71,CE70,KE70,TE71..DV,WG

W/FR DOOR

 2
69513-12020

AE71,CE70,KE70,TE71..DV,WG

W/FUEL

 1
69553-13020

AE71,CE70,KE70,TE71..DV,WG

W/BACK DOOR

 1
69685 - PAD, LOCK CYLINDER
69685-12010

KE70,TE71..DV,WG

W/DOOR,FUEL

 3
69513-12020

AE71,CE70,KE70,TE71..DV,WG

W/FR DOOR

 2
69513-12020

AE71,CE70,KE70,TE71..DV,WG

W/FUEL

 1
69553-13020

AE71,CE70,KE70,TE71..DV,WG

W/BACK DOOR

 1
69685 - PAD, LOCK CYLINDER
69685-12010

KE70,TE71..DV,WG

W/DOOR,FUEL

 3
69513-12020

AE71,CE70,KE70,TE71..DV,WG

W/FR DOOR

 2
69513-12020

AE71,CE70,KE70,TE71..DV,WG

W/FUEL

 1
69553-13020

AE71,CE70,KE70,TE71..DV,WG

W/BACK DOOR

 1
69685 - PAD, LOCK CYLINDER
69685-12010

KE70,TE71..DV,WG

W/DOOR,FUEL

 3
69513-12020

AE71,CE70,KE70,TE71..DV,WG

W/FR DOOR

 2
69513-12020

AE71,CE70,KE70,TE71..DV,WG

W/FUEL

 1
69553-13020

AE71,CE70,KE70,TE71..DV,WG

W/BACK DOOR

 1
69687 - STAY, BACK DOOR LOCK CYLINDER
69687-13020

AE71,CE70,KE70,TE71..DV,WG

 1
