KE70RG-EWMDSW (1980)

Toyota Corolla

Production Aug 1980 - Jul 1987
Engine 4K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108) ; (8108-8204)SA

Click highlighted areas on diagram

diagram 52011A 52011A 52012A 52012A 52111 52111 52112D 52113D 9011208024 9011208024 9011208026 9011208026 9011908126 9017908143 9017908143 9017908143 9018906017 9018906017 9095001210 9095001253 9165540820 9165540820 9165540820 9165540820
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12100

KE70,TE7#..DV,SED,WG

 1
52011-12180

KE70,TE71..(DV,SED,WG)..(EUR,GEN)

 1
52011-12180

CE70,KE70,TE72..(DV,SED,WG)..(EUR,GEN,SA)

 1
52011-12210

AE71,CE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA)

 1
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12100

KE70,TE7#..DV,SED,WG

 1
52011-12180

KE70,TE71..(DV,SED,WG)..(EUR,GEN)

 1
52011-12180

CE70,KE70,TE72..(DV,SED,WG)..(EUR,GEN,SA)

 1
52011-12210

AE71,CE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA)

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12180

KE70,TE71..(DV,SED,WG)..(EUR,GEN)

 1
52012-12180

CE70,KE70,TE72..(DV,SED,WG)..(EUR,GEN,SA)

 1
52012-12100

KE70,TE7#..DV,SED,WG

 1
52012-12210

AE71,CE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA)

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12180

KE70,TE71..(DV,SED,WG)..(EUR,GEN)

 1
52012-12180

CE70,KE70,TE72..(DV,SED,WG)..(EUR,GEN,SA)

 1
52012-12100

KE70,TE7#..DV,SED,WG

 1
52012-12210

AE71,CE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA)

 1
52111 - BUMPER ASSY, FRONT
52111-19475

TE7#..4D;KE70..WG..LHD..EUG;KE70..WG..LHD..GEN;KE70..(DV,SED,WG)..RHD;KE70..(DV,SED)..LHD..STD;KE70..SED..LHD..(2FC,5F);KE70..SED..LHD..4F..DX..GEN;KE70..SED..LHD..4F..DX..EUG

 1
52111-19475

KE70..LHD..4D..EUG;TE71..4D..(DX,STD);KE70..(DV,SED,WG)..RHD;KE70..(DV,WG)..LHD..2D;KE70..SED..LHD..2D..EUG;KE70..(SED,WG)..LHD..GEN

 1
52111-19695

CE70,KE70,TE71..(DV,SED,WG)..(EUG,SDZ)

BLACK,W/O *HC,W/PROTECTOR

 1
52111-12261

CE70,KE70..EUR

W/O *HC

 1
52111-19506

CE70,KE70..EUR

W/O *HC

 1
52111 - BUMPER ASSY, FRONT
52111-19475

TE7#..4D;KE70..WG..LHD..EUG;KE70..WG..LHD..GEN;KE70..(DV,SED,WG)..RHD;KE70..(DV,SED)..LHD..STD;KE70..SED..LHD..(2FC,5F);KE70..SED..LHD..4F..DX..GEN;KE70..SED..LHD..4F..DX..EUG

 1
52111-19475

KE70..LHD..4D..EUG;TE71..4D..(DX,STD);KE70..(DV,SED,WG)..RHD;KE70..(DV,WG)..LHD..2D;KE70..SED..LHD..2D..EUG;KE70..(SED,WG)..LHD..GEN

 1
52111-19695

CE70,KE70,TE71..(DV,SED,WG)..(EUG,SDZ)

BLACK,W/O *HC,W/PROTECTOR

 1
52111-12261

CE70,KE70..EUR

W/O *HC

 1
52111-19506

CE70,KE70..EUR

W/O *HC

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-19225

KE70,TE71..(DV,SED,WG)..(EUR,GEN)

 1
52102-19175

KE70,TE7#..DV,SED,WG

 1
52102-19255

AE71,CE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA)

 1
52102-19225

CE70,KE70,TE72..(DV,SED,WG)..(EUR,GEN,SA)

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-19205

CE70,KE70,TE72..(DV,SED,WG)..(EUR,GEN,SA)

 1
52103-19205

KE70,TE71..(DV,SED,WG)..(EUR,GEN)

 1
52103-19155

KE70,TE7#..DV,SED,WG

 1
52103-19235

AE71,CE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA)

 1
Common parts
90112-08024
90112-08026
90119-08126
90179-08143
90189-06017
90950-01210
90950-01253
91655-40820

(8108-8204)DV,SED,WG..EUR,GEN,SAA ; (8108-8309)KE70..2D..ARL ; (8204-8305)DV,SED,WG

Click highlighted areas on diagram

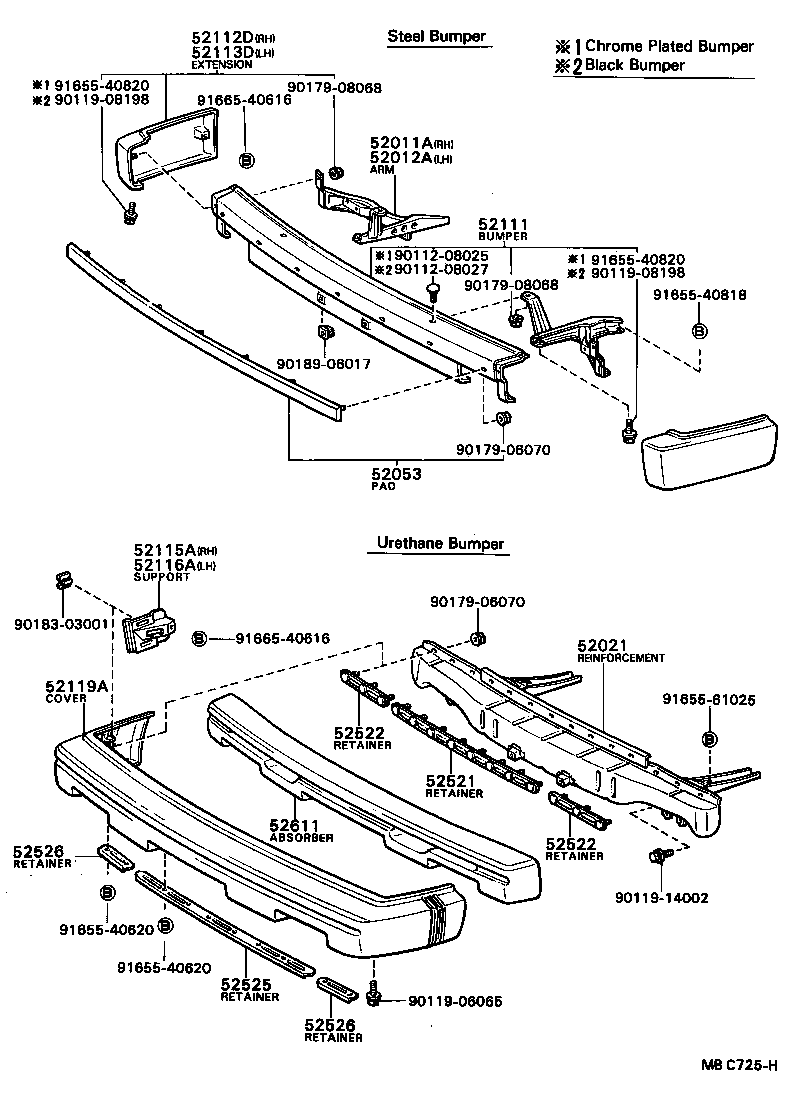

diagram 52011A 52012A 52021 52053 52111 52112D 52113D 52115A 52116A 52119A 52521 52522 52522 52525 52526 52526 52611 9011208025 9011208027 9011906065 9011908198 9011908198 9011914002 9017906070 9017906070 9017908068 9017908068 9018303001 9018906017 9165540620 9165540620 9165540818 9165540820 9165540820 9165561025 9166540616 9166540616
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12100

KE70,TE7#..DV,SED,WG

 1
52011-12180

KE70,TE71..(DV,SED,WG)..(EUR,GEN)

 1
52011-12180

CE70,KE70,TE72..(DV,SED,WG)..(EUR,GEN,SA)

 1
52011-12210

AE71,CE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA)

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12180

KE70,TE71..(DV,SED,WG)..(EUR,GEN)

 1
52012-12180

CE70,KE70,TE72..(DV,SED,WG)..(EUR,GEN,SA)

 1
52012-12100

KE70,TE7#..DV,SED,WG

 1
52012-12210

AE71,CE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA)

 1
52053 - PAD SUB-ASSY, FRONT BUMPER
52051-19115

CE70,KE70,TE71..(DV,SED,WG)..EUR

 1
52111 - BUMPER ASSY, FRONT
52111-19475

TE7#..4D;KE70..WG..LHD..EUG;KE70..WG..LHD..GEN;KE70..(DV,SED,WG)..RHD;KE70..(DV,SED)..LHD..STD;KE70..SED..LHD..(2FC,5F);KE70..SED..LHD..4F..DX..GEN;KE70..SED..LHD..4F..DX..EUG

 1
52111-19475

KE70..LHD..4D..EUG;TE71..4D..(DX,STD);KE70..(DV,SED,WG)..RHD;KE70..(DV,WG)..LHD..2D;KE70..SED..LHD..2D..EUG;KE70..(SED,WG)..LHD..GEN

 1
52111-19695

CE70,KE70,TE71..(DV,SED,WG)..(EUG,SDZ)

BLACK,W/O *HC,W/PROTECTOR

 1
52111-12261

CE70,KE70..EUR

W/O *HC

 1
52111-19506

CE70,KE70..EUR

W/O *HC

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-19225

KE70,TE71..(DV,SED,WG)..(EUR,GEN)

 1
52102-19175

KE70,TE7#..DV,SED,WG

 1
52102-19255

AE71,CE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA)

 1
52102-19225

CE70,KE70,TE72..(DV,SED,WG)..(EUR,GEN,SA)

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-19205

CE70,KE70,TE72..(DV,SED,WG)..(EUR,GEN,SA)

 1
52103-19205

KE70,TE71..(DV,SED,WG)..(EUR,GEN)

 1
52103-19155

KE70,TE7#..DV,SED,WG

 1
52103-19235

AE71,CE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA)

 1
Common parts
90112-08025
90112-08027
90119-06065
90119-08198
90119-14002
90179-06070
90179-08068
90183-03001
90189-06017
91655-40620
91655-40818
91655-40820
91655-61025
91665-40616

(8305- )DV,SED,WG..EUR,GEN,SA ; (8309-8406)AE71..STD

Click highlighted areas on diagram

diagram 52011A 52012A 52021 52053 52111 52112D 52113D 52115A 52116A 52119A 52521 52522 52522 52525 52526 52526 52611 9011208025 9011208027 9011906065 9011908198 9011908198 9011914002 9017906070 9017906070 9017908068 9017908068 9018303001 9018906017 9165540620 9165540620 9165540818 9165540820 9165540820 9165561025 9166540616 9166540616
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12100

KE70,TE7#..DV,SED,WG

 1
52011-12180

KE70,TE71..(DV,SED,WG)..(EUR,GEN)

 1
52011-12180

CE70,KE70,TE72..(DV,SED,WG)..(EUR,GEN,SA)

 1
52011-12210

AE71,CE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA)

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12180

KE70,TE71..(DV,SED,WG)..(EUR,GEN)

 1
52012-12180

CE70,KE70,TE72..(DV,SED,WG)..(EUR,GEN,SA)

 1
52012-12100

KE70,TE7#..DV,SED,WG

 1
52012-12210

AE71,CE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA)

 1
52053 - PAD SUB-ASSY, FRONT BUMPER
52051-19115

CE70,KE70,TE71..(DV,SED,WG)..EUR

 1
52111 - BUMPER ASSY, FRONT
52111-19475

TE7#..4D;KE70..WG..LHD..EUG;KE70..WG..LHD..GEN;KE70..(DV,SED,WG)..RHD;KE70..(DV,SED)..LHD..STD;KE70..SED..LHD..(2FC,5F);KE70..SED..LHD..4F..DX..GEN;KE70..SED..LHD..4F..DX..EUG

 1
52111-19475

KE70..LHD..4D..EUG;TE71..4D..(DX,STD);KE70..(DV,SED,WG)..RHD;KE70..(DV,WG)..LHD..2D;KE70..SED..LHD..2D..EUG;KE70..(SED,WG)..LHD..GEN

 1
52111-19695

CE70,KE70,TE71..(DV,SED,WG)..(EUG,SDZ)

BLACK,W/O *HC,W/PROTECTOR

 1
52111-12261

CE70,KE70..EUR

W/O *HC

 1
52111-19506

CE70,KE70..EUR

W/O *HC

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-19225

KE70,TE71..(DV,SED,WG)..(EUR,GEN)

 1
52102-19175

KE70,TE7#..DV,SED,WG

 1
52102-19255

AE71,CE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA)

 1
52102-19225

CE70,KE70,TE72..(DV,SED,WG)..(EUR,GEN,SA)

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-19205

CE70,KE70,TE72..(DV,SED,WG)..(EUR,GEN,SA)

 1
52103-19205

KE70,TE71..(DV,SED,WG)..(EUR,GEN)

 1
52103-19155

KE70,TE7#..DV,SED,WG

 1
52103-19235

AE71,CE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA)

 1
Common parts
90112-08025
90112-08027
90119-06065
90119-08198
90119-14002
90179-06070
90179-08068
90183-03001
90189-06017
91655-40620
91655-40818
91655-40820
91655-61025
91665-40616
