KE70R-EEMNSW (1981)

Toyota Corolla

Production Aug 1981 - May 1983
Engine 4K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8305)4K

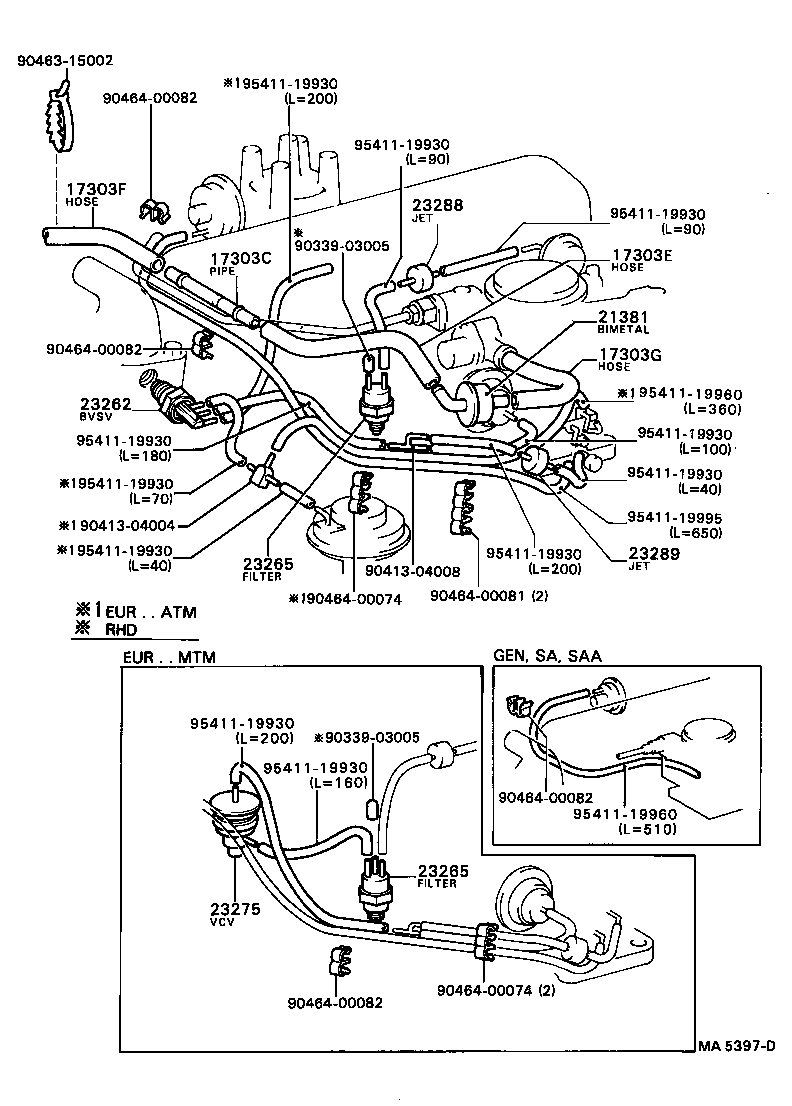

Click highlighted areas on diagram

diagram 17303C 17303E 17303F 17303G 21381 23262 23265 23265 23275 23288 23289 9033903005 9033903005 9041304004 9041304008 9046315002 9046400074 9046400074 9046400081 9046400082 9046400082 9046400082 9046400082 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119995
Part # Description Qty Price
17303C - PIPE SUB-ASSY, AIR, NO.2
23818-13030

4K#..KE70..EUR

 1
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14084

4K..KE70..EUG

 1
23829-13010

4K..KE70..EUG

 1
17303F - HOSE, NO.2(FOR AIR PIPE)
23829-13020

4K#..KE70..EUR

 1
17303G - HOSE, NO.3(FOR AIR PIPE)
90910-05161

4K#..KE70..EUR

 1
21381 - BIMETAL, THERMOSTATIC
21381-13010

4K#..KE70..EUR

 1
23265 - FILTER, GAS, NO.1
90917-11027

4K..KE70..MTM..EUG

AISIN

 1
90917-11024

4K#..KE70..MTM..EUR

DENSO

 1
90917-11027

4K#..KE70..MTM..EUR

AISIN

 1
90917-11024

4K..KE70..MTM..EUG

DENSO

 1
23265 - FILTER, GAS, NO.1
90917-11027

4K..KE70..MTM..EUG

AISIN

 1
90917-11024

4K#..KE70..MTM..EUR

DENSO

 1
90917-11027

4K#..KE70..MTM..EUR

AISIN

 1
90917-11024

4K..KE70..MTM..EUG

DENSO

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03126

4K..KE70..MTM..EUG

 1
Common parts
90339-03005
90413-04004
90413-04008
90463-15002
90464-00074
90464-00081
90464-00082
95411-19930
95411-19960
95411-19995
