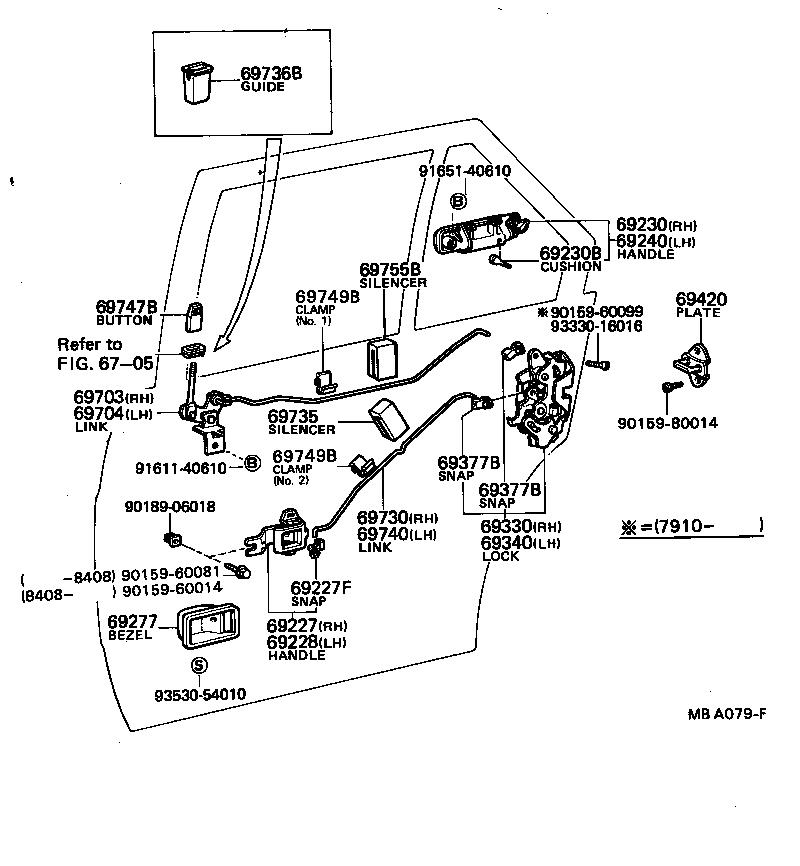

KE70R-EEKDSW (1979)
Toyota Corolla
(7908- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69227 - HANDLE, REAR DOOR INSIDE, RH | ||||
| 69205-1601001 |
KE70..4D..STD..SA;KE70,TE71..4D..(ARL,EUR,GEN,SAA) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 69205-1601004 |
CE70,KE70,TE71..4D..(ARL,EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 69205-1601005 |
TE7#..4D;KE70..4D..(EUR,GEN) BEIGE,BEIGE,TRIM4# |
1 | ||
| 69227F - SNAP(FOR REAR DOOR INSIDE HANDLE) | ||||
| 69279-12010 |
AE71,CE70,KE70,TE7#..4D |
2 | ||
| 69228 - HANDLE, REAR DOOR INSIDE, LH | ||||
| 69206-1601001 |
KE70..4D..STD..SA;KE70,TE71..4D..(ARL,EUR,GEN,SAA) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 69206-1601004 |
CE70,KE70,TE71..4D..(ARL,EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 69206-1601005 |
TE7#..4D;KE70..4D..(EUR,GEN) BEIGE,BEIGE,TRIM4# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-12040 |
CE70,KE70,TE7#..4D |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
CE70,KE70,TE7#..4D |
2 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-12040 |
CE70,KE70,TE7#..4D |
1 | ||
| 69277 - BEZEL, REAR DOOR INSIDE HANDLE | ||||
| 69277-1604005 |
TE7#..4D;KE70..4D..(EUR,GEN) BEIGE,BEIGE,TRIM4# |
2 | ||
| 69277-1604004 |
CE70,KE70,TE71..4D..(ARL,EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
2 | ||
| 69277-1604001 |
KE70..4D..STD..SA;KE70,TE71..4D..(ARL,EUR,GEN,SAA) BLACK,BLACK,TRIM0#,2# |
2 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-12050 |
CE70,KE70,TE7#..4D |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-12050 |
CE70,KE70,TE7#..4D |
1 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69377-30020 |
AE71,CE70,KE70,TE7#..4D |
4 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69377-30020 |
AE71,CE70,KE70,TE7#..4D |
4 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-12040 |
AE71,CE70,KE70,TE7#..4D |
2 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69770-12010 |
AE71,CE70,KE70,TE7#..4D |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69780-12010 |
AE71,CE70,KE70,TE7#..4D |
1 | ||
| 69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH | ||||
| 69713-12020 |
AE71,CE70,KE70,TE7#..4D |
1 | ||
| 69735 - SILENCER, REAR DOOR LOCK LINK | ||||
| 69759-12011 |
AE71,CE70,KE70,TE7#..4D |
2 | ||
| 69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH | ||||
| 69714-12030 |
AE71,CE70,KE70,TE7#..4D |
1 | ||
| 69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69741-2002001 |
AE71,CE70,KE70,TE7#..4D BLACK |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-12010 |
KE70,TE7#..4D NO.1 |
4 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-12010 |
KE70,TE7#..4D NO.1 |
4 | ||
| Common parts | ||||
| 90159-60014 | ||||
| 90159-60081 | ||||
| 90159-60099 | ||||
| 90159-80014 | ||||
| 90189-06018 | ||||
| 91611-40610 | ||||
| 91651-40610 | ||||
| 93330-16016 | ||||
| 93530-54010 | ||||
| Linked diagrams | ||||
| 6705 | ||||
