KE70R-EEKDS (1979)
Toyota Corolla
(7908-8108)SED ; (8108-8204)SED..ARL,SA ; (8204-)SED..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

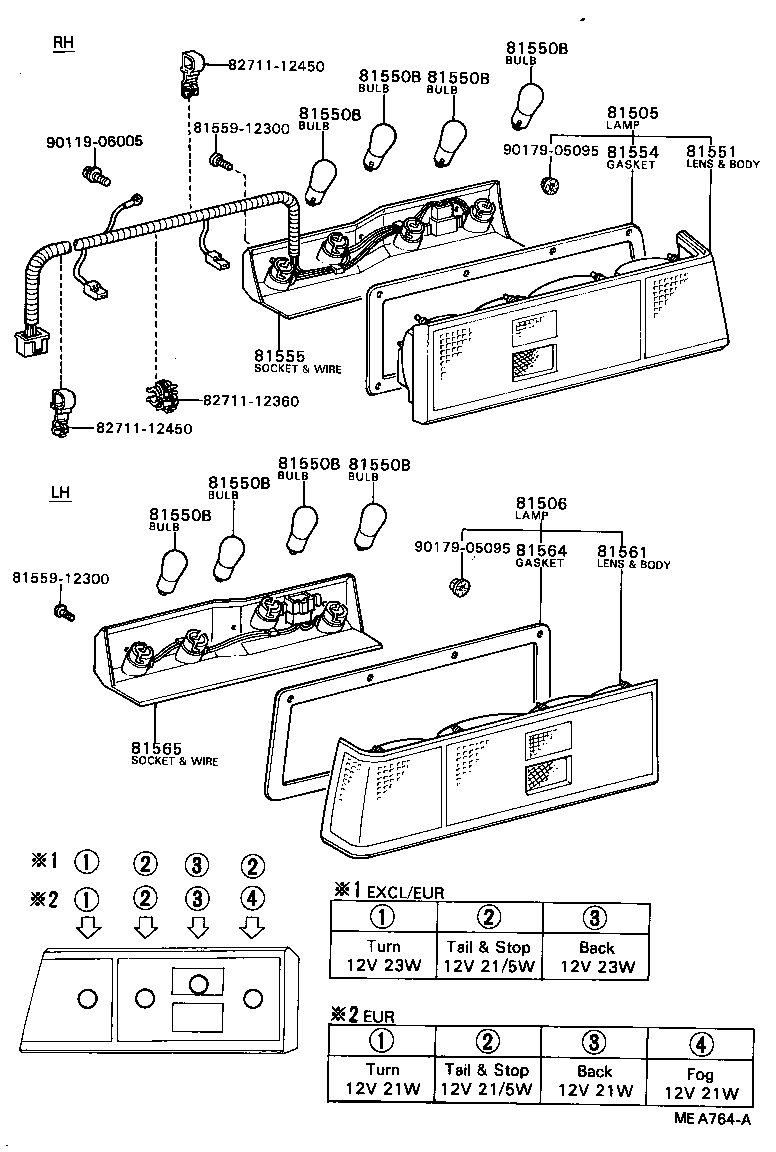

| 81505 - LAMP SUB-ASSY, REAR COMBINATION, RH | ||||
| 81505-19415 |
KE70,TE7#..SED KOITO |
1 | ||
| 81505-19425 |
KE70,TE7#..SED IKI |
1 | ||
| 81505-19236 |
KE70,TE71..SED..(GEN,SAA) |
1 | ||
| 81506 - LAMP SUB-ASSY, REAR COMBINATION, LH | ||||
| 81506-19285 |
KE70,TE7#..SED KOITO |
1 | ||
| 81506-19295 |
KE70,TE7#..SED IKI |
1 | ||
| 81506-19106 |
KE70,TE71..SED..(GEN,SAA) |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
KE70,TE7# 12V 21W,12V 21W |
6 | ||
| 99132-21210 |
KE70,TE7# 12V 21/5W,12V 21/5W |
4 | ||
| 99132-11230 |
KE70,TE71..(CP,LB,SED)..(GEN,SAA) 12V 23W,12V 23W |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
KE70,TE7# 12V 21W,12V 21W |
6 | ||
| 99132-21210 |
KE70,TE7# 12V 21/5W,12V 21/5W |
4 | ||
| 99132-11230 |
KE70,TE71..(CP,LB,SED)..(GEN,SAA) 12V 23W,12V 23W |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
KE70,TE7# 12V 21W,12V 21W |
6 | ||
| 99132-21210 |
KE70,TE7# 12V 21/5W,12V 21/5W |
4 | ||
| 99132-11230 |
KE70,TE71..(CP,LB,SED)..(GEN,SAA) 12V 23W,12V 23W |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
KE70,TE7# 12V 21W,12V 21W |
6 | ||
| 99132-21210 |
KE70,TE7# 12V 21/5W,12V 21/5W |
4 | ||
| 99132-11230 |
KE70,TE71..(CP,LB,SED)..(GEN,SAA) 12V 23W,12V 23W |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
KE70,TE7# 12V 21W,12V 21W |
6 | ||
| 99132-21210 |
KE70,TE7# 12V 21/5W,12V 21/5W |
4 | ||
| 99132-11230 |
KE70,TE71..(CP,LB,SED)..(GEN,SAA) 12V 23W,12V 23W |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
KE70,TE7# 12V 21W,12V 21W |
6 | ||
| 99132-21210 |
KE70,TE7# 12V 21/5W,12V 21/5W |
4 | ||
| 99132-11230 |
KE70,TE71..(CP,LB,SED)..(GEN,SAA) 12V 23W,12V 23W |
6 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-12790 |
KE70,TE7#..SED IKI |
1 | ||
| 81551-12760 |
KE70,TE7#..SED KOITO |
1 | ||
| 81551-12511 |
KE70,TE71..SED..(GEN,SAA) |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-12520 |
KE70,TE7#..SED IKI |
1 | ||
| 81554-12510 |
KE70,TE7#..SED KOITO |
1 | ||
| 81554-12511 |
CE70,KE70,TE71..SED..(EUR,GEN,SAA) |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-12760 |
KE70,TE7#..SED KOITO |
1 | ||
| 81555-12790 |
KE70,TE7#..SED IKI |
1 | ||
| 81555-12512 |
KE70,TE71..SED..(GEN,SAA) |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-12760 |
KE70,TE7#..SED KOITO |
1 | ||
| 81561-12511 |
KE70,TE71..SED..(GEN,SAA) |
1 | ||
| 81561-12790 |
KE70,TE7#..SED IKI |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-12520 |
KE70,TE7#..SED IKI |
1 | ||
| 81554-12510 |
KE70,TE7#..SED KOITO |
1 | ||
| 81554-12511 |
CE70,KE70,TE71..SED..(EUR,GEN,SAA) |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-12790 |
KE70,TE7#..SED IKI |
1 | ||
| 81565-12760 |
KE70,TE7#..SED KOITO |
1 | ||
| 81565-12511 |
KE70,TE71..SED..(GEN,SAA) |
1 | ||
| Common parts | ||||
| 81556-12280 | ||||
| 81559-12300 | ||||
| 81559-14290 | ||||
| 82711-12360 | ||||
| 82711-12450 | ||||
| 90119-06005 | ||||
| 90179-05095 | ||||
(8108-8406)SED..EUR,GEN,SAA ; (8204-8502)SED..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81505 - LAMP SUB-ASSY, REAR COMBINATION, RH | ||||
| 81505-19415 |
KE70,TE7#..SED KOITO |
1 | ||
| 81505-19425 |
KE70,TE7#..SED IKI |
1 | ||
| 81505-19236 |
KE70,TE71..SED..(GEN,SAA) |
1 | ||
| 81506 - LAMP SUB-ASSY, REAR COMBINATION, LH | ||||
| 81506-19285 |
KE70,TE7#..SED KOITO |
1 | ||
| 81506-19295 |
KE70,TE7#..SED IKI |
1 | ||
| 81506-19106 |
KE70,TE71..SED..(GEN,SAA) |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
KE70,TE7# 12V 21W,12V 21W |
6 | ||
| 99132-21210 |
KE70,TE7# 12V 21/5W,12V 21/5W |
4 | ||
| 99132-11230 |
KE70,TE71..(CP,LB,SED)..(GEN,SAA) 12V 23W,12V 23W |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
KE70,TE7# 12V 21W,12V 21W |
6 | ||
| 99132-21210 |
KE70,TE7# 12V 21/5W,12V 21/5W |
4 | ||
| 99132-11230 |
KE70,TE71..(CP,LB,SED)..(GEN,SAA) 12V 23W,12V 23W |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
KE70,TE7# 12V 21W,12V 21W |
6 | ||
| 99132-21210 |
KE70,TE7# 12V 21/5W,12V 21/5W |
4 | ||
| 99132-11230 |
KE70,TE71..(CP,LB,SED)..(GEN,SAA) 12V 23W,12V 23W |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
KE70,TE7# 12V 21W,12V 21W |
6 | ||
| 99132-21210 |
KE70,TE7# 12V 21/5W,12V 21/5W |
4 | ||
| 99132-11230 |
KE70,TE71..(CP,LB,SED)..(GEN,SAA) 12V 23W,12V 23W |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
KE70,TE7# 12V 21W,12V 21W |
6 | ||
| 99132-21210 |
KE70,TE7# 12V 21/5W,12V 21/5W |
4 | ||
| 99132-11230 |
KE70,TE71..(CP,LB,SED)..(GEN,SAA) 12V 23W,12V 23W |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
KE70,TE7# 12V 21W,12V 21W |
6 | ||
| 99132-21210 |
KE70,TE7# 12V 21/5W,12V 21/5W |
4 | ||
| 99132-11230 |
KE70,TE71..(CP,LB,SED)..(GEN,SAA) 12V 23W,12V 23W |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
KE70,TE7# 12V 21W,12V 21W |
6 | ||
| 99132-21210 |
KE70,TE7# 12V 21/5W,12V 21/5W |
4 | ||
| 99132-11230 |
KE70,TE71..(CP,LB,SED)..(GEN,SAA) 12V 23W,12V 23W |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
KE70,TE7# 12V 21W,12V 21W |
6 | ||
| 99132-21210 |
KE70,TE7# 12V 21/5W,12V 21/5W |
4 | ||
| 99132-11230 |
KE70,TE71..(CP,LB,SED)..(GEN,SAA) 12V 23W,12V 23W |
6 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-12790 |
KE70,TE7#..SED IKI |
1 | ||
| 81551-12760 |
KE70,TE7#..SED KOITO |
1 | ||
| 81551-12511 |
KE70,TE71..SED..(GEN,SAA) |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-12520 |
KE70,TE7#..SED IKI |
1 | ||
| 81554-12510 |
KE70,TE7#..SED KOITO |
1 | ||
| 81554-12511 |
CE70,KE70,TE71..SED..(EUR,GEN,SAA) |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-12760 |
KE70,TE7#..SED KOITO |
1 | ||
| 81555-12790 |
KE70,TE7#..SED IKI |
1 | ||
| 81555-12512 |
KE70,TE71..SED..(GEN,SAA) |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-12760 |
KE70,TE7#..SED KOITO |
1 | ||
| 81561-12511 |
KE70,TE71..SED..(GEN,SAA) |
1 | ||
| 81561-12790 |
KE70,TE7#..SED IKI |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-12520 |
KE70,TE7#..SED IKI |
1 | ||
| 81554-12510 |
KE70,TE7#..SED KOITO |
1 | ||
| 81554-12511 |
CE70,KE70,TE71..SED..(EUR,GEN,SAA) |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-12790 |
KE70,TE7#..SED IKI |
1 | ||
| 81565-12760 |
KE70,TE7#..SED KOITO |
1 | ||
| 81565-12511 |
KE70,TE71..SED..(GEN,SAA) |
1 | ||
| Common parts | ||||
| 81559-12300 | ||||
| 82711-12360 | ||||
| 82711-12450 | ||||
| 90119-06005 | ||||
| 90179-05095 | ||||
