KE70R-EDMNSW (1981)
Toyota Corolla
Production
Aug 1981
-
Aug 1982
Engine
4K
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )4K..EUG

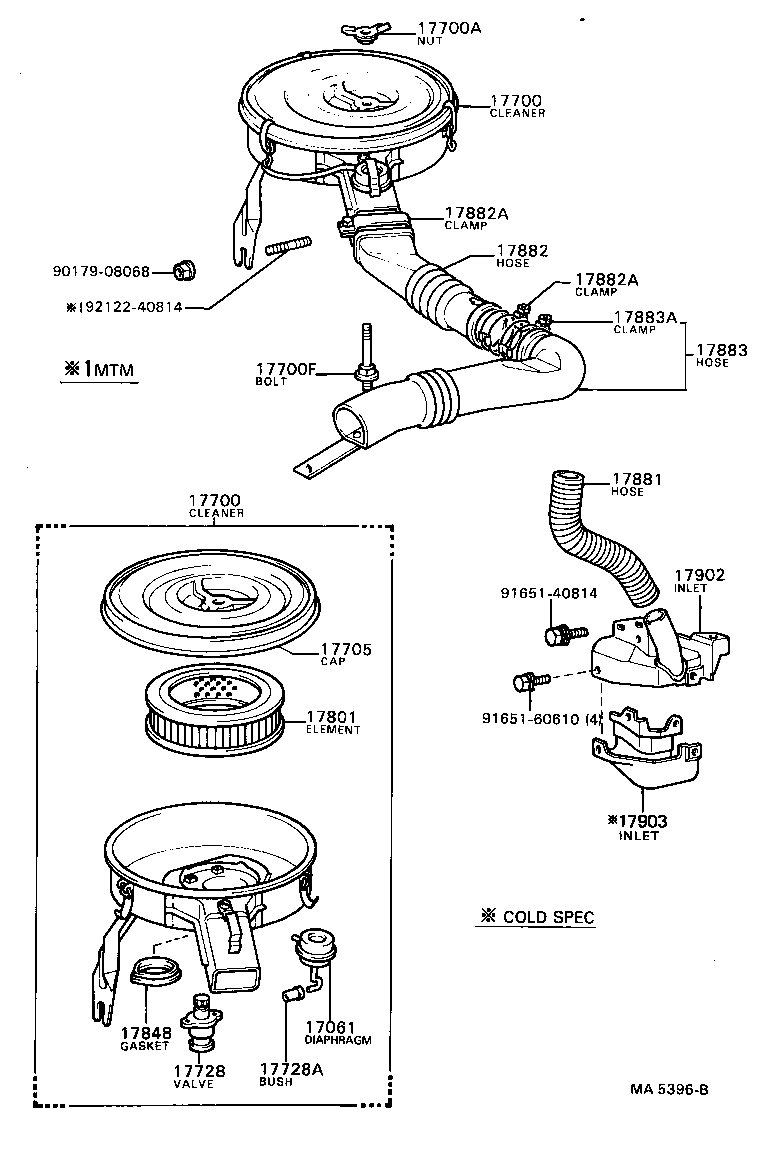

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13130 |
4K#..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13130 |
4K#..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00600 |
4K#..KE70 |
2 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06142 |
4K#..KE70 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-13050 |
4K#..KE70 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-13010 |
4K#..KE70..EUR,GEN,SA,SAA |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
4K#..KE70 |
2 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-13050 |
4K#..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17895-24010 |
4K..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| Common parts | ||||
| 90179-08068 | ||||
| 91651-40814 | ||||
| 91651-60610 | ||||
| 92122-40814 | ||||
