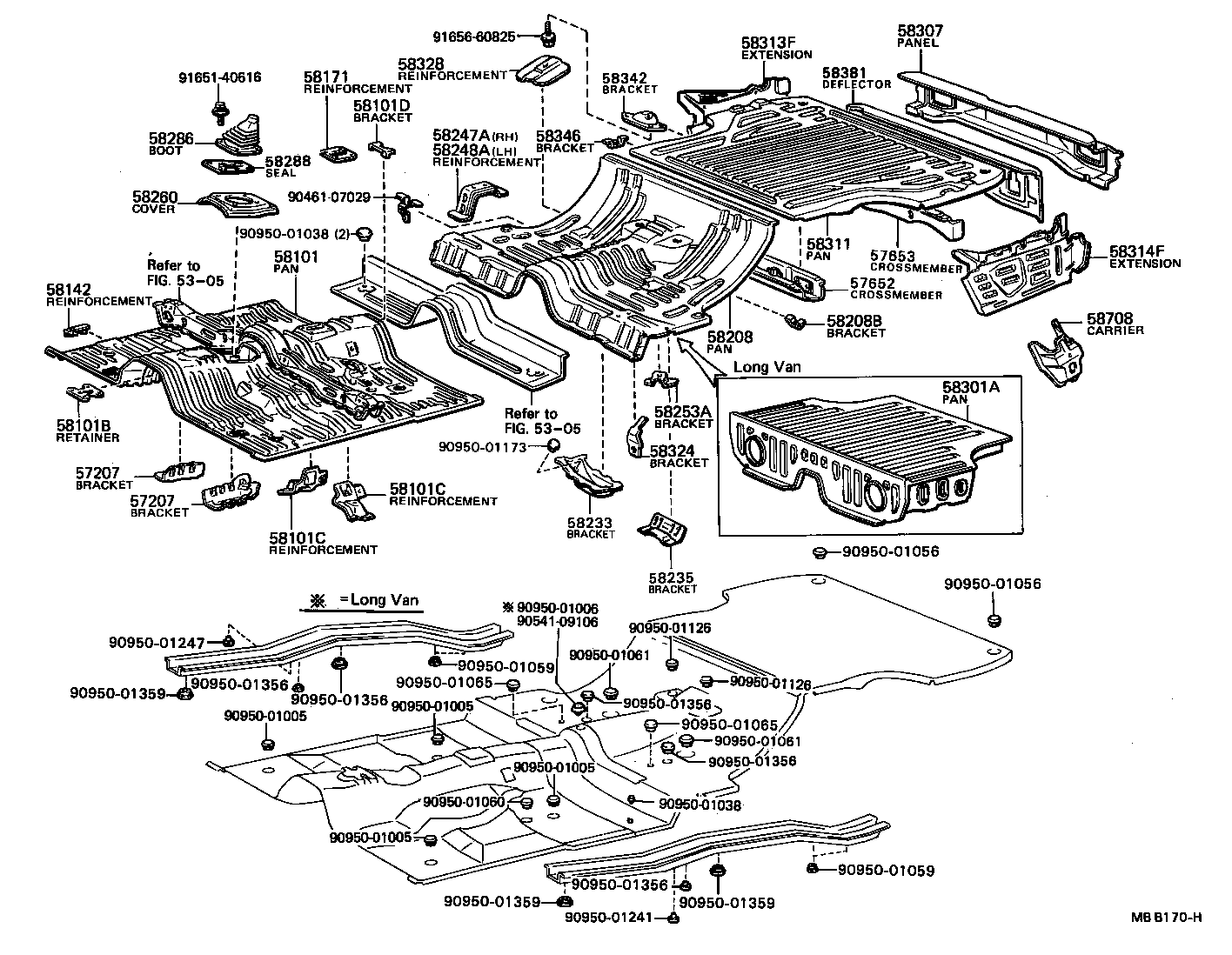

KE70LG-EZKRS (1979)
Toyota Corolla
(7908- )DV,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57208-12040 |
KE70,TE7# LH |
1 | ||
| 57207-12030 |
KE70,TE7# RH |
1 | ||
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57208-12040 |
KE70,TE7# LH |
1 | ||
| 57207-12030 |
KE70,TE7# RH |
1 | ||
| 57652 - CROSSMEMBER, REAR FLOOR, NO.2 | ||||
| 57606-13040 |
KE70,TE71..DV,WG |
1 | ||
| 57653 - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57606-15010 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58111-12140 |
AE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA |
1 | ||
| 58101B - RETAINER, CONSOLE BOX MOUNTING | ||||
| 58164-12010 |
AE71,CE70,KE70,TE7# |
1 | ||
| 58101C - REINFORCEMENT SUB-ASSY, DRIVE SHAFT SUPPORT | ||||
| 58205-12020 |
AE71,CE70,KE70,TE7# RH |
1 | ||
| 58206-12020 |
AE71,CE70,KE70,TE7# LH |
1 | ||
| 58101C - REINFORCEMENT SUB-ASSY, DRIVE SHAFT SUPPORT | ||||
| 58205-12020 |
AE71,CE70,KE70,TE7# RH |
1 | ||
| 58206-12020 |
AE71,CE70,KE70,TE7# LH |
1 | ||
| 58101D - BRACKET, PARKING BRAKE CABLE GUIDE | ||||
| 58264-12020 |
AE71,CE70,KE70,TE7# |
1 | ||
| 58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN | ||||
| 58141-16010 |
AE71,CE70,KE70,TE7# |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-12040 |
AE71,CE70,KE70,TE7# |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-13060 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 58208B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
AE71,CE70,KE70,TE7# |
2 | ||
| 58233 - BRACKET, EXHAUST PIPE MOUNTING | ||||
| 58233-13020 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 58235 - BRACKET, DIFFERENTIAL CARRIER BUMPER MOUNTING | ||||
| 58235-96440 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-13020 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58247-13020 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 58253A - BRACKET, PARKING CABLE CLAMP | ||||
| 58253-13020 |
AE71,CE70,KE70,TE71..DV,WG RH |
1 | ||
| 58254-13020 |
AE71,CE70,KE70,TE71..DV,WG LH |
1 | ||
| 58260 - COVER ASSY, TRANSMISSION, FRONT | ||||
| 58281-12010 |
KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-1208001 |
KE70..STD..EUR;KE70..5F..4D..GEN;TE71..4F..4D..GEN;KE70..(DV,SED,WG)..4F..(GEN,SA) W/CONSOLE,BLACK,BLACK,TRIM0#,2# |
1 | ||
| 58280-1208004 |
KE70,TE71..(DV,SED,WG)..MTM..GEN W/CONSOLE,BLUE,BLUE,TRIM8# |
1 | ||
| 58280-1208005 |
KE70..DX..SA;TE71..4F..4D;KE70..(DV,SED,WG)..LHD..MTM..GEN;KE70..(SED,WG)..LHD..MTM..DX..EUR;KE70..(DV,SED,WG)..RHD..MTM..(EUR,GEN) W/CONSOLE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 58280-12090 |
KE70..CP..5F;KE70..CP..LHD..4F;TE71..MTM..(DX,STD);CE70,KE70,TE72..(DV,LB,SED,WG)..MTM..(DX,STD,XL)..(EUR,GEN,SA,SAA) W/O CONSOLE |
1 | ||
| 58288 - SEAL, SHIFT LEVER BOOT | ||||
| 58288-12060 |
KE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-13070 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-13060 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-13070 |
KE70,TE71..DV,WG |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-13070 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 58324 - BRACKET, FLEXIBLE HOSE | ||||
| 58326-13020 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 58342 - BRACKET, REAR ABSORBER MOUNTING | ||||
| 58342-13010 |
AE71,CE70,KE70,TE71..DV,WG LH |
1 | ||
| 58341-13010 |
AE71,CE70,KE70,TE71..DV,WG RH |
1 | ||
| 58346 - BRACKET, REAR FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 58381 - DEFLECTOR, REAR BUMPER STONE | ||||
| 58308-13050 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 58708 - CARRIER SUB-ASSY, JACK | ||||
| 58709-13020 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| Common parts | ||||
| 90461-07029 | ||||
| 90541-09106 | ||||
| 90950-01005 | ||||
| 90950-01006 | ||||
| 90950-01038 | ||||
| 90950-01056 | ||||
| 90950-01059 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01065 | ||||
| 90950-01126 | ||||
| 90950-01173 | ||||
| 90950-01241 | ||||
| 90950-01247 | ||||
| 90950-01356 | ||||
| 90950-01359 | ||||
| 91651-40616 | ||||
| 91656-60825 | ||||
| Linked diagrams | ||||
| 5305 | ||||
