KE70LG-EZKDS (1979)
Toyota Corolla
Production
Aug 1979
-
Aug 1980
Engine
4K
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7908- )DV,WG

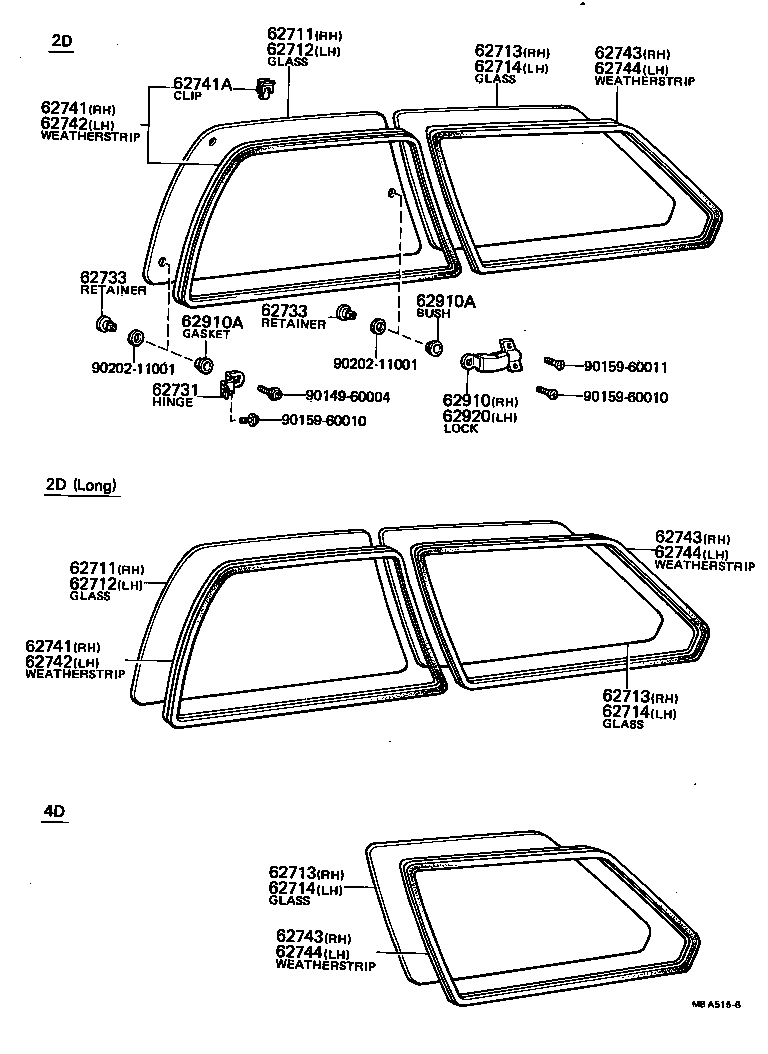

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62711 - GLASS, QUARTER WINDOW, RH | ||||
| 62711-13070 |
KE70..WG..2D *TEM,T=4.0 |
1 | ||
| 62711 - GLASS, QUARTER WINDOW, RH | ||||
| 62711-13070 |
KE70..WG..2D *TEM,T=4.0 |
1 | ||
| 62712 - GLASS, QUARTER WINDOW, LH | ||||
| 62712-13070 |
KE70..WG..2D *TEM,T=4.0 |
1 | ||
| 62712 - GLASS, QUARTER WINDOW, LH | ||||
| 62712-13070 |
KE70..WG..2D *TEM,T=4.0 |
1 | ||
| 62713 - GLASS, QUARTER WINDOW, REAR RH | ||||
| 62713-13090 |
KE70,TE71..DV,WG *TEM,T=4.0 |
1 | ||
| 62713 - GLASS, QUARTER WINDOW, REAR RH | ||||
| 62713-13090 |
KE70,TE71..DV,WG *TEM,T=4.0 |
1 | ||
| 62713 - GLASS, QUARTER WINDOW, REAR RH | ||||
| 62713-13090 |
KE70,TE71..DV,WG *TEM,T=4.0 |
1 | ||
| 62714 - GLASS, QUARTER WINDOW, REAR LH | ||||
| 62714-13090 |
KE70,TE71..DV,WG *TEM,T=4.0 |
1 | ||
| 62714 - GLASS, QUARTER WINDOW, REAR LH | ||||
| 62714-13090 |
KE70,TE71..DV,WG *TEM,T=4.0 |
1 | ||
| 62714 - GLASS, QUARTER WINDOW, REAR LH | ||||
| 62714-13090 |
KE70,TE71..DV,WG *TEM,T=4.0 |
1 | ||
| 62731 - PLATE, QUARTER OR SIDE WINDOW HINGE | ||||
| 62731-12070 |
KE70..WG..2D |
4 | ||
| 62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE | ||||
| 62735-12010 |
KE70..WG..2D |
6 | ||
| 62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE | ||||
| 62735-12010 |
KE70..WG..2D |
6 | ||
| 62741 - WEATHERSTRIP, QUARTER WINDOW, RH | ||||
| 62741-13050 |
KE70..WG..2D |
1 | ||
| 62741 - WEATHERSTRIP, QUARTER WINDOW, RH | ||||
| 62741-13050 |
KE70..WG..2D |
1 | ||
| 62741A - CLIP, QUARTER WINDOW WEATHERSTRIP | ||||
| 62759-12010 |
KE70..WG..2D |
10 | ||
| 62742 - WEATHERSTRIP, QUARTER WINDOW, LH | ||||
| 62742-13050 |
KE70..WG..2D |
1 | ||
| 62742 - WEATHERSTRIP, QUARTER WINDOW, LH | ||||
| 62742-13050 |
KE70..WG..2D |
1 | ||
| 62743 - WEATHERSTRIP, QUARTER WINDOW, REAR RH | ||||
| 62743-13050 |
KE70,TE71..DV,WG |
1 | ||
| 62743 - WEATHERSTRIP, QUARTER WINDOW, REAR RH | ||||
| 62743-13050 |
KE70,TE71..DV,WG |
1 | ||
| 62743 - WEATHERSTRIP, QUARTER WINDOW, REAR RH | ||||
| 62743-13050 |
KE70,TE71..DV,WG |
1 | ||
| 62744 - WEATHERSTRIP, QUARTER WINDOW, REAR LH | ||||
| 62744-13050 |
KE70,TE71..DV,WG |
1 | ||
| 62744 - WEATHERSTRIP, QUARTER WINDOW, REAR LH | ||||
| 62744-13050 |
KE70,TE71..DV,WG |
1 | ||
| 62744 - WEATHERSTRIP, QUARTER WINDOW, REAR LH | ||||
| 62744-13050 |
KE70,TE71..DV,WG |
1 | ||
| 62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH | ||||
| 62910-13040 |
KE70..WG..2D |
1 | ||
| 62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE) | ||||
| 90385-11001 |
KE70..WG..2D |
6 | ||
| 62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE) | ||||
| 90385-11001 |
KE70..WG..2D |
6 | ||
| 62920 - LOCK ASSY, QUARTER WINDOW, LH | ||||
| 62920-13040 |
KE70..WG..2D |
1 | ||
| Common parts | ||||
| 90149-60004 | ||||
| 90159-60010 | ||||
| 90159-60011 | ||||
| 90202-11001 | ||||
