KE70LG-EWKDS (1979)
Toyota Corolla

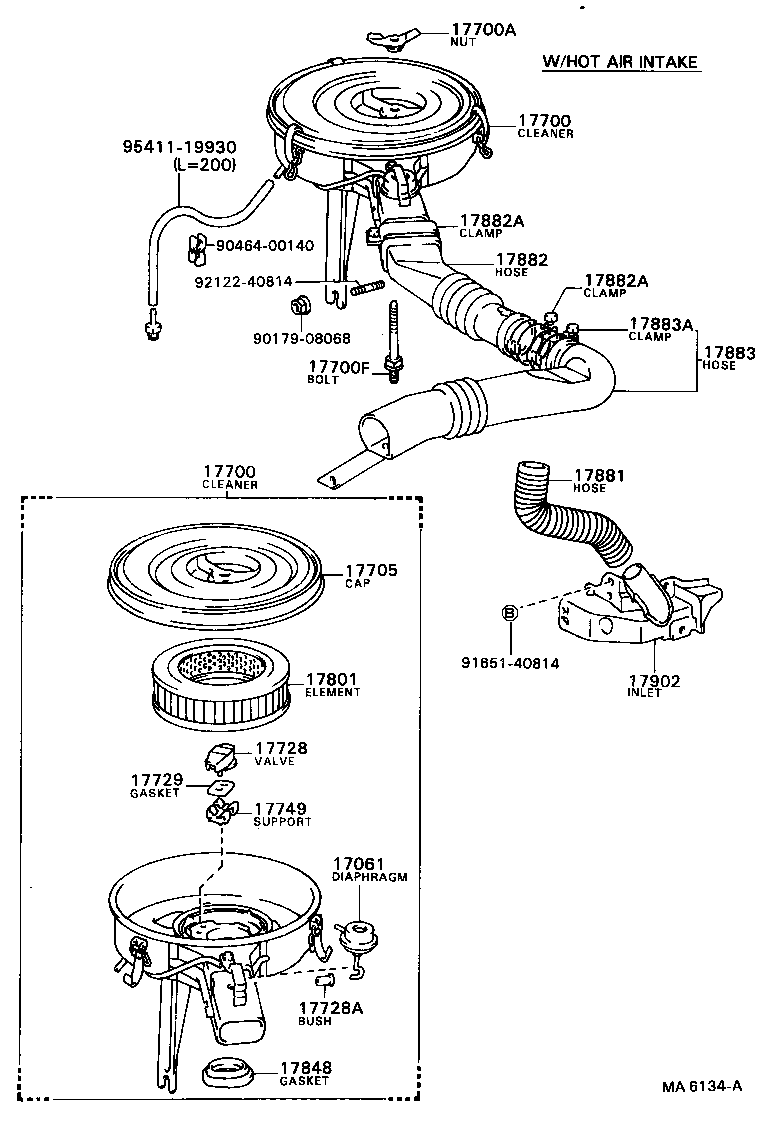

(7908-8010)4K#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13150 |
4K..KE70..GEN,SA |
1 | ||
| 17700-13130 |
4K..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13130 |
4K#..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13191 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13151 |
4K..KE70..GEN,SA |
1 | ||
| 17700-13250 |
4K..KE70..GEN,SA,SAA |
1 | ||
| 17700-13280 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13310 |
4K..KE70..GEN,SAA DUST AREA |
1 | ||
| 17700-13250 |
4K..KE70..GEN,SAA |
1 | ||
| 17700-13310 |
4K..KE70..(STD,XL)..GEN DUST AREA |
1 | ||
| 17700-13450 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) W/COOL AIR INTAKE |
1 | ||
| 17700-13250 |
4K..KE70..4F..(STD,XL)..GEN |
1 | ||
| 17700-13460 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4K#..KE70 |
1 | ||
| 94271-00600 |
4K#..KE70 |
2 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-06023 |
4K#..KE70 |
2 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06142 |
4K#..KE70 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-13050 |
4K#..KE70 |
1 | ||
| 17705-13011 |
4KC..KE70..SDN;4K..KE70..GEN,SA,SAA |
1 | ||
| 17705-13011 |
4KC..KE70..EUR;4K..KE70..GEN,SAA |
1 | ||
| 17705-13031 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) W/COOL AIR INTAKE |
1 | ||
| 17705-13031 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17705-13011 |
4K..KE70..4F..(STD,XL)..GEN |
1 | ||
| 17786 - CLAMP, AIR CLEANER | ||||
| 17786-26010 |
4K..KE70..GEN,SA |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-13020 |
4K#..KE70..ARL,GEN,SAA DUST AREA |
1 | ||
| 17801-13010 |
4K#..KE70..EUR,GEN,SA,SAA |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
4K#..KE70 |
1 | ||
| 90430-63187 |
4K#..KE70 |
2 | ||
| 17848-13010 |
4K#..KE70..EUR,GEN,SA,SAA |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-13050 |
4K#..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17881-34040 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17895-24010 |
4K..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17895-24010 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17167-13030 |
4K..KE70..GEN |
1 | ||
| 17167-13040 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17167-13040 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17895-24010 |
4K..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17895-24010 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17167-13030 |
4K..KE70..GEN |
1 | ||
| 17167-13040 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17167-13040 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| Common parts | ||||
| 91611-60610 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 1709 | ||||

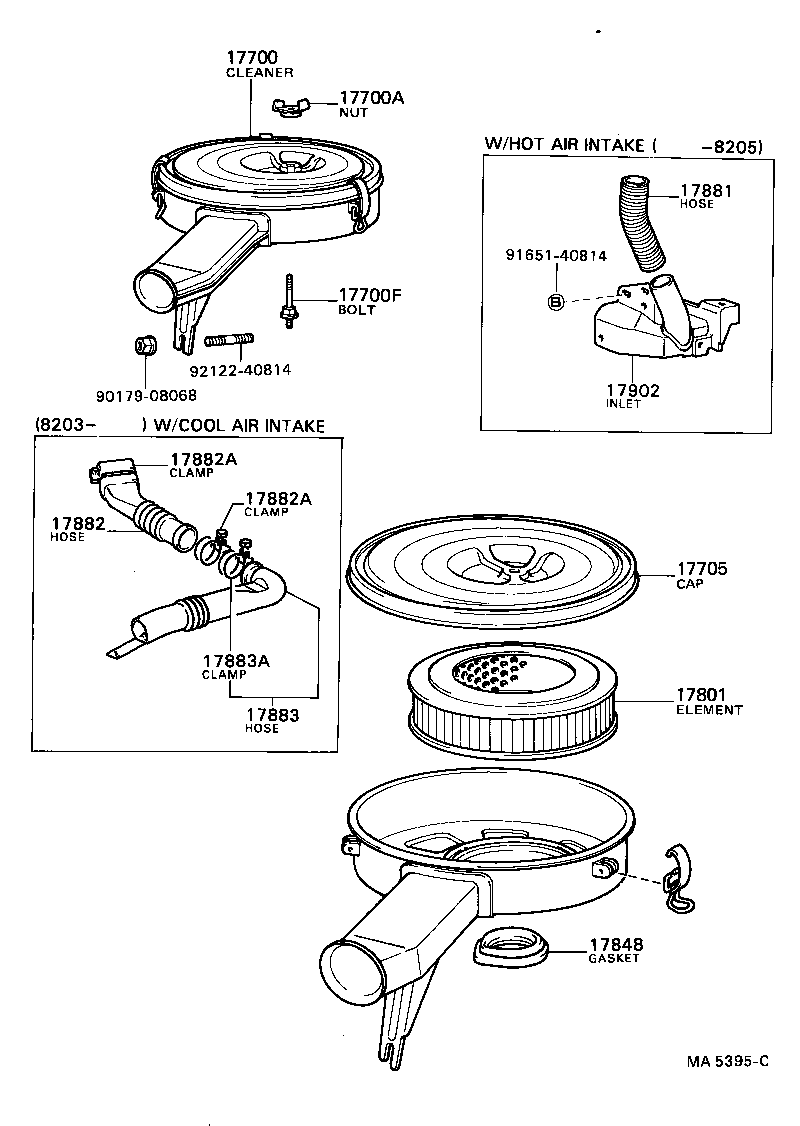

(8108- )4K..GEN,SA,SAA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13150 |
4K..KE70..GEN,SA |
1 | ||
| 17700-13130 |
4K..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13130 |
4K#..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13191 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13151 |
4K..KE70..GEN,SA |
1 | ||
| 17700-13250 |
4K..KE70..GEN,SA,SAA |
1 | ||
| 17700-13280 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13310 |
4K..KE70..GEN,SAA DUST AREA |
1 | ||
| 17700-13250 |
4K..KE70..GEN,SAA |
1 | ||
| 17700-13310 |
4K..KE70..(STD,XL)..GEN DUST AREA |
1 | ||
| 17700-13450 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) W/COOL AIR INTAKE |
1 | ||
| 17700-13250 |
4K..KE70..4F..(STD,XL)..GEN |
1 | ||
| 17700-13460 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4K#..KE70 |
1 | ||
| 94271-00600 |
4K#..KE70 |
2 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06142 |
4K#..KE70 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-13050 |
4K#..KE70 |
1 | ||
| 17705-13011 |
4KC..KE70..SDN;4K..KE70..GEN,SA,SAA |
1 | ||
| 17705-13011 |
4KC..KE70..EUR;4K..KE70..GEN,SAA |
1 | ||
| 17705-13031 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) W/COOL AIR INTAKE |
1 | ||
| 17705-13031 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17705-13011 |
4K..KE70..4F..(STD,XL)..GEN |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-13020 |
4K#..KE70..ARL,GEN,SAA DUST AREA |
1 | ||
| 17801-13010 |
4K#..KE70..EUR,GEN,SA,SAA |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
4K#..KE70 |
1 | ||
| 90430-63187 |
4K#..KE70 |
2 | ||
| 17848-13010 |
4K#..KE70..EUR,GEN,SA,SAA |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-13050 |
4K#..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17881-34040 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-12030 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) W/COOL AIR INTAKE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01022 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) CLEANER SIDE W/COOL AIR INTAKE |
1 | ||
| 96111-10560 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) BODY SIDE W/COOL AIR INTAKE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01022 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) CLEANER SIDE W/COOL AIR INTAKE |
1 | ||
| 96111-10560 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) BODY SIDE W/COOL AIR INTAKE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-12010 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) W/COOL AIR INTAKE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-60001 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) W/COOL AIR INTAKE |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17895-24010 |
4K..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17895-24010 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17167-13030 |
4K..KE70..GEN |
1 | ||
| 17167-13040 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17167-13040 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| Common parts | ||||
| 90179-08068 | ||||
| 91651-40814 | ||||
| 92122-40814 | ||||

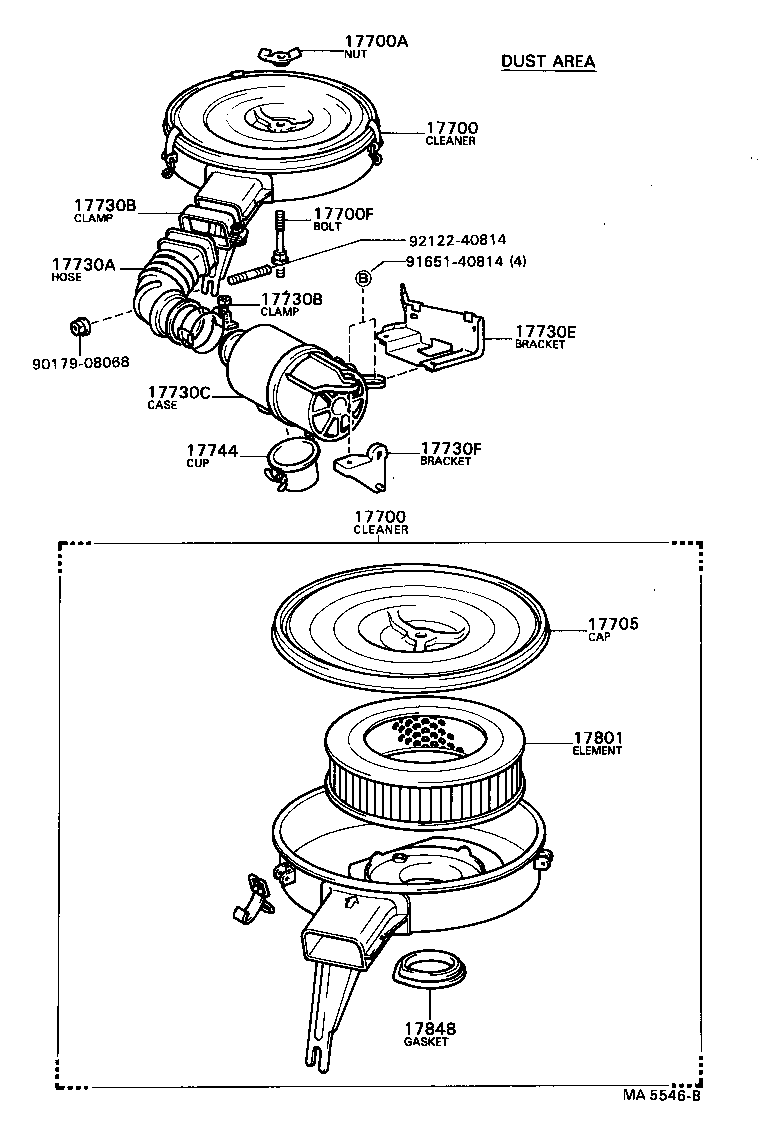

(8110-8305)4K..GEN,SAA ; (8305-8308)4K..SAA ; (8305- )4K..STD,XL..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13150 |
4K..KE70..GEN,SA |
1 | ||
| 17700-13130 |
4K..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13130 |
4K#..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13191 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13151 |
4K..KE70..GEN,SA |
1 | ||
| 17700-13250 |
4K..KE70..GEN,SA,SAA |
1 | ||
| 17700-13280 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13310 |
4K..KE70..GEN,SAA DUST AREA |
1 | ||
| 17700-13250 |
4K..KE70..GEN,SAA |
1 | ||
| 17700-13310 |
4K..KE70..(STD,XL)..GEN DUST AREA |
1 | ||
| 17700-13450 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) W/COOL AIR INTAKE |
1 | ||
| 17700-13250 |
4K..KE70..4F..(STD,XL)..GEN |
1 | ||
| 17700-13460 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13150 |
4K..KE70..GEN,SA |
1 | ||
| 17700-13130 |
4K..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13130 |
4K#..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13191 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13151 |
4K..KE70..GEN,SA |
1 | ||
| 17700-13250 |
4K..KE70..GEN,SA,SAA |
1 | ||
| 17700-13280 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13310 |
4K..KE70..GEN,SAA DUST AREA |
1 | ||
| 17700-13250 |
4K..KE70..GEN,SAA |
1 | ||
| 17700-13310 |
4K..KE70..(STD,XL)..GEN DUST AREA |
1 | ||
| 17700-13450 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) W/COOL AIR INTAKE |
1 | ||
| 17700-13250 |
4K..KE70..4F..(STD,XL)..GEN |
1 | ||
| 17700-13460 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4K#..KE70 |
1 | ||
| 94271-00600 |
4K#..KE70 |
2 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06142 |
4K#..KE70 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-13050 |
4K#..KE70 |
1 | ||
| 17705-13011 |
4KC..KE70..SDN;4K..KE70..GEN,SA,SAA |
1 | ||
| 17705-13011 |
4KC..KE70..EUR;4K..KE70..GEN,SAA |
1 | ||
| 17705-13031 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) W/COOL AIR INTAKE |
1 | ||
| 17705-13031 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17705-13011 |
4K..KE70..4F..(STD,XL)..GEN |
1 | ||
| 17730A - HOSE, PRECLEANER | ||||
| 17881-13070 |
4K..KE70..(STD,XL)..GEN DUST AREA |
1 | ||
| 17881-13070 |
4K..KE70..GEN,SAA DUST AREA |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 90460-01029 |
4K..KE70..(STD,XL)..GEN DUST AREA AIR CLEANER SIDE |
1 | ||
| 96111-10600 |
4K..KE70..(STD,XL)..GEN DUST AREA PRE-CLEANER SIDE |
1 | ||
| 90460-01029 |
4K..KE70..GEN,SAA DUST AREA AIR CLEANER SIDE |
1 | ||
| 96111-10600 |
4K..KE70..GEN,SAA DUST AREA PRE-CLEANER SIDE |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 90460-01029 |
4K..KE70..(STD,XL)..GEN DUST AREA AIR CLEANER SIDE |
1 | ||
| 96111-10600 |
4K..KE70..(STD,XL)..GEN DUST AREA PRE-CLEANER SIDE |
1 | ||
| 90460-01029 |
4K..KE70..GEN,SAA DUST AREA AIR CLEANER SIDE |
1 | ||
| 96111-10600 |
4K..KE70..GEN,SAA DUST AREA PRE-CLEANER SIDE |
1 | ||
| 17730C - CASE, PRECLEANER | ||||
| 17736-13010 |
4K..KE70..GEN,SAA DUST AREA |
1 | ||
| 17736-13010 |
4K..KE70..(STD,XL)..GEN DUST AREA |
1 | ||
| 17730E - BRACKET, PRECLEANER, NO.1 | ||||
| 17741-13010 |
4K..KE70..(STD,XL)..GEN DUST AREA |
1 | ||
| 17741-13010 |
4K..KE70..GEN,SAA DUST AREA |
1 | ||
| 17730F - BRACKET, PRECLEANER, NO.2 | ||||
| 17742-13010 |
4K..KE70..(STD,XL)..GEN DUST AREA |
1 | ||
| 17742-13010 |
4K..KE70..GEN,SAA DUST AREA |
1 | ||
| 17744 - CUP, PRECLEANER | ||||
| 17744-16010 |
4K..KE70..GEN,SAA DUST AREA |
1 | ||
| 17744-16010 |
4K..KE70..(STD,XL)..GEN DUST AREA |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-13020 |
4K#..KE70..ARL,GEN,SAA DUST AREA |
1 | ||
| 17801-13010 |
4K#..KE70..EUR,GEN,SA,SAA |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
4K#..KE70 |
1 | ||
| 90430-63187 |
4K#..KE70 |
2 | ||
| 17848-13010 |
4K#..KE70..EUR,GEN,SA,SAA |
1 | ||
| Common parts | ||||
| 90179-08068 | ||||
| 91651-40814 | ||||
| 92122-40814 | ||||
(8205-8305)4K..RHD..GEN ; (8305- )4K..STD,XL..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-13010 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17061-13020 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13150 |
4K..KE70..GEN,SA |
1 | ||
| 17700-13130 |
4K..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13130 |
4K#..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13191 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13151 |
4K..KE70..GEN,SA |
1 | ||
| 17700-13250 |
4K..KE70..GEN,SA,SAA |
1 | ||
| 17700-13280 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13310 |
4K..KE70..GEN,SAA DUST AREA |
1 | ||
| 17700-13250 |
4K..KE70..GEN,SAA |
1 | ||
| 17700-13310 |
4K..KE70..(STD,XL)..GEN DUST AREA |
1 | ||
| 17700-13450 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) W/COOL AIR INTAKE |
1 | ||
| 17700-13250 |
4K..KE70..4F..(STD,XL)..GEN |
1 | ||
| 17700-13460 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13150 |
4K..KE70..GEN,SA |
1 | ||
| 17700-13130 |
4K..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13130 |
4K#..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13191 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13151 |
4K..KE70..GEN,SA |
1 | ||
| 17700-13250 |
4K..KE70..GEN,SA,SAA |
1 | ||
| 17700-13280 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-13310 |
4K..KE70..GEN,SAA DUST AREA |
1 | ||
| 17700-13250 |
4K..KE70..GEN,SAA |
1 | ||
| 17700-13310 |
4K..KE70..(STD,XL)..GEN DUST AREA |
1 | ||
| 17700-13450 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) W/COOL AIR INTAKE |
1 | ||
| 17700-13250 |
4K..KE70..4F..(STD,XL)..GEN |
1 | ||
| 17700-13460 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4K#..KE70 |
1 | ||
| 94271-00600 |
4K#..KE70 |
2 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06142 |
4K#..KE70 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-13050 |
4K#..KE70 |
1 | ||
| 17705-13011 |
4KC..KE70..SDN;4K..KE70..GEN,SA,SAA |
1 | ||
| 17705-13011 |
4KC..KE70..EUR;4K..KE70..GEN,SAA |
1 | ||
| 17705-13031 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) W/COOL AIR INTAKE |
1 | ||
| 17705-13031 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17705-13011 |
4K..KE70..4F..(STD,XL)..GEN |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-24011 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17728-24011 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 90386-03001 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17729 - GASKET, THERMOSTAT VALVE | ||||
| 17729-34010 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17749 - SUPPORT, THERMOSTAT VALVE | ||||
| 17749-34010 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-13020 |
4K#..KE70..ARL,GEN,SAA DUST AREA |
1 | ||
| 17801-13010 |
4K#..KE70..EUR,GEN,SA,SAA |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
4K#..KE70 |
1 | ||
| 90430-63187 |
4K#..KE70 |
2 | ||
| 17848-13010 |
4K#..KE70..EUR,GEN,SA,SAA |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-13050 |
4K#..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17881-34040 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-12030 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) W/COOL AIR INTAKE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01022 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) CLEANER SIDE W/COOL AIR INTAKE |
1 | ||
| 96111-10560 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) BODY SIDE W/COOL AIR INTAKE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01022 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) CLEANER SIDE W/COOL AIR INTAKE |
1 | ||
| 96111-10560 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) BODY SIDE W/COOL AIR INTAKE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-12010 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) W/COOL AIR INTAKE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-60001 |
4K..KE70..(DV,LB,SED,WG)..(GEN,SA) W/COOL AIR INTAKE |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17895-24010 |
4K..KE70..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17895-24010 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17167-13030 |
4K..KE70..GEN |
1 | ||
| 17167-13040 |
4K..KE70..GEN W/HOT AIR INTAKE |
1 | ||
| 17167-13040 |
4K..KE70..(STD,XL)..GEN W/HOT AIR INTAKE |
1 | ||
| Common parts | ||||
| 90179-08068 | ||||
| 90464-00140 | ||||
| 91651-40814 | ||||
| 92122-40814 | ||||
| 95411-19930 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
