KE70LG-EWHDSW (1981)

Toyota Corolla

Production Aug 1981 - May 1983
Engine 4K
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8401)TE7#..ATM ; (8108- )AE71,KE70..3FC

Click highlighted areas on diagram

diagram 35505 35506 35506C 35506F 35506F 35506H 35556 35556E 35557 35557A 35572 35585 35595 9010106416 9411050800 9451200800 9454200600
Part # Description Qty Price
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-22010

KE70,TE7#..ATM..(EUR,GEN,SA)

 1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35561-20021

KE70,TE7#..3FC..(EUR,GEN,SA)

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-03004

KE70,TE7#..ATM..(EUR,GEN,SA)

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-16010

KE70,TE71..3FC..(EUR,GEN)

 1
Common parts
90101-06416
94110-50800
94512-00800
94542-00600

(8108- )AE71,KE70..3FC

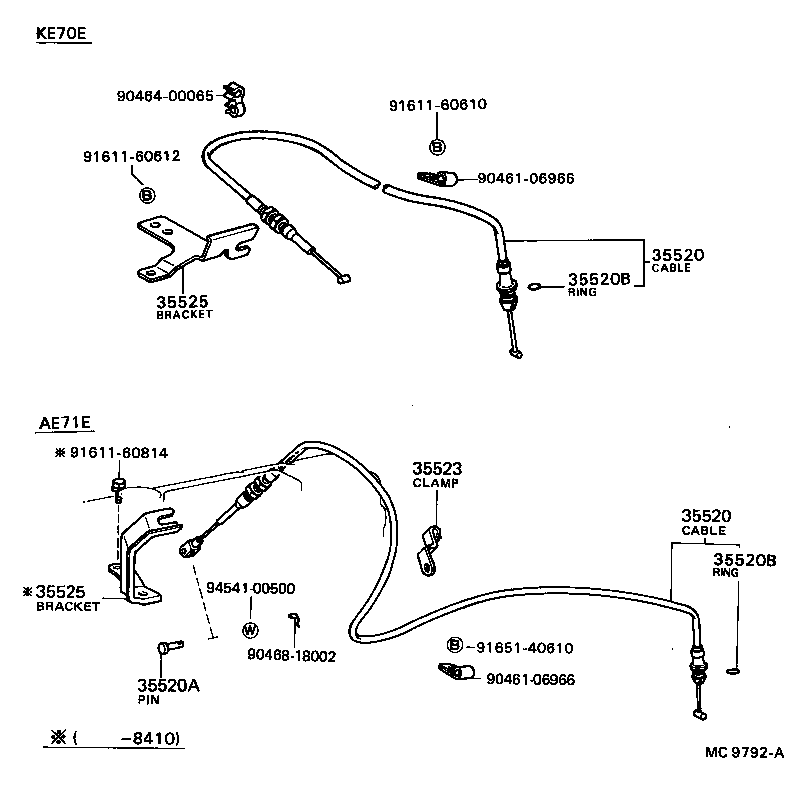

Click highlighted areas on diagram

diagram 35520 35520 35520A 35520B 35520B 35523 35525 35525 9046106966 9046106966 9046400065 9046818002 9161160610 9161160612 9161160814 9165140610 9454100500
Part # Description Qty Price
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

KE70,TE7#..ATM..(EUR,GEN,SA)

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

KE70,TE7#..ATM..(EUR,GEN,SA)

 1
Common parts
90461-06966
90464-00065
90468-18002
91611-60610
91611-60612
91611-60814
91651-40610
94541-00500
