KE70LG-EWCDSW (1979)
Toyota Corolla
Production
Aug 1979
-
Aug 1980
Engine
4K
Transmission
2FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7908-8108)2FC

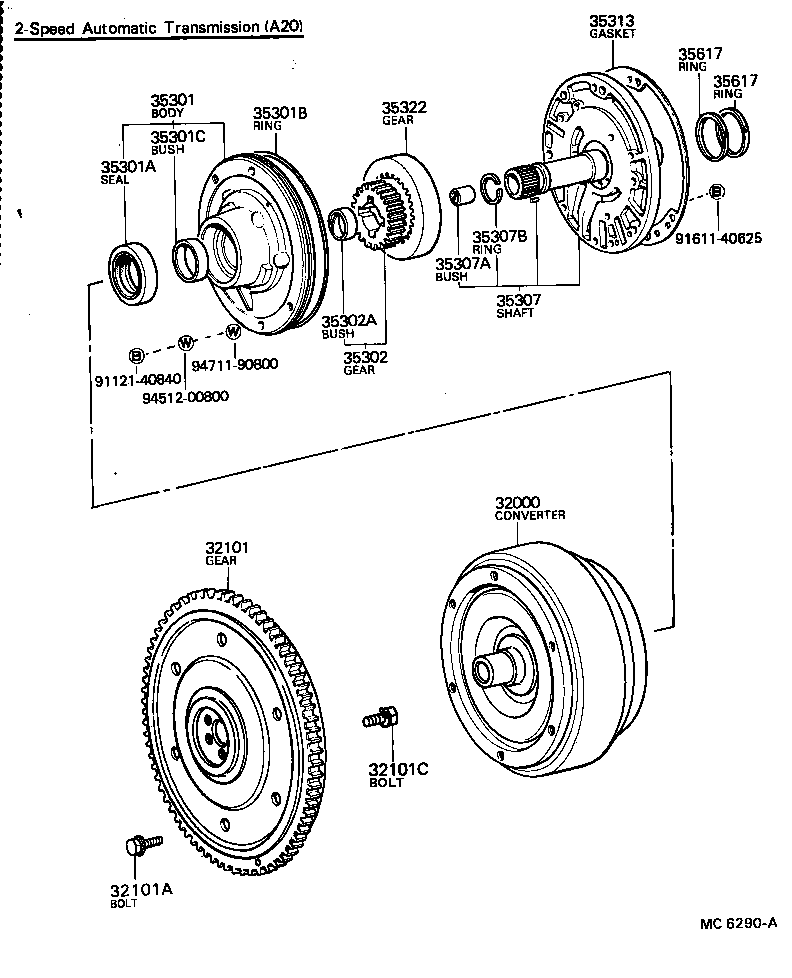

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-12012 |
KE70..2FC |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-12020 |
KE70..2FC |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-08223 |
KE70,TE7#..ATM *8-1.25PX10.5-6.5 |
6 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90119-10078 |
KE70..2FC |
6 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-12010 |
KE70..2FC |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-42083 |
KE70..2FC |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99102 |
KE70..2FC |
1 | ||
| 35301C - BUSH, BIMETAL FORMED (FOR FRONT OIL PUMP BODY) | ||||
| 90999-73036 |
KE70..2FC |
1 | ||
| 35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE | ||||
| 35302-12010 |
KE70..2FC |
1 | ||
| 35302A - BUSH, BIMETAL FORMED (FOR FRONT OIL PUMP DRIVE GEAR) | ||||
| 90999-73037 |
KE70..2FC |
1 | ||
| 35307 - SHAFT SUB-ASSY, STATOR | ||||
| 35307-12012 |
KE70..2FC |
1 | ||
| 35307A - BUSH, BIMETAL FORMED (FOR STATOR SHAFT) | ||||
| 90999-73047 |
KE70..2FC |
1 | ||
| 35307B - RING, SHAFT SNAP (FOR STATOR SHAFT) | ||||
| 90520-25116 |
KE70..2FC |
1 | ||
| 35313 - GASKET, FRONT OIL PUMP COVER | ||||
| 35313-12011 |
KE70..2FC |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-31010 |
KE70..2FC |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-12010 |
KE70..2FC |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-12010 |
KE70..2FC |
2 | ||
| Common parts | ||||
| 91121-40840 | ||||
| 91611-40625 | ||||
| 94512-00800 | ||||
| 94711-90800 | ||||
