KE70L-ELMDS (1979)

Toyota Corolla

Production Aug 1979 - May 1983
Engine 4K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )GEN,SAA

Click highlighted areas on diagram

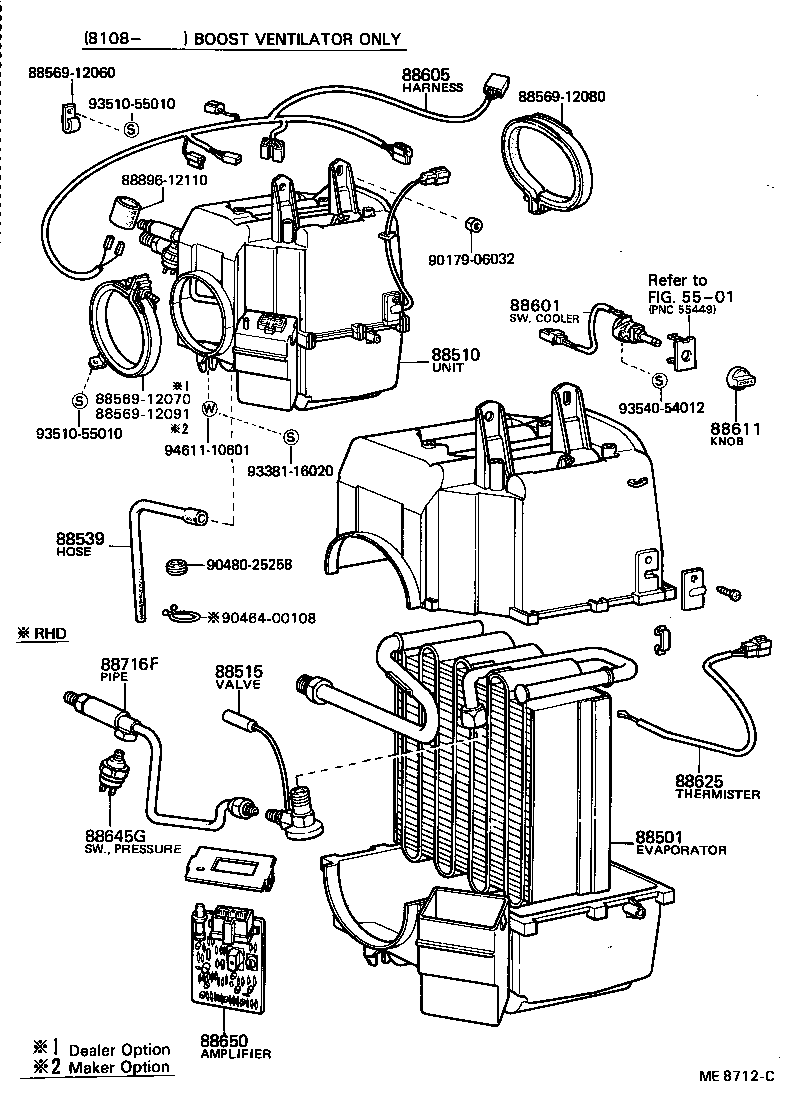

diagram 5501 88501 88510 88515 88539 8856912060 8856912070 8856912080 8856912091 88601 88605 88611 88625 88645G 88650 88716F 8889612110 9017906032 9046400108 9048025258 9338116020 9351055010 9351055010 9354054012 9461110601
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12260

AE71,KE70..LHD..(GEN,SAA)

 1
88510 - UNIT ASSY, COOLER
88510-12280

KE70..LHD..GEN

 1
88510-12280

KE70..LHD..(GEN,SAA)

BOOST VENTILATOR ONLY

 1
88510-12330

KE70..LHD..(GEN,SAA)

 1
88515 - VALVE, COOLER EXPANSION
88515-20040

AE71,KE70,TE71..GEN,SAA

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12050

KE70,TE71..LHD..GEN

 1
88601 - SWITCH SUB-ASSY, COOLER CONTROL
88610-12030

KE70,TE71..LHD..GEN

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-12240

KE70,TE71..LHD..GEN

 1
88611 - KNOB, COOLER CONTROL SWITCH
88611-12030

KE70,TE71..GEN

BOOST VENTILATOR ONLY

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12050

KE70,TE71..GEN

 1
88625-12050

KE70,TE71..GEN,SAA

BOOST VENTILATOR ONLY

 1
88645G - SWITCH, PRESSURE
88645-30250

KE70,TE71..GEN

 1
88645-30250

KE70,TE71..LHD..(GEN,SAA)

BOOST VENTILATOR ONLY

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14070

AE71,KE70,TE71..GEN,SAA

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-12490

KE70,TE71..LHD..GEN

 1
Common parts
88569-12060
88569-12070
88569-12080
88569-12091
88896-12110
90179-06032
90464-00108
90480-25258
93381-16020
93510-55010
93540-54012
94611-10601
Linked diagrams
5501

(8108- )ARL,GEN,SAA

Click highlighted areas on diagram

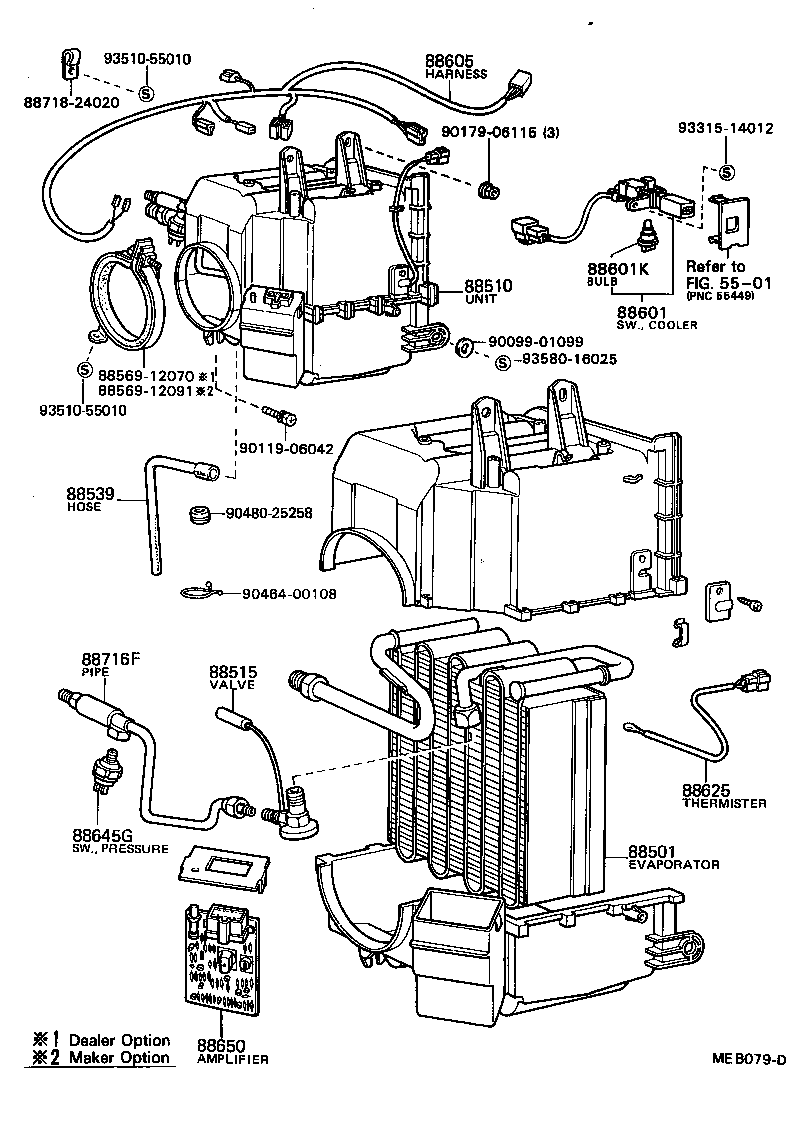

diagram 5501 88501 88510 88515 88539 8856912070 8856912091 88601 88601K 88605 88625 88645G 88650 88716F 8871824020 9009901099 9011906042 9017906115 9046400108 9048025258 9331514012 9351055010 9351055010 9358016025
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12260

AE71,KE70..LHD..(GEN,SAA)

 1
88510 - UNIT ASSY, COOLER
88510-12280

KE70..LHD..GEN

 1
88510-12280

KE70..LHD..(GEN,SAA)

BOOST VENTILATOR ONLY

 1
88510-12330

KE70..LHD..(GEN,SAA)

 1
88515 - VALVE, COOLER EXPANSION
88515-20040

AE71,KE70,TE71..GEN,SAA

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12050

KE70,TE71..LHD..GEN

 1
88601 - SWITCH SUB-ASSY, COOLER CONTROL
88610-12030

KE70,TE71..LHD..GEN

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-12240

KE70,TE71..LHD..GEN

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12050

KE70,TE71..GEN

 1
88625-12050

KE70,TE71..GEN,SAA

BOOST VENTILATOR ONLY

 1
88645G - SWITCH, PRESSURE
88645-30250

KE70,TE71..GEN

 1
88645-30250

KE70,TE71..LHD..(GEN,SAA)

BOOST VENTILATOR ONLY

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14070

AE71,KE70,TE71..GEN,SAA

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-12490

KE70,TE71..LHD..GEN

 1
Common parts
88569-12070
88569-12091
88718-24020
90099-01099
90119-06042
90179-06115
90464-00108
90480-25258
93315-14012
93510-55010
93580-16025
Linked diagrams
5501
