KE70L-EDKRS (1979)

Toyota Corolla

Production Aug 1979 - Aug 1980
Engine 4K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )KE70,TE71..LHD..GEN,SAA

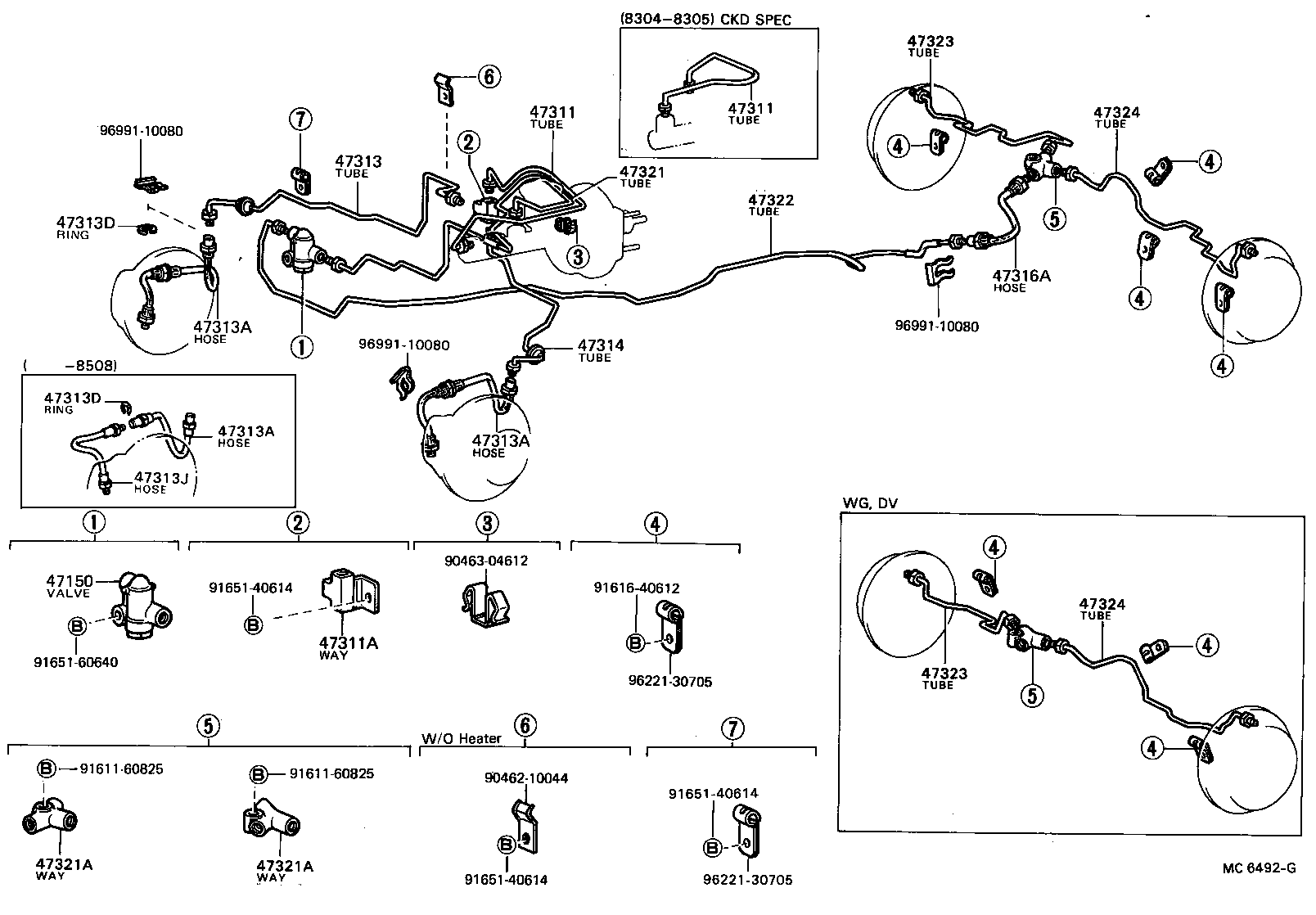

Click highlighted areas on diagram

diagram 47150 47311 47311 47311A 47313 47313A 47313A 47313A 47313D 47313D 47313J 47314 47316A 47321 47321A 47321A 47322 47323 47323 47324 47324 9046210044 9046304612 9161160825 9161160825 9161640612 9165140614 9165140614 9165140614 9165160640 9622130705 9622130705 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12041

KE70,TE7#..GEN,SA

 1
47311 - TUBE, FRONT BRAKE, NO.1
47312-12100

KE70..LHD..(GEN,SAA)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47312-12100

KE70..LHD..(GEN,SAA)

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10004

CE70,KE70,TE7#..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47314-12140

KE70,TE71..LHD..GEN

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02393

AE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02393

AE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02393

AE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA

 2
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

AE71,CE70,KE70,TE7#

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

AE71,CE70,KE70,TE7#

 4
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02224

KE70..EUR,GEN,SAA

 2
47314 - TUBE, FRONT BRAKE, NO.4
47315-12280

CE70,TE71..LHD;KE70..SED..LHD..4F..DX..EUG;KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA);KE70,TE72..(DV,LB,SED)..LHD..(GL,STD,XE)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32805

CE70,KE70,TE7#..(CP,LB,SED)..(EUR,GEN,SA,SAA)

 1
47321 - TUBE, REAR BRAKE, NO.1
47322-12090

KE70..LHD..(GEN,SAA)

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90413-10098

AE71,CE70,KE70,TE7#..CP,LB,SED

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90413-10098

AE71,CE70,KE70,TE7#..CP,LB,SED

 1
47322 - TUBE, REAR BRAKE, NO.2
47323-12070

KE70..LHD..5F..2D;KE70..LHD..5F..4D..GEN;TE71..(CP,LB,SED)..LHD;KE70..(LB,SED)..LHD..ATM;KE70..SED..LHD..5F..4D..EUG;KE70..(CP,LB,SED)..LHD..4F..EUG;KE70..(CP,LB,SED)..LHD..4F..(GEN,SAA)

 1
47323 - TUBE, REAR BRAKE, NO.3
47324-12010

KE70..LHD..5F..2D;KE70..LHD..5F..4D..GEN;KE70..(LB,SED)..LHD..ATM;KE70..SED..LHD..5F..4D..EUG;KE70..(CP,LB,SED)..LHD..4F..EUG;KE70..(CP,LB,SED)..RHD..(EUR,GEN);KE70..(CP,LB,SED)..LHD..4F..(GEN,SAA)

 1
47323 - TUBE, REAR BRAKE, NO.3
47324-12010

KE70..LHD..5F..2D;KE70..LHD..5F..4D..GEN;KE70..(LB,SED)..LHD..ATM;KE70..SED..LHD..5F..4D..EUG;KE70..(CP,LB,SED)..LHD..4F..EUG;KE70..(CP,LB,SED)..RHD..(EUR,GEN);KE70..(CP,LB,SED)..LHD..4F..(GEN,SAA)

 1
47324 - TUBE, REAR BRAKE, NO.4
47325-12010

KE70..LHD..5F..2D;KE70..LHD..5F..4D..GEN;KE70..(LB,SED)..LHD..ATM;KE70..SED..LHD..5F..4D..EUG;KE70..(CP,LB,SED)..LHD..4F..EUG;KE70..(CP,LB,SED)..RHD..(EUR,GEN);KE70..(CP,LB,SED)..LHD..4F..(GEN,SAA)

 1
47324 - TUBE, REAR BRAKE, NO.4
47325-12010

KE70..LHD..5F..2D;KE70..LHD..5F..4D..GEN;KE70..(LB,SED)..LHD..ATM;KE70..SED..LHD..5F..4D..EUG;KE70..(CP,LB,SED)..LHD..4F..EUG;KE70..(CP,LB,SED)..RHD..(EUR,GEN);KE70..(CP,LB,SED)..LHD..4F..(GEN,SAA)

 1
Common parts
90462-10044
90463-04612
91611-60825
91616-40612
91651-40614
91651-60640
96221-30705
96991-10080
