KE70L-EDKDS (1979)
Toyota Corolla

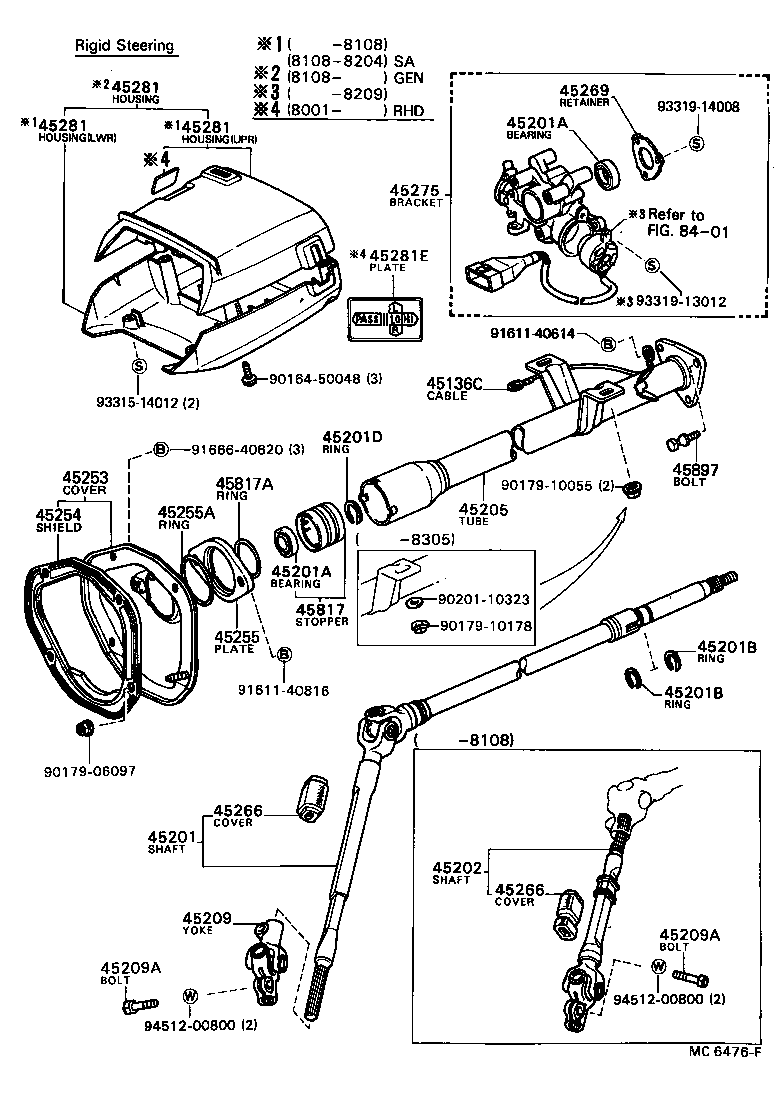

(7908-8204)KE70..SED..GEN,SA ; (8204-8406)KE70..SED..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07129 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-12060 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR W/COLLAPSIBLE STEERING |
1 | ||
| 45210-12150 |
KE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA) W/COLLAPSIBLE STEERING |
1 | ||
| 45210-12160 |
KE70..SED..LHD..GEN W/RIGID STEERING |
1 | ||
| 45210-12080 |
KE70..SED..(GEN,SA) W/RIGID STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
KE70,TE7# UPR |
1 | ||
| 90363-30007 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
KE70,TE7# UPR |
1 | ||
| 90363-30007 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
KE70,TE7# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
AE71,CE70,KE70,TE7# T=1.20,T=1.2 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
KE70,TE7# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
AE71,CE70,KE70,TE7# T=1.20,T=1.2 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45260-12020 |
KE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..GEN |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-12100 |
KE70..SED..(GEN,SA) W/RIGID STEERING |
1 | ||
| 45870-12070 |
AE71..ARL;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45205-12100 |
KE70..SED..LHD..GEN W/RIGID STEERING |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-14030 |
KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 45209A - BOLT, HEXAGON(FOR STEERING SLIDING YOKE SET) | ||||
| 90101-08047 |
KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
2 | ||
| 90101-08047 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR |
2 | ||
| 45209A - BOLT, HEXAGON(FOR STEERING SLIDING YOKE SET) | ||||
| 90101-08047 |
KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
2 | ||
| 90101-08047 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-12060 |
KE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA) |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-12050 |
KE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA) |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12030 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12010 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12010 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
KE70,TE71 |
1 | ||
| 45269-35010 |
KE70,TE7# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45020-12140 |
KE70,TE71..LHD..(GEN,SAA) |
1 | ||
| 45020-12140 |
KE70,TE7#..LHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1212005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1292401 |
CE70,KE70..LHD..(EUR,GEN) BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1292404 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1292406 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1212005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1292401 |
CE70,KE70..LHD..(EUR,GEN) BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1292404 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1292406 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1212005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1292401 |
CE70,KE70..LHD..(EUR,GEN) BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1292404 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1292406 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-12020 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96710-02053 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
TE71..LHD;KE70..LHD..GEN;TE71..RHD..EUG;KE70,TE72..EUR,SAA |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 90179-06097 | ||||
| 90179-10055 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91611-40614 | ||||
| 91611-40816 | ||||
| 91666-40620 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

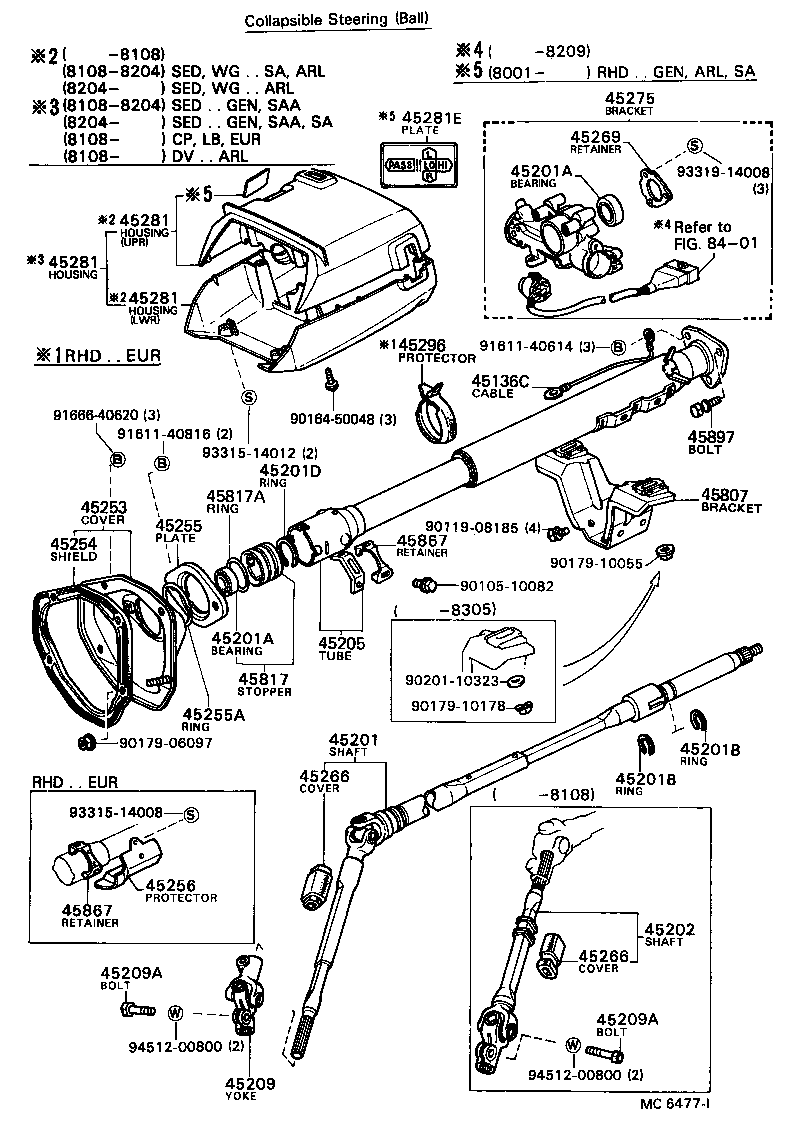

(7908-8108)DV,WG..EUR ; (7908-8108)KE70..CP,LB,SED ; (8108-8410)KE70..CP,LB,SED ; (
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07129 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 90980-07129 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-12060 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR W/COLLAPSIBLE STEERING |
1 | ||
| 45210-12060 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR W/COLLAPSIBLE STEERING |
1 | ||
| 45210-12150 |
KE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA) W/COLLAPSIBLE STEERING |
1 | ||
| 45210-12150 |
KE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA) W/COLLAPSIBLE STEERING |
1 | ||
| 45210-12160 |
KE70..SED..LHD..GEN W/RIGID STEERING |
1 | ||
| 45210-12160 |
KE70..SED..LHD..GEN W/RIGID STEERING |
1 | ||
| 45210-12080 |
KE70..SED..(GEN,SA) W/RIGID STEERING |
1 | ||
| 45210-12080 |
KE70..SED..(GEN,SA) W/RIGID STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
KE70,TE7# UPR |
1 | ||
| 90363-18038 |
KE70,TE7# UPR |
1 | ||
| 90363-30007 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) LWR |
1 | ||
| 90363-30007 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
KE70,TE7# UPR |
1 | ||
| 90363-18038 |
KE70,TE7# UPR |
1 | ||
| 90363-30007 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) LWR |
1 | ||
| 90363-30007 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
KE70,TE7# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17196 |
KE70,TE7# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
AE71,CE70,KE70,TE7# T=1.20,T=1.2 |
2 | ||
| 90520-17042 |
AE71,CE70,KE70,TE7# T=1.20,T=1.2 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
KE70,TE7# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17196 |
KE70,TE7# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
AE71,CE70,KE70,TE7# T=1.20,T=1.2 |
2 | ||
| 90520-17042 |
AE71,CE70,KE70,TE7# T=1.20,T=1.2 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 96152-00300 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45260-12020 |
KE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..GEN |
1 | ||
| 45260-12020 |
KE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..GEN |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-12100 |
KE70..SED..(GEN,SA) W/RIGID STEERING |
1 | ||
| 45205-12100 |
KE70..SED..(GEN,SA) W/RIGID STEERING |
1 | ||
| 45870-12070 |
AE71..ARL;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45870-12070 |
AE71..ARL;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45205-12100 |
KE70..SED..LHD..GEN W/RIGID STEERING |
1 | ||
| 45205-12100 |
KE70..SED..LHD..GEN W/RIGID STEERING |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-14030 |
KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 45209-14030 |
KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 45209A - BOLT, HEXAGON(FOR STEERING SLIDING YOKE SET) | ||||
| 90101-08047 |
KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
2 | ||
| 90101-08047 |
KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
2 | ||
| 90101-08047 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR |
2 | ||
| 90101-08047 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR |
2 | ||
| 45209A - BOLT, HEXAGON(FOR STEERING SLIDING YOKE SET) | ||||
| 90101-08047 |
KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
2 | ||
| 90101-08047 |
KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
2 | ||
| 90101-08047 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR |
2 | ||
| 90101-08047 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-12060 |
KE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA) |
1 | ||
| 45025-12060 |
KE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA) |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-12050 |
KE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA) |
1 | ||
| 45254-12050 |
KE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA) |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12030 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 45255-12030 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 90301-60122 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12010 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR |
1 | ||
| 45266-12010 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12010 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR |
1 | ||
| 45266-12010 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
KE70,TE71 |
1 | ||
| 45269-35010 |
KE70,TE71 |
1 | ||
| 45269-35010 |
KE70,TE7# |
1 | ||
| 45269-35010 |
KE70,TE7# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45020-12140 |
KE70,TE71..LHD..(GEN,SAA) |
1 | ||
| 45020-12140 |
KE70,TE71..LHD..(GEN,SAA) |
1 | ||
| 45020-12140 |
KE70,TE7#..LHD |
1 | ||
| 45020-12140 |
KE70,TE7#..LHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1209005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1212005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1212005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1292401 |
CE70,KE70..LHD..(EUR,GEN) BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1292401 |
CE70,KE70..LHD..(EUR,GEN) BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1292404 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1292404 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1292406 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1292406 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1209005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1212005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1212005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1292401 |
CE70,KE70..LHD..(EUR,GEN) BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1292401 |
CE70,KE70..LHD..(EUR,GEN) BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1292404 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1292404 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1292406 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1292406 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212001 |
KE70,TE7#..LHD UPR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1209005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1212005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1212005 |
KE70,TE71..(SED,WG)..LHD..(DX,XL) UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1209001 |
KE70,TE7#..LHD LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1212004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1209004 |
KE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1292401 |
CE70,KE70..LHD..(EUR,GEN) BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1292401 |
CE70,KE70..LHD..(EUR,GEN) BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45286-1292404 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1292404 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1292406 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1292406 |
KE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-12080 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45807-12080 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-12020 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 45808-12020 |
AE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR) |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96710-02053 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR |
1 | ||
| 96710-02053 |
KE70..CP,LB,SED;KE70..(DV,WG)..EUR |
1 | ||
| 45867 - RETAINER, STEERING MAIN SHAFT STOPPER | ||||
| 45867-12010 |
KE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA) W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45867-12010 |
KE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA) W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45867 - RETAINER, STEERING MAIN SHAFT STOPPER | ||||
| 45867-12010 |
KE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA) W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45867-12010 |
KE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA) W/COLLAPSIBLE STEERING(BALL) |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
TE71..LHD;KE70..LHD..GEN;TE71..RHD..EUG;KE70,TE72..EUR,SAA |
1 | ||
| 45897-12030 |
TE71..LHD;KE70..LHD..GEN;TE71..RHD..EUG;KE70,TE72..EUR,SAA |
1 | ||
| Common parts | ||||
| 90105-10082 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-06097 | ||||
| 90179-10055 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91611-40614 | ||||
| 91611-40816 | ||||
| 91666-40620 | ||||
| 93315-14008 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
