KE70L-EDKDCC (1979)
Toyota Corolla
Production
Aug 1979
-
Aug 1982
Engine
4KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7908- )KE70

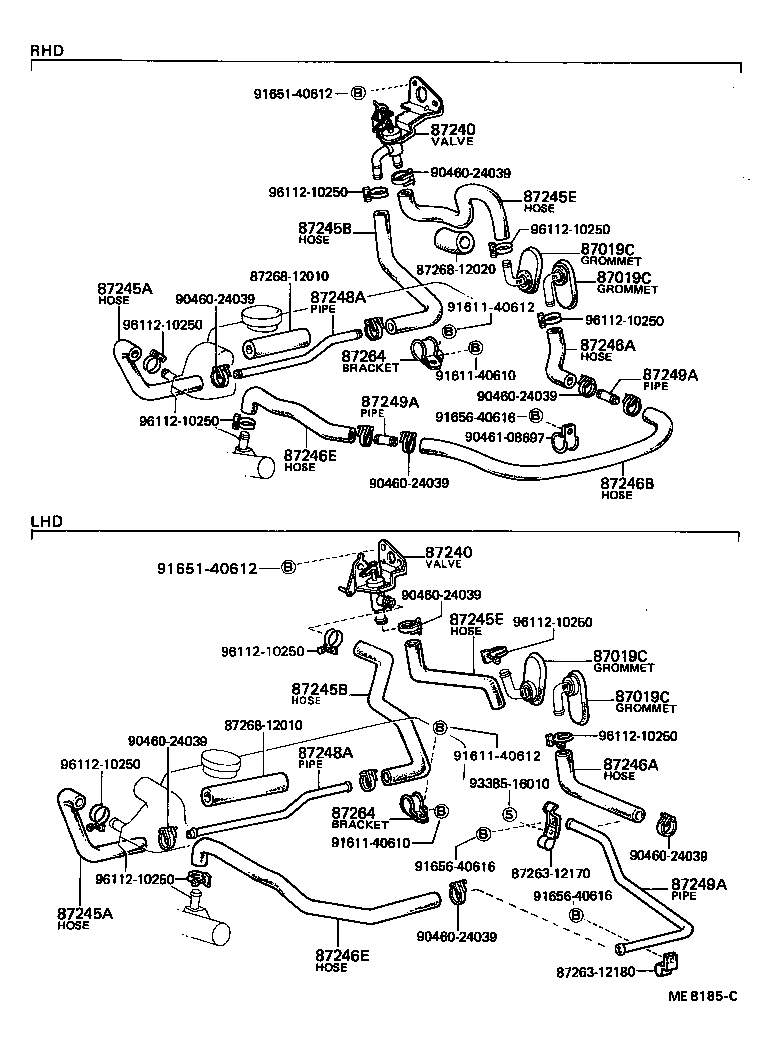

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01015 |
AE71,CE70,KE70,TE7# |
2 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01015 |
AE71,CE70,KE70,TE7# |
2 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01015 |
AE71,CE70,KE70,TE7# |
2 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01015 |
AE71,CE70,KE70,TE7# |
2 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-12150 |
TE71..LHD..EUG;KE70,TE72..LHD..(DX,GL,STD)..EUR |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-12150 |
TE71..LHD..EUG;KE70,TE72..LHD..(DX,GL,STD)..EUR |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-12261 |
KE70 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-12261 |
KE70 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-12480 |
KE70..LHD |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-12480 |
KE70..LHD |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-12490 |
CE70,KE70,TE7#..LHD |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-12490 |
CE70,KE70,TE7#..LHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-12520 |
CE70,KE70,TE7#..LHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-12520 |
CE70,KE70,TE7#..LHD |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-12540 |
KE70..LHD |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-12540 |
KE70..LHD |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-12150 |
KE70 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-12150 |
KE70 |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-12191 |
KE70..LHD |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-12191 |
KE70..LHD |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-12191 |
KE70..LHD |
1 | ||
| 87264 - BRACKET, HEATER WATER HOSE | ||||
| 87263-12130 |
KE70 |
1 | ||
| 87264 - BRACKET, HEATER WATER HOSE | ||||
| 87263-12130 |
KE70 |
1 | ||
| Common parts | ||||
| 87263-12170 | ||||
| 87263-12180 | ||||
| 87268-12010 | ||||
| 87268-12020 | ||||
| 90460-24039 | ||||
| 90461-08697 | ||||
| 91611-40610 | ||||
| 91611-40612 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 93385-16010 | ||||
| 96112-10250 | ||||
