KE70L-EDKDCC (1979)

Toyota Corolla

Production Aug 1979 - Aug 1982
Engine 4KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

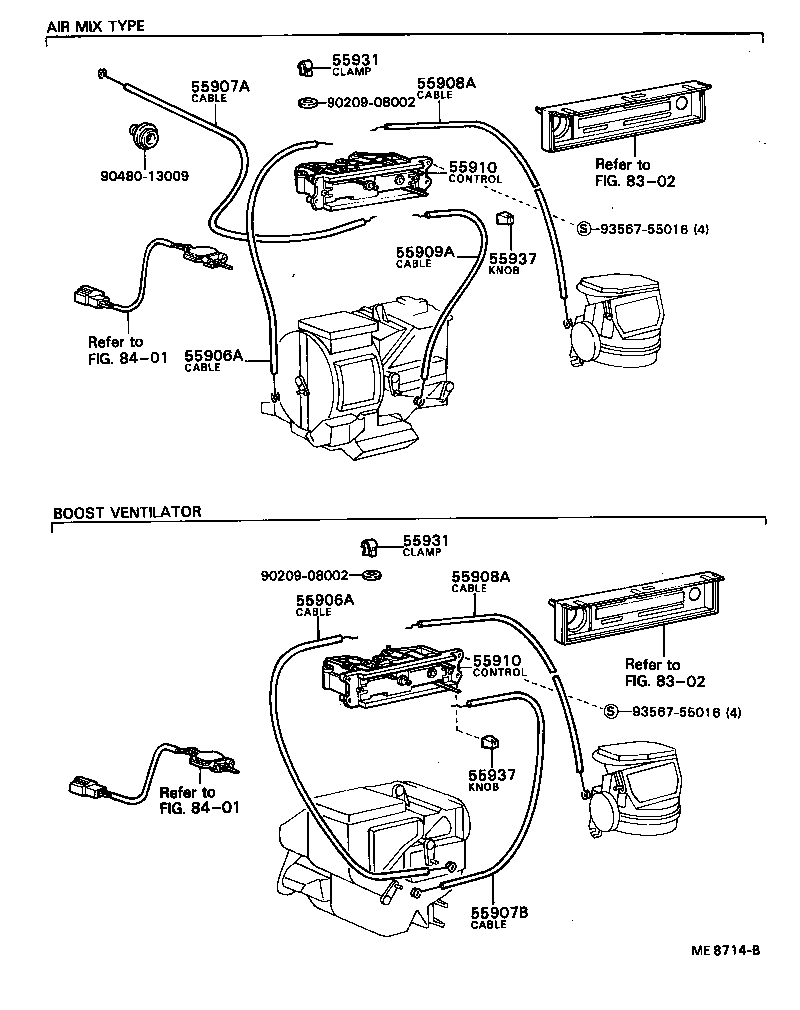

(7908- )

Click highlighted areas on diagram

diagram 55906A 55906A 55907A 55907B 55908A 55908A 55909A 55910 55910 55931 55931 55937 55937 8302 8302 8401 8401 9020908002 9020908002 9048013009 9356755016 9356755016
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12120

KE70..(DV,SED,WG)..EUR

L=380

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12120

KE70..(DV,SED,WG)..EUR

L=380

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-12170

KE70..(DV,SED,WG)..LHD..EUR

L=580

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12110

AE71,CE70,KE70,TE7#..DV,SED,WG

L=730

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12110

AE71,CE70,KE70,TE7#..DV,SED,WG

L=730

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55907-12090

KE70,TE71..(DV,SED,WG)..(EUR,GEN)

L=420

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-12929

KE70,TE7#..LHD..EUR

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-12929

KE70,TE7#..LHD..EUR

 1
55931 - CLAMP, HEATER CONTROL WIRE
55933-14020

AE71,KE70,TE7#

 4
55931 - CLAMP, HEATER CONTROL WIRE
55933-14020

AE71,KE70,TE7#

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-12060

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-12060

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

 4
Common parts
90209-08002
90480-13009
93567-55016
Linked diagrams
8302
8401

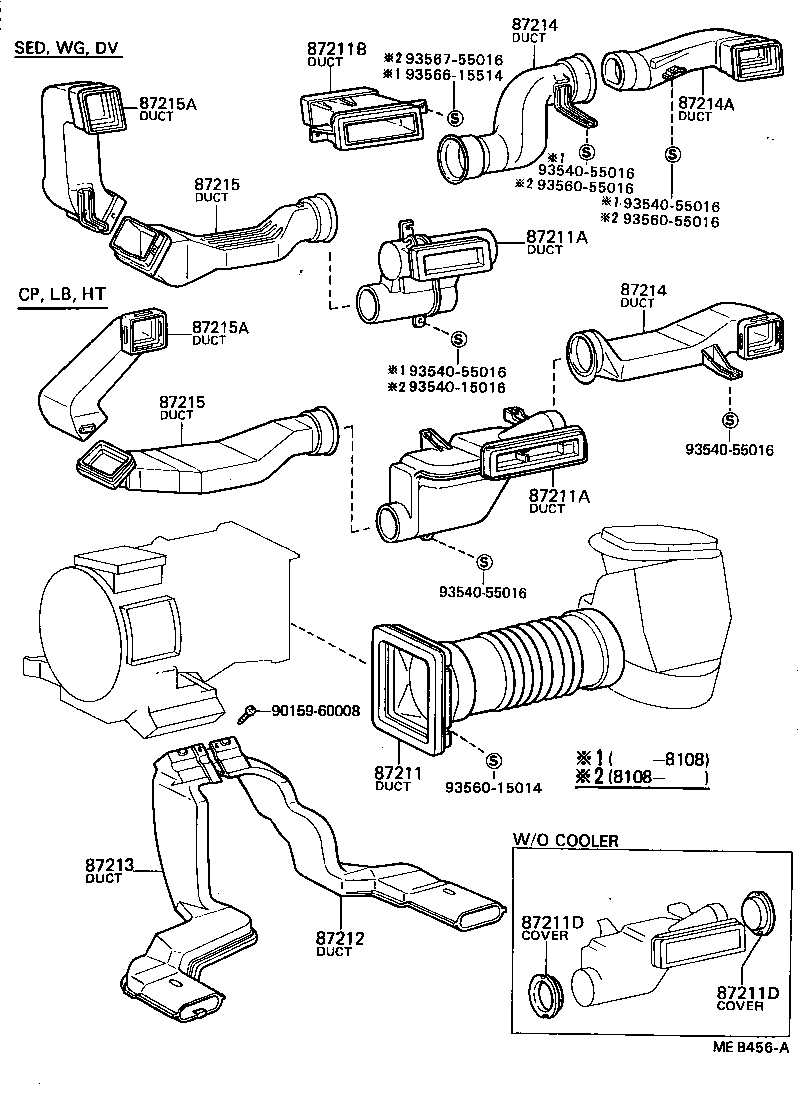

(7908- )LHD

Click highlighted areas on diagram

diagram 87211 87211A 87211A 87211B 87211D 87211D 87212 87213 87214 87214 87214A 87215 87215 87215A 87215A 9015960008 9354015016 9354055016 9354055016 9354055016 9354055016 9354055016 9356015014 9356055016 9356055016 9356615514 9356755016
Part # Description Qty Price
87211 - DUCT, AIR, NO.1
87201-12030

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

 1
87211A - DUCT, AIR, NO.2
87211-12080

CE70,KE70,TE71..(DV,SED,WG)..LHD..EUR

 1
87211A - DUCT, AIR, NO.2
87211-12080

CE70,KE70,TE71..(DV,SED,WG)..LHD..EUR

 1
87211B - DUCT, AIR, NO.3
55086-12090

AE71,CE70,KE70,TE71..(DV,SED,WG)..LHD

 1
87212 - DUCT, AIR, REAR NO.1
87212-12041

KE70,TE7#..(CP,LB,SED,WG)..LHD..EUR

 1
87212-12040

KE70,TE7#..(CP,LB,SED,WG)..LHD..EUR

 1
87213 - DUCT, AIR, REAR NO.2
87203-12011

KE70,TE7#..(CP,LB,SED,WG)..LHD..EUR

 1
87203-12010

KE70,TE7#..(CP,LB,SED,WG)..LHD..EUR

 1
Common parts
90159-60008
93540-15016
93540-55016
93560-15014
93560-55016
93566-15514
93567-55016
