KE70L-EDKDCC (1979)

Toyota Corolla

Production Aug 1979 - Aug 1982
Engine 4KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )

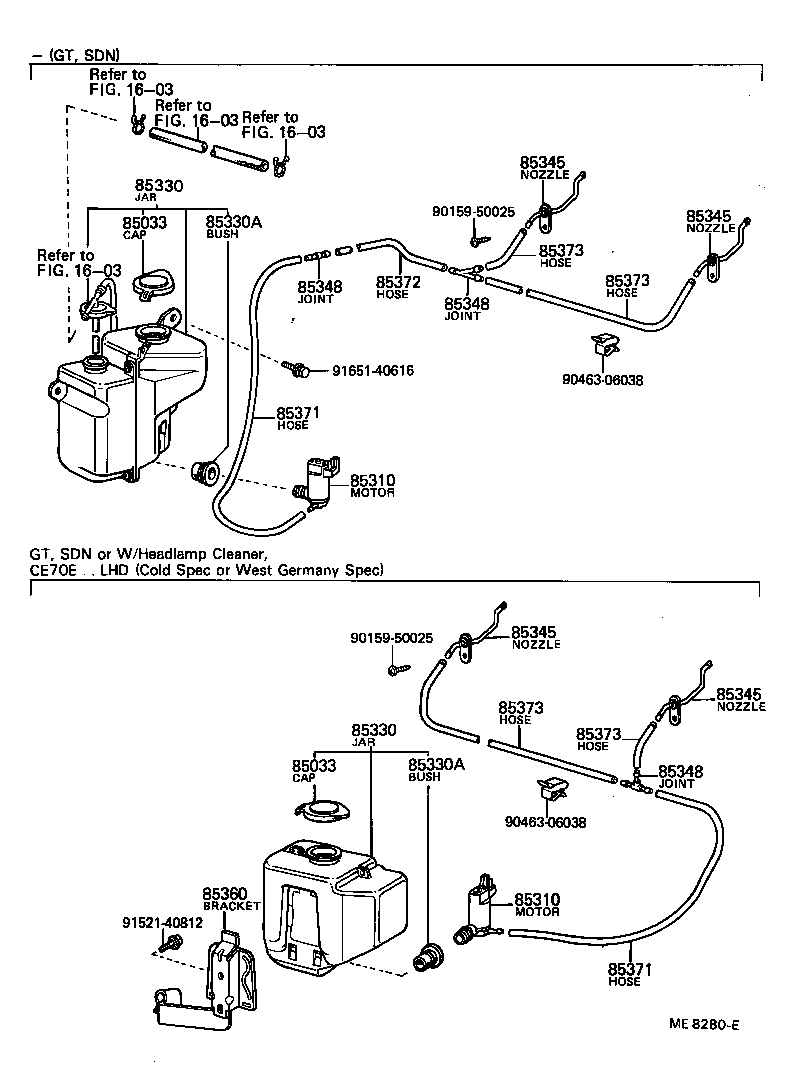

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 85033 85033 85310 85310 85330 85330 85330A 85330A 85345 85345 85345 85345 85348 85348 85348 85360 85371 85371 85372 85373 85373 85373 85373 9015950025 9015950025 9046306038 9046306038 9152140812 9165140616
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-16010

KE70,TE7#

 1
85033 - CAP ASSY, WINDSHIELD WASHER
85332-16010

KE70,TE7#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20100

KE70,TE7#

 1
85310-20100

KE70..SDN

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20100

KE70,TE7#

 1
85310-20100

KE70..SDN

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-12220

TE71..GT;KE70,TE72..SDN

 1
85330-12130

TE71..GT;KE70,TE72..SDN

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-12220

TE71..GT;KE70,TE72..SDN

 1
85330-12130

TE71..GT;KE70,TE72..SDN

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

CE70,KE70,TE7#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

CE70,KE70,TE7#

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-12110

AE71,CE70,KE70,TE7#..LHD

LH

 1
85341-12130

AE71,CE70,KE70,TE7#..LHD

RH

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-12110

AE71,CE70,KE70,TE7#..LHD

LH

 1
85341-12130

AE71,CE70,KE70,TE7#..LHD

RH

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-12110

AE71,CE70,KE70,TE7#..LHD

LH

 1
85341-12130

AE71,CE70,KE70,TE7#..LHD

RH

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-12110

AE71,CE70,KE70,TE7#..LHD

LH

 1
85341-12130

AE71,CE70,KE70,TE7#..LHD

RH

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12011

TE71..GT;KE70,TE72..SDN,SDZ

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12011

TE71..GT;KE70,TE72..SDN,SDZ

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12011

TE71..GT;KE70,TE72..SDN,SDZ

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-12120

TE71..GT..GEN;TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06056

TE71..GT;KE70,TE72..SDN

*H,L=710

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06056

TE71..GT;KE70,TE72..SDN

*H,L=710

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

AE71,CE70,KE70,TE7#

*H,L=700

 1
90446-06013

TE71..GT;KE70,TE72..SDN,SDZ

*H,L=50,*H,L=50

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

AE71,CE70,KE70,TE7#

*H,L=700

 1
90446-06013

TE71..GT;KE70,TE72..SDN,SDZ

*H,L=50,*H,L=50

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

AE71,CE70,KE70,TE7#

*H,L=700

 1
90446-06013

TE71..GT;KE70,TE72..SDN,SDZ

*H,L=50,*H,L=50

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

AE71,CE70,KE70,TE7#

*H,L=700

 1
90446-06013

TE71..GT;KE70,TE72..SDN,SDZ

*H,L=50,*H,L=50

 1
Common parts
90159-50025
90463-06038
91521-40812
91651-40616
Linked diagrams
1603
