KE70L-EDKDCC (1979)

Toyota Corolla

Production Aug 1979 - Aug 1982
Engine 4KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )

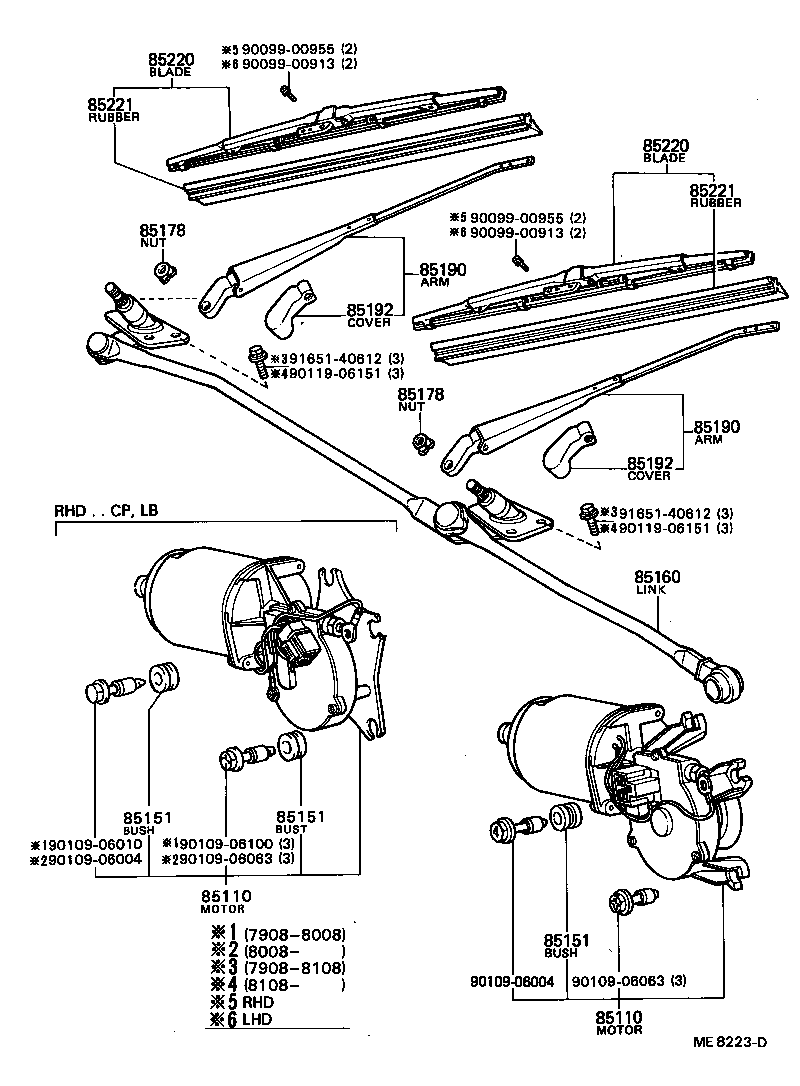

Click highlighted areas on diagram

diagram 85110 85110 85151 85151 85151 85160 85178 85178 85190 85190 85192 85192 85220 85220 85221 85221 9009900913 9009900913 9009900955 9009900955 9010906004 9010906004 9010906010 9010906063 9010906063 9010906100 9011906151 9011906151 9165140612 9165140612
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-12260

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

COLD SPEC

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-12260

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

COLD SPEC

 1
85151 - BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER
85151-22070

KE70,TE7#..LHD

 4
85151 - BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER
85151-22070

KE70,TE7#..LHD

 4
85151 - BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER
85151-22070

KE70,TE7#..LHD

 4
85160 - LINK ASSY, WINDSHIELD WIPER
85160-12270

KE70..(DV,SED,WG)..LHD..EUR

COLD SPEC

 1
85160-12260

KE70,TE71..(DV,SED,WG)..LHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08016

KE70,TE7#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08016

KE70,TE7#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-12450

KE70,TE71..(DV,SED,WG)..LHD

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-12450

KE70,TE71..(DV,SED,WG)..LHD

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-12040

KE70,TE7#..LHD

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-12040

KE70,TE7#..LHD

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12380

KE70..(DV,SED,WG)..LHD..EUR

 2
85220-14320

KE70,TE7#..LHD

RH

 1
85220-12380

KE70,TE71..LHD..EUR

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12380

KE70..(DV,SED,WG)..LHD..EUR

 2
85220-14320

KE70,TE7#..LHD

RH

 1
85220-12380

KE70,TE71..LHD..EUR

 2
85221 - BLADE, WINDSHIELD WIPER
85221-12080

KE70,TE7#..LHD..EUR

 2
85221 - BLADE, WINDSHIELD WIPER
85221-12080

KE70,TE7#..LHD..EUR

 2
Common parts
90099-00913
90099-00955
90109-06004
90109-06010
90109-06063
90109-06100
90119-06151
91651-40612
