KE70L-EDKDCC (1979)
Toyota Corolla
(7908- )AE71,KE70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE71,CE70,KE70,TE7# 10A,10A |
13 | ||
| 90982-09003 |
AE71,CE70,KE70,TE7# 15A,15A |
12 | ||
| 90982-09004 |
AE71,CE70,KE70,TE7# 20A,YELLOW,20A |
1 | ||
| 90982-09001 |
AE71,KE70,TE7# 5A,5A |
3 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-12090 |
KE70,TE7#..LHD COWL SIDE,LH |
1 | ||
| 82661-12011 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82661-12010 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-12010 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82660-12090 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82660-12011 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82660-12050 |
KE70,TE7#..LHD COWL SIDE,LH |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
KE70,TE7# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-10020 |
KE70,TE7#..(DX,GL,STD,XL)..(ARL,EUR,GEN,SAA) |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-10060 |
KE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM |
1 | ||
| 84210T - SENSOR ASSY, SHIFT POINT | ||||
| 84220-12020 |
KE70..SDN,SDZ |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02001 |
KE70,TE7# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
KE70,TE7# |
3 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
KE70..EUR |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-10040 |
KE70..EUR COOLING FAN,MARK=98B,COLD SPEC |
1 | ||
| 89428-10040 |
KE70..LHD..EUR COOLING FAN,MARK=98B,COLD SPEC |
1 | ||
| Common parts | ||||
| 82617-12010 | ||||
| 82711-12200 | ||||
| 82711-12510 | ||||
| 82711-12600 | ||||
| 90159-50208 | ||||
| 90461-06063 | ||||
| 90461-08312 | ||||
| 90463-08187 | ||||
| 91651-40614 | ||||
| 91656-40616 | ||||
| 93210-16010 | ||||
| 94511-00600 | ||||
| 94611-10601 | ||||
| Linked diagrams | ||||
| 1903 | ||||
(7908- )DV,SED,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-12100 |
KE70,TE7#..DV,SED,WG |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE71,CE70,KE70,TE7# 10A,10A |
13 | ||
| 90982-09003 |
AE71,CE70,KE70,TE7# 15A,15A |
12 | ||
| 90982-09004 |
AE71,CE70,KE70,TE7# 20A,YELLOW,20A |
1 | ||
| 90982-09001 |
AE71,KE70,TE7# 5A,5A |
3 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE71,CE70,KE70,TE7# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19166 |
KE70,TE7#..LHD TOKAIRIKA |
1 | ||
| 84112-19175 |
KE70,TE7#..LHD MATSUSHITA |
1 | ||
| 84112-19176 |
KE70,TE7#..LHD MATSUSHITA |
1 | ||
| 84112-19167 |
KE70,TE7#..LHD TOKAIRIKA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19045 |
KE70,TE7#..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12331 |
TE71..GT..EUG;KE70,TE72..LHD..EUR;KE70..LHD..(DX,XL)..GEN;TE71..LHD..(DX,SE,SR,XE) W/*IW |
1 | ||
| 84310-12332 |
TE71..GT..EUG;KE70,TE72..LHD..EUR;KE70..LHD..(DX,XL)..GEN;TE71..LHD..(DX,SE,SR,XE) W/*IW |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12030 |
KE70,TE7# MATSUSHITA |
1 | ||
| 84312-12020 |
KE70,TE7# TOKAIRIKA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19045 |
KE70,TE7#..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-10060 |
KE70,TE7#..LHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12220 |
KE70,TE72..LHD..EUR;KE70..LHD..(DX,XL)..GEN;TE71..LHD..(DX,GT,SE,SR,XE) *IW,MATSUSHITA |
1 | ||
| 84652-19206 |
KE70,TE72..LHD..EUR;KE70..LHD..(DX,XL)..GEN;TE71..LHD..(DX,GT,SE,SR,XE) *IW,TOKAIRIKA |
1 | ||
| 84652-19207 |
KE70,TE72..LHD..EUR;KE70..LHD..(DX,XL)..GEN;TE71..LHD..(DX,GT,SE,SR,XE) *IW |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12061 |
KE70,TE7#..LHD |
1 | ||
| 84732-12060 |
KE70,TE7#..LHD |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12090 |
KE70,TE71..(DV,SED,WG)..LHD |
1 | ||
| 84790-14081 |
KE70,TE71..(DV,SED,WG)..LHD W/RADIO |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12090 |
KE70,TE71..(DV,SED,WG)..LHD |
1 | ||
| 84790-14081 |
KE70,TE71..(DV,SED,WG)..LHD W/RADIO |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11014 |
KE70,TE71..(DV,SED,WG)..LHD 14V 1.4W,12V 1.4W,W/RADIO |
1 | ||
| 90981-11018 |
KE70,TE71..(DV,SED,WG)..LHD 12V 1.2W W/O SOCKET,12V 1.4W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11014 |
KE70,TE71..(DV,SED,WG)..LHD 14V 1.4W,12V 1.4W,W/RADIO |
1 | ||
| 90981-11018 |
KE70,TE71..(DV,SED,WG)..LHD 12V 1.2W W/O SOCKET,12V 1.4W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12141 |
KE70..(DV,SED,WG)..EUR |
1 | ||
| Common parts | ||||
| 82711-12320 | ||||
| 90461-08374 | ||||
| 90461-08548 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93560-15014 | ||||
| 93566-14512 | ||||

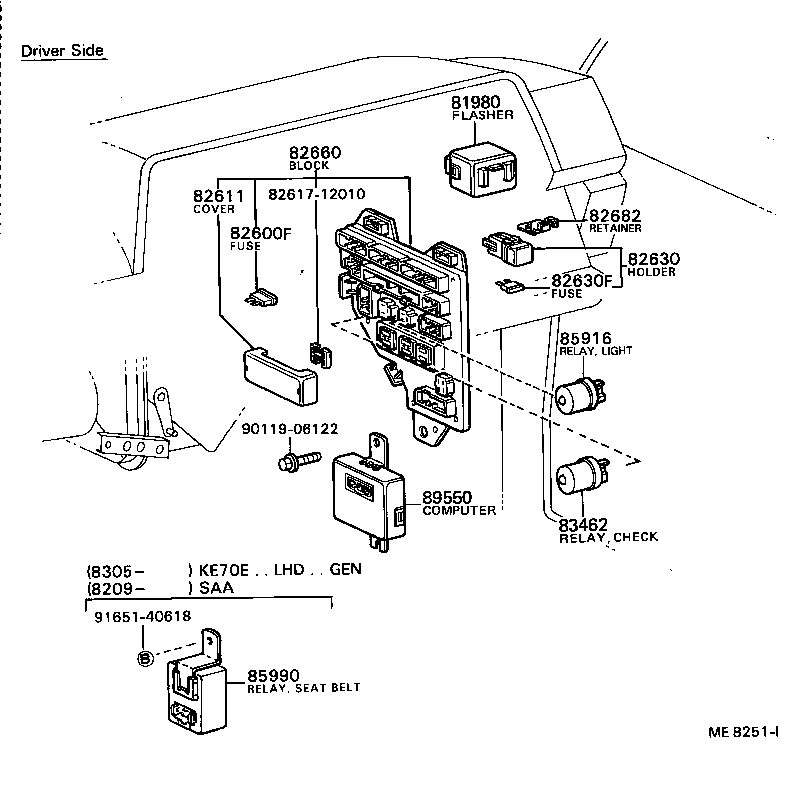

(7908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
KE70,TE7# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE71,CE70,KE70,TE7# 10A,10A |
13 | ||
| 90982-09003 |
AE71,CE70,KE70,TE7# 15A,15A |
12 | ||
| 90982-09004 |
AE71,CE70,KE70,TE7# 20A,YELLOW,20A |
1 | ||
| 90982-09001 |
AE71,KE70,TE7# 5A,5A |
3 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-12090 |
KE70,TE7#..LHD COWL SIDE,LH |
1 | ||
| 82661-12011 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82661-12010 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-12010 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82660-12090 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82660-12011 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82660-12050 |
KE70,TE7#..LHD COWL SIDE,LH |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
KE70,TE7# |
3 | ||
| Common parts | ||||
| 82617-12010 | ||||
| 90119-06122 | ||||
| 91651-40618 | ||||
(7908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19396 |
KE70,TE7#..CP,LB,SED W/LEVEL WARNING SWITCH |
1 | ||
| 83320-19417 |
TE71..RHD..SR..EUG;KE70,TE7#..(CP,LB,SED)..LHD..EUR W/LEVEL WARNING OR RUST-PROOF |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
KE70,TE7# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-20020 |
TE71..LHD..SR..EUG;KE70,TE7#..DX,GL,STD,XL |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-20020 |
TE71..LHD..SR..EUG;KE70,TE7#..DX,GL,STD,XL |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22060 |
KE70,TE7# |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84550-12020 |
AE71,CE70,KE70,TE7# |
1 | ||
| Common parts | ||||
| 90201-08456 | ||||
| 90201-15007 | ||||
| 90463-08187 | ||||
| 90463-08205 | ||||
| 90560-10021 | ||||
| 93319-14010 | ||||

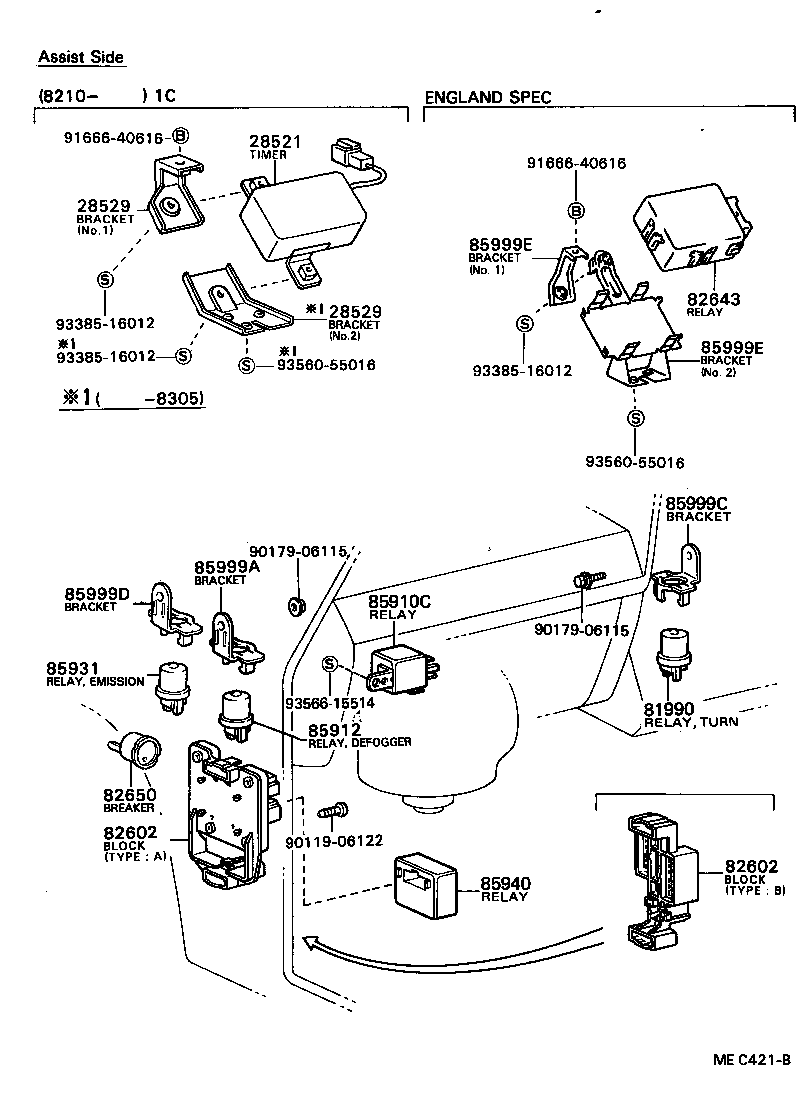

(7908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-12050 |
KE70,TE7# TYPE : A |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-12050 |
KE70,TE7# TYPE : A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20010 |
KE70,TE7#..LHD..EUR |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-12010 |
AE71,CE70,KE70,TE7# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12020 |
KE70,TE7#..ARL,EUR |
1 | ||
| Common parts | ||||
| 90119-06122 | ||||
| 90179-06115 | ||||
| 91666-40616 | ||||
| 93385-16012 | ||||
| 93560-55016 | ||||
| 93566-15514 | ||||
