KE70L-EDKDCC (1979)

Toyota Corolla

Production Aug 1979 - Aug 1982
Engine 4KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )

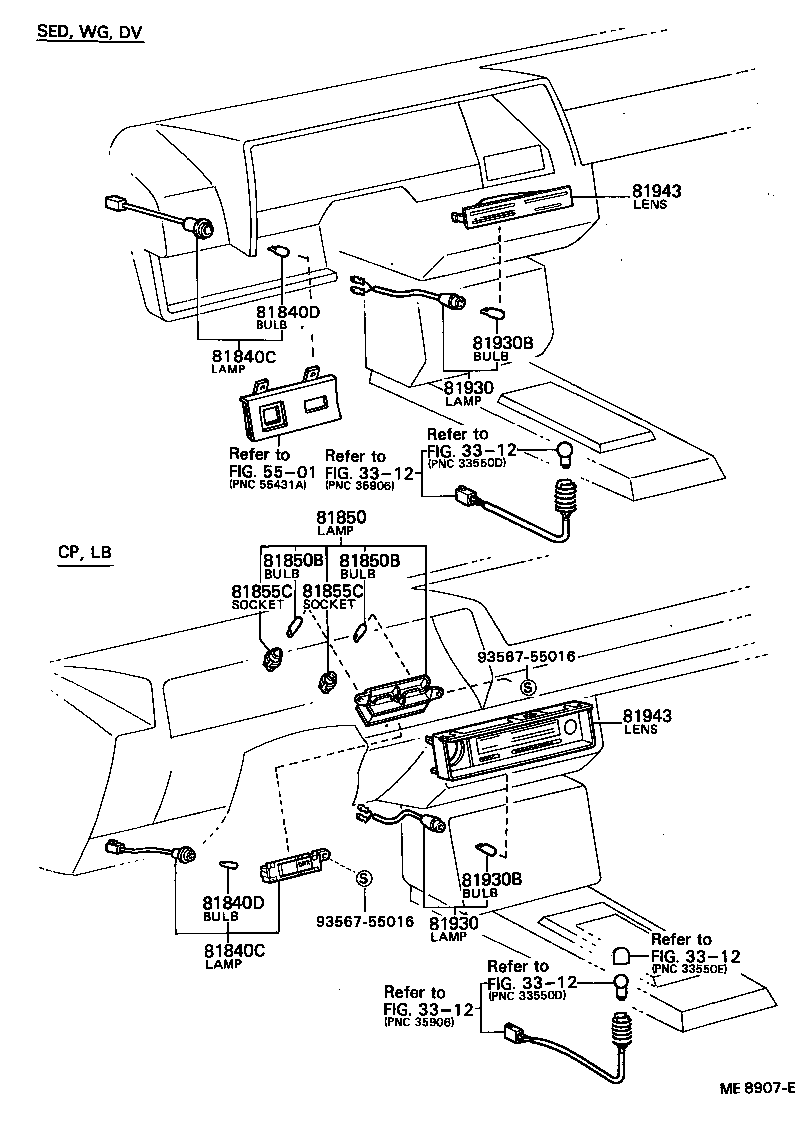

Click highlighted areas on diagram

diagram 3312 3312 3312 3312 3312 5501 81840C 81840C 81840D 81840D 81850 81850B 81850B 81855C 81855C 81930 81930 81930B 81930B 81943 81943 9356755016 9356755016
Part # Description Qty Price
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81850-12041

KE70,TE7#

 1
81850-12040

KE70,TE7#

 1
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81850-12041

KE70,TE7#

 1
81850-12040

KE70,TE7#

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11018

AE71,CE70,KE70,TE7#

12V 1.2W W/O SOCKET,12V 1.4W

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11018

AE71,CE70,KE70,TE7#

12V 1.2W W/O SOCKET,12V 1.4W

 1
81943 - LENS, HEATER CONTROL INDICATOR
81943-12072

KE70..(SED,WG)..LHD..EUR

 1
81943-12060

KE70..(SED,WG)..LHD..EUR

 1
81943 - LENS, HEATER CONTROL INDICATOR
81943-12072

KE70..(SED,WG)..LHD..EUR

 1
81943-12060

KE70..(SED,WG)..LHD..EUR

 1
Common parts
93567-55016
Linked diagrams
3312
5501
