KE70L-EDKDCC (1979)
Toyota Corolla
(7908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12140 | ||||
| 82711-12170 | ||||
| 82711-12180 | ||||
| 82711-12200 | ||||
| 82711-12220 | ||||
| 82711-12270 | ||||
| 82711-12290 | ||||
| 82711-12300 | ||||
| 82711-12310 | ||||
| 82711-12330 | ||||
| 82711-12340 | ||||
| 82711-12370 | ||||
| 82711-12390 | ||||
| 82711-12430 | ||||
| 82711-12480 | ||||
| 82711-12510 | ||||
| 82711-12530 | ||||
| 82711-12540 | ||||
| 82711-12570 | ||||
| 82711-14080 | ||||
| 82819-22050 | ||||
| 90461-06053 | ||||
| 90461-06075 | ||||
| 90461-06083 | ||||
| 90461-08186 | ||||

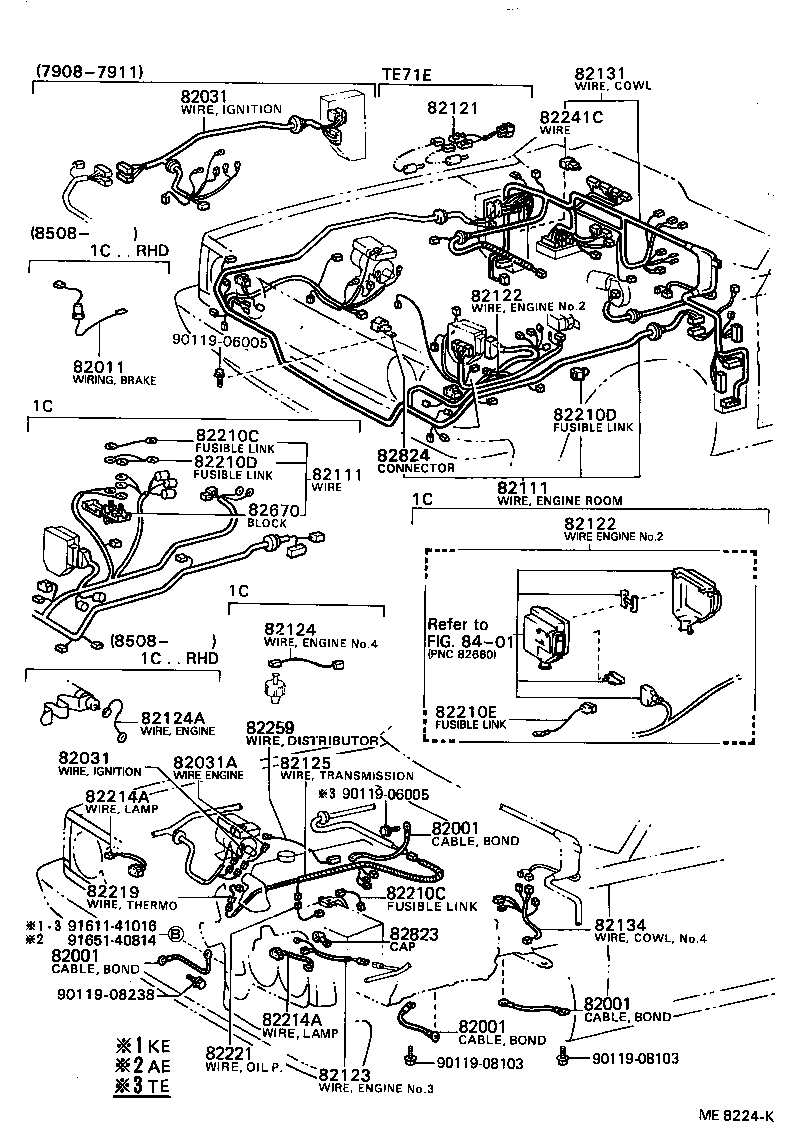

(7908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07118 |
TE72..2D;TE71..SE..SA;KE70,TE71..EUR,GEN L=220,RR SUPPORT MEMBER-BODY |
1 | ||
| 90980-07168 |
KE70,TE7# L=400 |
1 | ||
| 90980-07058 |
KE70..EUR,GEN L=370,ENGINE-DASH |
1 | ||
| 90980-07119 |
TE72..2D;TE71..SE..SA;KE70,TE71..EUR,GEN L=320,STIFFENER PLATE-BODY |
1 | ||
| 90980-07150 |
KE70,TE7# L=340 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07118 |
TE72..2D;TE71..SE..SA;KE70,TE71..EUR,GEN L=220,RR SUPPORT MEMBER-BODY |
1 | ||
| 90980-07168 |
KE70,TE7# L=400 |
1 | ||
| 90980-07058 |
KE70..EUR,GEN L=370,ENGINE-DASH |
1 | ||
| 90980-07119 |
TE72..2D;TE71..SE..SA;KE70,TE71..EUR,GEN L=320,STIFFENER PLATE-BODY |
1 | ||
| 90980-07150 |
KE70,TE7# L=340 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07118 |
TE72..2D;TE71..SE..SA;KE70,TE71..EUR,GEN L=220,RR SUPPORT MEMBER-BODY |
1 | ||
| 90980-07168 |
KE70,TE7# L=400 |
1 | ||
| 90980-07058 |
KE70..EUR,GEN L=370,ENGINE-DASH |
1 | ||
| 90980-07119 |
TE72..2D;TE71..SE..SA;KE70,TE71..EUR,GEN L=320,STIFFENER PLATE-BODY |
1 | ||
| 90980-07150 |
KE70,TE7# L=340 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07118 |
TE72..2D;TE71..SE..SA;KE70,TE71..EUR,GEN L=220,RR SUPPORT MEMBER-BODY |
1 | ||
| 90980-07168 |
KE70,TE7# L=400 |
1 | ||
| 90980-07058 |
KE70..EUR,GEN L=370,ENGINE-DASH |
1 | ||
| 90980-07119 |
TE72..2D;TE71..SE..SA;KE70,TE71..EUR,GEN L=320,STIFFENER PLATE-BODY |
1 | ||
| 90980-07150 |
KE70,TE7# L=340 |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-12540 |
KE70,TE72..SDN |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-12540 |
KE70,TE72..SDN |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82270-12420 |
KE70,TE72..SDN |
1 | ||
| 82270-12422 |
KE70,TE72..SDN |
1 | ||
| 82270-12423 |
KE70,TE7#..LHD..(DX,SR,STD,XE)..EUR W/HEADLAMP CLEANER |
1 | ||
| 82270-12421 |
KE70,TE72..SDN |
1 | ||
| 82270-12422 |
KE70,TE7#..LHD..(DX,SR,STD,XE)..EUR W/HEADLAMP CLEANER |
1 | ||
| 82270-12423 |
KE70,TE72..SDN |
1 | ||
| 82111-12080 |
KE70..LHD..EUR |
1 | ||
| 82111-12081 |
KE70..LHD..EUR |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82270-12420 |
KE70,TE72..SDN |
1 | ||
| 82270-12422 |
KE70,TE72..SDN |
1 | ||
| 82270-12423 |
KE70,TE7#..LHD..(DX,SR,STD,XE)..EUR W/HEADLAMP CLEANER |
1 | ||
| 82270-12421 |
KE70,TE72..SDN |
1 | ||
| 82270-12422 |
KE70,TE7#..LHD..(DX,SR,STD,XE)..EUR W/HEADLAMP CLEANER |
1 | ||
| 82270-12423 |
KE70,TE72..SDN |
1 | ||
| 82111-12080 |
KE70..LHD..EUR |
1 | ||
| 82111-12081 |
KE70..LHD..EUR |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82223-12450 |
KE70..MTM..EUR |
1 | ||
| 82223-12453 |
KE70..MTM..(EUR,SA) |
1 | ||
| 82223-12452 |
KE70..MTM..(EUR,SA) |
1 | ||
| 82223-12451 |
KE70..MTM..EUR |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82223-12450 |
KE70..MTM..EUR |
1 | ||
| 82223-12453 |
KE70..MTM..(EUR,SA) |
1 | ||
| 82223-12452 |
KE70..MTM..(EUR,SA) |
1 | ||
| 82223-12451 |
KE70..MTM..EUR |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-12030 |
KE70..MTM..(EUR,GEN,SAA) |
1 | ||
| 82310-12361 |
KE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM |
1 | ||
| 82310-12360 |
KE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82230-12890 |
KE70..SDN |
1 | ||
| 82230-12890 |
KE70..(DV,SED,WG)..LHD..EUR W/HEADLAMP CLEANER |
1 | ||
| 82230-12891 |
KE70..(DV,SED,WG)..LHD..EUR W/HEADLAMP CLEANER |
1 | ||
| 82131-12190 |
KE70..SED..LHD..EUR |
1 | ||
| 82134 - WIRE, COWL, NO.4 | ||||
| 82213-12020 |
KE70,TE7#..LHD |
1 | ||
| 82213-12021 |
KE70,TE7#..LHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08052 |
KE70,TE7# |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08052 |
KE70,TE7# |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08121 |
KE70,TE7# |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08121 |
KE70,TE7# |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-12090 |
KE70,TE7#..EUR,GEN,SA |
1 | ||
| 82259 - WIRE, DISTRIBUTOR | ||||
| 82259-12050 |
KE70 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-08103 | ||||
| 90119-08238 | ||||
| 91611-41016 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 8401 | ||||

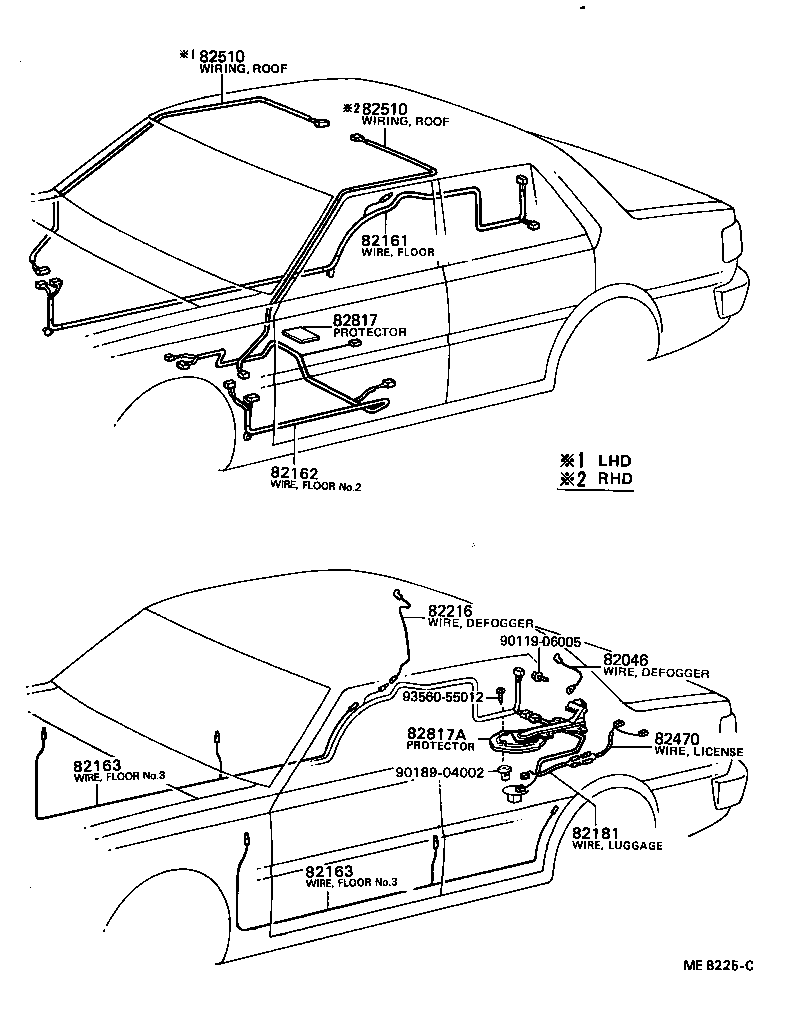

(7908- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-12110 |
AE71,CE70,KE70,TE7#..SED |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82420-12530 |
KE70,TE7#..SED |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82215-12130 |
KE70,TE7#..LHD..(3FC,4F,5F) |
1 | ||
| 82215-12131 |
KE70,TE7#..LHD..(3FC,4F,5F) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82412-12090 |
KE70,TE7#..CP,LB,SED |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-12050 |
AE71,CE70,KE70,TE7#..SED |
1 | ||
| 82470 - WIRE ASSY, LICENSE LAMP FEED | ||||
| 82470-12050 |
KE70,TE7#..CP,LB,SED |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-12180 |
CE70,KE70,TE71..SED..LHD |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-12180 |
CE70,KE70,TE71..SED..LHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12350 |
KE70,TE7#..CP,LB,SED |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90189-04002 | ||||
| 93560-55012 | ||||

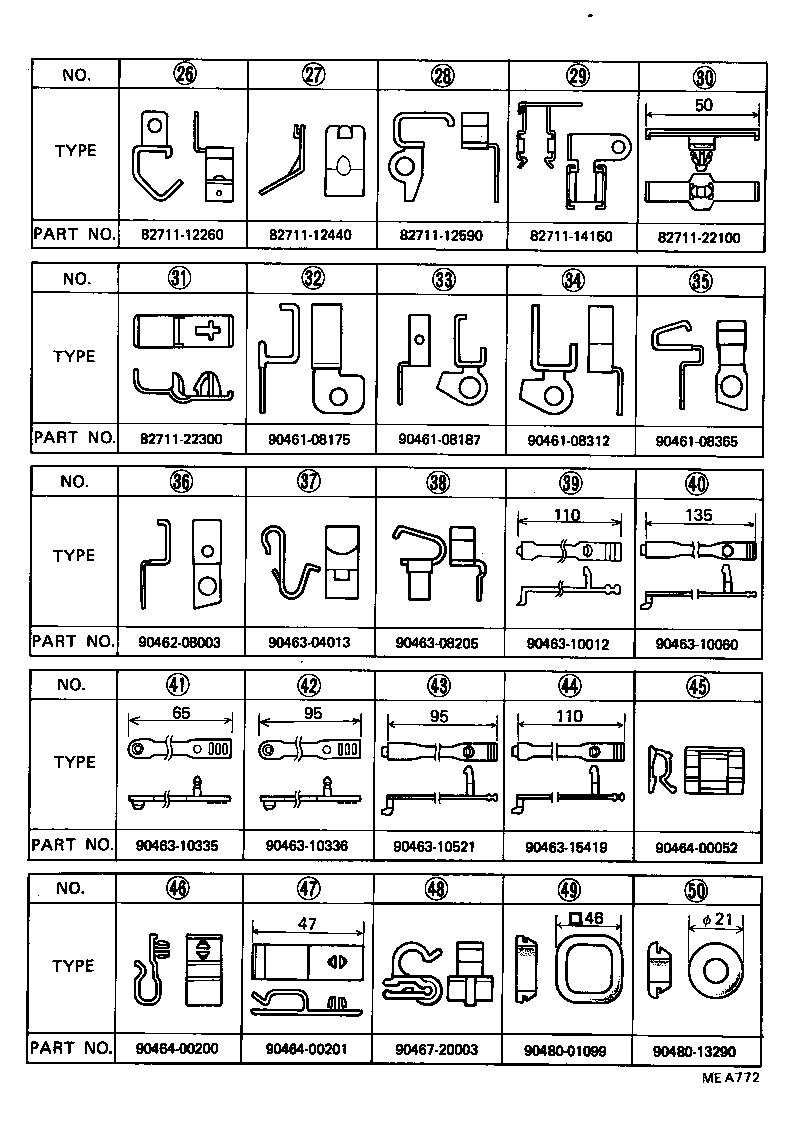

(7908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12260 | ||||
| 82711-12440 | ||||
| 82711-12590 | ||||
| 82711-14150 | ||||
| 82711-22100 | ||||
| 82711-22300 | ||||
| 90401-08175 | ||||
| 90461-08187 | ||||
| 90461-08312 | ||||
| 90461-08365 | ||||
| 90462-08003 | ||||
| 90463-04013 | ||||
| 90463-08205 | ||||
| 90463-10012 | ||||
| 90463-10060 | ||||
| 90463-10335 | ||||
| 90463-10336 | ||||
| 90463-10521 | ||||
| 90463-15419 | ||||
| 90464-00052 | ||||
| 90464-00200 | ||||
| 90464-00201 | ||||
| 90467-20003 | ||||
| 90480-01099 | ||||
| 90480-13290 | ||||
(7908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12250 | ||||
| 82711-12470 | ||||
| 82711-12620 | ||||
| 82711-14130 | ||||
| 82819-12130 | ||||
| 90461-08025 | ||||
| 90461-08370 | ||||
| 90462-08003 | ||||
| 90463-15385 | ||||
| 90464-00073 | ||||

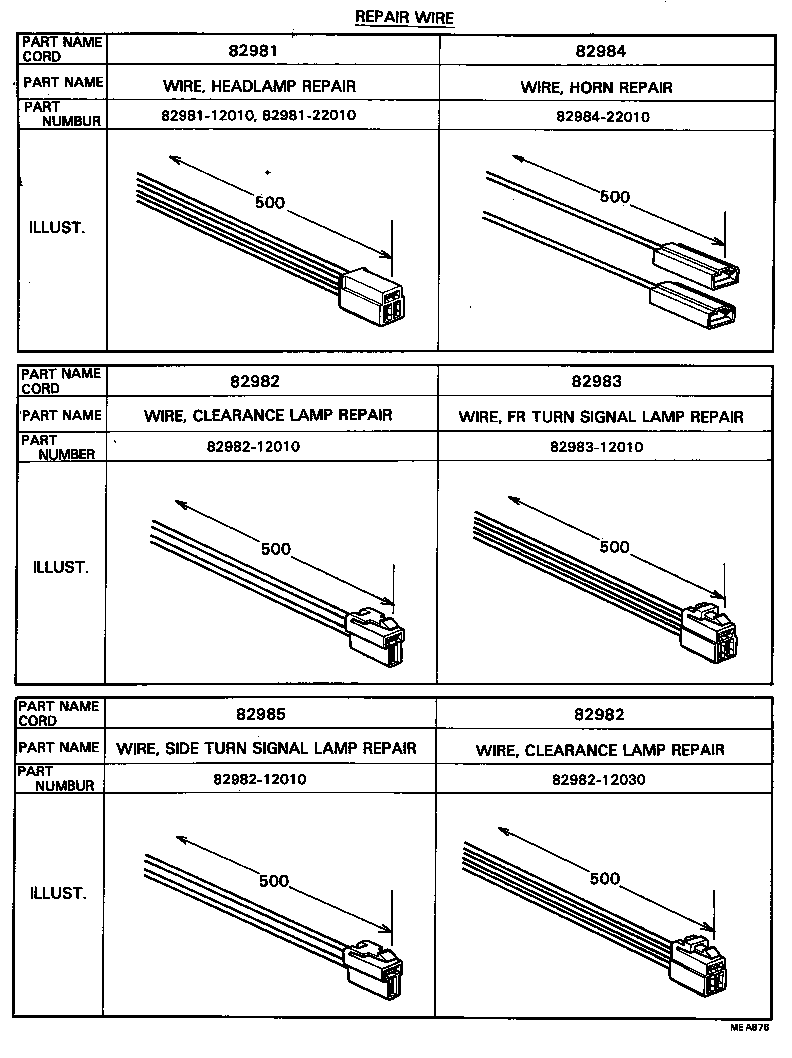

(7908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-12010 |
KE70,TE7# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-12010 |
KE70,TE7# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-12010 |
KE70,TE7# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-12010 |
KE70,TE7# |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
AE71,CE70,KE70,TE7# |
1 | ||
| Common parts | ||||
| 82981-12010 | ||||
| 82981-22010 | ||||
| 82982-12010 | ||||
| 82982-12030 | ||||
| 82983-12010 | ||||
| 82984-22010 | ||||
