KE70L-EDKDCC (1979)

Toyota Corolla

Production Aug 1979 - Aug 1982
Engine 4KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8508)

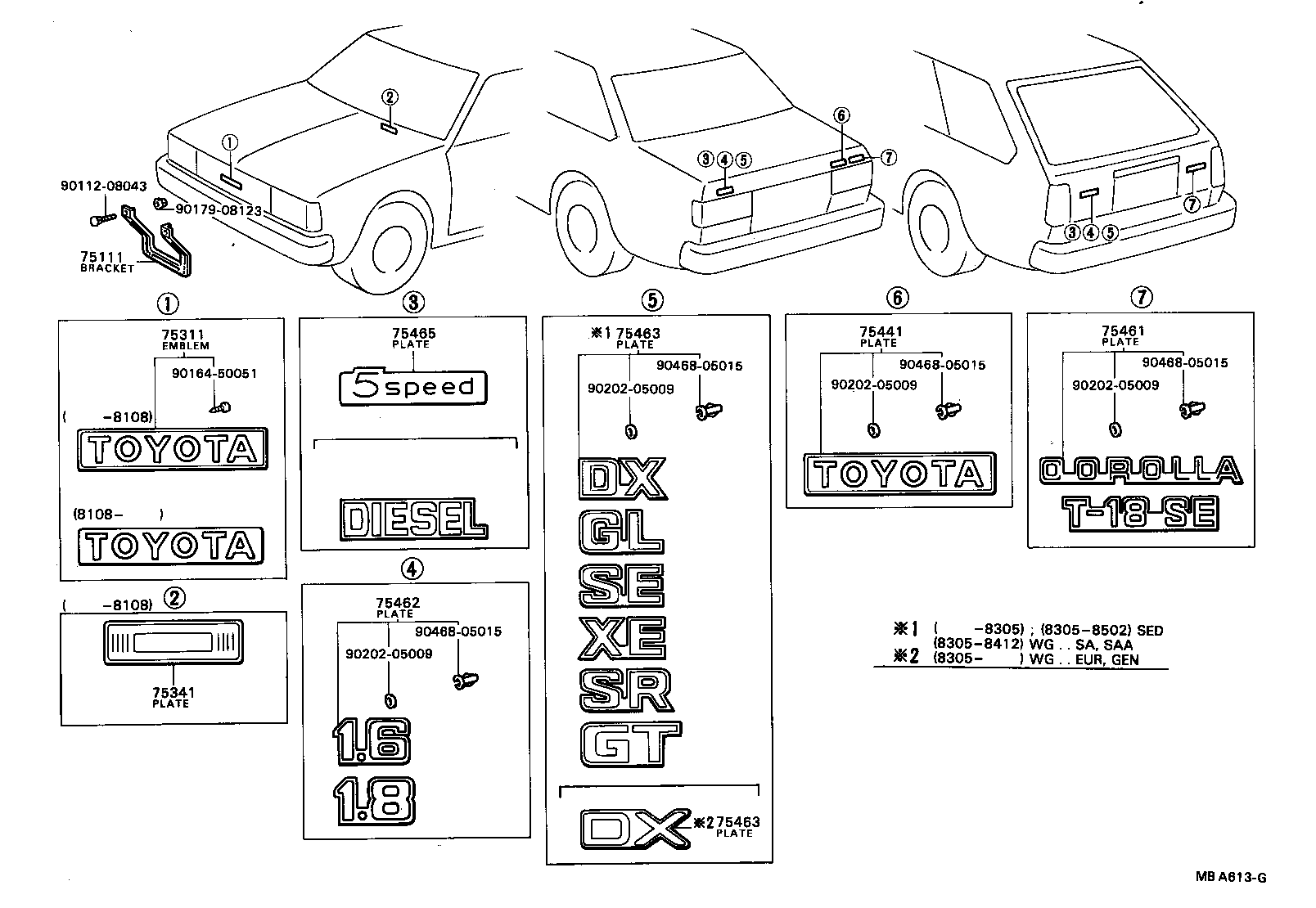

Click highlighted areas on diagram

diagram 75111 75311 75341 75441 75461 75462 75463 75463 75465 9011208043 9016450051 9017908123 9020205009 9020205009 9020205009 9020205009 9046805015 9046805015 9046805015 9046805015
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-19845

KE70..(DV,SED,WG)..EUR

TOYOTA

 1
75311-19845

KE70,TE71..(DV,SED,WG)..(EUR,GEN)

TOYOTA

 1
75311-80015

KE70,TE71..(DV,SED,WG)..(EUR,GEN,SAA)

TOYOTA

 1
75441 - PLATE, REAR NAME, NO.1
75441-12240

AE71,CE70,KE70,TE7#..CP,LB,SED

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-12710

TE71..LHD..SR;TE71..RHD..SR..GEN;KE70,TE7#..(DX,GL,GT,SE,STD,XE,XL)..(EUR,GEN,SA)

COROLLA

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12130

CE70,KE70,TE7#..(DX,XL)..(EUR,GEN,SA,SAA)

DX

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12130

CE70,KE70,TE7#..(DX,XL)..(EUR,GEN,SA,SAA)

DX

 1
Common parts
90112-08043
90164-50051
90179-08123
90202-05009
90468-05015
