KE70L-EDKDCC (1979)

Toyota Corolla

Production Aug 1979 - Aug 1982
Engine 4KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )DV,SED,WG

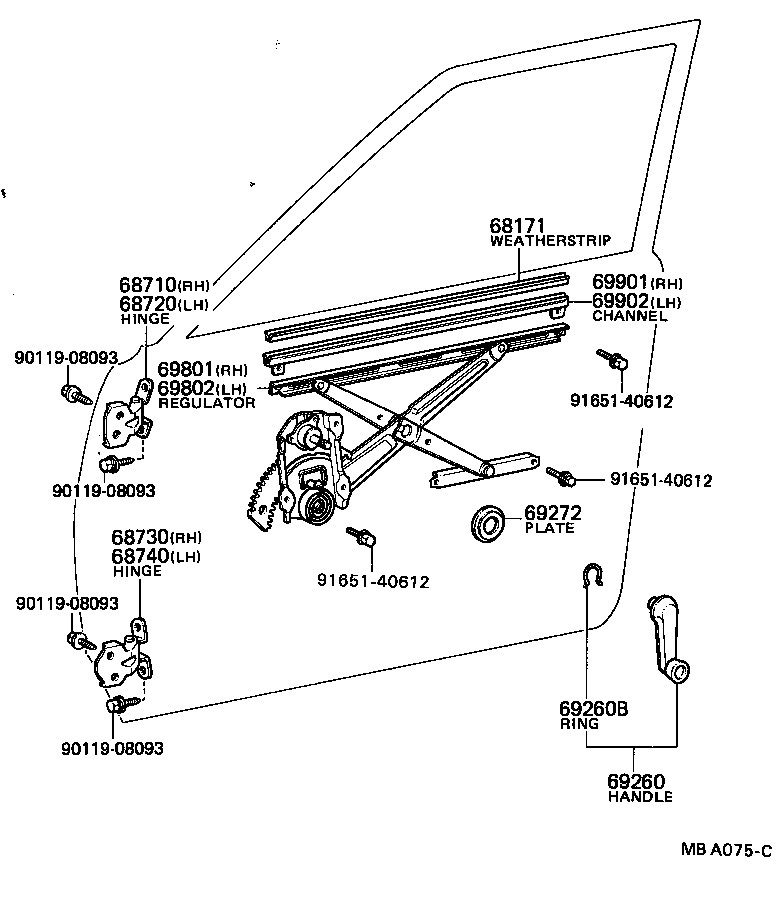

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260B 69272 69801 69802 69901 69902 9011908093 9011908093 9011908093 9011908093 9165140612 9165140612 9165140612
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68171-22020

AE71,CE70,KE70,TE7#..DV,SED,WG

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68750-14010

AE71,CE70,KE70,TE7#..DV,SED,WG

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68760-14010

AE71,CE70,KE70,TE7#..DV,SED,WG

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-20070

AE71,CE70,KE70,TE7#..DV,SED,WG

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-20070

AE71,CE70,KE70,TE7#..DV,SED,WG

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1201005

KE70,TE71..(DV,SED,WG)..GEN;KE70..(DV,SED,WG)..LHD..EUR

BEIGE,BEIGE,TRIM4#

 2
69260-1201011

TE72..MTM;KE70,TE71..GEN;KE70,TE71..LHD..EUR

BLACK,BLACK,TRIM0#,2#

 2
69260-1201004

TE72..MTM;KE70,TE71..GEN;KE70,TE71..LHD..EUR

BLUE,BLUE,TRIM8#

 2
69260-1206001

KE70..LHD..4D;KE70..RHD..4D..GEN;TE71..RHD..(SR,XE)..GEN;KE70,TE71..LHD..2D..(GL,SR,XE);TE71..(DX,GT,STD)..(EUR,GEN,SAA);KE70,TE72..2D..(DX,STD)..(EUR,GEN)

KOJIMA,BLACK,BLACK,TRIM0#,2#

 2
69260-1201036

KE70,TE71..(DV,SED,WG)..GEN;KE70..(DV,SED,WG)..LHD..EUR

LIGHT BROWN,BROWN,TRIM4#

 2
69260-1206006

KE70..LHD..4D;KE70..RHD..4D..GEN;TE71..RHD..(SR,XE)..GEN;KE70,TE71..LHD..2D..(GL,SR,XE);TE71..(DX,GT,STD)..(EUR,GEN,SAA);KE70,TE72..2D..(DX,STD)..(EUR,GEN)

KOJIMA,DARK BROWN,BROWN,TRIM4#

 2
69260-1402006

KE70..LHD..4D;KE70..RHD..4D..GEN;TE71..RHD..(SR,XE)..GEN;KE70,TE71..LHD..2D..(GL,SR,XE);TE71..(DX,GT,STD)..(EUR,GEN,SAA);KE70,TE72..2D..(DX,STD)..(EUR,GEN)

AISIN,DARK BROWN,BROWN,TRIM4#

 2
69260-1402001

KE70..LHD..4D;KE70..RHD..4D..GEN;TE71..RHD..(SR,XE)..GEN;KE70,TE71..LHD..2D..(GL,SR,XE);TE71..(DX,GT,STD)..(EUR,GEN,SAA);KE70,TE72..2D..(DX,STD)..(EUR,GEN)

AISIN,BLACK,BLACK,TRIM0#,2#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

KE70,TE7#..EUR,GEN,SAA

 2
90520-01274

KE70,TE7#

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69285-22010

AE71,CE70,KE70,TE7#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-12140

AE71,CE70,KE70,TE7#..DV,SED,WG

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-12140

AE71,CE70,KE70,TE7#..DV,SED,WG

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-12080

CE70,KE70,TE7#..DV,SED,WG

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-12080

CE70,KE70,TE7#..DV,SED,WG

 1
Common parts
90119-08093
91651-40612
