KE70L-EDKDCC (1979)

Toyota Corolla

Production Aug 1979 - Aug 1982
Engine 4KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8502)CP,LB,SED

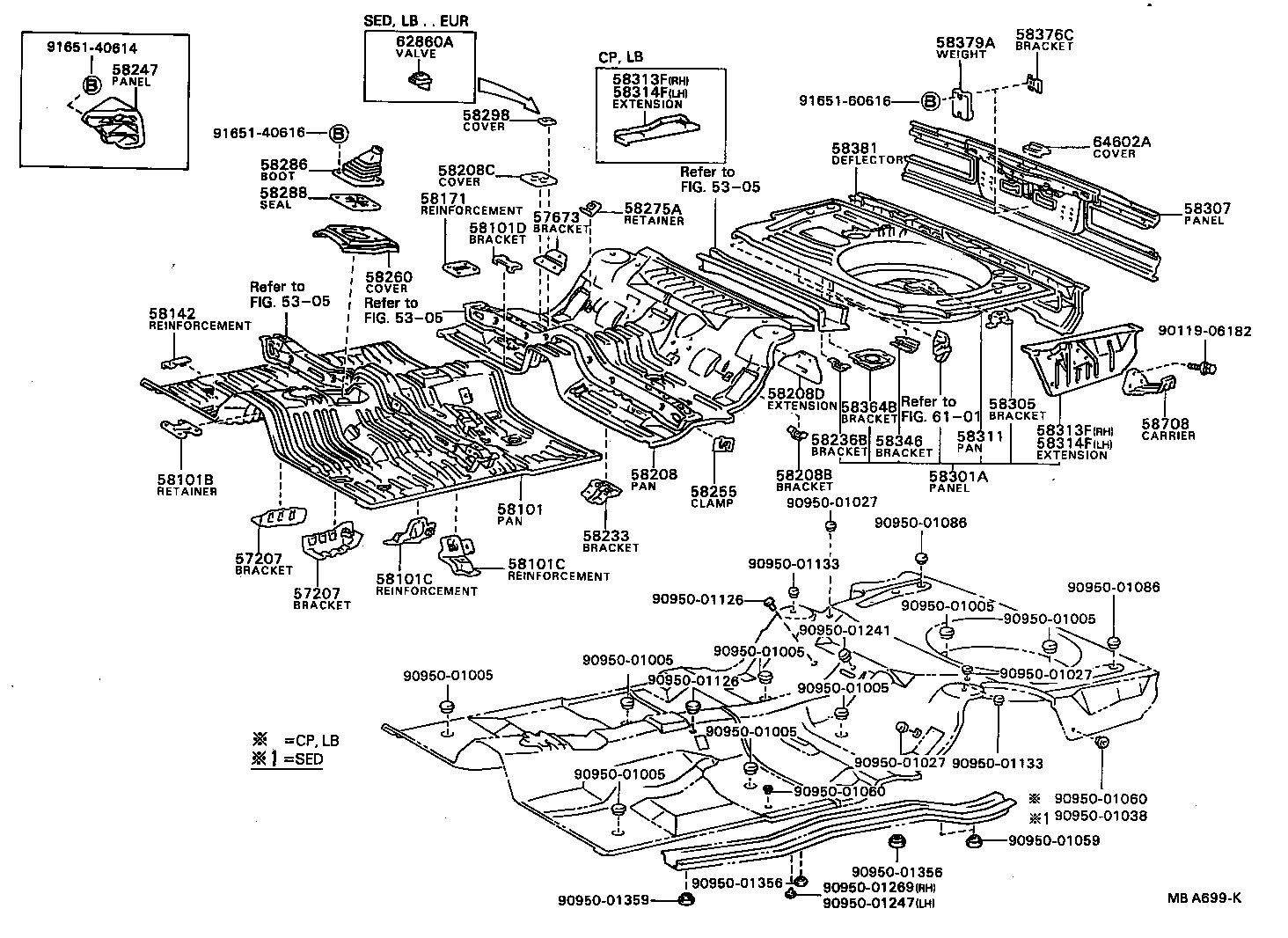

Click highlighted areas on diagram

diagram 5305 5305 5305 57207 57207 57673 58101 58101B 58101C 58101C 58101D 58142 58171 58208 58208B 58208C 58208D 58233 58236B 58247 58255 58260 58275A 58286 58288 58298 58301A 58305 58307 58311 58313F 58313F 58314F 58314F 58346 58364B 58376C 58379A 58381 58708 6101 62860A 64602A 9011906182 9095001005 9095001005 9095001005 9095001005 9095001005 9095001005 9095001005 9095001005 9095001027 9095001027 9095001027 9095001038 9095001059 9095001060 9095001060 9095001086 9095001086 9095001126 9095001126 9095001133 9095001133 9095001241 9095001247 9095001269 9095001356 9095001356 9095001359 9165140614 9165140616 9165160616
Part # Description Qty Price
57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
57208-12040

KE70,TE7#

LH

 1
57207-12030

KE70,TE7#

RH

 1
57207-12050

KE70,TE7#

RH

 1
57208-12060

KE70,TE7#

LH

 1
57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
57208-12040

KE70,TE7#

LH

 1
57207-12030

KE70,TE7#

RH

 1
57207-12050

KE70,TE7#

RH

 1
57208-12060

KE70,TE7#

LH

 1
58101 - PAN SUB-ASSY, FRONT FLOOR
58111-12140

AE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA

 1
58101B - RETAINER, CONSOLE BOX MOUNTING
58164-12010

AE71,CE70,KE70,TE7#

 1
58101C - REINFORCEMENT SUB-ASSY, DRIVE SHAFT SUPPORT
58205-12020

AE71,CE70,KE70,TE7#

RH

 1
58206-12020

AE71,CE70,KE70,TE7#

LH

 1
58101C - REINFORCEMENT SUB-ASSY, DRIVE SHAFT SUPPORT
58205-12020

AE71,CE70,KE70,TE7#

RH

 1
58206-12020

AE71,CE70,KE70,TE7#

LH

 1
58101D - BRACKET, PARKING BRAKE CABLE GUIDE
58264-12020

AE71,CE70,KE70,TE7#

 1
58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58141-16010

AE71,CE70,KE70,TE7#

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-12040

AE71,CE70,KE70,TE7#

 1
58208 - PAN, CENTER FLOOR
58211-12090

KE70,TE7#..CP,LB,SED

 1
58208B - BRACKET, CENTER FLOOR HEAT INSULATOR
58236-14010

AE71,CE70,KE70,TE7#

 2
58208C - COVER, CENTER FLOOR HOLE
58285-12010

AE71,CE70,KE70,TE7#..CP,LB,SED

 2
58208D - EXTENSION, CENTER FLOOR TO BRACE
64227-12040

AE71,CE70,KE70,TE7#..SED

 1
58233 - BRACKET, EXHAUST PIPE MOUNTING
58233-12010

AE71,CE70,KE70,TE7#..CP,LB,SED

 1
58255 - CLAMP, PARKING BRAKE CABLE, NO.1
58207-12040

AE71,CE70,KE70,TE7#..CP,LB,SED

RH

 1
58208-12040

AE71,CE70,KE70,TE7#..CP,LB,SED

LH

 1
58260 - COVER ASSY, TRANSMISSION, FRONT
58281-12010

KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM

 1
58275A - RETAINER, REAR SEAT BACK TO CENTER FLOOR
58275-12010

AE71,CE70,KE70,TE7#..CP,LB,SED

 2
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58280-1208004

KE70..SED..LHD..MTM..EUR

W/CONSOLE,BLUE,BLUE,TRIM8#

 1
58280-1208001

KE70..SED..LHD..MTM..EUR

W/CONSOLE,BLACK,BLACK,TRIM0#,2#

 1
58280-1208005

KE70..SED..LHD..MTM..EUR

W/CONSOLE,BEIGE,BEIGE,TRIM4#

 1
58280-12070

KE70,TE7#..MTM..(ARL,EUR,GEN,SAA)

W/CONSOLE

 1
58280-1208005

KE70..DX..SA;TE71..4F..4D;KE70..(DV,SED,WG)..LHD..MTM..GEN;KE70..(SED,WG)..LHD..MTM..DX..EUR;KE70..(DV,SED,WG)..RHD..MTM..(EUR,GEN)

W/CONSOLE,BEIGE,BEIGE,TRIM4#

 1
58280-12090

KE70..CP..5F;KE70..CP..LHD..4F;TE71..MTM..(DX,STD);CE70,KE70,TE72..(DV,LB,SED,WG)..MTM..(DX,STD,XL)..(EUR,GEN,SA,SAA)

W/O CONSOLE

 1
58288 - SEAL, SHIFT LEVER BOOT
58288-12060

KE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM

 1
58301A - PANEL SUB-ASSY, REAR FLOOR
58301-12140

KE70,TE7#..SED

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011

AE71,CE70,KE70,TE7#..CP,LB,SED

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-12520

KE70,TE7#..SED..(EUR,GEN,SA,SAA)

 1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-12060

KE70,TE71..SED

 1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-12060

KE70,TE71..SED

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58303-12010

KE70,TE71..SED

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58303-12010

KE70,TE71..SED

 1
58381 - DEFLECTOR, REAR BUMPER STONE
58308-12060

KE70,TE71..SED..(EUR,GEN)

 1
58308-12040

KE70,TE7#..SED

 1
58308-12060

KE70,TE7#..SED..(EUR,GEN,SA)

 1
58708 - CARRIER SUB-ASSY, JACK
58791-12050

AE71,CE70,KE70,TE7#..SED

 1
64602A - COVER, LUGGAGE COMPARTMENT DOOR STRIKER
64749-12010

AE71,CE70,KE70,TE7#..SED

 1
Common parts
90119-06182
90950-01005
90950-01027
90950-01038
90950-01059
90950-01060
90950-01086
90950-01126
90950-01133
90950-01241
90950-01247
90950-01269
90950-01356
90950-01359
91651-40614
91651-40616
91651-60616
Linked diagrams
5305
6101
