KE70L-EDKDCC (1979)

Toyota Corolla

Production Aug 1979 - Aug 1982
Engine 4KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )

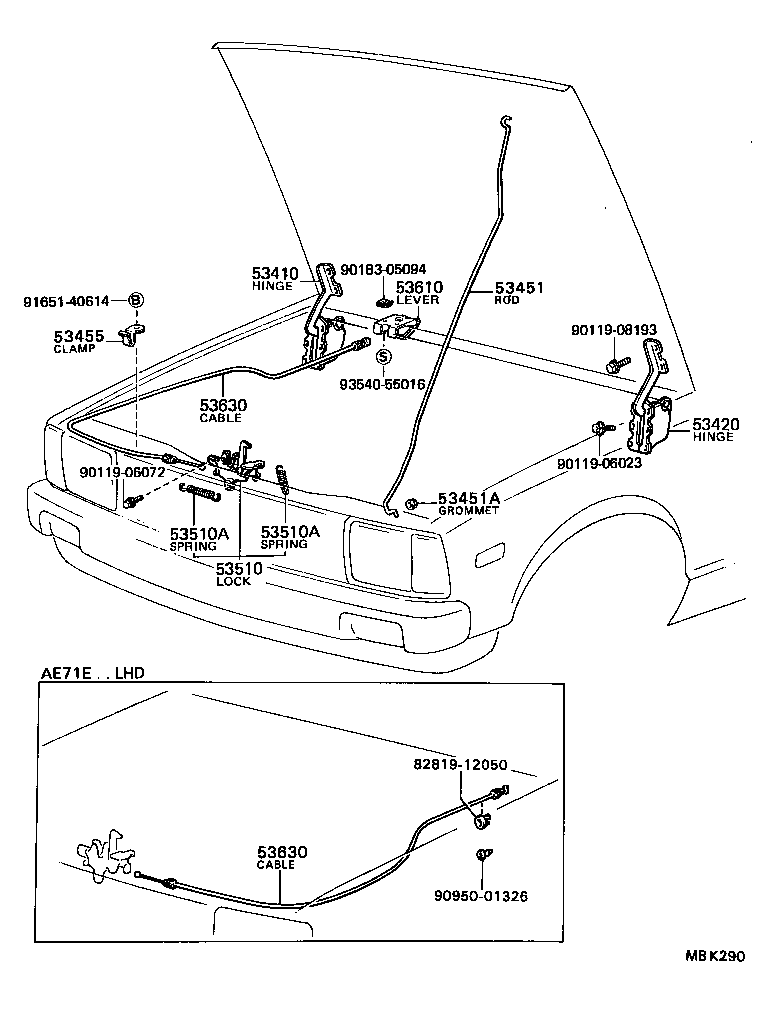

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53455 53510 53510A 53510A 53610 53630 53630 8281912050 9011906023 9011906072 9011908193 9018305094 9095001326 9165140614 9354055016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-12040

AE71,CE70,KE70,TE7#

 1
53420 - HINGE ASSY, HOOD, LH
53410-12040

AE71,CE70,KE70,TE7#

 1
53451 - ROD, HOOD SUPPORT
53451-12020

KE70,TE7#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15002

AE71,CE70,KE70,TE7#

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-12020

AE71,CE70,KE70,TE7#

 1
53510 - LOCK ASSY, HOOD
53510-12180

CE70,KE70,TE71..(DV,SED,WG)..LHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-23004

AE71,CE70,KE70,TE7#

WD=2.0

 1
90506-09008

AE71,CE70,KE70,TE7#

WD=0.9,CW=21.25,WD=0.9

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-23004

AE71,CE70,KE70,TE7#

WD=2.0

 1
90506-09008

AE71,CE70,KE70,TE7#

WD=0.9,CW=21.25,WD=0.9

 1
53610 - LEVER ASSY, HOOD LOCK RELEASE
53601-1201005

TE7#..4D;KE70..DX..SA;KE70..(DV,SED,WG)..(EUR,GEN)

BEIGE,BEIGE,TRIM4#

 1
53601-1201006

KE70,TE71..(DV,SED,WG)..(EUR,GEN,SAA)

DARK BROWN,BROWN,TRIM4#

 1
53601-1201004

TE72..(DX,SE)..(ARL,EUR);CE70,KE70,TE71..ARL,EUR,GEN,SAA

BLUE,BLUE,TRIM8#

 1
53601-1201001

KE70..STD..SA;KE70,TE7#..ARL,EUR,GEN,SAA

BLACK,BLACK,TRIM0#,2#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-12140

CE70,KE70,TE7#..LHD

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-12140

CE70,KE70,TE7#..LHD

 1
Common parts
82819-12050
90119-06023
90119-06072
90119-08193
90183-05094
90950-01326
91651-40614
93540-55016
