KE70L-EDKDCC (1979)
Toyota Corolla
(7908-8108) ; (8108-8204)SA ; (8108-8305)4D..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53209 - BRACE SUB-ASSY, HOOD LOCK | ||||
| 53208-12050 |
KE70..(DV,SED,WG)..EUR |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-12200 |
KE70,TE7#..DV,SED,WG |
1 | ||
| 53301-12240 |
KE70..(DV,SED,WG)..EUR |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-12110 |
TE71..LHD..EUG;KE70,TE72..LHD..(DX,GL,STD)..EUR |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08008 |
TE71..LHD;KE70..LHD..GEN;KE70,TE72..EUR;TE71..RHD..EUG |
9 | ||
| 53385 - RETAINER, HOOD, BUMPER | ||||
| 53385-14010 |
AE71,CE70,KE70,TE7# LH |
2 | ||
| 53386-14010 |
AE71,CE70,KE70,TE7# RH |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-1A110 |
KE70..(DV,SED,WG)..EUR W/O ANTENNA HOLE,MIROR HOLE |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-1A110 |
KE70..(DV,SED,WG)..EUR W/O ANTENNA HOLE,MIRROR HOLE |
1 | ||
| 53802-1A120 |
KE70..(DV,SED,WG)..LHD..EUR W/ANTENNA HOLE,W/O MIRROR HOLE |
1 | ||
| 53838 - BRACE, FRONT FENDER, RH | ||||
| 53851-12040 |
KE70,TE7#..EUR,GEN,SAA |
1 | ||
| 53851-12010 |
KE70,TE7#..DV,SED,WG |
1 | ||
| 53839 - BRACE, FRONT FENDER, LH | ||||
| 53852-12010 |
KE70,TE7#..DV,SED,WG |
1 | ||
| 53852-12040 |
KE70,TE7#..EUR,GEN,SAA |
1 | ||
| 53878 - LINER, FRONT FENDER, RH | ||||
| 53875-12040 |
AE71,CE70,KE70,TE7#..DV,SED,WG |
1 | ||
| 53879 - LINER, FRONT FENDER, LH | ||||
| 53876-12040 |
AE71,CE70,KE70,TE7#..DV,SED,WG |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-22010 |
AE71,CE70,KE70,TE7# |
8 | ||
| 53881 - BUMPER, FENDER TO HOOD | ||||
| 53384-14010 |
KE70,TE7# |
4 | ||
| 53882 - PACKING, FRONT FENDER MAIN | ||||
| 53882-12040 |
AE71,CE70,KE70,TE7# |
2 | ||
| 53912 - DEFLECTOR, FRONT BUMPER STONE | ||||
| 53911-12180 |
KE70..(DV,SED,WG)..EUR |
1 | ||
| 53911-12180 |
KE70,TE7#..DV,SED,WG |
1 | ||
| 53912 - DEFLECTOR, FRONT BUMPER STONE | ||||
| 53911-12180 |
KE70..(DV,SED,WG)..EUR |
1 | ||
| 53911-12180 |
KE70,TE7#..DV,SED,WG |
1 | ||
| Common parts | ||||
| 90159-60008 | ||||
| 90179-06097 | ||||
| 90189-06005 | ||||
| 90189-06013 | ||||
| 91661-40612 | ||||
| 91661-40614 | ||||
| 91666-40616 | ||||
| Linked diagrams | ||||
| 7601 | ||||

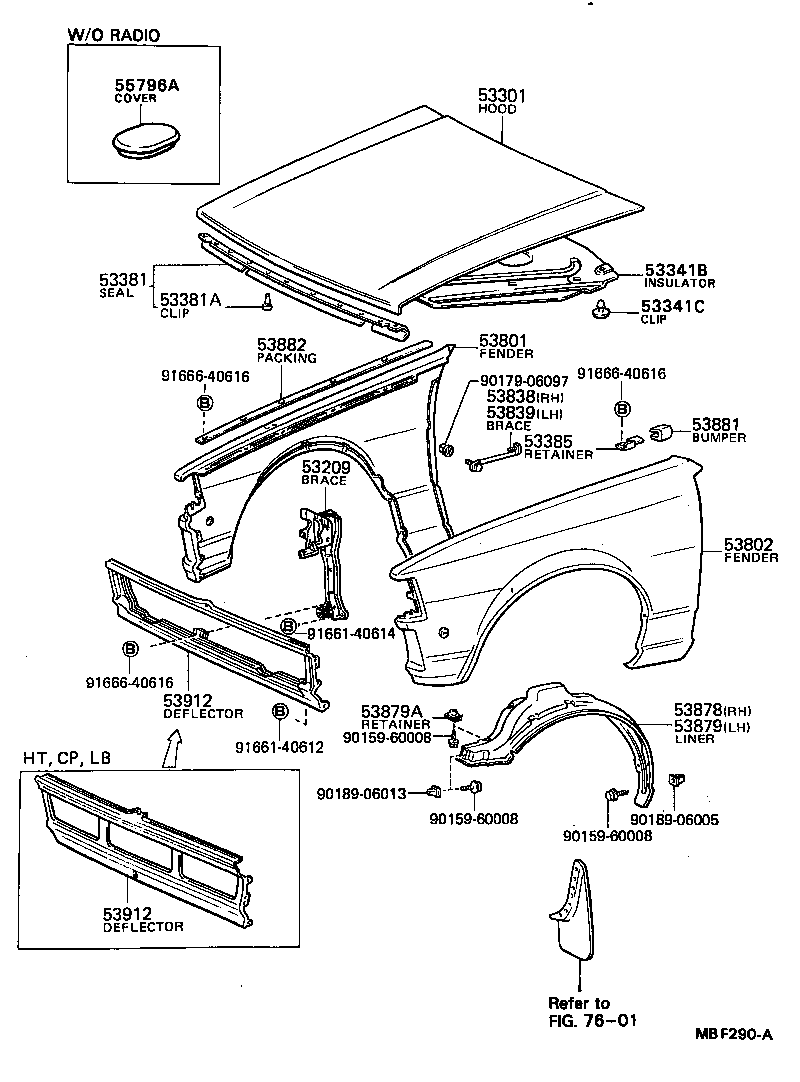

(8108-8204)EUR,GEN,SAA ; (8108-8305)2D..ARL ; (8204-8305)EUR,GEN,SA,SAA ; (8305-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53209 - BRACE SUB-ASSY, HOOD LOCK | ||||
| 53208-12050 |
KE70..(DV,SED,WG)..EUR |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-12200 |
KE70,TE7#..DV,SED,WG |
1 | ||
| 53301-12240 |
KE70..(DV,SED,WG)..EUR |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-12110 |
TE71..LHD..EUG;KE70,TE72..LHD..(DX,GL,STD)..EUR |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08008 |
TE71..LHD;KE70..LHD..GEN;KE70,TE72..EUR;TE71..RHD..EUG |
9 | ||
| 53385 - RETAINER, HOOD, BUMPER | ||||
| 53385-14010 |
AE71,CE70,KE70,TE7# LH |
2 | ||
| 53386-14010 |
AE71,CE70,KE70,TE7# RH |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-1A110 |
KE70..(DV,SED,WG)..EUR W/O ANTENNA HOLE,MIROR HOLE |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-1A110 |
KE70..(DV,SED,WG)..EUR W/O ANTENNA HOLE,MIRROR HOLE |
1 | ||
| 53802-1A120 |
KE70..(DV,SED,WG)..LHD..EUR W/ANTENNA HOLE,W/O MIRROR HOLE |
1 | ||
| 53838 - BRACE, FRONT FENDER, RH | ||||
| 53851-12040 |
KE70,TE7#..EUR,GEN,SAA |
1 | ||
| 53851-12010 |
KE70,TE7#..DV,SED,WG |
1 | ||
| 53839 - BRACE, FRONT FENDER, LH | ||||
| 53852-12010 |
KE70,TE7#..DV,SED,WG |
1 | ||
| 53852-12040 |
KE70,TE7#..EUR,GEN,SAA |
1 | ||
| 53878 - LINER, FRONT FENDER, RH | ||||
| 53875-12040 |
AE71,CE70,KE70,TE7#..DV,SED,WG |
1 | ||
| 53879 - LINER, FRONT FENDER, LH | ||||
| 53876-12040 |
AE71,CE70,KE70,TE7#..DV,SED,WG |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-22010 |
AE71,CE70,KE70,TE7# |
8 | ||
| 53881 - BUMPER, FENDER TO HOOD | ||||
| 53384-14010 |
KE70,TE7# |
4 | ||
| 53882 - PACKING, FRONT FENDER MAIN | ||||
| 53882-12040 |
AE71,CE70,KE70,TE7# |
2 | ||
| 53912 - DEFLECTOR, FRONT BUMPER STONE | ||||
| 53911-12180 |
KE70..(DV,SED,WG)..EUR |
1 | ||
| 53911-12180 |
KE70,TE7#..DV,SED,WG |
1 | ||
| 53912 - DEFLECTOR, FRONT BUMPER STONE | ||||
| 53911-12180 |
KE70..(DV,SED,WG)..EUR |
1 | ||
| 53911-12180 |
KE70,TE7#..DV,SED,WG |
1 | ||
| Common parts | ||||
| 90159-60008 | ||||
| 90179-06097 | ||||
| 90189-06005 | ||||
| 90189-06013 | ||||
| 91661-40612 | ||||
| 91661-40614 | ||||
| 91666-40616 | ||||
| Linked diagrams | ||||
| 7601 | ||||
