KE70L-EDKDCC (1979)

Toyota Corolla

Production Aug 1979 - Aug 1982
Engine 4KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8502)CP,LB,SED

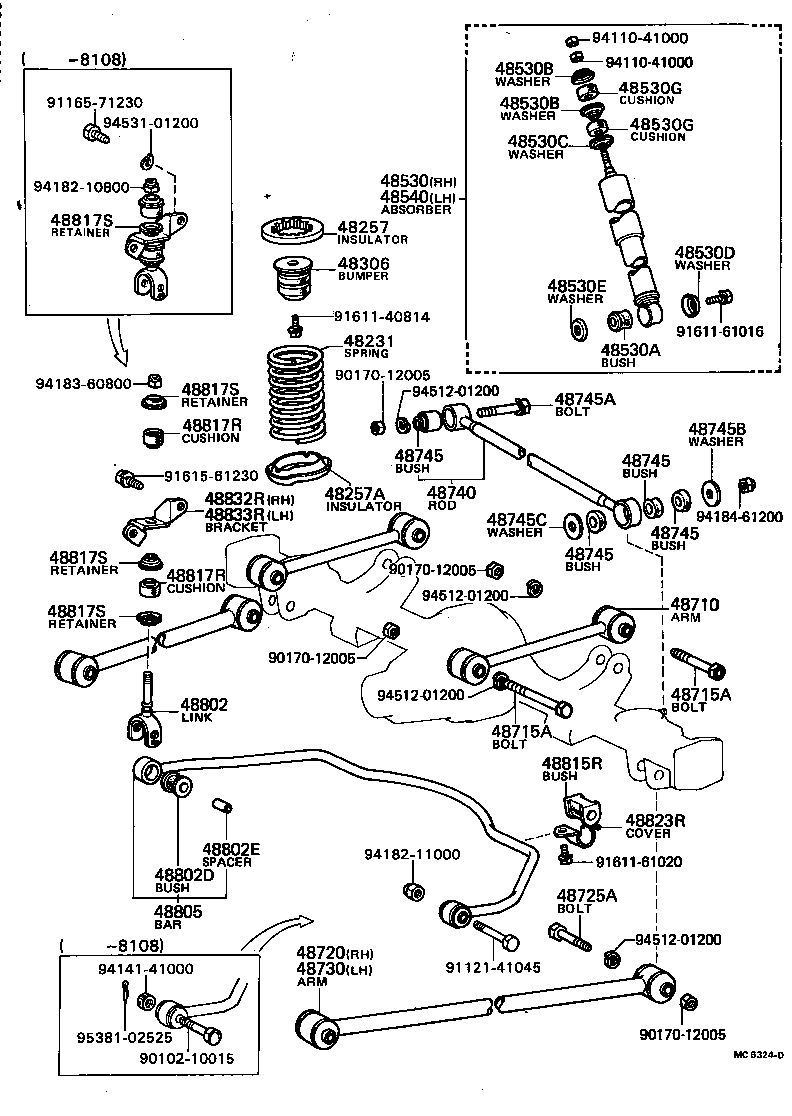

Click highlighted areas on diagram

diagram 48231 48257 48257A 48306 48530 48530A 48530B 48530B 48530C 48530D 48530E 48530G 48530G 48540 48710 48715A 48715A 48720 48725A 48730 48740 48745 48745 48745 48745 48745A 48745B 48745C 48802 48802D 48802E 48805 48815R 48817R 48817R 48817S 48817S 48817S 48817S 48823R 48832R 48833R 9010210015 9017012005 9017012005 9017012005 9017012005 9112141045 9116571230 9161140814 9161161016 9161161020 9161561230 9411041000 9411041000 9414141000 9418210800 9418211000 9418360800 9418461200 9451201200 9451201200 9451201200 9451201200 9453101200 9538102525
Part # Description Qty Price
48231 - SPRING, COIL, REAR
48231-12080

CE70,KE70,TE7#..SED..(EUR,GEN,SA,SAA)

 2
48257 - INSULATOR, REAR COIL SPRING
48257-12020

AE71,CE70,KE70,TE7#..CP,LB,SED

 2
48257A - INSULATOR, REAR COIL SPRING, LOWER
48258-12010

AE71,CE70,KE70,TE7#..CP,LB,SED

 2
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-14030

AE71,CE70,KE70,TE7#..CP,LB,SED

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-19665

KE70..CP,LB,SED

 1
48531-19666

KE70..(CP,LB,SED)..(EUR,GEN,SAA)

 1
48531-19666

KE70..(CP,LB,SED)..(EUR,GEN,SA,SAA)

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16001

AE71,CE70,KE70,TE7#

 2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-02002

AE71,CE70,KE70,TE7#

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-02002

AE71,CE70,KE70,TE7#

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-02007

AE71,CE70,KE70,TE7#

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03012

AE71,CE70,KE70,TE7#..ARL,EUR,GEN,SA

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

AE71,CE70,KE70,TE7#

 2
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01003

KE70,TE7#

 4
90948-01018

KE70,TE7#..CP,LB,SED

 4
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01003

KE70,TE7#

 4
90948-01018

KE70,TE7#..CP,LB,SED

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-19665

KE70..CP,LB,SED

 1
48531-19666

KE70..(CP,LB,SED)..(EUR,GEN,SAA)

 1
48531-19666

KE70..(CP,LB,SED)..(EUR,GEN,SA,SAA)

 1
48710 - ARM ASSY, UPPER CONTROL
48710-12010

AE71,CE70,KE70,TE7#..SED

 2
48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM)
90101-12045

AE71,CE70,KE70,TE7#..CP,LB,SED

L=149

 2
90101-12044

AE71,CE70,KE70,TE7#..CP,LB,SED

L=77

 2
48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM)
90101-12045

AE71,CE70,KE70,TE7#..CP,LB,SED

L=149

 2
90101-12044

AE71,CE70,KE70,TE7#..CP,LB,SED

L=77

 2
48720 - ARM ASSY, LOWER CONTROL, RH
48720-12020

AE71,CE70,KE70,TE7#..CP,LB,SED

 1
48725A - BOLT(FOR LOWER CONTROL ARM)
90101-12044

AE71,CE70,KE70,TE7#..CP,LB,SED

 4
48730 - ARM ASSY, LOWER CONTROL, LH
48720-12020

AE71,CE70,KE70,TE7#..CP,LB,SED

 1
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-12020

KE70,TE7#..(CP,LB,SED)..EUR

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-20001

AE71,CE70,KE70,TE7#..CP,LB,SED

ROD X HOUSING,L=15

 2
90386-20001

AE71,CE70,KE70,TE7#..CP,LB,SED

ROD X HOUSING,L=12

 1
48706-14010

AE71,CE70,KE70,TE7#..CP,LB,SED

ROD X BODY

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-20001

AE71,CE70,KE70,TE7#..CP,LB,SED

ROD X HOUSING,L=15

 2
90386-20001

AE71,CE70,KE70,TE7#..CP,LB,SED

ROD X HOUSING,L=12

 1
48706-14010

AE71,CE70,KE70,TE7#..CP,LB,SED

ROD X BODY

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-20001

AE71,CE70,KE70,TE7#..CP,LB,SED

ROD X HOUSING,L=15

 2
90386-20001

AE71,CE70,KE70,TE7#..CP,LB,SED

ROD X HOUSING,L=12

 1
48706-14010

AE71,CE70,KE70,TE7#..CP,LB,SED

ROD X BODY

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-20001

AE71,CE70,KE70,TE7#..CP,LB,SED

ROD X HOUSING,L=15

 2
90386-20001

AE71,CE70,KE70,TE7#..CP,LB,SED

ROD X HOUSING,L=12

 1
48706-14010

AE71,CE70,KE70,TE7#..CP,LB,SED

ROD X BODY

 1
48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD)
90101-12032

AE71,CE70,KE70,TE7#..CP,LB,SED

 1
48745B - WASHER, LATERAL CONTROL ROD CUSHION
90201-12010

AE71,CE70,KE70,TE7#..CP,LB,SED

 1
48745C - WASHER, LATERAL CONTROL ROD CUSHION
94612-12000

AE71,CE70,KE70,TE7#..CP,LB,SED

 1
Common parts
90102-10015
90170-12005
91121-41045
91165-71230
91611-40814
91611-61016
91611-61020
91615-61230
94110-41000
94141-41000
94182-10800
94182-11000
94183-60800
94184-61200
94512-01200
94531-01200
95381-02525
