KE70L-EDKDCC (1979)
Toyota Corolla
Production
Aug 1979
-
Aug 1982
Engine
4KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7908- )AE71,KE70

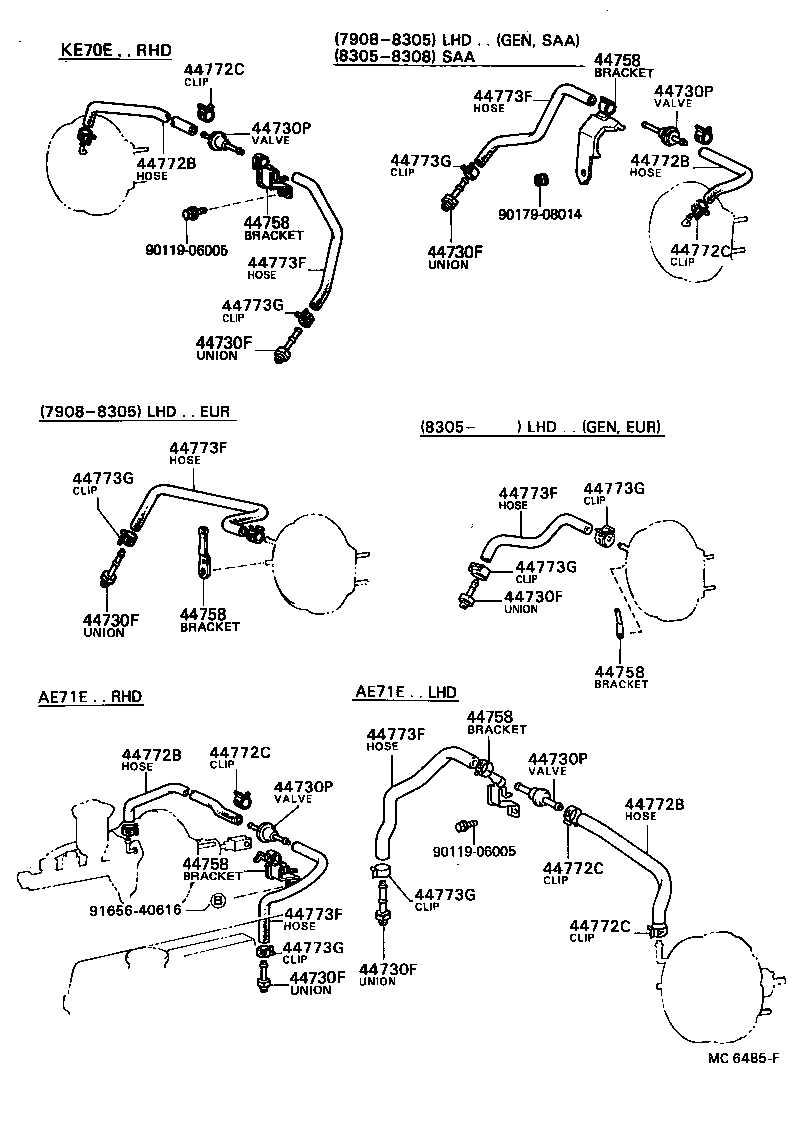

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51028 |
AE71,KE70 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51028 |
AE71,KE70 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51028 |
AE71,KE70 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51028 |
AE71,KE70 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51028 |
AE71,KE70 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51028 |
AE71,KE70 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-12160 |
KE70..LHD..EUR |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-12160 |
KE70..LHD..EUR |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-12160 |
KE70..LHD..EUR |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-12160 |
KE70..LHD..EUR |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-12160 |
KE70..LHD..EUR |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-12160 |
KE70..LHD..EUR |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12180 |
KE70..LHD..EUR |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12180 |
KE70..LHD..EUR |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12180 |
KE70..LHD..EUR |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12180 |
KE70..LHD..EUR |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12180 |
KE70..LHD..EUR |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12180 |
KE70..LHD..EUR |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16001 |
KE70,TE7# |
2 | ||
| 90467-16141 |
KE70,TE7# |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16001 |
KE70,TE7# |
2 | ||
| 90467-16141 |
KE70,TE7# |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16001 |
KE70,TE7# |
2 | ||
| 90467-16141 |
KE70,TE7# |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16001 |
KE70,TE7# |
2 | ||
| 90467-16141 |
KE70,TE7# |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16001 |
KE70,TE7# |
2 | ||
| 90467-16141 |
KE70,TE7# |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16001 |
KE70,TE7# |
2 | ||
| 90467-16141 |
KE70,TE7# |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16001 |
KE70,TE7# |
2 | ||
| 90467-16141 |
KE70,TE7# |
2 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90179-08014 | ||||
| 91656-40616 | ||||
