KE70L-EDKDCC (1979)

Toyota Corolla

Production Aug 1979 - Aug 1982
Engine 4KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )

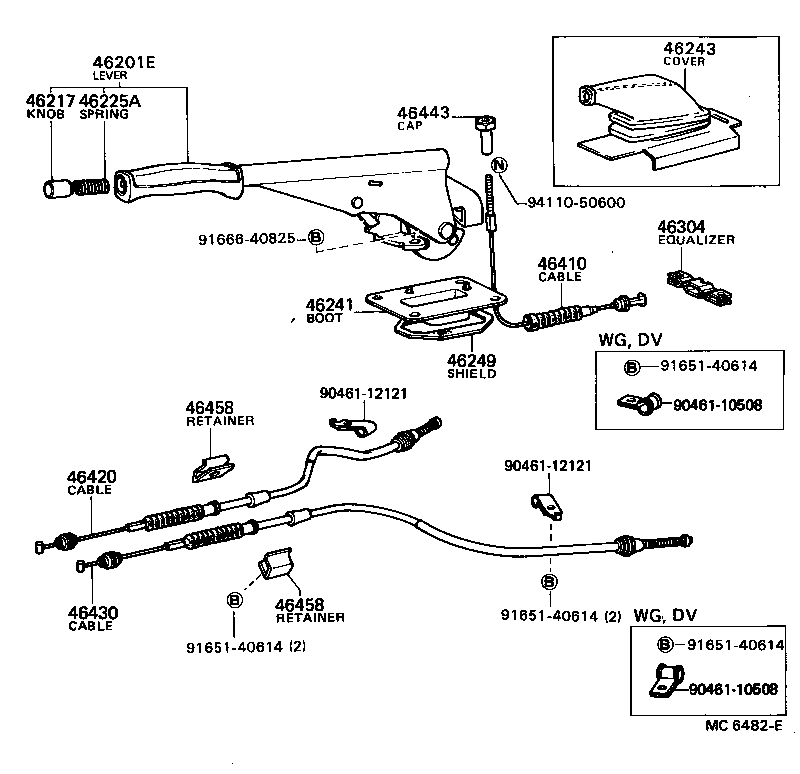

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46241 46243 46249 46304 46410 46420 46430 46443 46458 46458 9046110508 9046110508 9046112121 9046112121 9165140614 9165140614 9165140614 9165140614 9166640825 9411050600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-12050

KE70,TE7#..EUR

 1
46201-1207014

KE70,TE7#..DX,GL,GT,SE,SR,XE,XL

BLUE,BLUE,TRIM8#

 1
46201-1207006

KE70,TE7#..(DX,GL,GT,SR,XE,XL)..(EUR,GEN,SAA)

DARK BROWN,BROWN,TRIM8#

 1
46201-1207004

KE70,TE7#..DX,GL,GT,SE,SR,XE,XL

BLUE,BLUE,TRIM8#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1002004

KE70,TE7#..DX,GL,GT,SE,SR,XE,XL

BLUE,BLUE,TRIM8#

 1
46217-12010

KE70,TE7#..EUR

 1
46217-1002026

KE70,TE7#..(DX,GL,GT,SR,XE,XL)..(EUR,GEN,SAA)

DARK BROWN,BROWN,TRIM4#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10745

AE71,CE70,KE70,TE7#

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-12050

AE71,CE70,KE70,TE7#

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-22020

AE71,CE70,KE70,TE7#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-12010

AE71,CE70,KE70,TE7#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-12070

AE71,CE70,KE70,TE7#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-12210

KE70..(CP,LB,SED)..(ARL,EUR,GEN,SAA)

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12110

KE70..(CP,LB,SED)..(ARL,EUR,GEN,SAA)

 1
46443 - CAP, CABLE ADJUSTING
46443-12040

AE71,CE70,KE70,TE7#

 1
46458 - RETAINER, CABLE
46458-20020

AE71,CE70,KE70,TE7#

 2
46458 - RETAINER, CABLE
46458-20020

AE71,CE70,KE70,TE7#

 2
Common parts
90461-10508
90461-12121
91651-40614
91666-40825
94110-50600
