KE70L-EDKDCC (1979)

Toyota Corolla

Production Aug 1979 - Aug 1982
Engine 4KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )

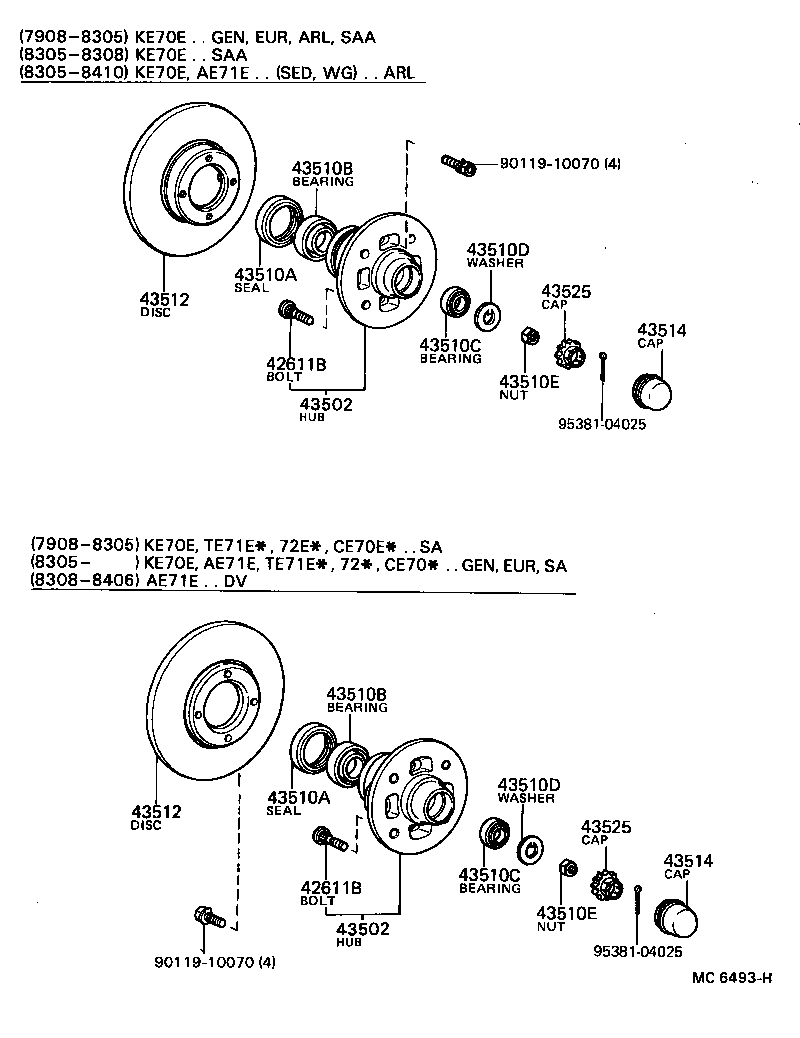

Click highlighted areas on diagram

diagram 42611B 42611B 43502 43502 43510A 43510A 43510B 43510B 43510C 43510C 43510D 43510D 43510E 43510E 43512 43512 43514 43514 43525 43525 9011910070 9011910070 9538104025 9538104025
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02036

CE70,KE70,TE7#

 8
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02036

CE70,KE70,TE7#

 8
43502 - HUB SUB-ASSY, FRONT AXLE
43502-12040

KE70..ARL,EUR,GEN,SAA

 2
43502 - HUB SUB-ASSY, FRONT AXLE
43502-12040

KE70..ARL,EUR,GEN,SAA

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-41123

AE71,CE70,KE70,TE7#

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-41123

AE71,CE70,KE70,TE7#

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-29068

AE71,CE70,KE70,TE7#

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-29068

AE71,CE70,KE70,TE7#

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-17017

AE71,CE70,KE70,TE7#

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-17017

AE71,CE70,KE70,TE7#

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-16010

AE71,CE70,KE70,TE7#

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-16010

AE71,CE70,KE70,TE7#

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-16137

AE71,CE70,KE70,TE7#

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-16137

AE71,CE70,KE70,TE7#

 2
43512 - DISC, FRONT
43512-12110

KE70..EUR

 2
43512 - DISC, FRONT
43512-12110

KE70..EUR

 2
43514 - CAP, FRONT HUB GREASE
43514-20010

AE71,CE70,KE70,TE7#

 2
43514 - CAP, FRONT HUB GREASE
43514-20010

AE71,CE70,KE70,TE7#

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-20011

AE71,CE70,KE70,TE7#

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-20011

AE71,CE70,KE70,TE7#

 2
Common parts
90119-10070
95381-04025
