KE70L-EDKDCC (1979)

Toyota Corolla

Production Aug 1979 - Aug 1982
Engine 4KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )KE70..LHD..MTM

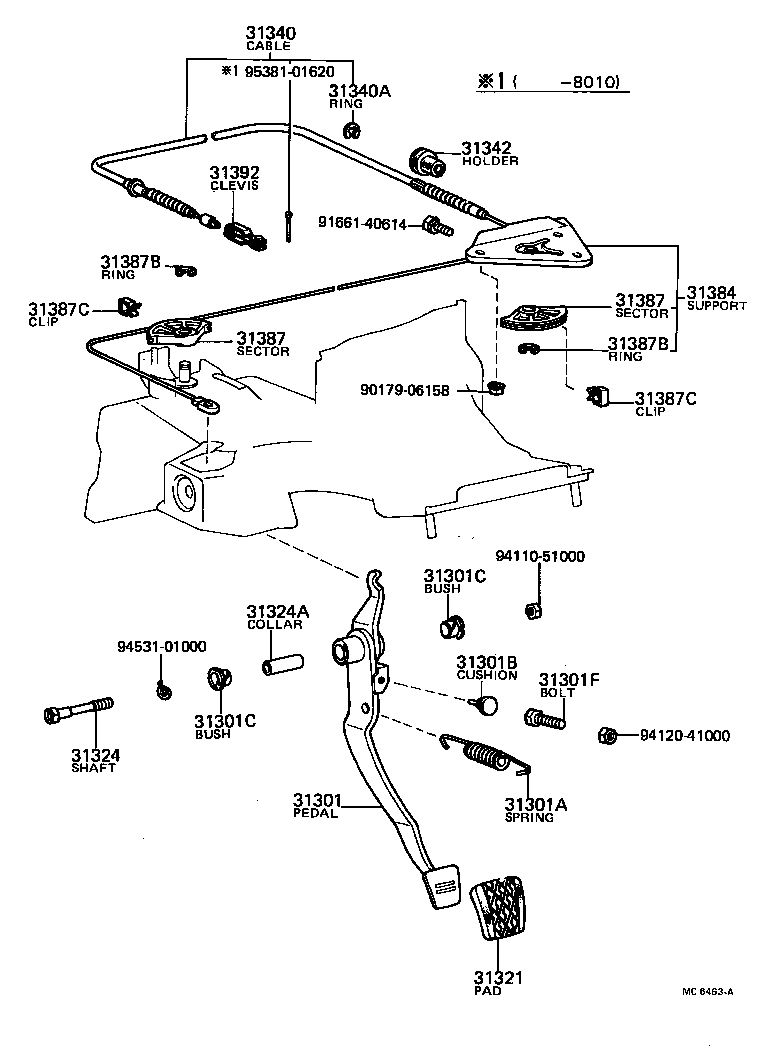

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31340 31340A 31342 31384 31387 31387 31387B 31387B 31387C 31387C 31392 9017906158 9166140614 9411051000 9412041000 9453101000 9538101620
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12130

KE70..LHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14003

KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-12030

KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-19225

KE70..LHD..MTM

 1
31340A - RING, E(FOR CLUTCH RELEASE CABLE)
96160-01200

KE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM

 1
31342 - HOLDER, CLUTCH CABLE, INNER
31342-12902

KE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM

 1
31384 - SUPPORT ASSY, CLUTCH RELEASE SECTOR
31030-12041

KE70..LHD..MTM

 1
31387 - SECTOR, CLUTCH RELEASE
31387-10010

KE70..LHD..MTM

 2
31387 - SECTOR, CLUTCH RELEASE
31387-10010

KE70..LHD..MTM

 2
31387B - RING, E(FOR CLUTCH RELEASE SECTOR)
96160-00800

KE70..LHD..MTM

 2
31387B - RING, E(FOR CLUTCH RELEASE SECTOR)
96160-00800

KE70..LHD..MTM

 2
31387C - CLIP(FOR CLUTCH RELEASE SECTOR)
90468-06008

KE70..LHD..MTM

 2
31387C - CLIP(FOR CLUTCH RELEASE SECTOR)
90468-06008

KE70..LHD..MTM

 2
31392 - CLEVIS, CLUTCH CABLE
31392-10010

KE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM..(EUR,GEN,SA,SAA)

 1
Common parts
90179-06158
91661-40614
94110-51000
94120-41000
94531-01000
95381-01620
