KE70L-EDKDCC (1979)
Toyota Corolla
Production
Aug 1979
-
Aug 1982
Engine
4KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

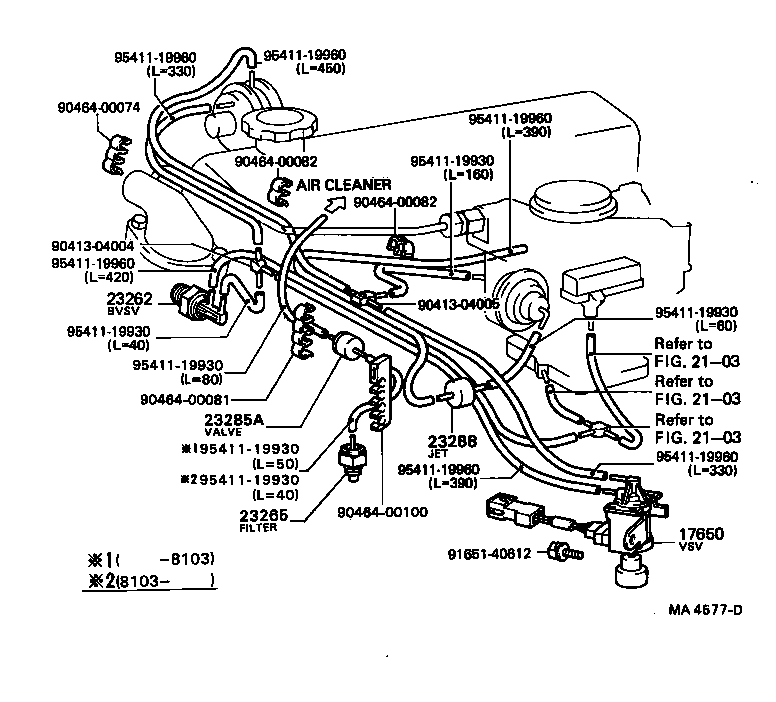

(7908-8108)4KC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12130 |
4KC..KE70 TCS |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05016 |
4KC..KE70 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
4KC..KE70 |
1 | ||
| 90917-11024 |
4K#..KE70..MTM..EUR DENSO |
1 | ||
| 90917-11027 |
4K#..KE70..MTM..EUR AISIN |
1 | ||
| 90917-11022 |
4K#..KE70..EUR |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4K#..KE70..EUR |
1 | ||
| 90917-10049 |
4KC..KE70 |
1 | ||
| Common parts | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00100 | ||||
| 91651-40612 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||

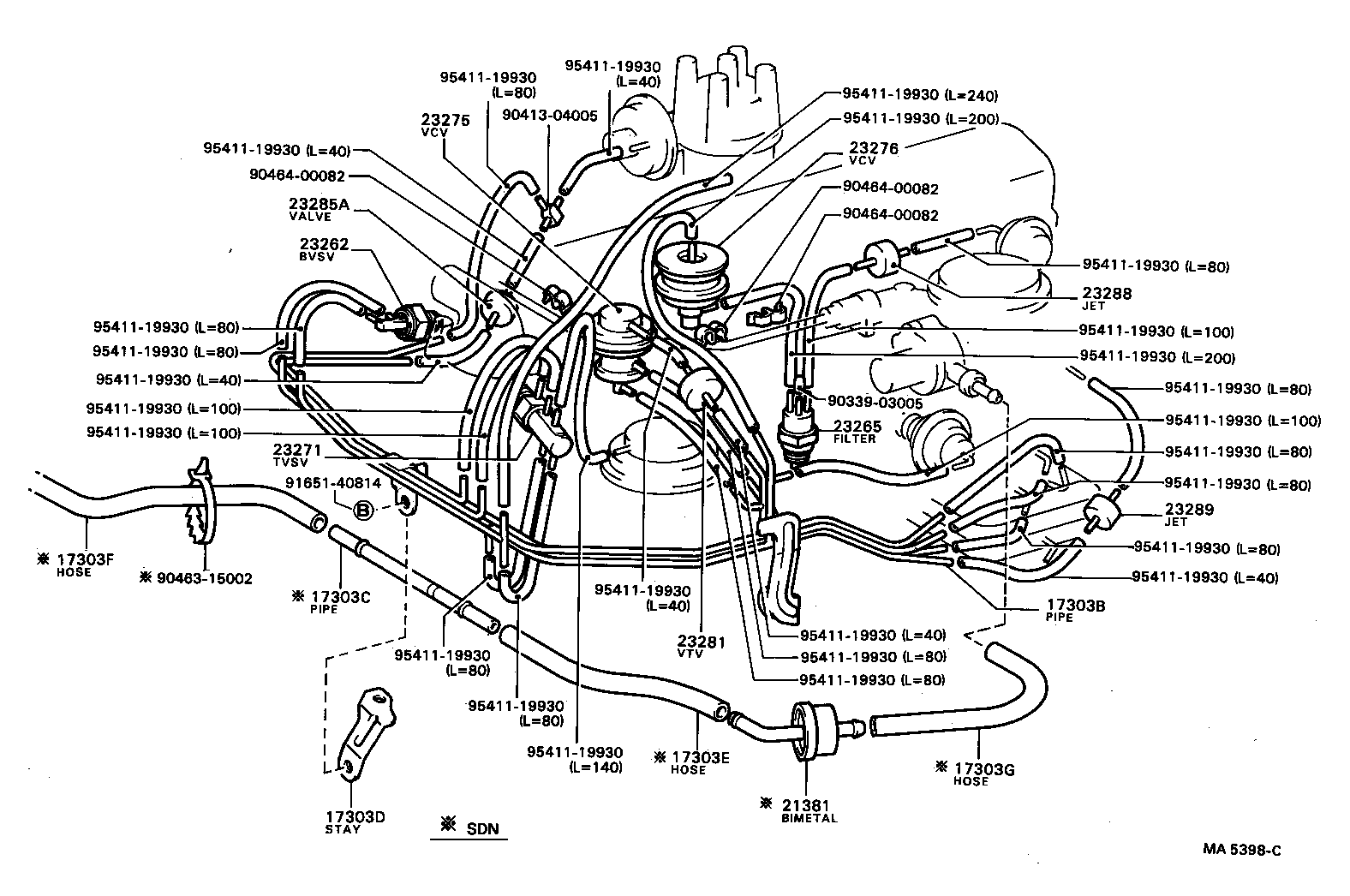

(8108-8208)4KC..SDN ; (8108-8309)4KC..2D..ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-13090 |
4KC..KE70..2D;4KC..KE70..4D..SDN |
1 | ||
| 17303D - STAY, PIPE CLAMP(FOR AIR PIPE) | ||||
| 16589-13010 |
4KC..KE70..2D;4KC..KE70..4D..SDN |
1 | ||
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14084 |
4KC..KE70..SDN |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05016 |
4KC..KE70 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
4KC..KE70 |
1 | ||
| 90917-11024 |
4K#..KE70..MTM..EUR DENSO |
1 | ||
| 90917-11027 |
4K#..KE70..MTM..EUR AISIN |
1 | ||
| 90917-11022 |
4K#..KE70..EUR |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02067 |
4KC..KE70 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03113 |
4KC..KE70..MTM |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03126 |
4KC..KE70..MTM |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01062 |
4KC..KE70 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4K#..KE70..EUR |
1 | ||
| 90917-10049 |
4KC..KE70 |
1 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04005 |
4KC..KE70..SDN |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90463-15002 | ||||
| 90464-00082 | ||||
| 91651-40814 | ||||
| 95411-19930 | ||||

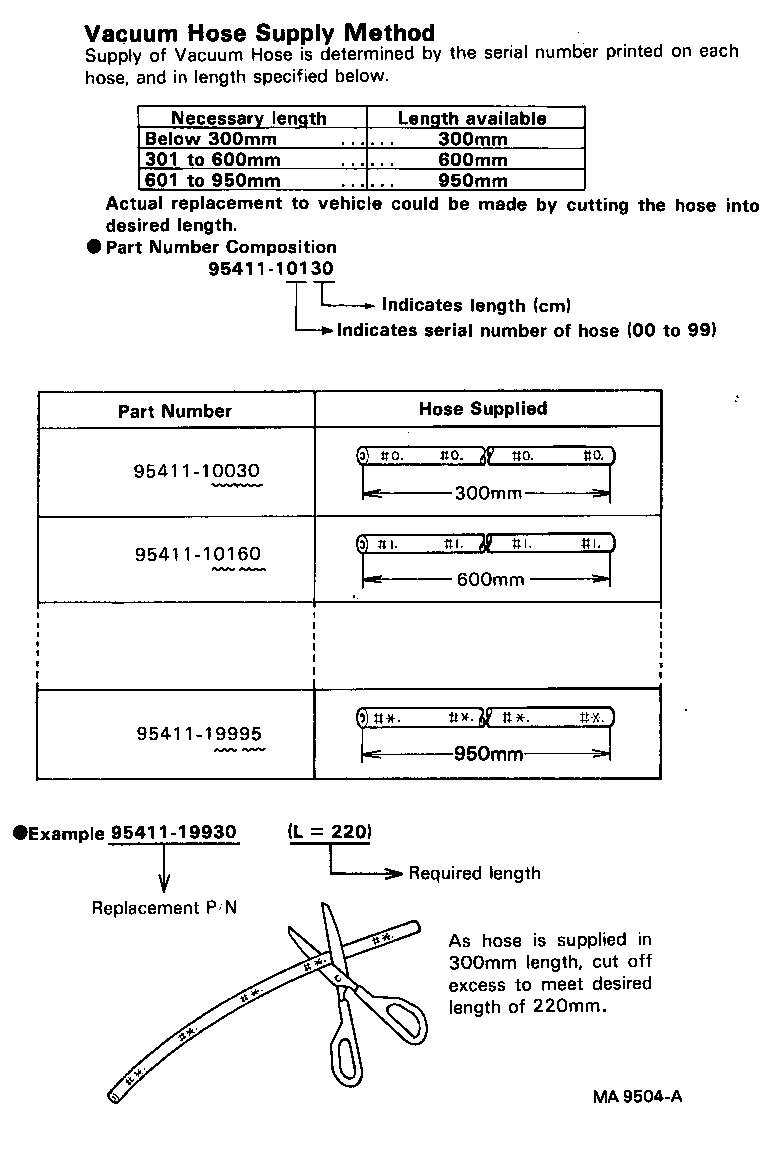

(7908- )4K#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||

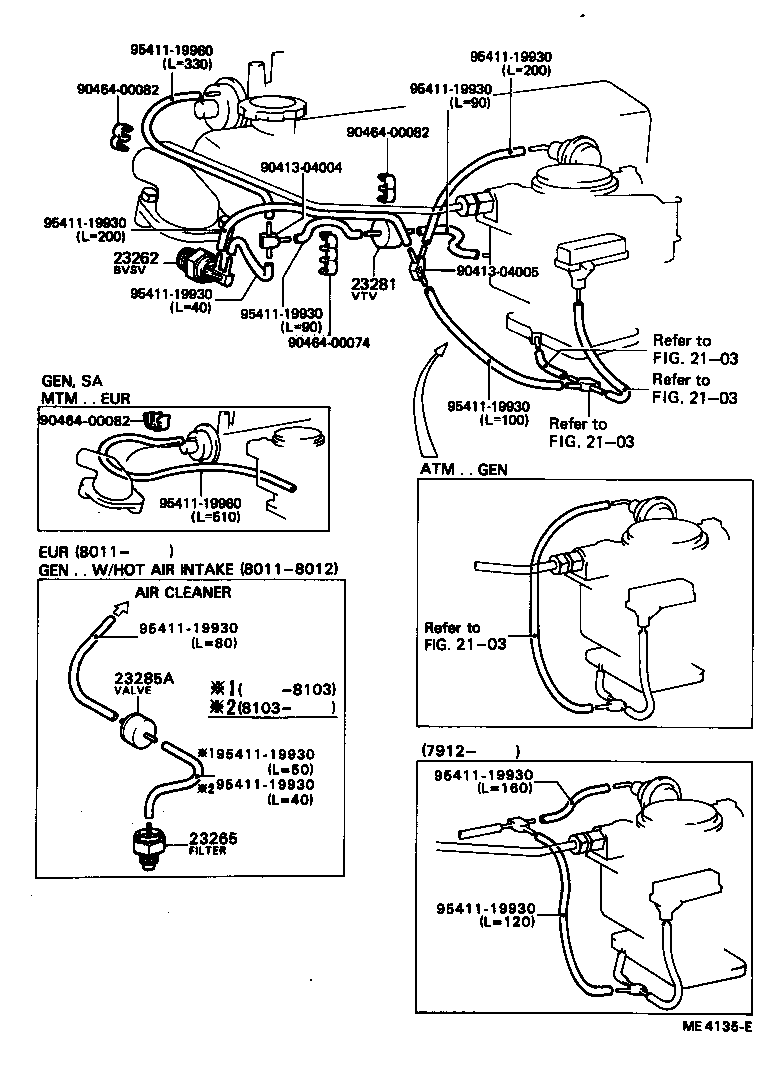

(7908-8108)4K
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05016 |
4KC..KE70 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
4KC..KE70 |
1 | ||
| 90917-11024 |
4K#..KE70..MTM..EUR DENSO |
1 | ||
| 90917-11027 |
4K#..KE70..MTM..EUR AISIN |
1 | ||
| 90917-11022 |
4K#..KE70..EUR |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01062 |
4KC..KE70 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4K#..KE70..EUR |
1 | ||
| 90917-10049 |
4KC..KE70 |
1 | ||
| Common parts | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||
