KE70L-EDKDCC (1979)

Toyota Corolla

Production Aug 1979 - Aug 1982
Engine 4KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )4K#

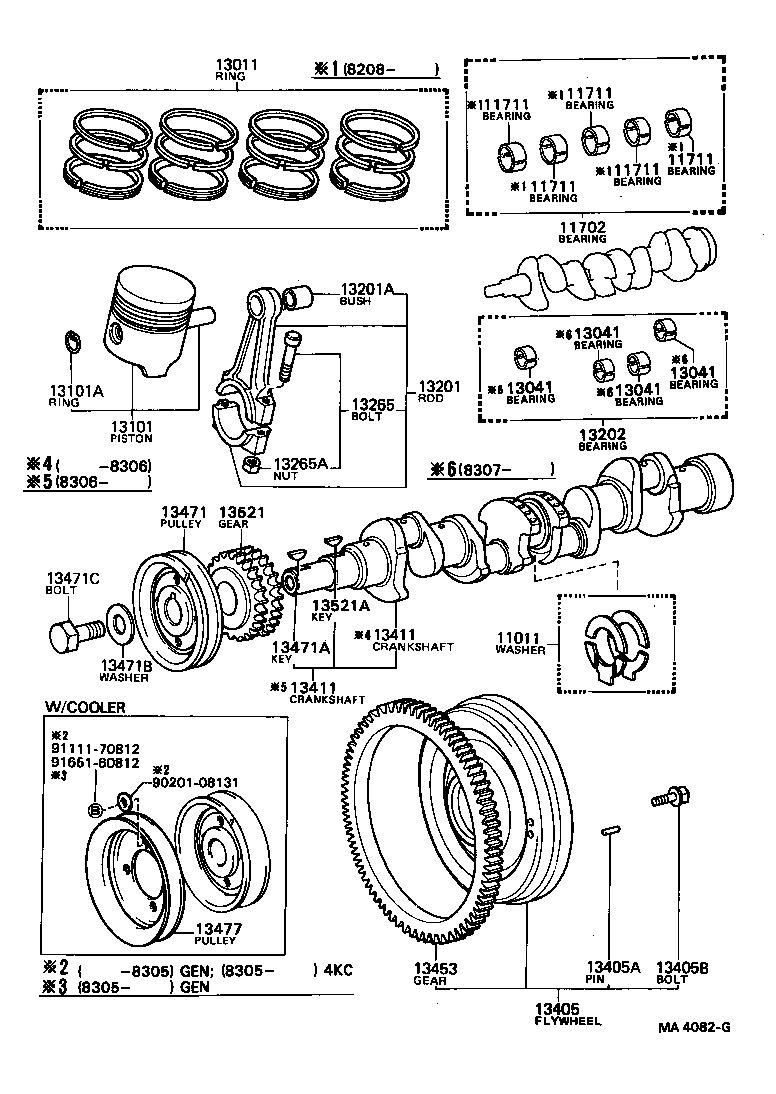

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13411 13453 13471 13471A 13471B 13471C 13477 13521 13521A 9020108131 9111170812 9165160812
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-22011

4K#..KE70

STD,STD

 1
11013-22011

4K#..KE70

O/S 0.250,O/S 0.250

 1
11012-22011

4K#..KE70

O/S 0.125,O/S 0.125

 1
11702 - BEARING SET, CRANKSHAFT
11705-22020

4K#..KE70

U/S 0.50

 1
11704-22020

4K#..KE70

U/S 0.25,U/S 0.25

 1
11702-22020

4K#..KE70

STD

 1
11703-22020

4K#..KE70

U/S 0.05

 1
13011 - RING SET, PISTON
13011-24011

4K#..KE70

STD

 1
13015-24011

4K#..KE70

O/S 1.00

 1
13014-24011

4K#..KE70

O/S 0.75

 1
13013-24012

4K#..KE70

O/S 0.50

 1
13011-24012

4K#..KE70

STD,STD

 1
13015-24012

4K#..KE70

O/S 1.00

 1
13011-24012

4KC..KE70;4K..KE70..GEN,SA,SAA

STD,STD

 1
13013-24012

4KC..KE70;4K..KE70..GEN,SA,SAA

O/S 0.50

 1
13011-24012

4KC..KE70..SDN;4K..KE70..GEN,SA,SAA

STD,STD

 1
13015-24012

4KC..KE70;4K..KE70..GEN,SA,SAA

O/S 1.00

 1
13013-24011

4K#..KE70

O/S 0.50

 1
13014-24012

4K#..KE70

O/S 0.75

 1
13014-24012

4KC..KE70..SDN;4K..KE70..GEN,SA,SAA

O/S 0.75

 1
13014-24012

4KC..KE70;4K..KE70..GEN,SA,SAA

O/S 0.75

 1
13013-24012

4KC..KE70..SDN;4K..KE70..GEN,SA,SAA

O/S 0.50

 1
13015-24012

4KC..KE70..SDN;4K..KE70..GEN,SA,SAA

O/S 1.00

 1
13101 - PISTON SUB-ASSY, W/PIN
13103-24010

4K#..KE70

O/S 0.50,O/S 0.50

 4
13101-24011

4K#..KE70

STD,STD

 4
13104-24010

4K#..KE70

O/S 0.75,O/S 0.75

 4
13105-24010

4K#..KE70

O/S 1.00,O/S 1.00

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-21088

4K#..KE70

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-13010

4K#..KE70

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73070

4K#..KE70

 4
13202 - BEARING SET, CONNECTING ROD
13203-13010

4K#..KE70

U/S 0.05,U/S 0.05

 1
13202-13010

4K#..KE70

STD,STD

 1
13206-13010

4K#..KE70

U/S 0.75,U/S 0.75

 1
13204-13010

4K#..KE70

U/S 0.25,U/S 0.25

 1
13205-13010

4K#..KE70

U/S 0.50,U/S 0.50

 1
13265 - BOLT, CONNECTING ROD
13265-29015

4K#..KE70

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09195

4K#..KE70

 8
13405 - FLYWHEEL SUB-ASSY
13405-19035

4K..KE70..CP..5F;4K..KE70..CP..LHD..4F;4K#..KE70..(DV,LB,SED,WG)..MTM

N=106

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08120

4K..KE70..CP..5F;4K..KE70..CP..LHD..4F;4K#..KE70..(DV,LB,SED,WG)..MTM

L=18,OD=8,L=18,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90913-01005

4K..KE70..CP..5F;4K..KE70..CP..LHD..4F;4K#..KE70..(DV,LB,SED,WG)..MTM

 6
13411 - CRANKSHAFT
13411-13010

4K#..KE70

 1
13411 - CRANKSHAFT
13411-13010

4K#..KE70

 1
13453 - GEAR, FLYWHEEL RING
13453-10010

4K..KE70..CP..5F;4K..KE70..CP..LHD..4F;4K#..KE70..(DV,LB,SED,WG)..MTM

N=106

 1
13471 - PULLEY, CRANKSHAFT
13471-13020

4K#..KE70

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

4K#..KE70

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90209-13003

4K#..KE70

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-12050

4K#..KE70

 1
90105-12050

4K#..KE70

 1
90105-12050

4K#..KE70

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-22010

4K#..KE70

N=18

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

4K#..KE70

 1
Common parts
90201-08131
91111-70812
91651-60812
