KE70L-EDHDSW (1981)
Toyota Corolla
Production
Aug 1981
-
May 1983
Engine
4K
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7908-8401)TE7#..ATM ; (8108- )AE71,KE70..3FC

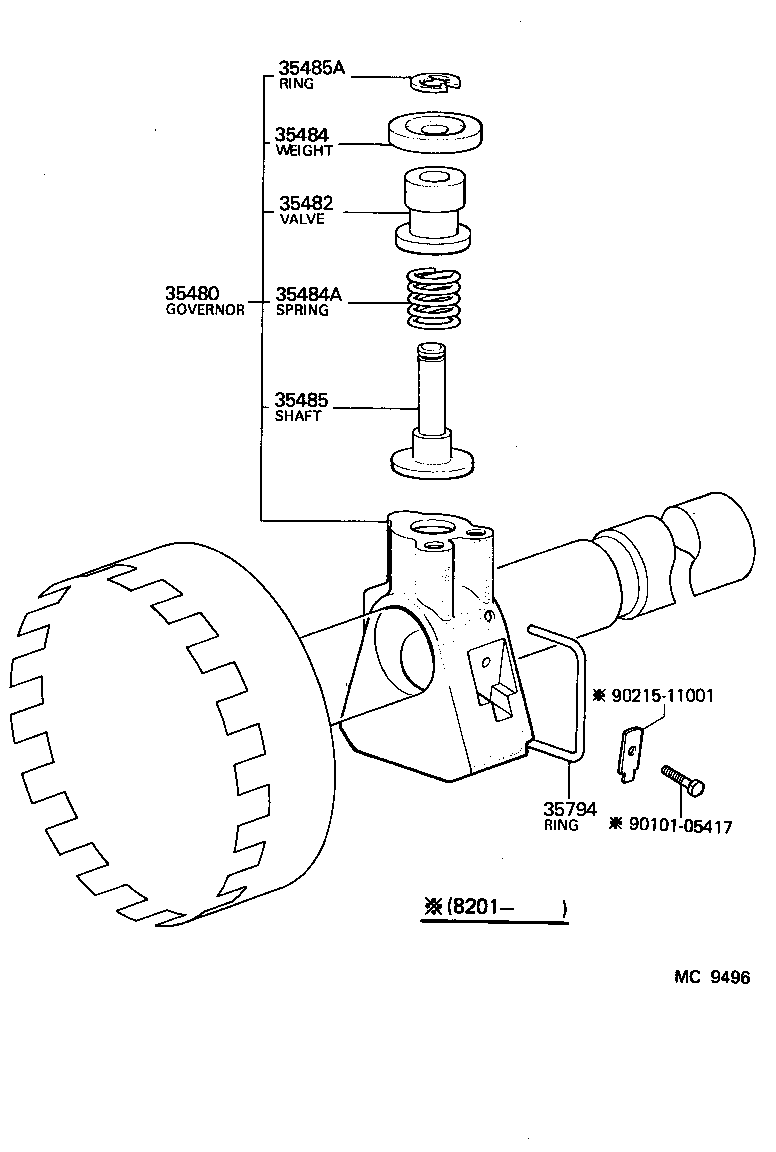

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35480 - GOVERNOR | ||||
| 35480-26010 |
KE70..3FC..(EUR,GEN) |
1 | ||
| 35480-20010 |
KE70..3FC..(EUR,GEN) |
1 | ||
| 35482 - VALVE, GOVERNOR | ||||
| 35482-22010 |
KE70,TE7#..ATM..(EUR,GEN,SA) |
1 | ||
| 35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT) | ||||
| 90501-09015 |
KE70..3FC..(EUR,GEN) |
1 | ||
| Common parts | ||||
| 90101-05417 | ||||
| 90215-11001 | ||||
