KE70L-ECMDSW (1979)

Toyota Corolla

Production Aug 1979 - May 1983
Engine 4K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)CP,LB,SED ; (8108-8204)SA

Click highlighted areas on diagram

diagram 52015A 52015A 52016A 52016A 52151 52151 52152B 52153B 9011208025 9011208025 9011208027 9011208027 9017908037 9017908037 9017908037 9017908037 9017908143 9017908143 9017908143 9017908167 9020207007 9020207007 9020207007 9020207007 9095001210 9095001253 9165540820
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-12100

KE70,TE7#..(CP,LB)..(EUR,GEN)

 1
52181-12170

KE70,TE7#..CP,LB

 1
52015-12100

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

 1
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-12100

KE70,TE7#..(CP,LB)..(EUR,GEN)

 1
52181-12170

KE70,TE7#..CP,LB

 1
52015-12100

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-12100

KE70,TE7#..(CP,LB)..(EUR,GEN)

 1
52182-12170

KE70,TE7#..CP,LB

 1
52016-12100

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-12100

KE70,TE7#..(CP,LB)..(EUR,GEN)

 1
52182-12170

KE70,TE7#..CP,LB

 1
52016-12100

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

 1
52151 - BUMPER ASSY, REAR
52151-19575

KE70,TE7#..(CP,LB)..(EUR,GEN)

BLACK

 1
52151-19575

KE70,TE71..CP,LB

BLACK

 1
52151-19735

KE70,TE7#..(CP,LB)..(EUR,GEN)

BLACK

 1
52151-19735

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

BLACK,W/PROTECTOR

 1
52151 - BUMPER ASSY, REAR
52151-19575

KE70,TE7#..(CP,LB)..(EUR,GEN)

BLACK

 1
52151-19575

KE70,TE71..CP,LB

BLACK

 1
52151-19735

KE70,TE7#..(CP,LB)..(EUR,GEN)

BLACK

 1
52151-19735

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

BLACK,W/PROTECTOR

 1
52152B - EXTENSION, REAR BUMPER, RH
52106-19245

KE70,TE7#..(CP,LB)..(EUR,GEN)

 1
52106-19245

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-19275

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

 1
52107-19275

KE70,TE7#..(CP,LB)..(EUR,GEN)

 1
Common parts
90112-08025
90112-08027
90179-08037
90179-08143
90179-08167
90202-07007
90950-01210
90950-01253
91655-40820

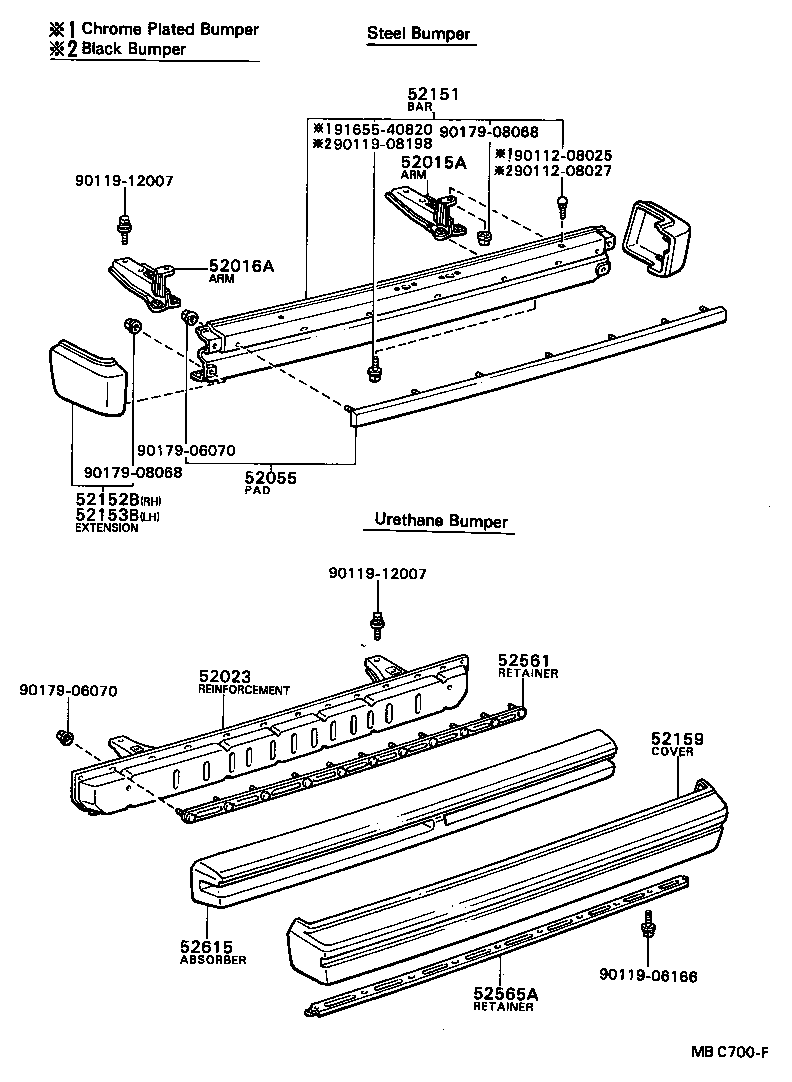

(8108-8204)CP,LB..ARL,EUR,GEN,SAA ; (8204-8406)CP,LB

Click highlighted areas on diagram

diagram 52015A 52016A 52023 52055 52151 52152B 52153B 52159 52561 52565A 52615 9011208025 9011208027 9011906166 9011908198 9011912007 9011912007 9017906070 9017906070 9017908068 9017908068 9165540820
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-12100

KE70,TE7#..(CP,LB)..(EUR,GEN)

 1
52181-12170

KE70,TE7#..CP,LB

 1
52015-12100

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-12100

KE70,TE7#..(CP,LB)..(EUR,GEN)

 1
52182-12170

KE70,TE7#..CP,LB

 1
52016-12100

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

 1
52055 - PAD SUB-ASSY, REAR BUMPER
52055-19105

KE70,TE7#..(CP,LB)..(EUR,GEN)

 1
52055-19105

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

 1
52151 - BUMPER ASSY, REAR
52151-19575

KE70,TE7#..(CP,LB)..(EUR,GEN)

BLACK

 1
52151-19575

KE70,TE71..CP,LB

BLACK

 1
52151-19735

KE70,TE7#..(CP,LB)..(EUR,GEN)

BLACK

 1
52151-19735

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

BLACK,W/PROTECTOR

 1
52152B - EXTENSION, REAR BUMPER, RH
52106-19245

KE70,TE7#..(CP,LB)..(EUR,GEN)

 1
52106-19245

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-19275

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

 1
52107-19275

KE70,TE7#..(CP,LB)..(EUR,GEN)

 1
Common parts
90112-08025
90112-08027
90119-06166
90119-08198
90119-12007
90179-06070
90179-08068
91655-40820

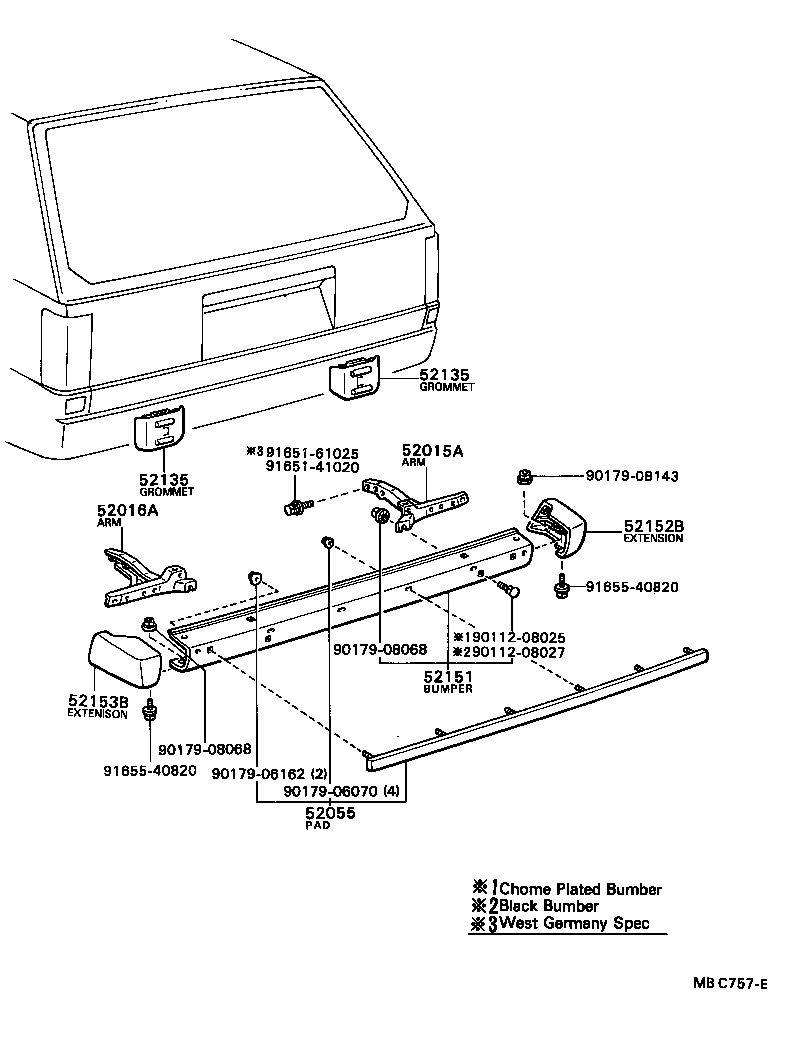

(7908-8108)DV,WG ; (8108-8204)DV,WG..EUR,GEN ; (8108-8406)AE71,KE70..2D..ARL ; (820

Click highlighted areas on diagram

diagram 52015A 52016A 52055 52135 52135 52151 52152B 52153B 9011208025 9011208027 9017906070 9017906162 9017908068 9017908068 9017908143 9165141020 9165161025 9165540820 9165540820
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-12100

KE70,TE7#..(CP,LB)..(EUR,GEN)

 1
52181-12170

KE70,TE7#..CP,LB

 1
52015-12100

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-12100

KE70,TE7#..(CP,LB)..(EUR,GEN)

 1
52182-12170

KE70,TE7#..CP,LB

 1
52016-12100

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

 1
52055 - PAD SUB-ASSY, REAR BUMPER
52055-19105

KE70,TE7#..(CP,LB)..(EUR,GEN)

 1
52055-19105

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

 1
52151 - BUMPER ASSY, REAR
52151-19575

KE70,TE7#..(CP,LB)..(EUR,GEN)

BLACK

 1
52151-19575

KE70,TE71..CP,LB

BLACK

 1
52151-19735

KE70,TE7#..(CP,LB)..(EUR,GEN)

BLACK

 1
52151-19735

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

BLACK,W/PROTECTOR

 1
52152B - EXTENSION, REAR BUMPER, RH
52106-19245

KE70,TE7#..(CP,LB)..(EUR,GEN)

 1
52106-19245

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-19275

KE70,TE7#..(CP,LB)..(EUR,GEN,SA)

 1
52107-19275

KE70,TE7#..(CP,LB)..(EUR,GEN)

 1
Common parts
90112-08025
90112-08027
90179-06070
90179-06162
90179-08068
90179-08143
91651-41020
91651-61025
91655-40820
